● IP65 protection level , IK07 impact protection standard

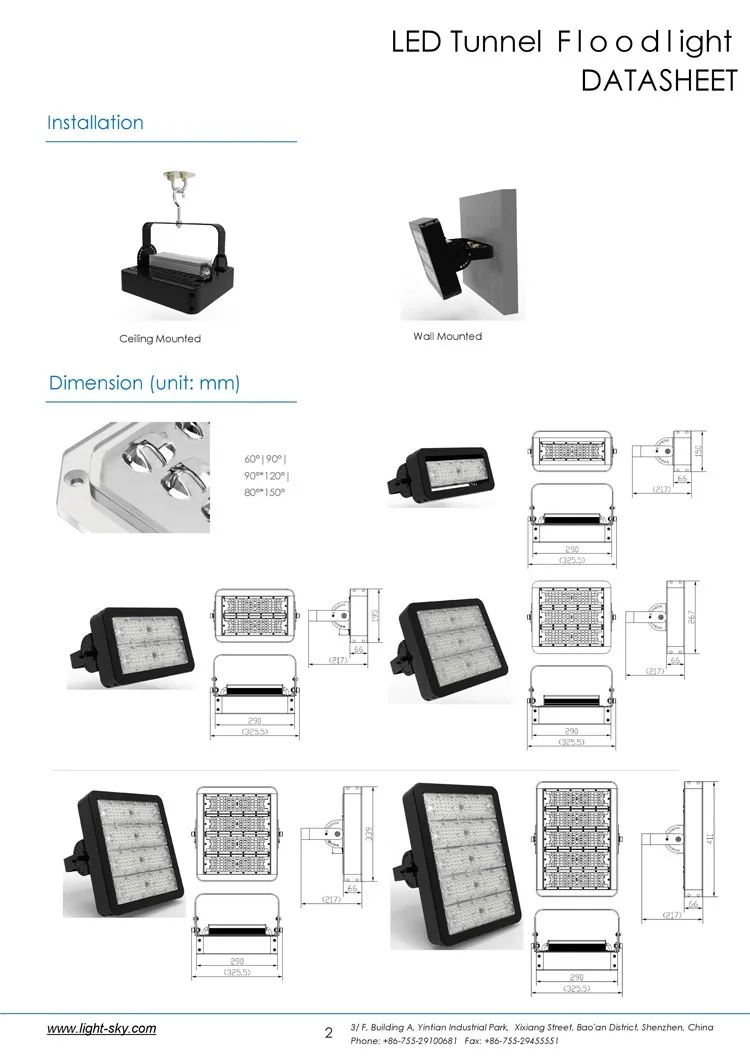

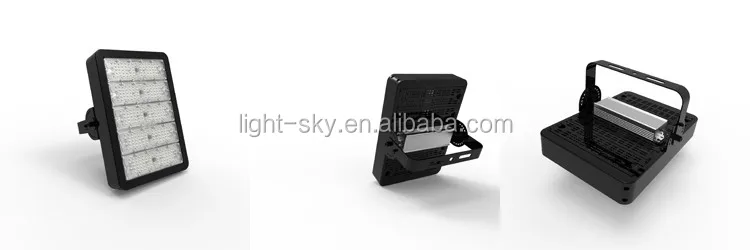

Detailed picture
Specification
Model No.
CLS-TN408-
50W
CLS-TN408-100W
CLS-TN408-
150W
CLS-TN408-200W
CLS-TN408-250W
Power
50W
100W
150W
200W
250W
Lumen
6000 lm
12000 lm
18000 lm
24000 lm
30000 lm
Power factor
>0.95
>0.95
>0.95
>0.95
>0.95
Input voltage
100-277 VAC
100-277 VAC
100-277 VAC
100-277 VAC
100-277 VAC

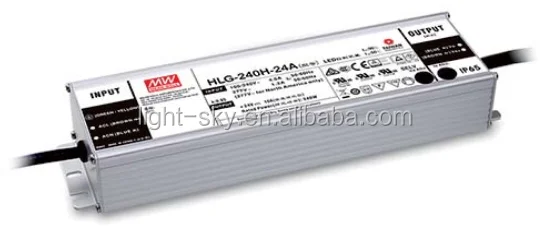

LED driver
Meanwell Driver or SOSEN Driver
CCT
3000K, 4000K, 5000K, 6000K
CRI
Ra>80
Luminous efficiency
120-130 lm/w

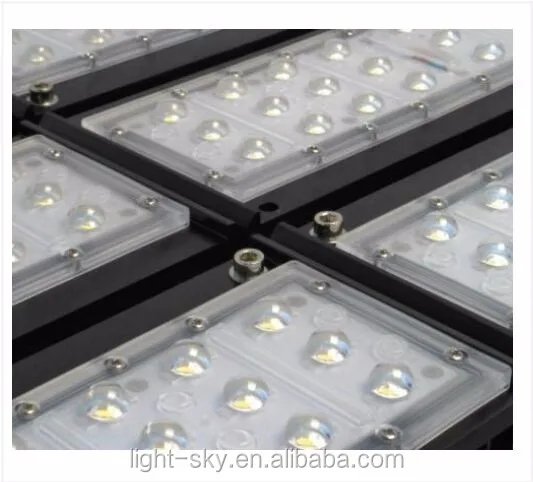

LED chip
SMD 3030 chips
Housing color
Black
Material
Aluminum
Collision protection level
IK07
IP grade
IP65
Light distribution
60°|90°|90°*120° |80°*150°
Working temperature
-30°C ~ +50°C
Lifespan
50000 Hours
Warranty
5 Yaers
Applications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
