high performance Jinan UNICHCNC 3d router for wood furniture/cnc carving marble granite stone machine
- Category: >>>
- Supplier: Jinan Lxshow Machinery Co. Ltd.
Share on (60742701728):
Product Overview
Description
high performance Jinan UNICHCNC router for wood furniture/cnc carving marble granite stone machine
Skype: export01_18
Whatsapp: 008613793193929
The machine feature:
1. Linear rails on X, Y (Y axis is controlled by two motors)and Z (screw transmission)axes are used to guarantee high accuracy and stable performance, and support heavy weight. Automatic grease feeding system safeguards easy regular maintenance.
2. Superior high power water-cooling spindle could keep working at low noise level, safeguarding stability for long-time operation.
3. Break-point memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.
4. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.
5. CNC controller enables easy and convenient operation, which makes end users to be familiar with the operation of the machine quickly.
Technical Parameter
Model | LXM1325 |
Working Zone: (X Y Z) | 1300×2500×200mm |
Table Size (W×L) | 1550×2950mm |
Resolution | <0.003mm |
Cutting Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.01mm |
Axis Drive System (X Y ) | Rack and pinion drive/ Hiwin rail linear bearing |
Drive Type | Stepper motor(Servo optional) |
Spindle | 3kw/4.5kw/6kw watercooling spindle (Italy HSD aircooling spindle optional) |
Max. Working speed | 30,000mm/min |
Collets Type | 3.175mm/ 4mm/ 6mm/8mm |
Command Code | G code, *mmg, *plt, *u00 |
Operational System Software | Type 3/Artcam |
Control System | DSP control system/ Nc-studio/Mach3 |
Interface | PCI/USB |
Table surface | T-slot Extrusion, vacuum table |
Voltage | AC220V±10%/50~60Hz |
Standard Work Surface | Aluminum profiles |
Weight | 1550KGS |
Frame | Steel Square Tubes |
The machine parts:
Heavy duty frame
Laser head and positioning cylinder
Mach3 control system

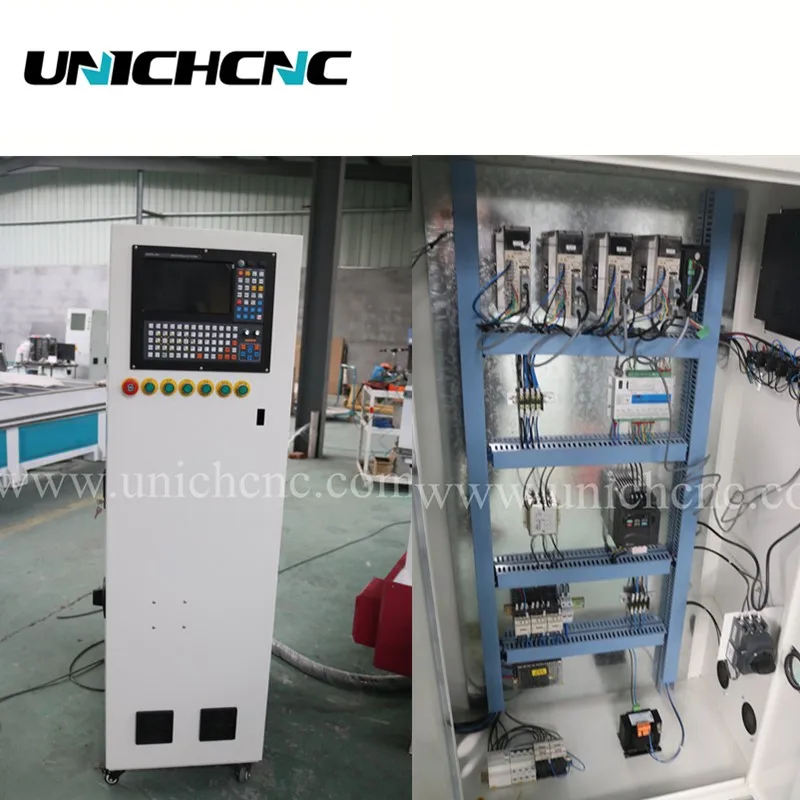

Control box
Gantry and T-solt table
The machine Application:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
1. Delivery and Package:
Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.
2. Guarantee:
24 months for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
3. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
4. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
If you want know more machine type or our company information, please check the blue Click
This is our hot sale machine link, please check it:
homemade cnc router machine for wood carving
Please contact Rebecca
JINAN UNICH MACHINERY CO.,LTD |
Name : Rebecca |
Skype : export01_18 |
WhatsApp : 008613793193929 |
Mob : +86-13793193929 |
