Factory wholesale QCA9531 Wireless openwrt industrial wifi router module

Oolite Box V1.0 wireless openwrt industrail wifi router module

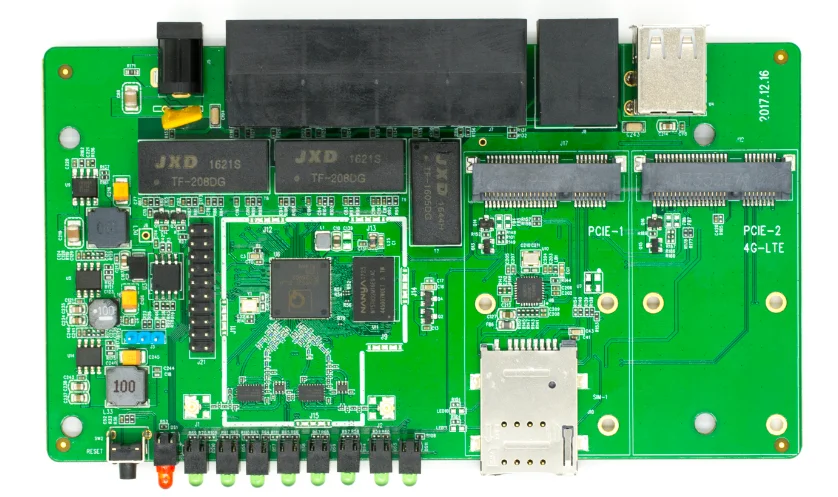

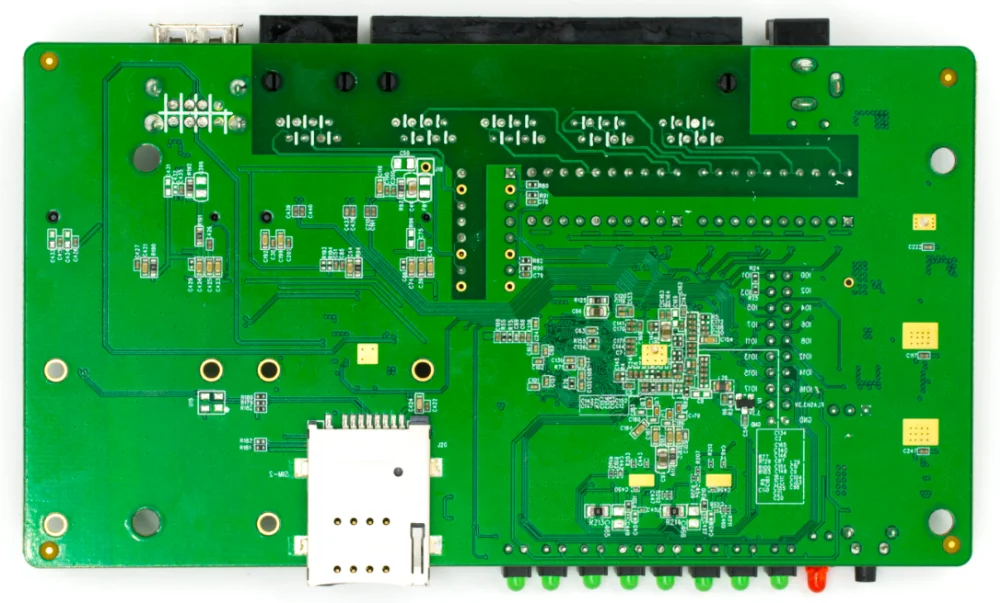

Oolite-Box-V1.0 is exquisite portable and small wireless router that supports 802.11b/g/b 2x2 2.4GHz WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps. It is made up of base board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11 b/g/n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms.

Oolite-Box-V1.0 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allowsusers not only able to share their internet by wired connection but also wireless connection.Its power consumption is very low.

Oolite-Box-V1.0 standard version can update to support 2 * 4G Mini-Pcie Card or 1 * 4G Module ( Mini-Pcie Interface ) + 1 * WiFI Module(Mini-Pcie Interface).

Items\tContents

Wireless Standards\tIEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency\t2.412GHz - 2.472GHz

Signal Rate\t11n: Up to 2x150Mbps(dynamic)

\t11g: Up to 2x54Mbps(dynamic)

\t11b: Up to 2x11Mbps(dynamic)

Wireless Modes\tAP Mode, Router Mode , Repeater Mode，Bridge Mode

Wireless Security\t64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

WAN Type\tDynamic IP, Static IP, PPPoE, PPTP, L2TP

Port Forwarding\tVirtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS\tDynDns, Comexe, NO-IP

Management\tAccess Control Local Management Remote Management

Certification\tCE, FCC

Package Contents\tPower Adapter Quick Installation Guide

System Requirements\tWindows,MAC OS,UNIX , Linux
