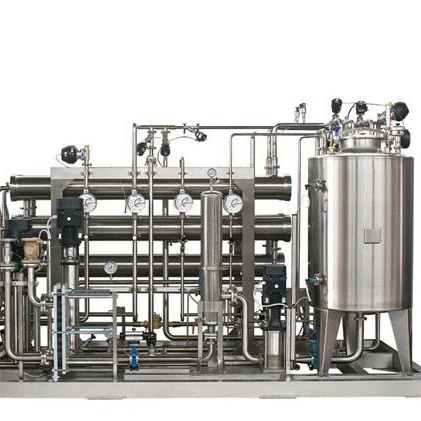

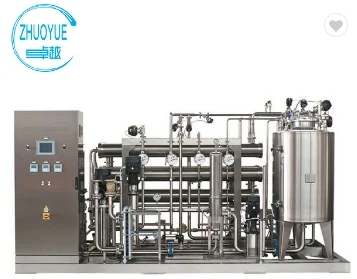

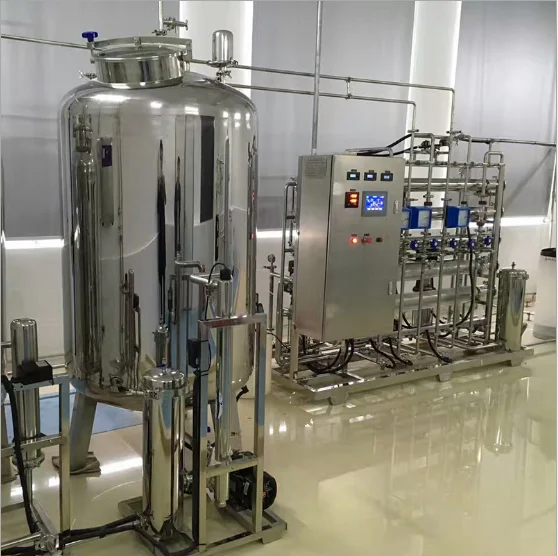

0.5M3/H Double Stage RO System Pharmaceutical Water Treatment Plant or System SS304/316 GMPRO
- Category: >>>
- Supplier: Sichuan Zhuoyue Water Treatment Equipment Co. Ltd.
Share on (60742834967):
Product Overview
Description
0.5M3/H Double Stage RO System Pharmaceutical Water Treatment Plant or System SS304/316
Hot Sale Products
ZYRO Industrial ro water plant ZYCL Utra filtration plant ZYGMPRO Pharmaceutical water plant
Product Description
ZYGMPRO--The core technology of purified Pharmaceutical water equipment adopts single-stage or double-stage reverse osmosis, EDI and other latest processes to design targeted high-quality pure water treatment processes in a targeted manner to meet the purified or distilled water of pharmaceuticals, hospitals, and laboratory diagnostic reagents.
The entire system is made of SUS304L or SUS316L all stainless steel material combination, and before the water point must be equipped with ultraviolet,ozone disinfection device or can also be pasteurized.

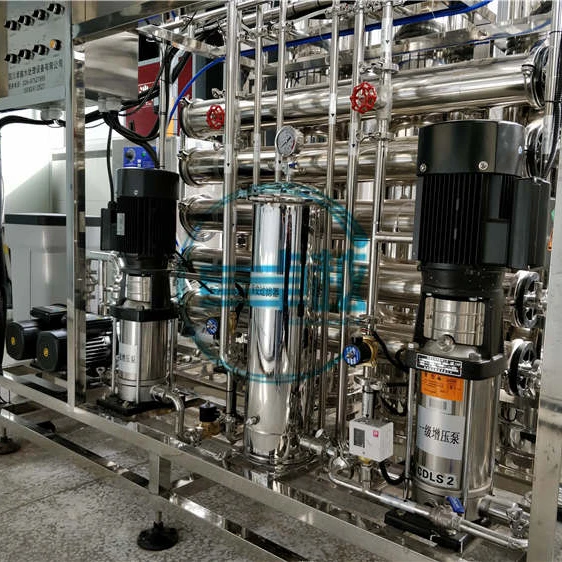

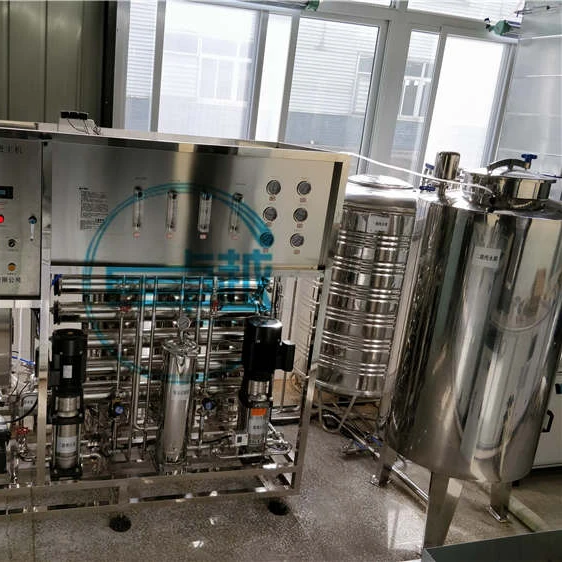

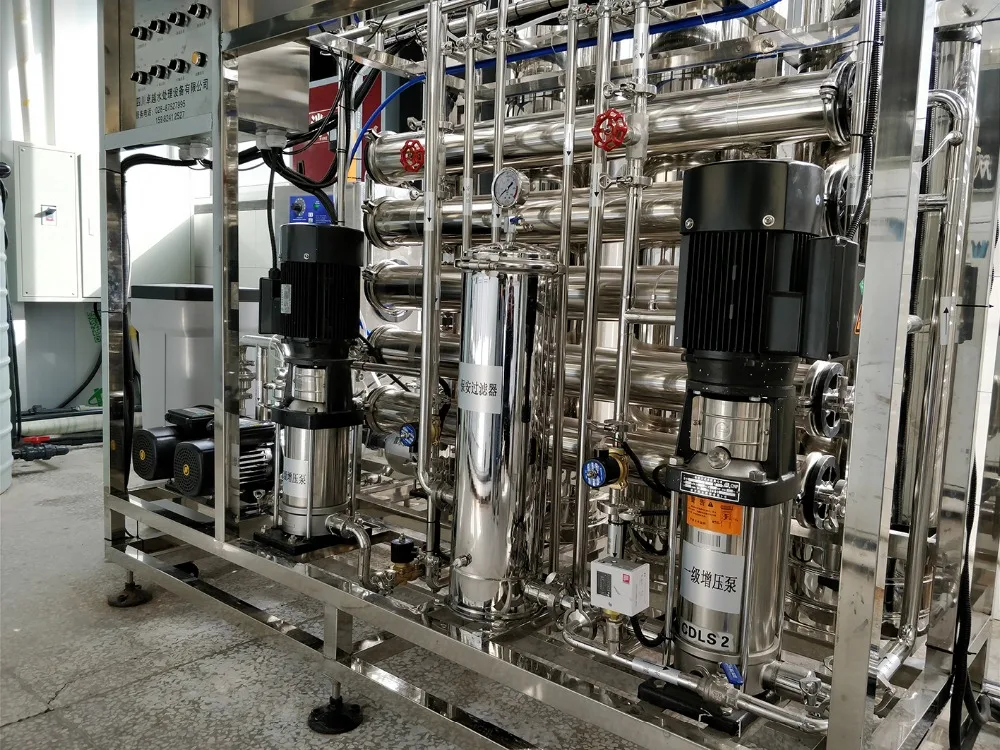

0.5M3/H Double Stage RO System Pharmaceutical Water Treatment Plant or System
1. Feed water: Meet the sanitary standards for drinking water (pressure 0.2-0.5MPa); conductivity ≤ 500μs/cm; total hardness <300PPM
2. Power supply : AC380/220V 50HZ, three-phase five-wire, reliable grounding
3.Temperature: 5-40 °C; Atmospheric pressure: 700Kpa-1060Kpa; Relative humidity: ≤ 80%
4. Desalination rate ≥99%
5.The maximum operating pressure: ≤ 1.5Mpa
6.Installation site requirements: Smooth ground with a waterproof layer, a smooth floor drainage
7. Avoid direct sunlight, strong magnetic field interference environment
| Model | ZYGMPRO-I-150/250/500/1000/1500/2000L | ||||
| Feed Water | TDS<500ppm, water pressure 1.0-5.0kg/cm2 Working Temperature25℃ | ||||
| Power Supply | AC220V/50HZ or AC380V/50HZ | ||||
| Capacity(L/H) | 250 | 500 | 1000 | 1500 | 2000 |
| Power(KW) | 1.1-1.5 | 1.5-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 |
| Water Quality(us/cm) | Conductivity 5<μs/cm,TOC≤0.5mg/L,Microorganism<100cfu/ml | ||||
| Body Size(mm) | 1400*800*1600 | 1500*800*1600 | 1800*800*1800 | ||
| Floor Space (M2) | 8 | 10-12 | 12-15 | ||
| Weight (kg) | <300 | <600 | <1000 | ||
| Sterile Tank | 250L | 500L | 1000L | 1500L | 2000L |
| Water Inlet Pipe Size | DN25 | DN20-25 | DN25-32 | DN25-32 | DN32-40 |

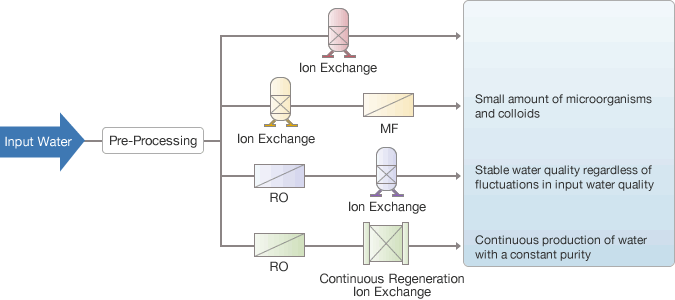

Technology process
Customization is available

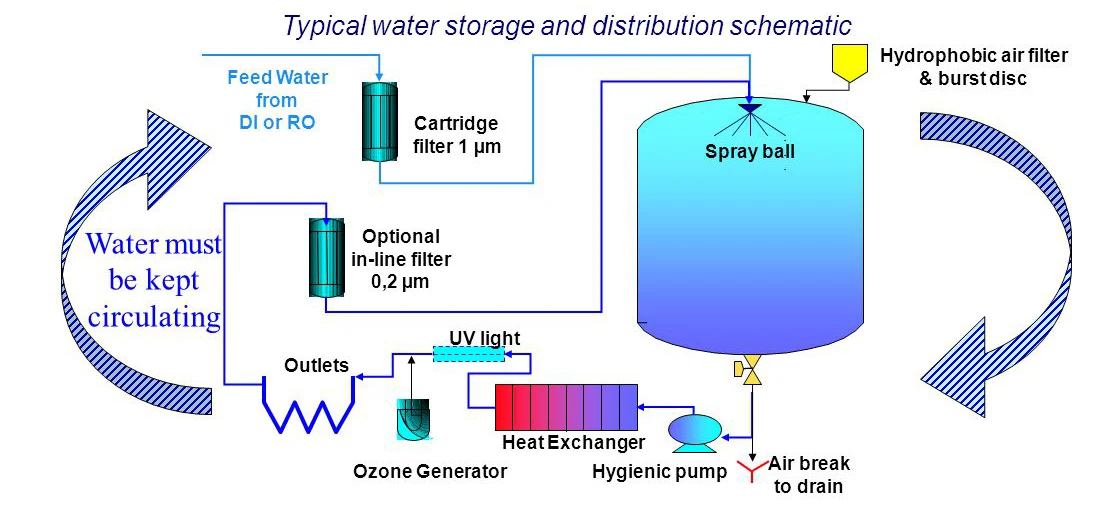

(1) Pretreatment + Primary Reverse Osmosis + Secondary Reverse Osmosis + Sterilizer + Circulatory System
(2) Pretreatment + Primary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System
(3) Pretreatment + Primary Reverse Osmosis + Secondary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System
Company Information
Packaging & Shipping
FAQ
1.Q: Are you a factory?
A: Yes,Our 1500 square meters modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300 square meters. Sales Department office is located in Jinfu International Building, Jinniu District,Chengdu, China.
2.Q: Do you provided after-sale service?
A:Sure. One year product warranty. 24 on-line serive for any technical consult.
3.Q: What is your advantage?
A:High quality, conpetitive factory price and 24h online services.
4.Q: How can you control the quality and delivery?
A: All machines will be tested before packaging. Wooden package is strong and safty for lond-distance transportation.
