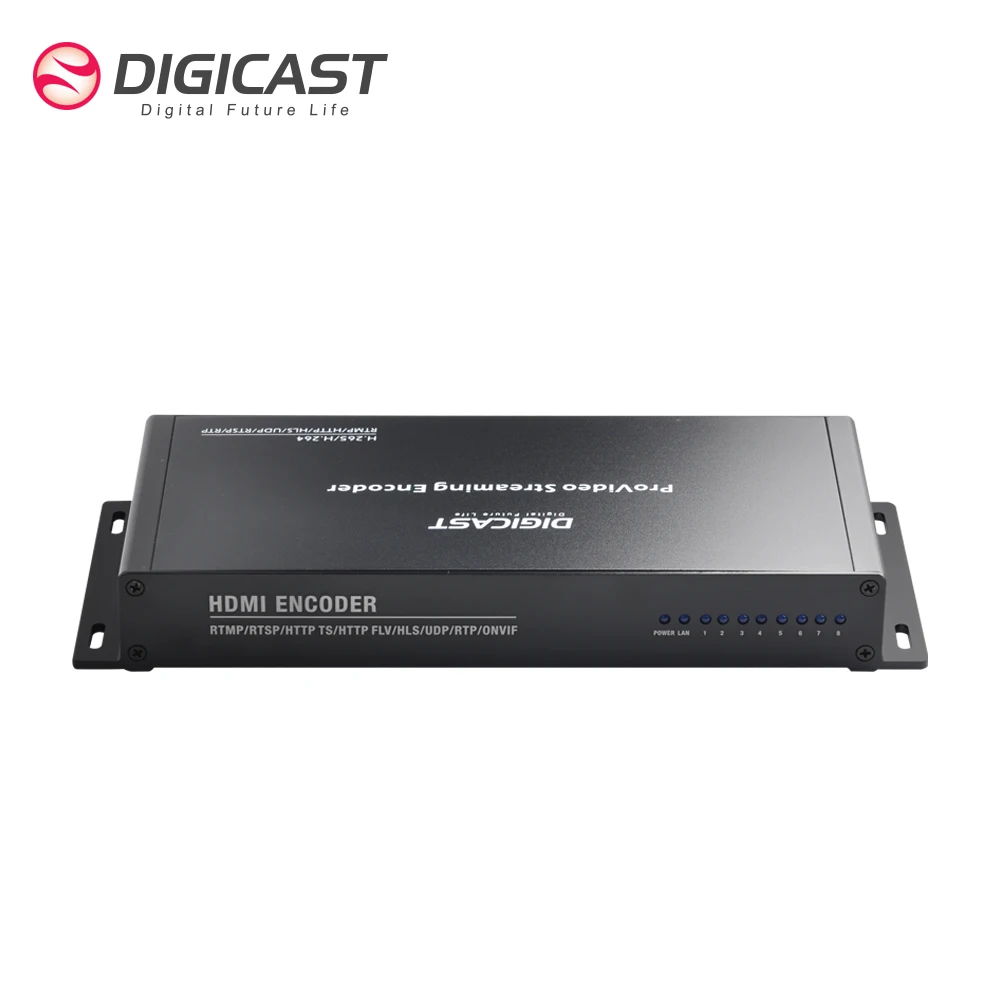

DMB 8808A EC H264 HD IPTV Streaming Encoder 8 Channels Video to IP Encoder for Youtube Wowza Live TV
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (60742848625):
Product Overview
Description
Product Description
High Lights
Features.
●Video Input: 8-Channel HDMl work simultaneously
●Video Compression: HD H.264/MPEG-4 AVC, up to 1080P@60fps
●Audio compression: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
●All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
●Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMl channel input
●Having 8*HDMl embedded audio input
●Support RTMP User name and Pass word for authentication of IPTV Server
●Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
●Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
●Bitrate mode: CBR/VBR
●Capable of image parameter settings
●Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
●Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
●Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
●Support HDCP protocol
●Support ONVIF Network Video Protocol
●Support multiple equipment display at the same time on a computer
●System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
●Web-based management
●Full-duplex mode 1000M
●Video Compression: HD H.264/MPEG-4 AVC, up to 1080P@60fps
●Audio compression: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
●All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
●Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMl channel input
●Having 8*HDMl embedded audio input
●Support RTMP User name and Pass word for authentication of IPTV Server
●Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
●Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
●Bitrate mode: CBR/VBR
●Capable of image parameter settings
●Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
●Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
●Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
●Support HDCP protocol
●Support ONVIF Network Video Protocol
●Support multiple equipment display at the same time on a computer
●System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
●Web-based management
●Full-duplex mode 1000M
Specification
Video compression | H.264/AVC High/Main/Baseline Profile Level 4.0 |
Frame rate | up to 60fps (Recommended to be setup under the max. capability of 8CH@30fps OR 4CH@60fps+4CH@30fps) |
Video input | 8*HDMl (HDCP compatible) |
Main stream | 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,720x404,704x576,640x480,640x360, auto |
Bit-rate | 16kbps~12Mbps, CBR/VBR |
Video pre-processing | Noise reduction, Sharpen, Filtering |
Audio compression | AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3 |
Audio input | 8*HDMl embedded |
Sampling accuracy | 24-bit |
Bit Rate | 48kbps~320kbps |
Transport protocol | TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol |
Connector | RJ45, 1000M |
Application
●Digital TV Broadcasting System ●Remote Video Conference
●IPTV & OTT system ●Digital TV Programs Transmission
●Internet TV ●Hotel IPTV System
●Digital Signage Project ●Live Streaming
