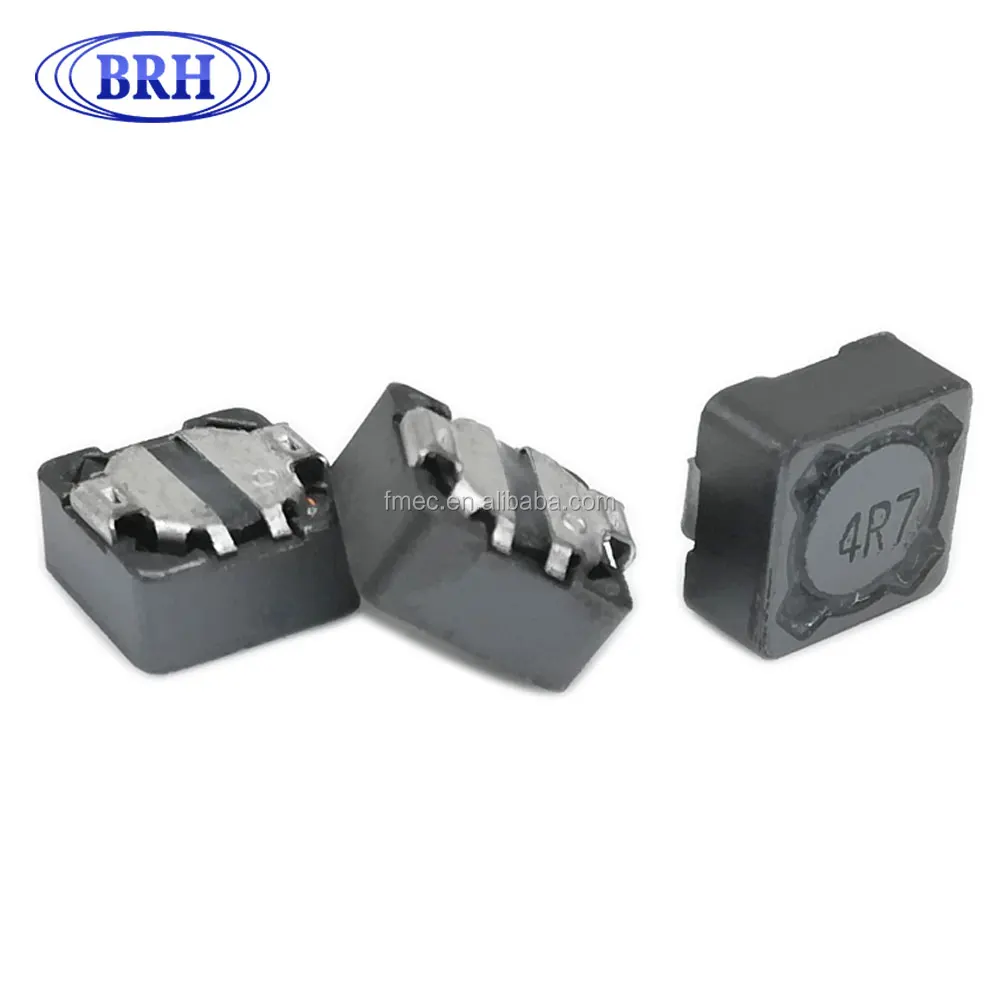

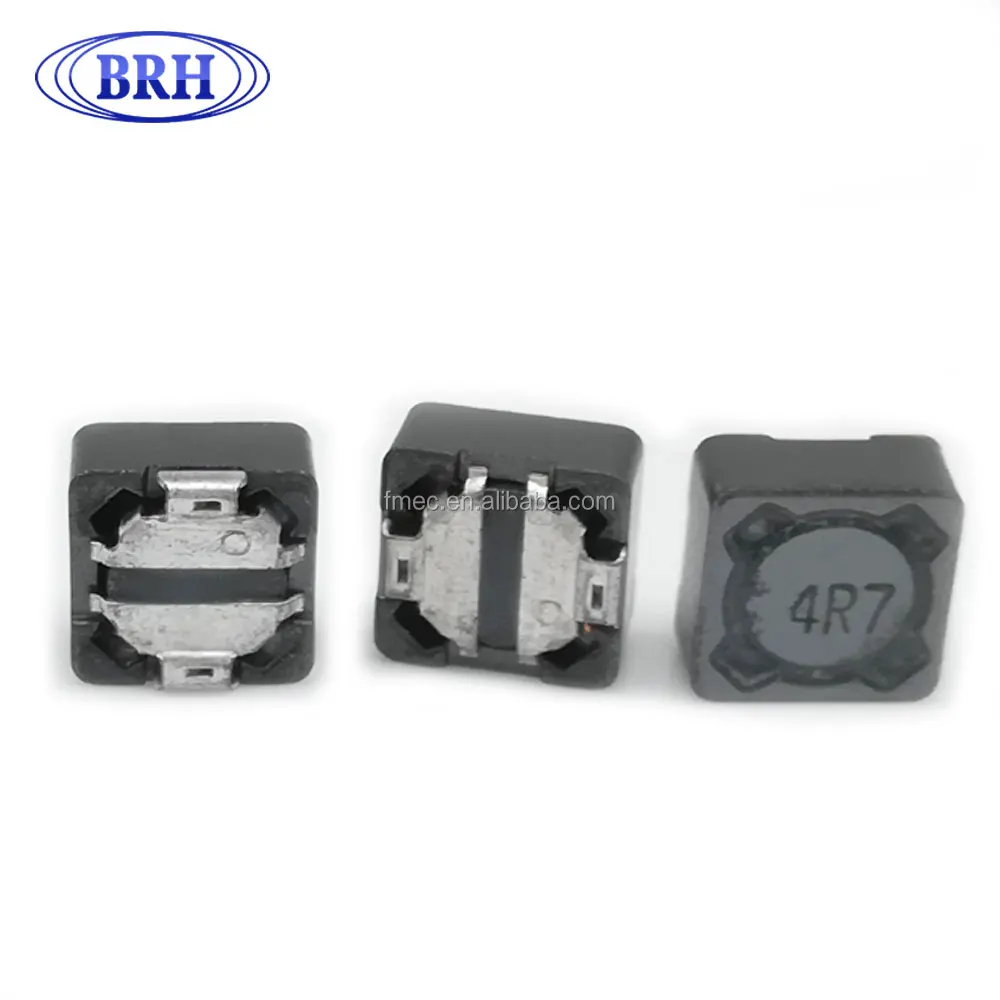

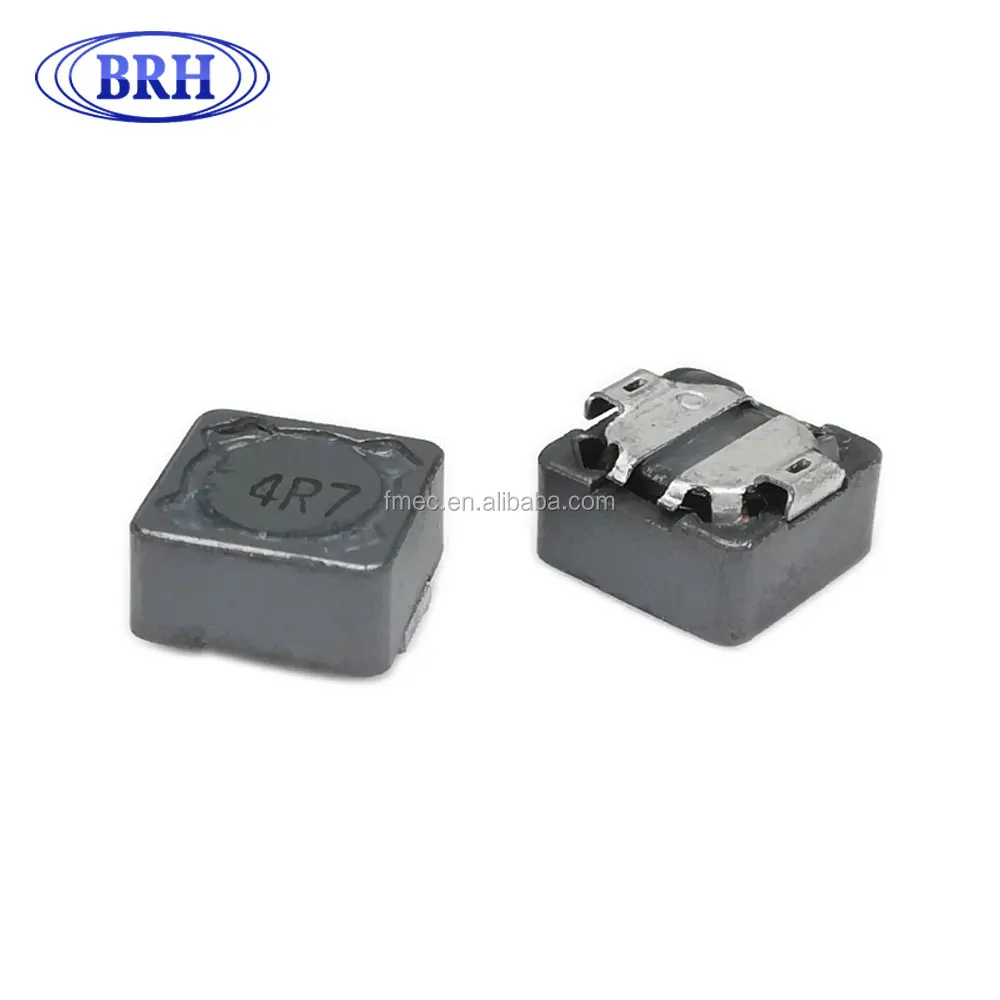

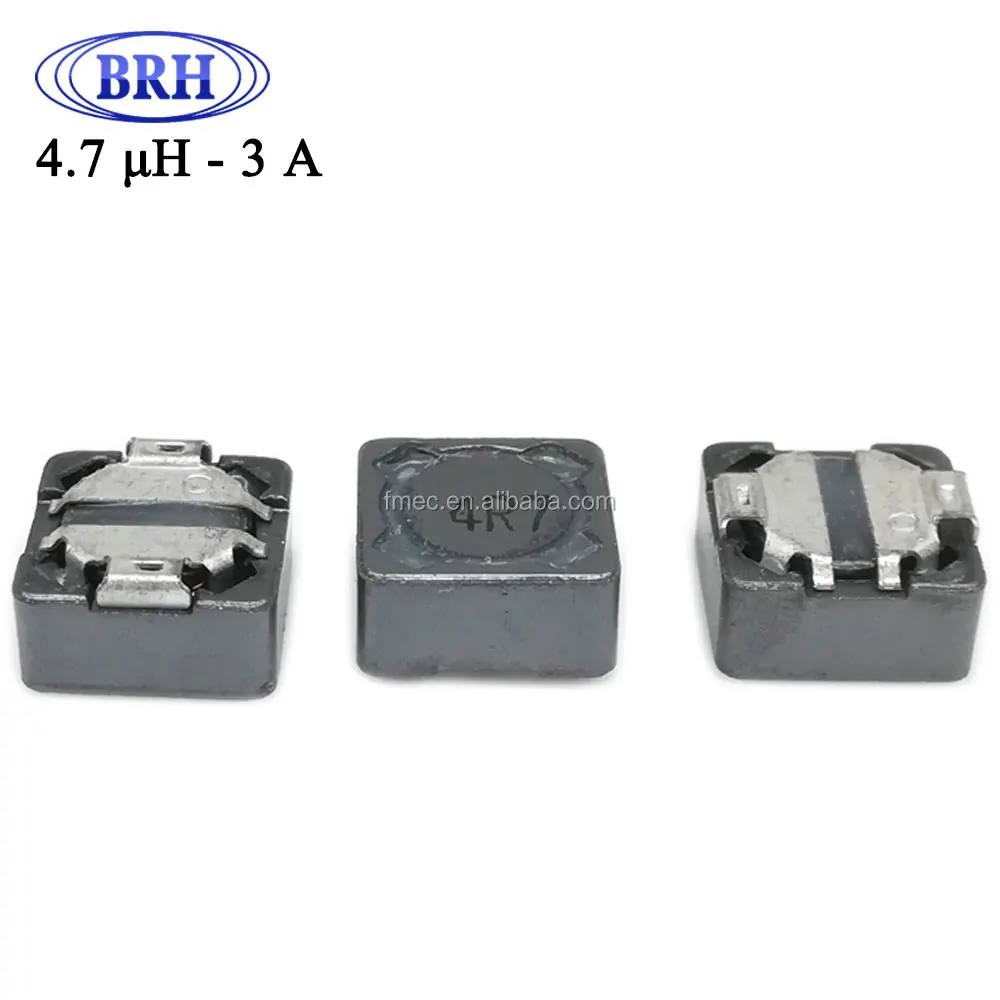

High frequency smd inductor 4r7 3A
High frequency smd inductor 4r7 3A
High frequency smd inductor 4r7 3A
High frequency smd inductor 4r7 3A
High frequency smd inductor 4r7 3A
High frequency smd inductor 4r7 3A

High frequency smd inductor 4r7 3A

Share on (60742864560):


Price:

Quantity:


Product Overview

Description


Description
\t

MODEL
\t

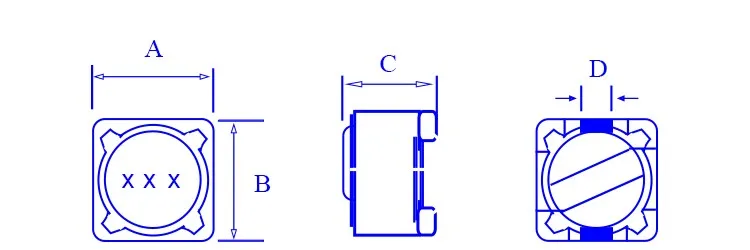

PRODUCT DIMENSIONS
\t
A
\t
B
\t
C
\t
D
\t
0703
\t
7.3±0.2
\t
7.3±0.2
\t
3.4 MAX
\t
1.8
\t
0704
\t
7.3±0.2
\t
7.3±0.2
\t
4.5 MAX
\t
1.8
\t


SIZE CODE
（inch)
\t

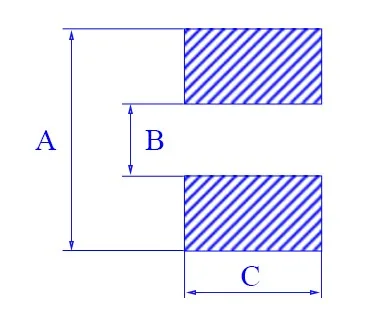

RECOMMENDED PATTERN
(mm)
\t
A
\t
B
\t
C
\t

0703
\t
8.4
\t
4.4
\t
2.2
\t

0704
\t
8.4
\t
4.4
\t
2.2
Parameter
\t
Characteristics Specification Table
\t

ORDERING CORE
\t
Inductance
\t
RDC（MAX）
\t
Isat
\t
(µH)
\t
(Ω)
\t
(A)
\t
VEB0704-1R8*N
\t
1.8
\t
0.025
\t
4.00
\t
VEB0704-2R7*N
\t
2.7
\t
0.030
\t
3.50
\t
VEB0704-4R7*N
\t
4.7
\t
0.035
\t
3.00
\t
VEB0704-150*N
\t
15
\t
0.081
\t
1.47
\t
VEB0704-270N
\t
27
\t
0.150
\t
1.12
\t
VEB0704-330*N
\t
33
\t
0.170
\t
0.96
\t
VEB0704-470*N
\t
47
\t
0.260
\t
0.88
\t
VEB0704-680*N
\t
68
\t
0.380
\t
0.69
\t
VEB0704-391*N
\t
390
\t
2.850
\t
0.29
\t
VEB0704-471*N
\t
470
\t
3.010
\t
0.26
\t
Test Frequency:1KHz/1V                                 Tolerance(±%):K/M
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
L (µH)
\t
RDC (Ω)
\t
A m/m
\t
B m/m
\t
C m/m
\t
Suggest
\t
4.7±20%
\t
0.035+0
\t
7.3±0.2
\t
7.3±0.2
\t
4.5 MAX
\t
1
\t
4.95
\t
0.022
\t
7.31
\t
7.26
\t
4.22
\t
2
\t
4.88
\t
0.023
\t
7.28
\t
7.28
\t
4.35
\t
3
\t
4.73
\t
0.022
\t
7.20
\t
7.35
\t
4.31
\t
4
\t
4.60
\t
0.024
\t
7.22
\t
7.42
\t
4.23
\t
5
\t
4.82
\t
0.021
\t
7.43
\t
7.32
\t
4.22
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
4.03
\t
0.02
\t
5.99
\t
5.97
\t
3.51
\t
R
\t
0.35
\t
0.003
\t
0.23
\t
0.16
\t
0.13
\t
The above test data for reference，Actual results may differ due to different production batches
