Product Overview
Description

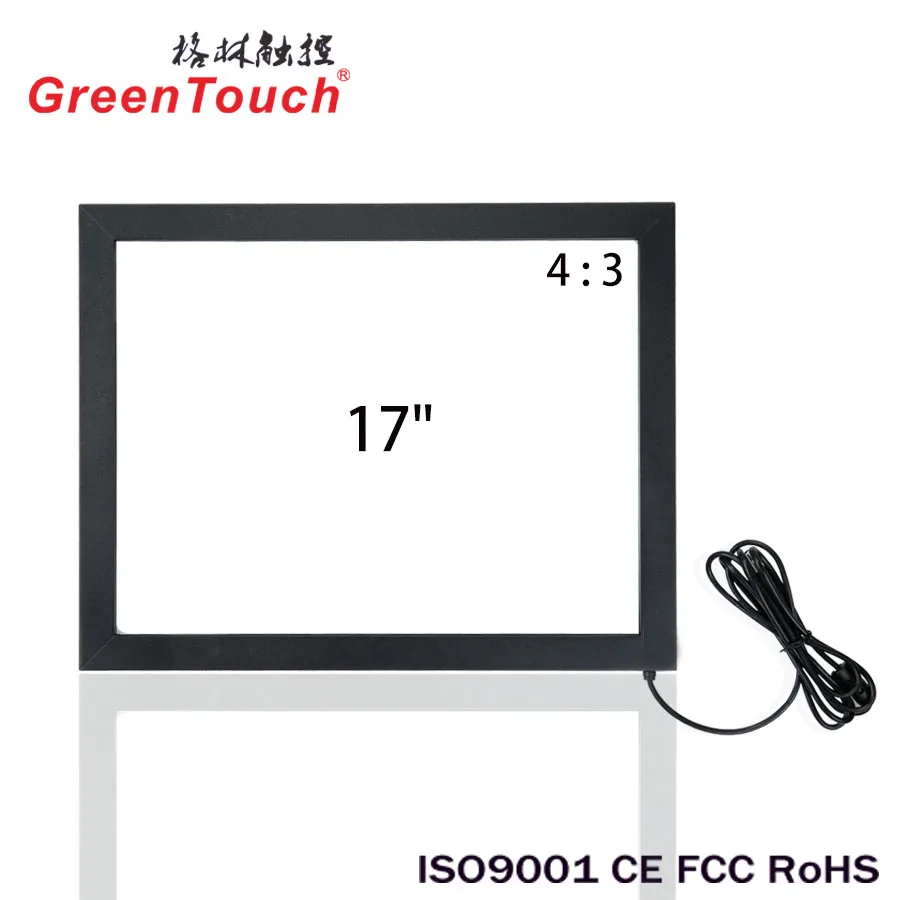

17 inch USB infrared multi touch screen panel, ir touch screen frame, touch screen monitor
Professional Website:www.touchscreenfactory.com and click here Tel/Wechat/Whatsapp : +86 13430735089 , skype:greentouch4
Infrared touch screen Features:
- 1. Double-point write with peace,precise multi-point touching.
- 2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
- 3. Longevity of service ,maintenance free.
- 4. Aluminum alloy shell with strong stability.
- 5. Tempered glass with high light transmittance and true color rendition.
- 6. Without driver ,supporting plug and play.
- 7. Adapt to internal and external linked environment.
- 8. No touching tools,no special touching pen is required ,only your finger.
- 9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and other undesirable phenomena
Infrared touch screen Specifications:
| Physical Characteristics | Color/Material | Black / Alumnium |
| Glass | Tempered glass | |
| Transparency | ≥92% (up 100 percent) | |
| USB cable | 150cm | |
| Minimum touch object diameter | ≥5mm | |
| Touch Media | Finger, touch pen opaque object | |
| Resolution | 4096 * 4096 | |
| Electrical Characteristics | Scanning Frequency | 60Hz |
| Communication Interface Protocol | USB2.0 | |
| Data output | Coordinate output | |
| Response time | <10ms | |
| Touch accuracy | 2mm | |
| Operating Voltage | DC + 5V +/- 5% | |
| Power supply | USB | |
| Working current | <180mA | |
| Environmental Adaptability | Operating temperature | -20 ℃ ~ 65 ℃ |
| Storage temperature | -40 ℃ ~ 85 ℃ | |
| Working humidity | 0-85% RH, non-condensing matter | |
| Storage humidity | 0-95% RH, non-condensing matter | |
| Light resistance | The whole point of anti-glare | |
| Reliability | Touch Clicks | Unlimited |
| Flame retardant | UL94V-0 | |
| certified product | CE, FCC, ROHS | |
| Operating system | WinXP / WIN7 / WIN8 / VISTA / LINUX / MAC / ANDROID | |
Infrared touch screen Application:
• TV
• PC
• Gaming device
• Exhibition
• Education training
• Pubic query machine
• Self-service machine
• Map directory
• Any interactive machine
• And more
Infrared touch screen function :

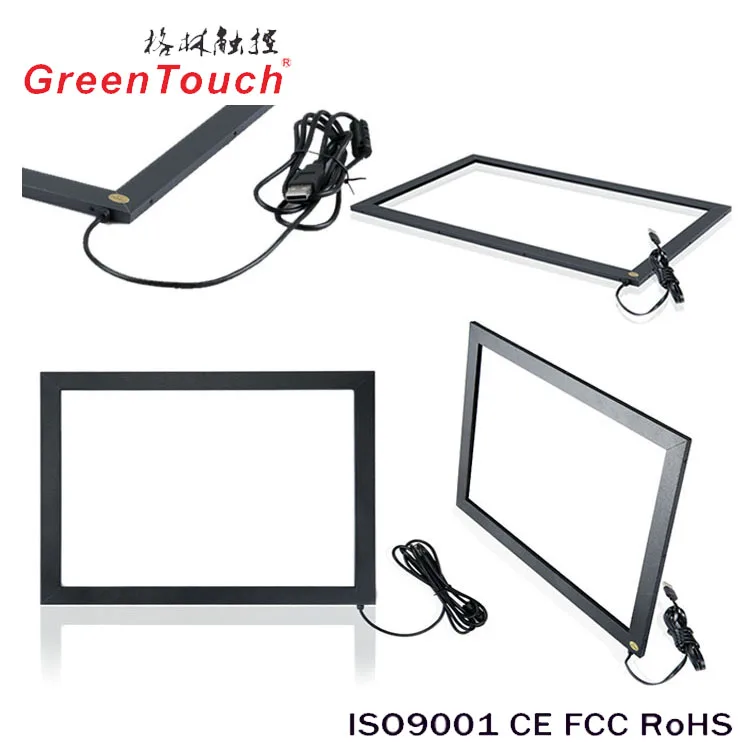

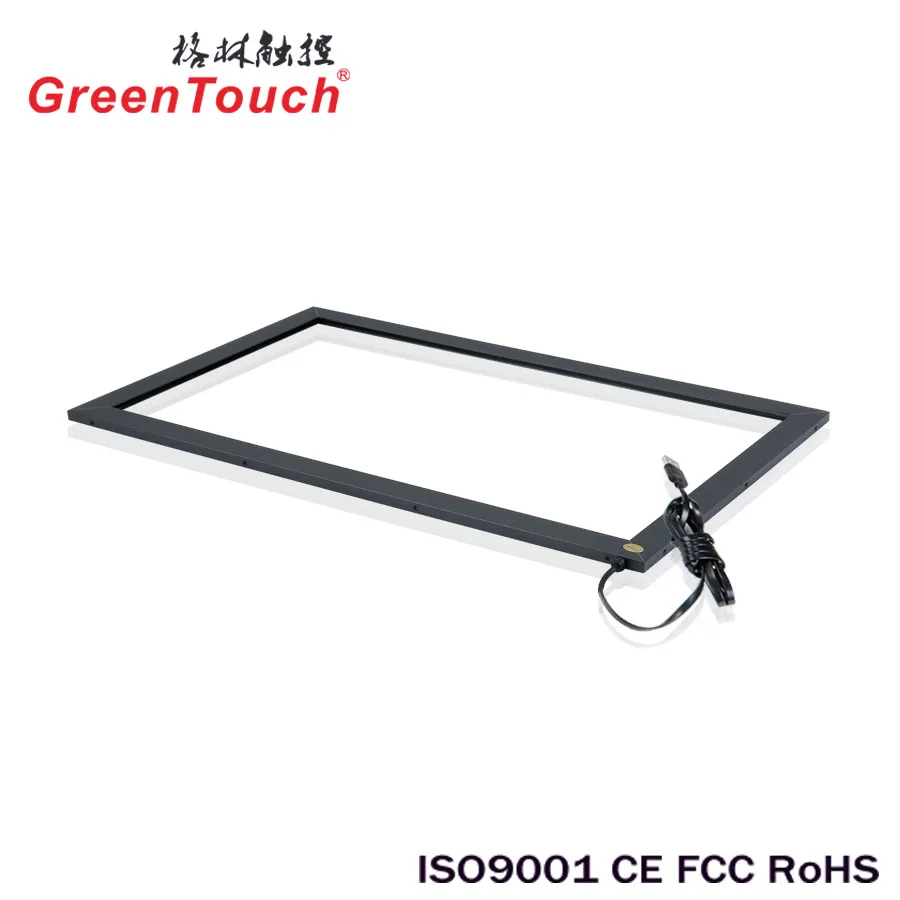

Infrared touch screen show:
Infrared Touch Panel Working Principal:
InfraredTouch Screen is a touch frame which is usually installed in front of the display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
What is "Multitouch"?
Multitouch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.Our Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Advertising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.
How does it work?
An infrared touchscreen uses an array of X-Y infrared LED and photo detector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These
LED beams cross each other in vertical and horizontal patterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can
detect essentially any input including a finger, gloved finger, stylus or pen. It is generally used in outdoor applications and point of sale systems which can not rely on a conductor
(such as a bare finger) to activate the touchscreen. Unlike capacitive touchscreens, infrared touchscreens do not require any patterning on the glass which increases durability and optical clarity of the overall system. Infrared touchscreens are sensitive to dirt/dust that can interfere with the IR beams, and suffer from parallax in curved surfaces and accidental press when the user hovers his/her finger over the screen while searching for the item to be selected.
