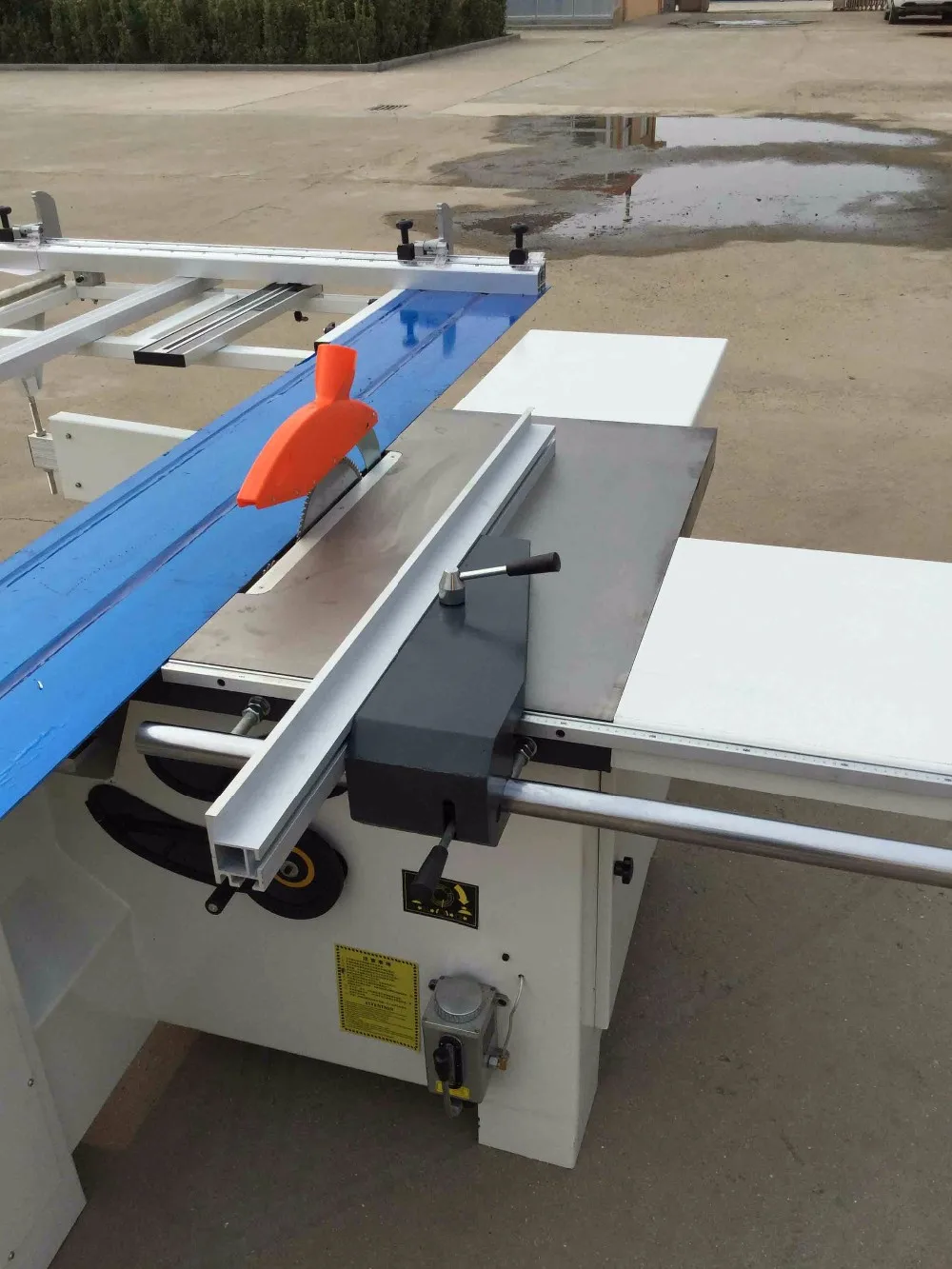

MJ6130-45F Sliding Table Saw

The Length of the worktable is 3 meters.

It can cut right angles or cut corners.

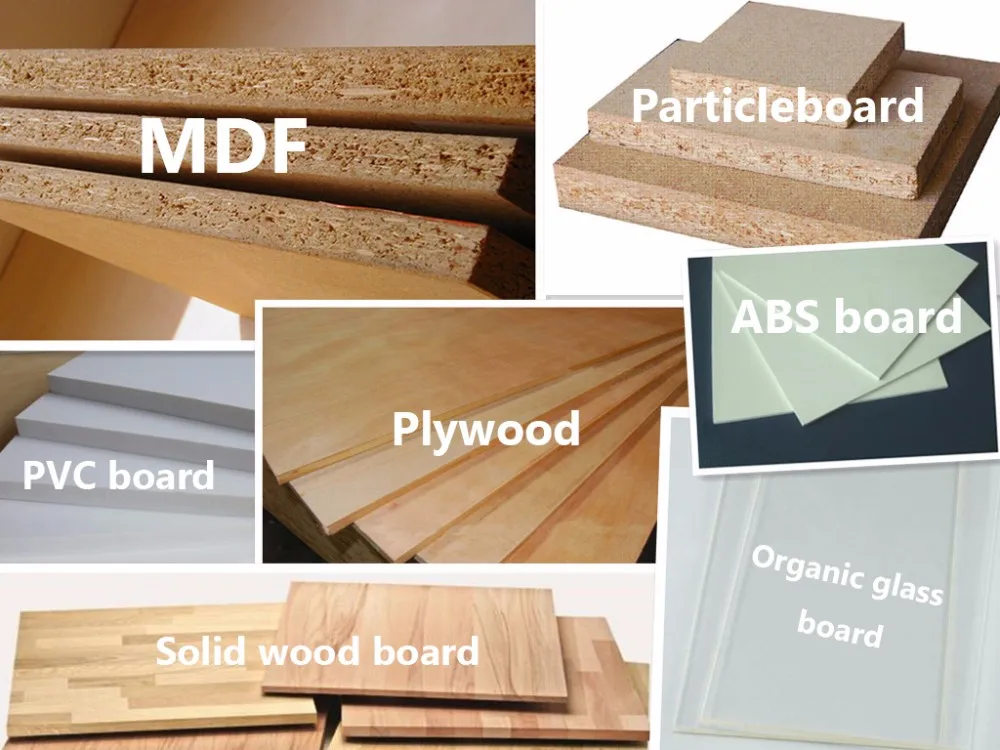

1.Apply to processing all kinds of density boards,shaving boards,wood-based panels,PVC panels,organic

    glass plates and soild wood and others with wood structure and similar hardness.

2.Double layer of sliding table.

3.Made of high-strength extruded aluminum alloy,movable table is high in strength and won’t bend.
4.Precision round stick rail.

5.Best-selling table saw at best price.

\t
Dimension of Sliding Table
\t
3000x375mm
\t
Max.Cutting Length
\t
3000mm
\t
Max.Cutting Width
\t
1250mm
\t
Max.Cutting Height
\t
70mm
\t
Max.Cutting Height at 45°
\t
60mm
\t
Main Saw Blade Diameter
\t
300mm/30mm
\t
Scoring Saw Blade Diameter
\t
120mm/20mm
\t
Speed of Main Saw Shaft
\t
4000-6000r/min
\t
Main Saw Shaft Diameter
\t
30mm
\t
Speed of Scoring Saw Shaft
\t
7000-8000r/min
\t
Scoring Saw Shaft Diameter
\t
20mm
\t
Motor Power
\t
4kW+0.75kW
\t
Tilting Saw Blade
\t
0°-45°
\t
Overall Dimensions
\t
3000*1100*1200mm
\t
Weight
\t
520kg
Product Detail

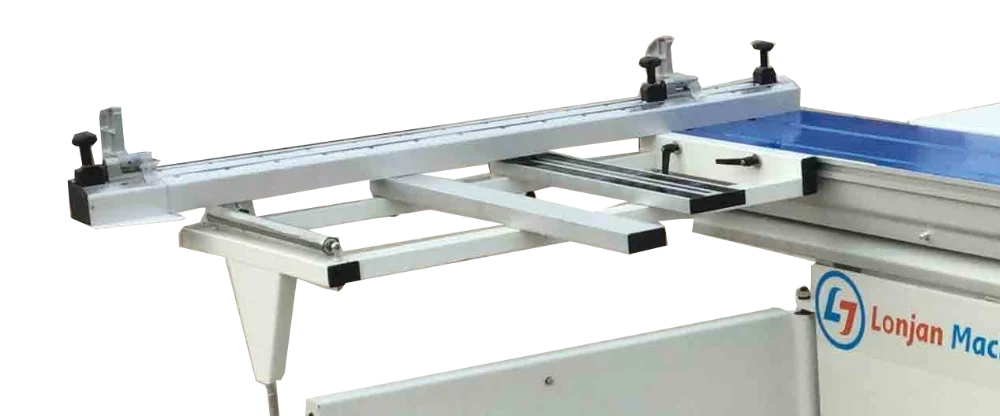

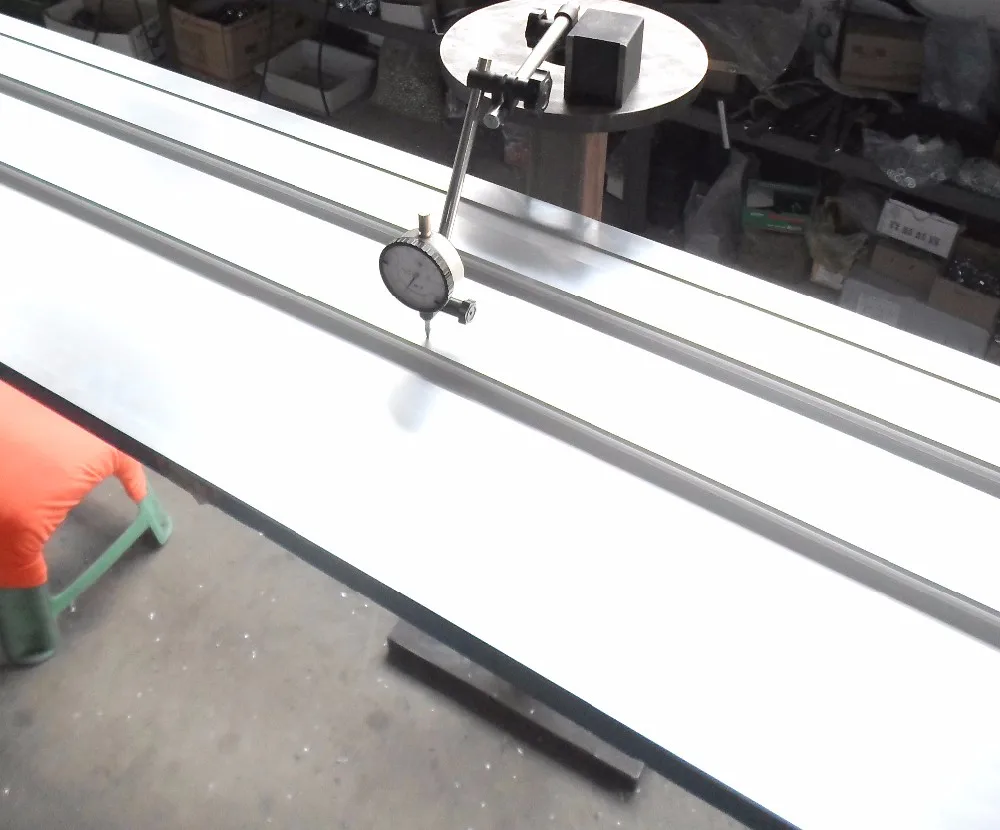

Alumium Sliding Table

Made of high-strength extruded aluminum alloy,movable table is high in strength and won’t bend.

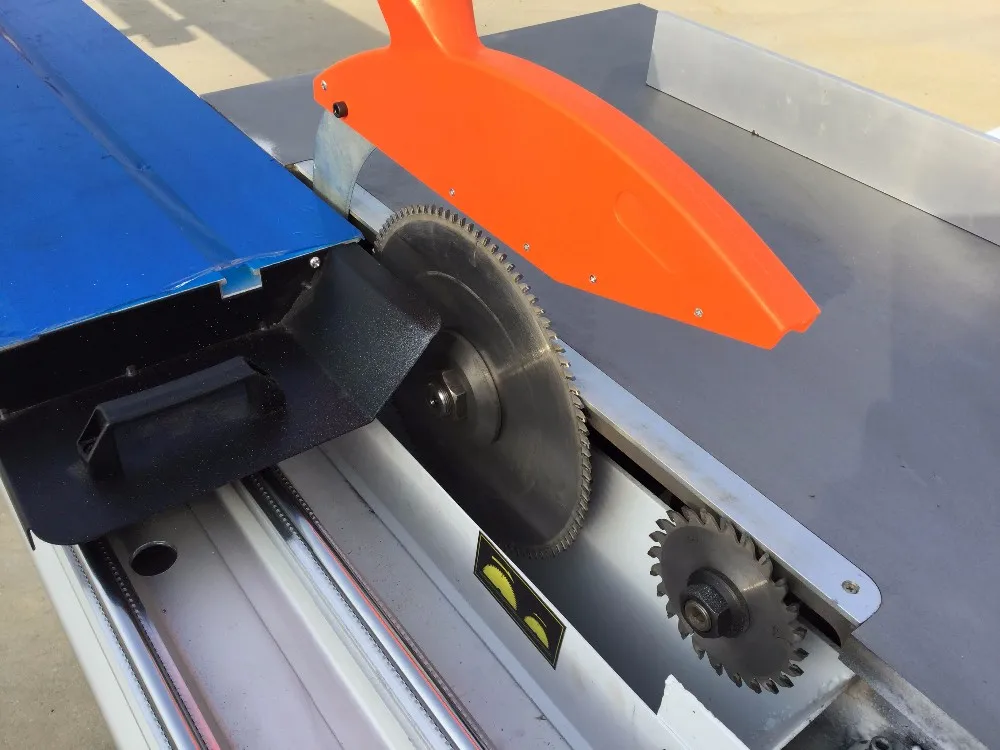

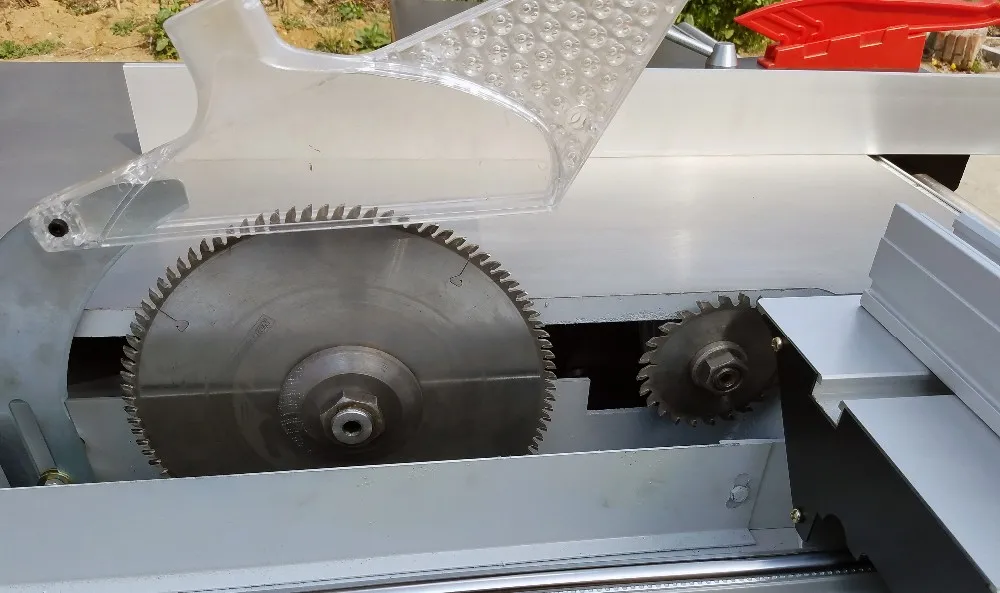

Double Saw Unit

High cutting accuracy high.

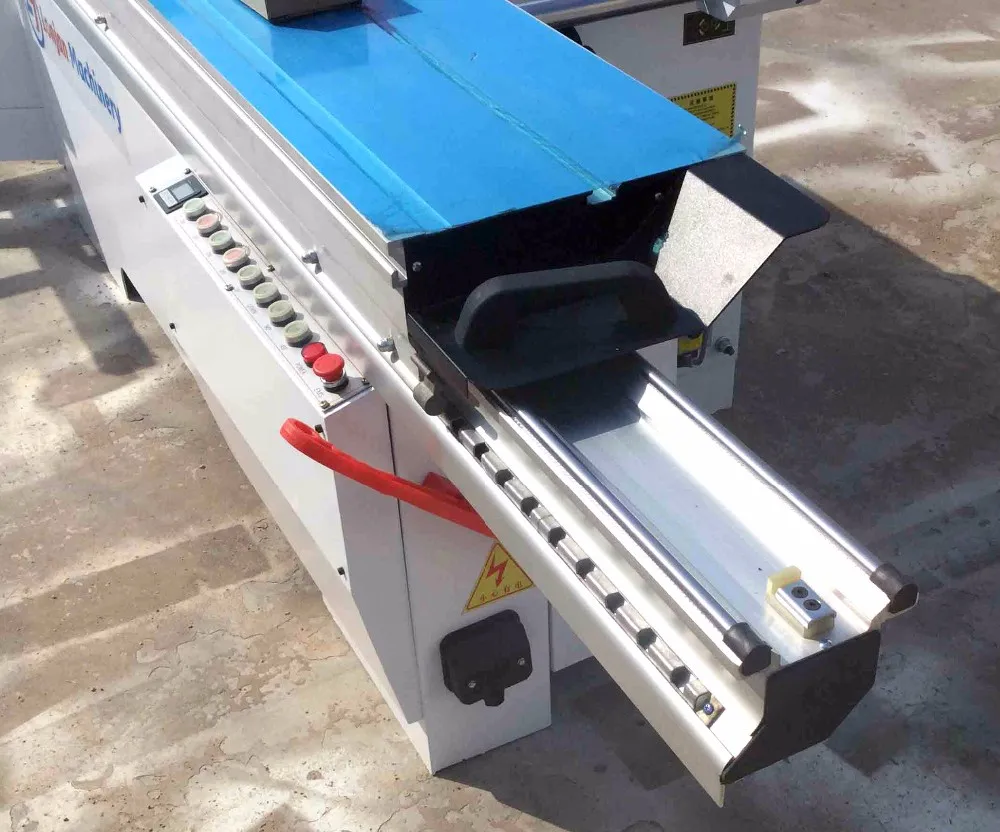

Precision Round Stick Rail

Easy running and gride with absolute precision

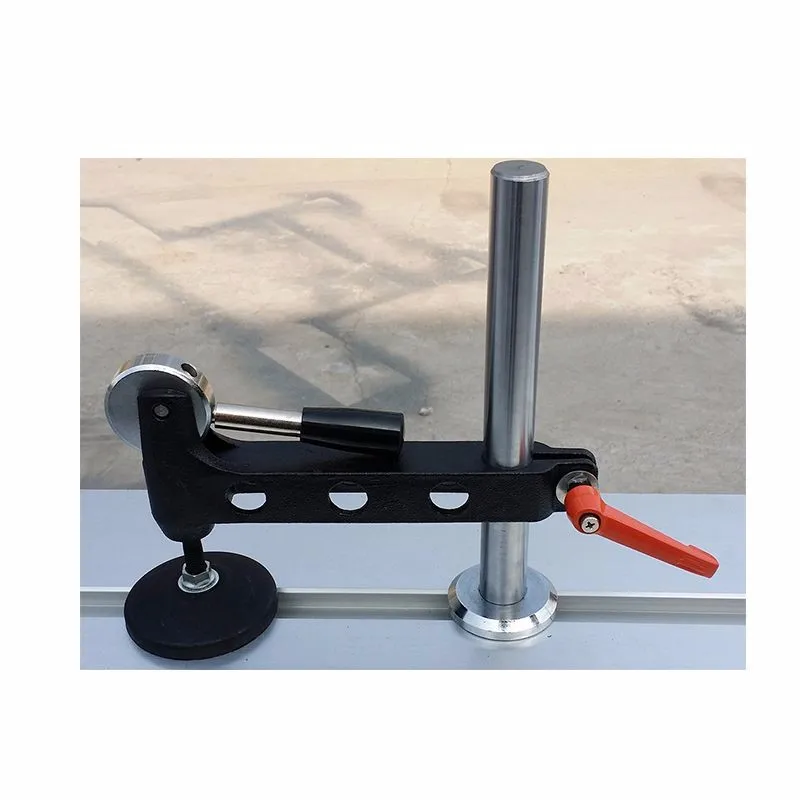

Manual Pressure Feeder

The plate is fixed on the platform to prevent the plate from shaking and the precision is high.

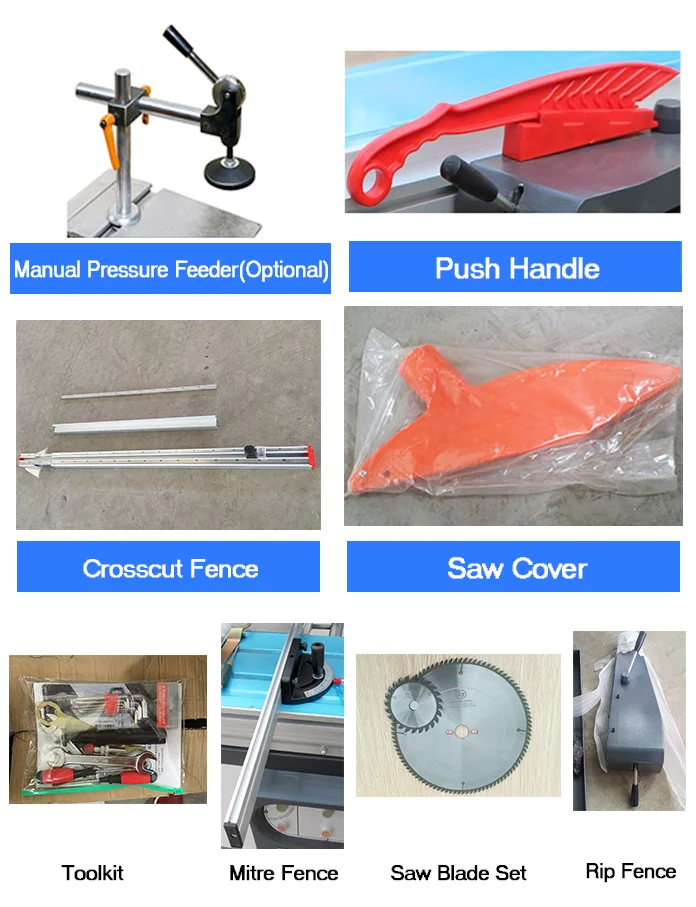

Accessories
Our Service

1. Inquiry and consulting support.

2. View our factory.

3. Training how to use machine.

4. Offer engineers available to survice machinery oversea.

Useful

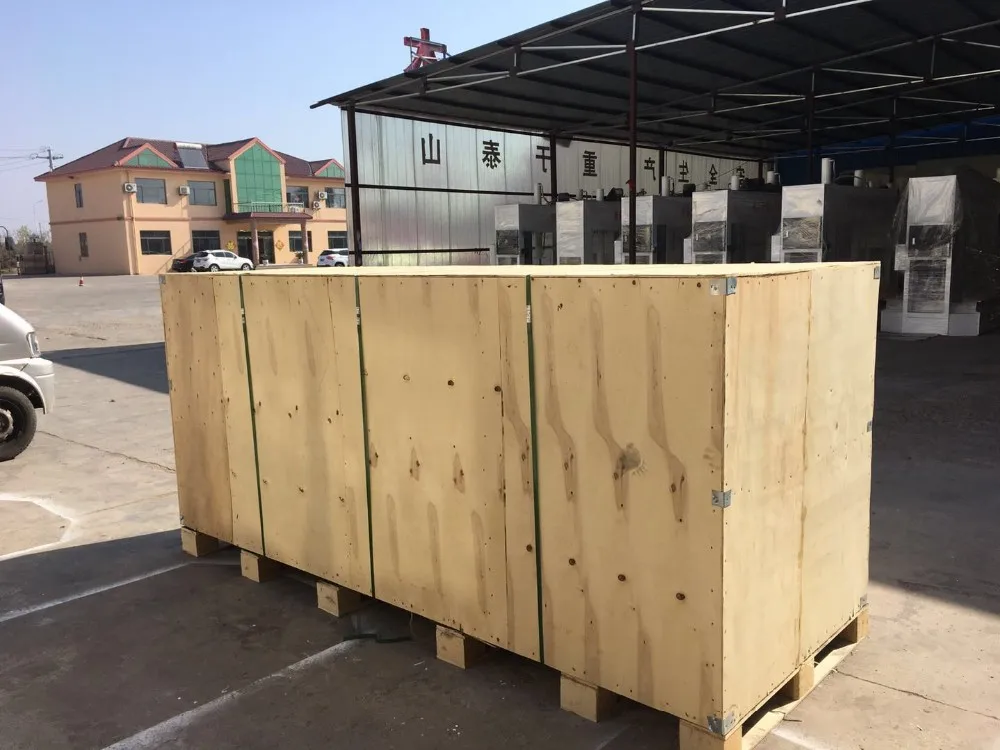

Packing & Delivery
Certifications
Our Company

Qingdao Lonjan Machinery Co., Ltd is a professional engaged in woodworking machinery processing trade and mature enterprises.

Our main products include: cnc router,cutting board saw (sliding table saw) series, a full range of edge machine, sanding machine series, cold press series, puzzle machine series.

Products exported to India, Russia, Southeast Asia, North America, the Middle East, Austra

After several years of manufacturing and development, our business scale of production reached more than 7000 square meters, strong technical force, detection means complete.

Our manufacturing facilities are located on the banks of Jiao zhou Bay, close to the airport port, providing a guarantee for logistics facilities.

Our main products have passed the CE safety certification.
