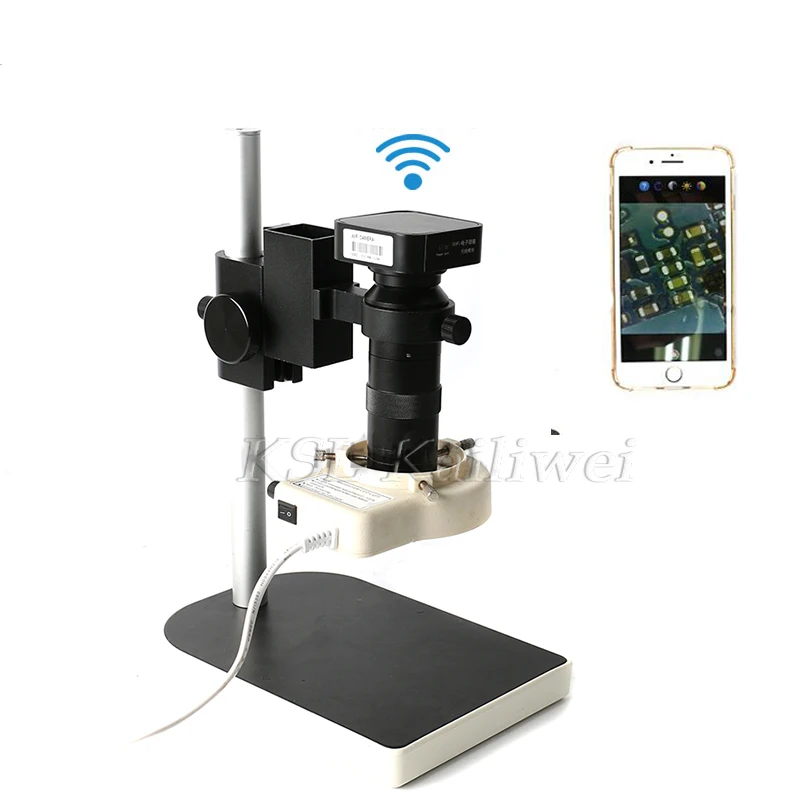

USB Wireless Microscope Wifi Digital Camera for IOS/Android/PC

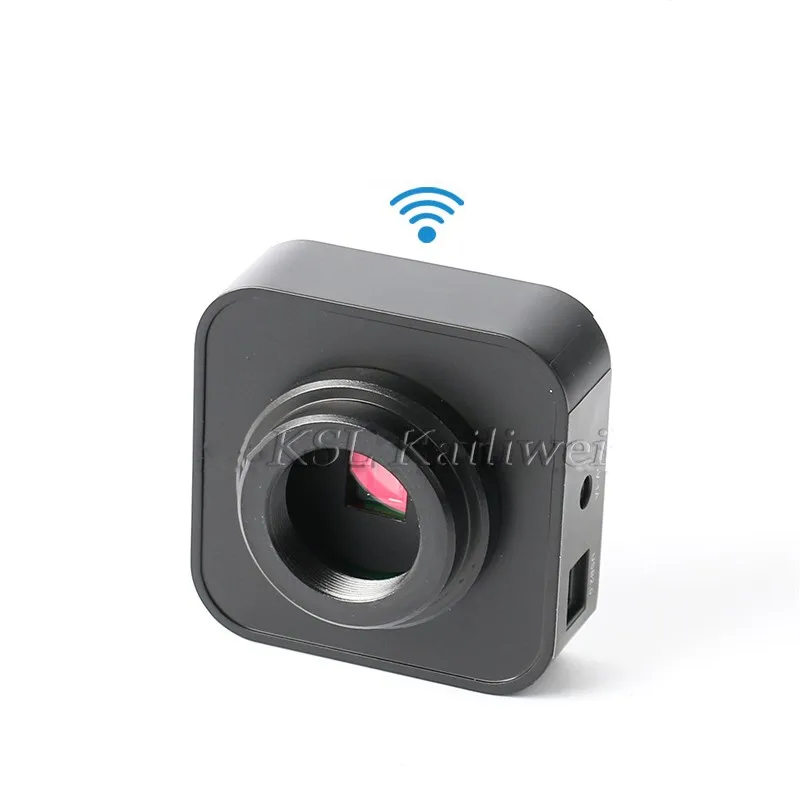

Camera with WIFI USB 2.0 Output
Sensor: 1.3mp
Full Resolution: 1280x1024
WIFI Frame rate: 1280x1024@30FPS
USB Frame rate: 1280x1024@30FPS
OSD: English/Chinese
Zoom c-mount Lens
Magnification Power by 0.12 - 2X
(about 8X - 100X on the display)
Work distance: 100mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

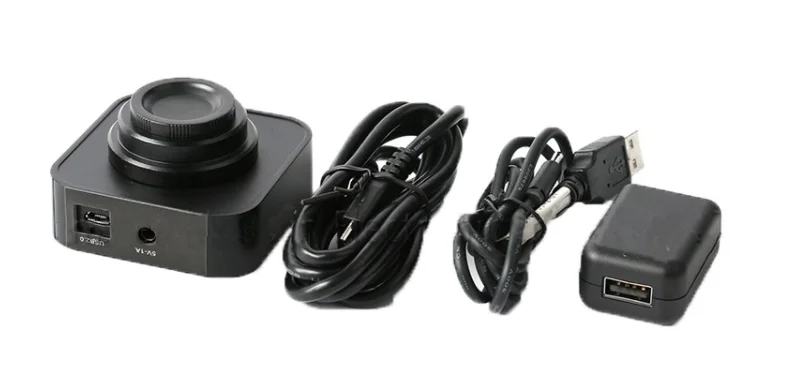

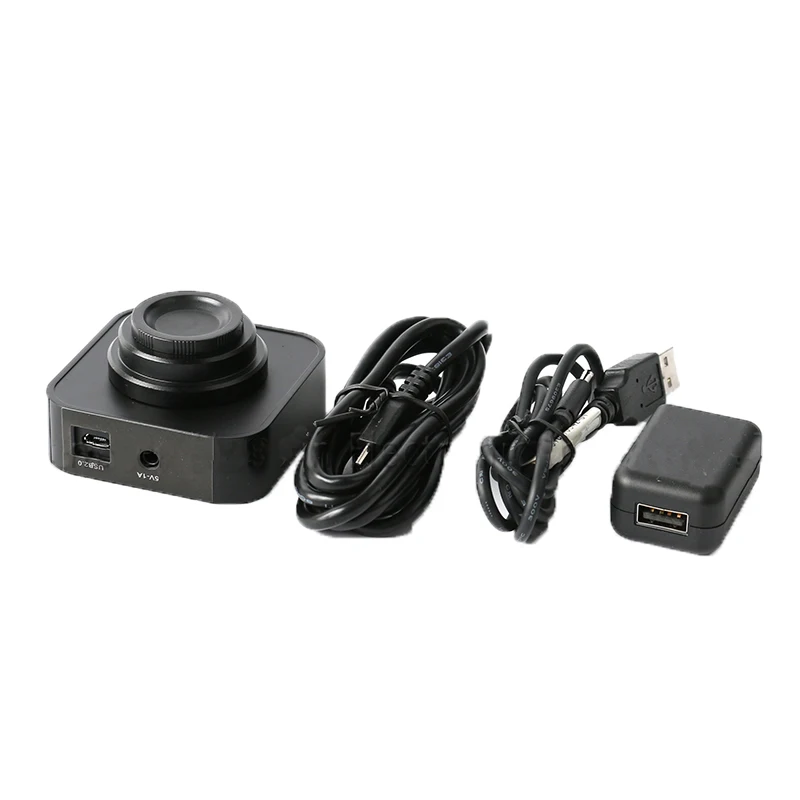

Package incluede: 1 x WIFI Microscope Camera/1 x Power supply(AU/EU)/1 x USB cable
Detailed Images
The use method

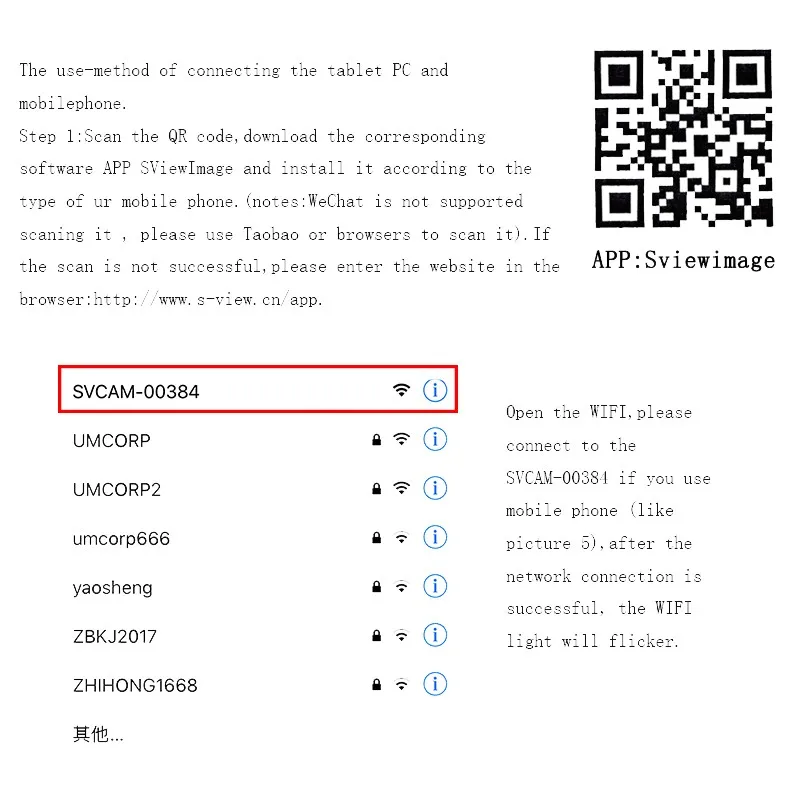

NO.1 The use-method of connecting the tablet PC and mobilephone.
step.1
Scan the QR code,download the corresponding software APP SViewImage and install it according to the type of ur mobile phone.
step.2

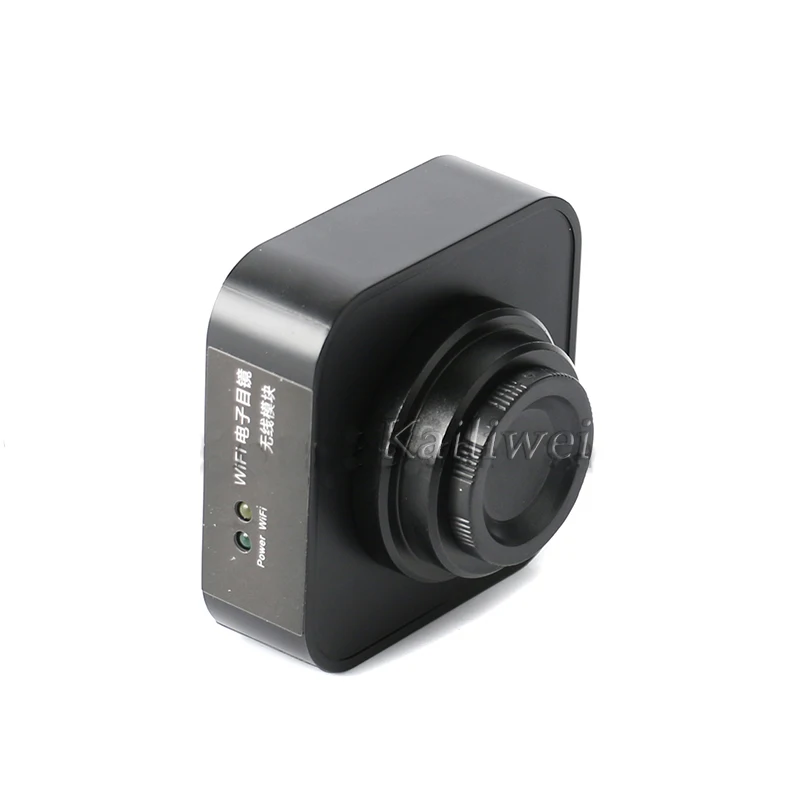

Wireless connection,when the power line is inserted, the power light will be lit and the light is green .After 20-30 seconds, the WIFI lamp will be lit and the light is yellow.
step.3
Open the WIFI,please connect to the SVCAM********* if you use mobile phone ,after the network connection is successful, the WIFI light will flicker.
Open the downloaded software APP SView in your mobile phone .After receiving the image, the WIFI light will flicker very quickly.When your mobile phone appears figures,the connection is completed.
Notes: WeChat is not supported scaning it , please use Taobao or browsers to scan it;
If the scan is not successful,please enter the website in the browser://www.s-view.cn/app.
NO.2 The use-method of connecting the computer.
Step 1:Open the CD-ROM in the computer and install the software.If there is no drive in ur computer,please contact the customer service to get SkyDrive to download it.

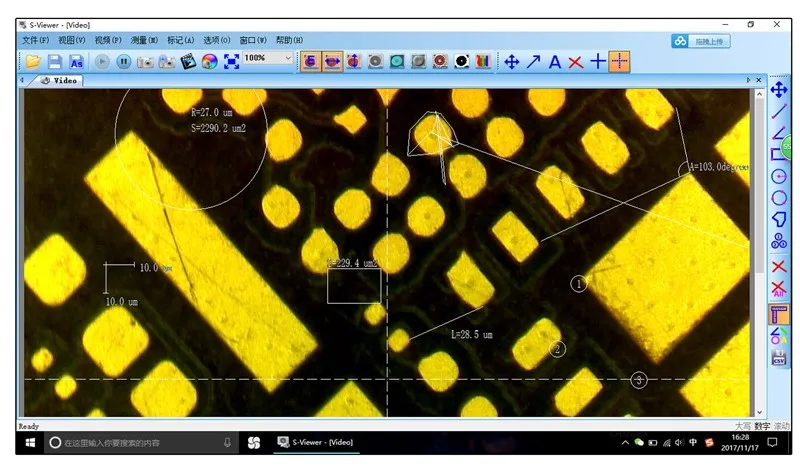

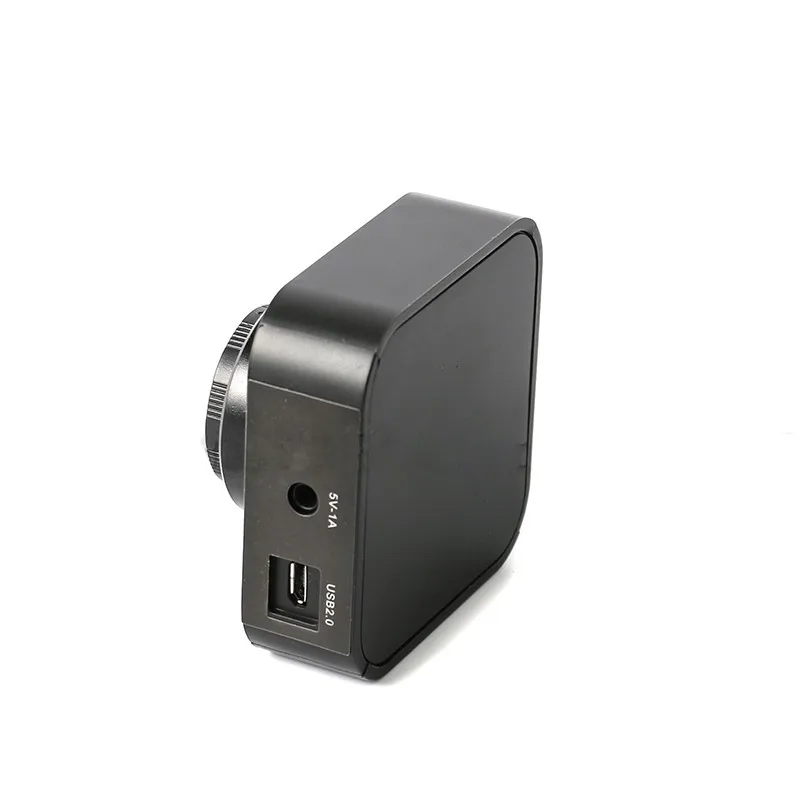

Step 2:Connect the USB interface between the microscope and the computer using the computer connected data line(see picture7),open the software Sview on the computer desktop,the connection is completed when the computer appears figures.
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Warranty
1.all of our products will be checked one by one before shipping;
2.customer should check the package when receiving;
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made
free technical support always;
4. due to the low vaule of the accessories,we don't accept any return or exchange.
Our Services
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
