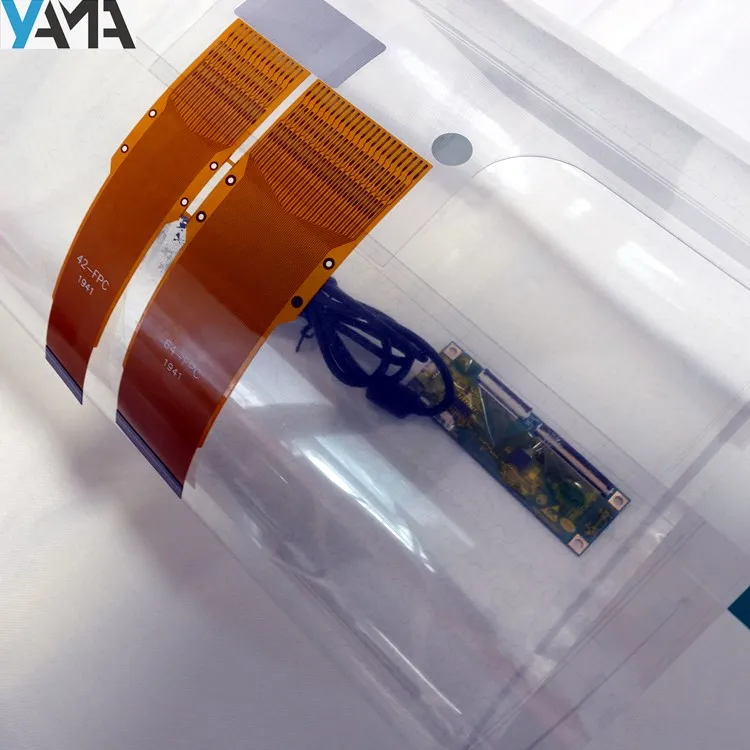

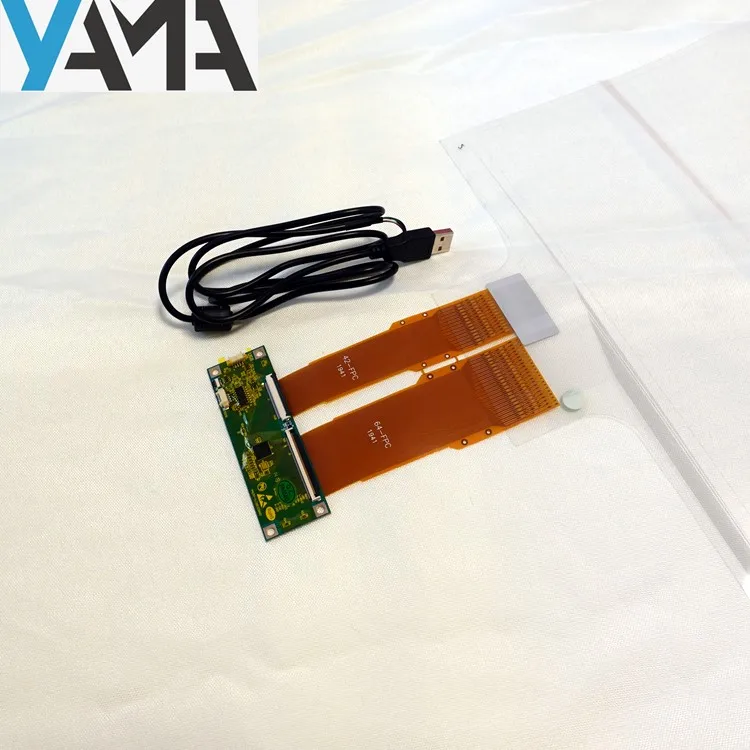

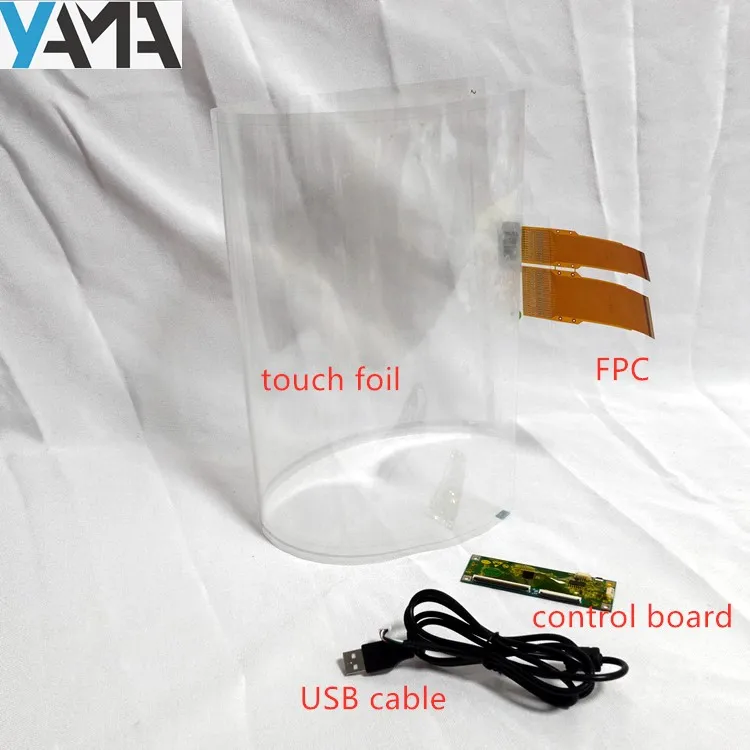

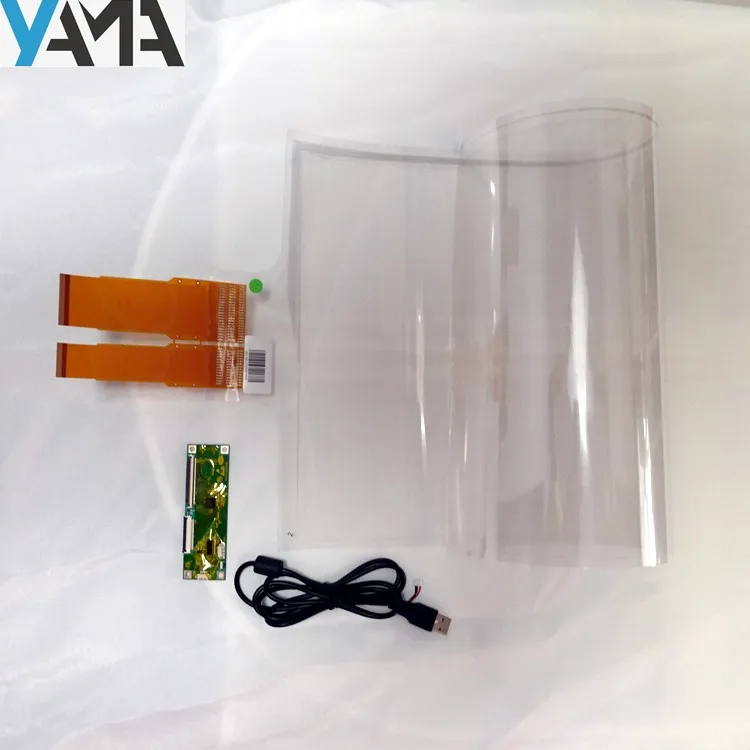

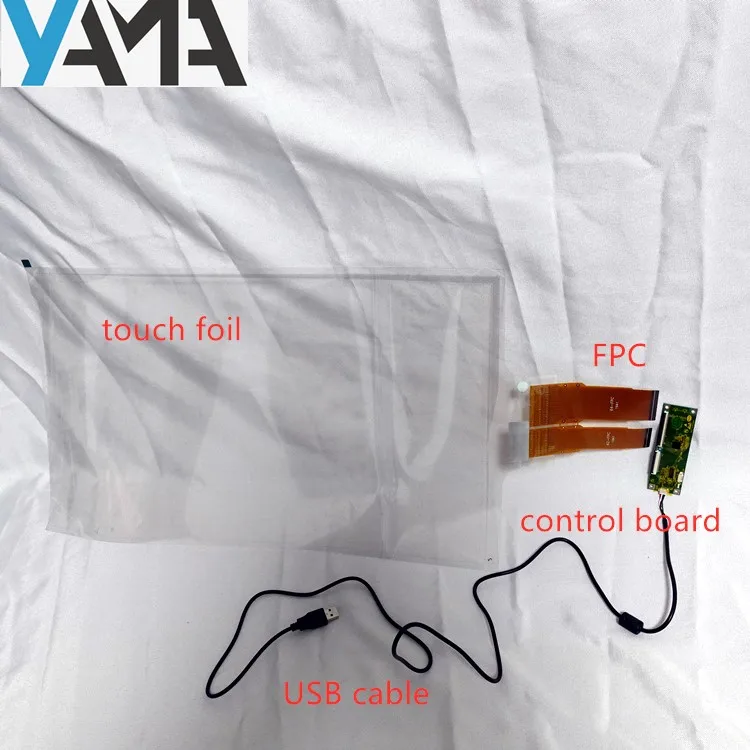

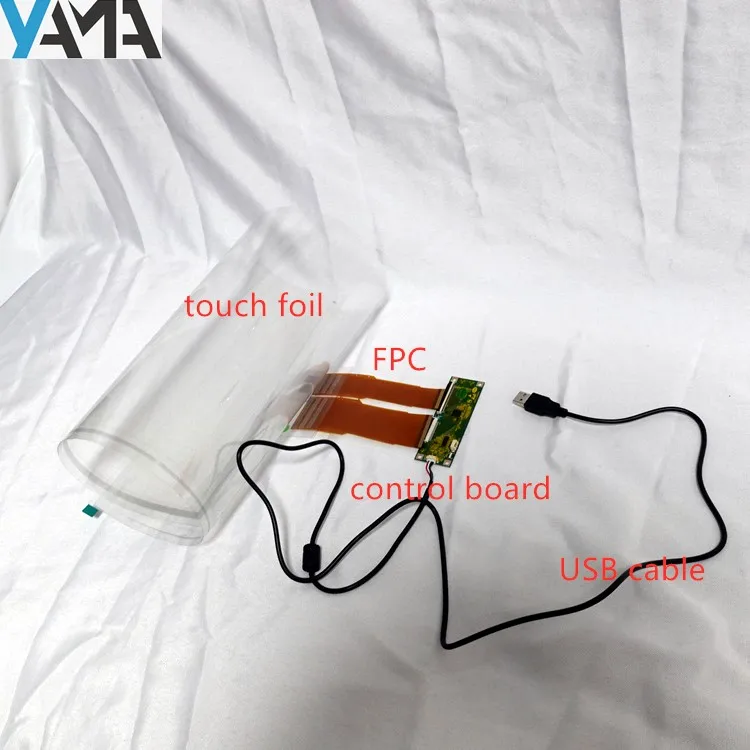

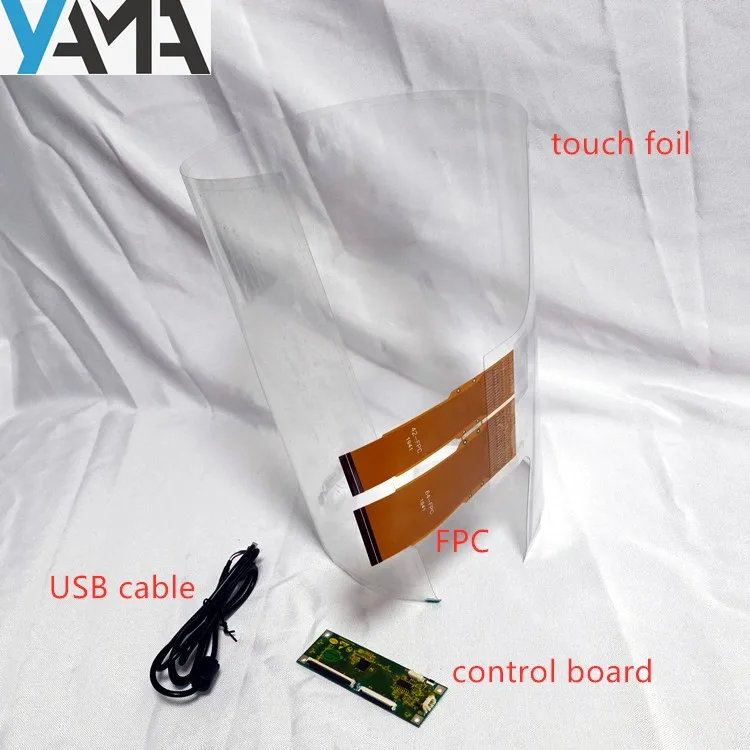

interactive window touch foil

Interactive touch foil advantage:

1. Super-thin,and transparent appearance

2. High definition, Stable touch

3. Well-positioned ,and support multi-touch points

4. Through the glass or other objects to touch just like gesture

5. The size can be customized

Specifications

·       Detection Method: Projected Capacitance technology using horizontal vertical wires

·       Screen Sizes: 7”- 120” 4:3 /16:9 as standard, other sizes available on request

·       Fixing options: Removable and permanent options available

·       Position accuracy: Approximately 3 mm absolute, 1 mm relative. No drift

·       Alignment: Software drivers provide a calibration facility

·       Sensitivity: Can be programmed for different thickness of glass and even use with gloved hands. Standard configuration functions with non-metallised. single construction glass 16mm thick. Double glazing option up to 25mm available*

·       Speed of response: Depends upon glass thickness. Typically 50 to 100ms

·       Output: USB or RS232.

·       Software Compatibility: Drivers are available for Windows Operating Systems

·       Temperature range: Better than -10°C to +70°C

·       Humidity Controller: 0% to 95%. Unaffected by condensation

·       Light Transmission: Typically better than 93%.

·       EMC: EN55022:1998 + A1 + A2 EN55024:1998 + A1 + A2

Connect port: USB. Driver: windows XP,windows 7/8/10,Linux,Android
Light transmittance: 99.7%
Position: 1mm (relative position), 3mm (absolute position), No drift
Respond speed: 0.01s-0.05s according to the thickness of glass
Lift time: 7-10 years lifespan.
Working temperature: -20 -+70° C. Working humidity: 0% - 95%
Tightness: Confirm to NEMA4 and IP64 standard

Touch Foil Film CE,ROHS Certifications

What is YaMaTouch touch foil ?

uses an unique transparent touch foil that can be controlled through glass.
Everything is installed on the inside of the shop window.
Touch Foil Film can be combined with projection or LCD screens to create interactive shop window.
Touch Foil Film acts as an eye catcher, it creates instant interactivity
between your customers and shop, even when it's closed.

How does it work?

Only a few microns thick our thin film display screens can turn any surface into a high definition multi media display surface.
Rear projected images, video and dynamic media content can be displayed in any format, anywhere.

Packing:cylinder

Shiping: By sea, by air and by expresses delivery.

1.Trade terms >>FOB,CIF,EXW
2.Payment terms >>TT,Western Union,PayPal,Credit card,E-checking
3.Payment condition >>50% deposit in advance,50% balance before delivery
4.Delivery time >>5~7days after deposit,3~4 working days for inventory
5.Packing >>Neutral carton,wooden case for large size
6.Shipping >>By sea,by air and by express

 YaMaTouch is specialized in producing resistive touch screen,touch panel. Surface Acoustic Wave(SAW) touch screen, Multi-touch Infrared touch screen/IR Touch Panel frame, LCD Touch Monitor, Kiosk, Interactive touch foil, LCD touch Panel PC/ Computer/ bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, touch solutions,Optical touch screen and Capacitive touch screen, Any size of touch panel we can customize for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points, No ghost point. Etc.
