HY U Automatic Suppositories and Filling Machine

Product Overview

Description

                                 HY-U Automatic Suppository Production Line





Working Principle:

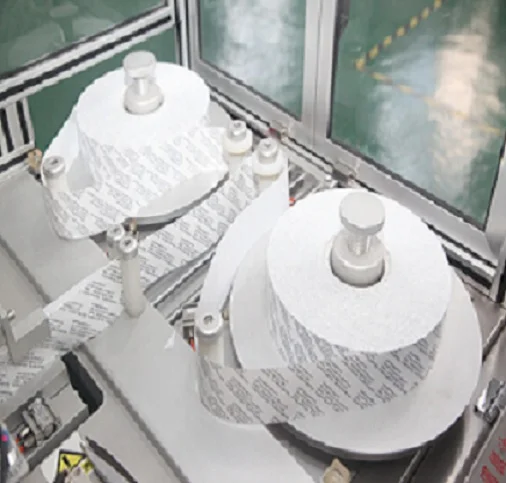

Rolls of Packing film (PVC , PVC / PE, dual aluminum composite film) will be send to filling process after shell making,and the liquid medicine will be filling into empty suppository shell automatically through the high precision metering pumps.then it will be a suppository line and cuts into sections automatically according to the length of the suppository line.and conveyed to cooling devices to make it cool and be solidification.after that it will be filling,truing ,printing date of production and molding.



Main Features:

It is widely used and can fill substrate and Chinese medicine production with high viscosity;PLC controller and Man-Machine Interface operator,fully automatic; accurate temperature controller;smoothly running;;high capacity, it feeds liquid medicine in a constant temperature cycles and fully automatic to control liquid level, so the liquid will be never solidification.it also can stir the liquid medicine according to the different materials and adjust the speed after cooling.and reject the Non-conforming product;it takes Small occupation area and is easy to adjust.



Technical parameters:



Capacity		8000-12000 granules/h
Volume of storing fluid vessel		50L
Electric pressure of power		380V three-phases
Air pressure		0.6MPa
Volume of consuming water		800kg/h
Overall dimension		6660x2000x2230mm
Weight of overall machine		1500kg

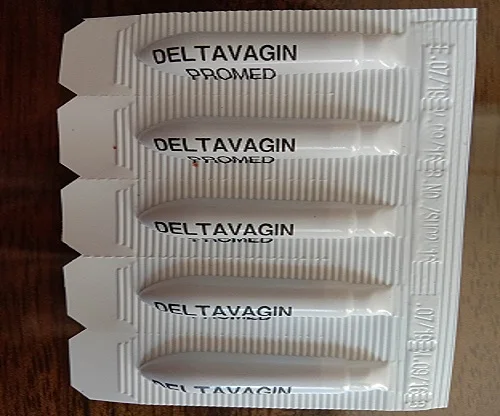

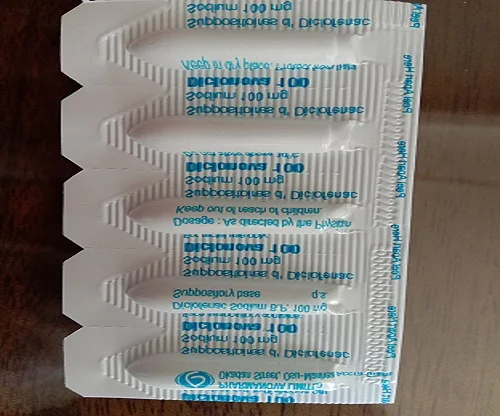

Adapting group		Bullet, Torpedo,Duckbilled and other shape
Suppository form		Synthcticfat glyceric acid,glyceride,glycerin gelatine,polyethyleneglycol and so on
Dosage per granulation		0.5-5ml
Dosage difference allowed		±1%
Total power		7.5kw
Consuming air tolerance		1.5m3/min

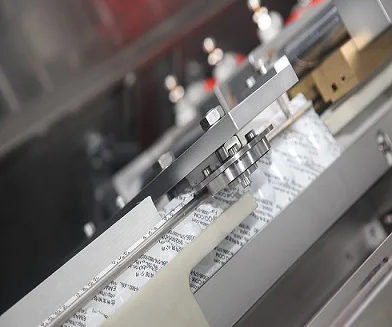

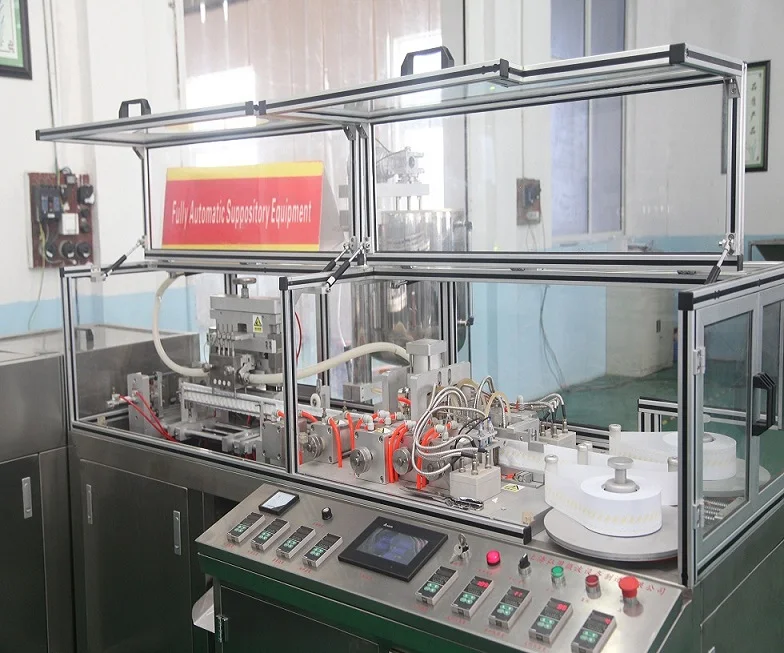

Machine pictures:
