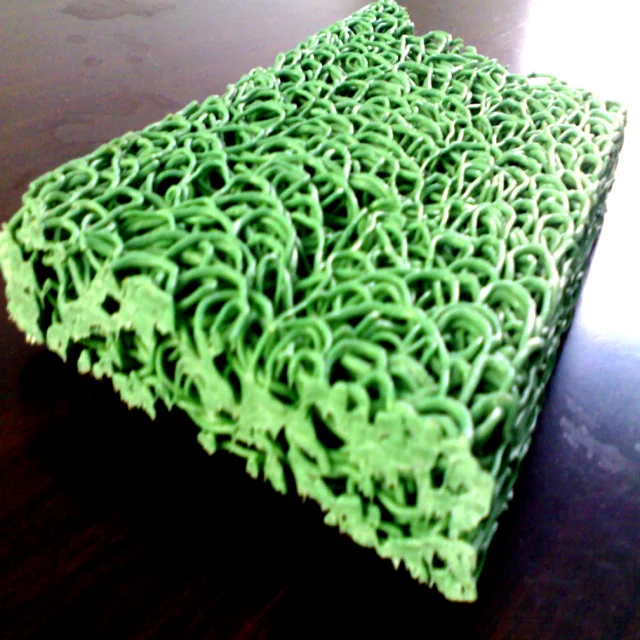

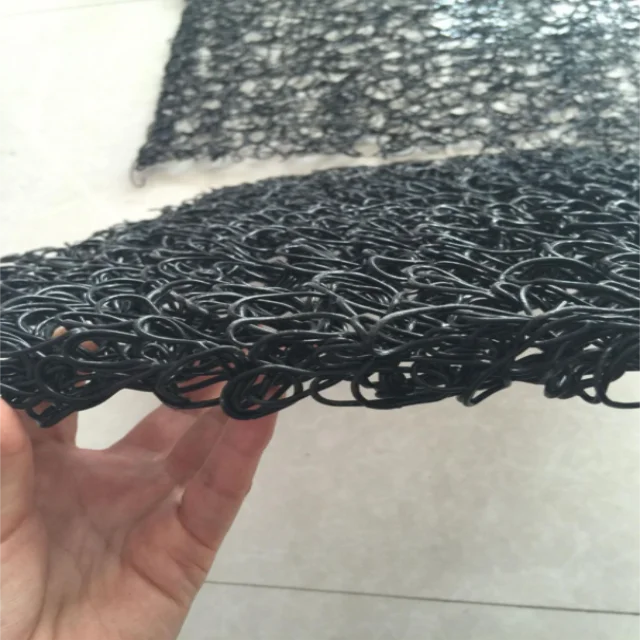

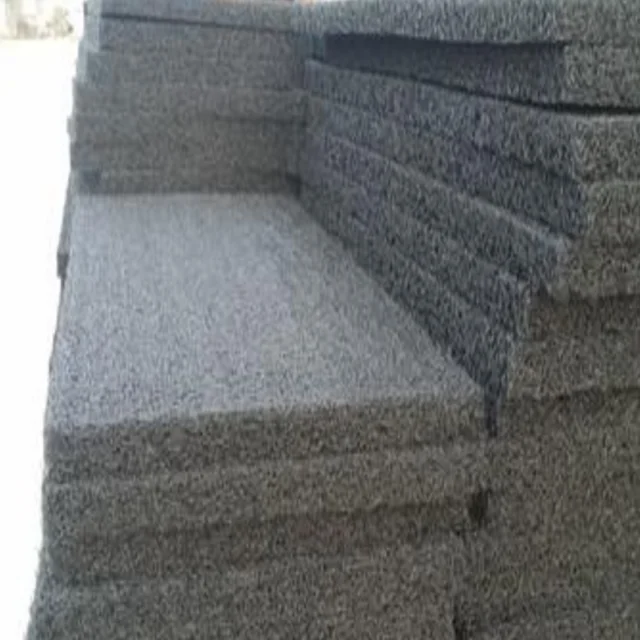

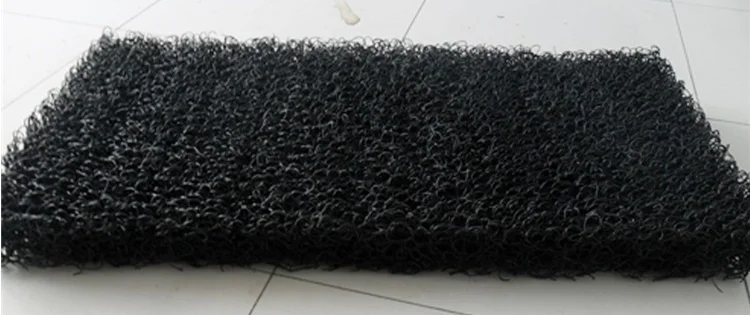

Geocomposite Drainage sheet is made of plastic core and outer filtering cloth. In the state of hot melting, it is formed into three-D network structure. It has two shapes: rectangle and round. This kind of pipe has some advantages: good drainage, high pressure resistance, light weight, so it is very popular in some projects.
Specification ,cm
Mass per unit area, g/m2
width 100cm
thickness 3cm
2700 g/m2
Width100cm
thickness 5cm
4500g/m2
Width100cm
thickness 8cm
7200g/m2
Width100cm
thickness 10cm
9000g/m2
Description:

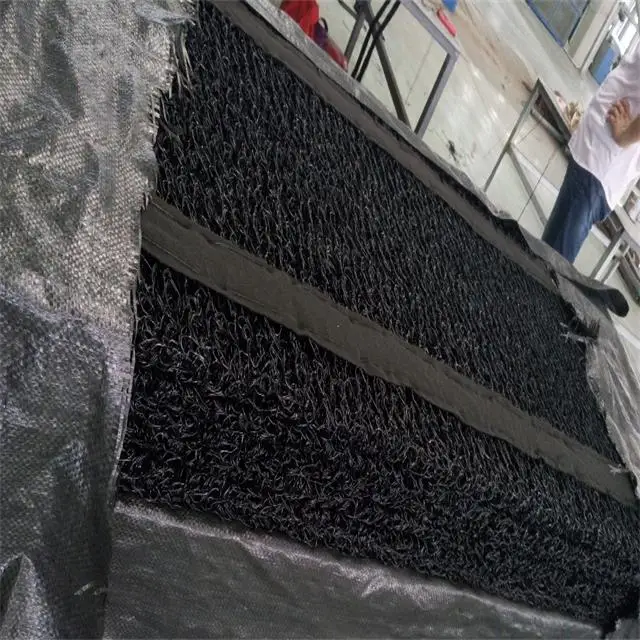

The drain mat is a kind of new geosynthetics made by melting silk, which has resistance high pressure and high hole density. the function of collecting water and horizontal drainage. The composition is a three-dimensional geo net core, both sides are equipped with needle punching non-woven geotextile. Three-dimensional geonet core can quickly discharge groundwater, itself has a pore maintenance system, can be blocked under high load capillary water. At the same time, it can also play a role in isolation and reinforcement.
Usage:
1, Drainage mats and non-woven geotextile composite, can be buried in the buried under the cover, will be collected through the soil cover the rainwater or the yard itself emissions of sewage, the use of its unique drainage function, in accordance with the engineering requirements From the geotextile mats in the orderly discharge, and will not form a clog. So that it is possible to avoid possible sliding problems due to the saturation of the soil cover.
2, geotextile mats can drain, but also emissions of soil due to fermentation of biogas, in the landfill application is particularly applicable. 3, geotextile mats and HDPE combined with the application, while can play a very good protection of HDPE film is not puncture effect.
Art No.
PLD0201
PLD0202
PLD0203
PLD0204
PLD0205
PLD0206
PLD0207
PLD0208
PLD0209
Item
Square shape
Circular shape
Type
YA7030
YA1435
YA1550
Y1235
YB60
YB80
YB100
YB150
YB200
Outer Size(mm)≥
70x30
140x35
150x50
120x35
φ60
φ80
φ100
φ150
φ200
Cannular Size≥
40x10
40x10x2
40x20x2
40x10x2
φ25
φ45
φ55
φ80
φ120
Weight≥
350
650
750
600
400
750
1000
1800
2900
Gap rate≥
82
82
85
82
82
82
84
85
85
Pressure
Resistance
Flat rate 5%
60
82
50
70
80
85
80
40
50
Flat rate
10%
110
120
70
110
160
170
140
70
70
Flat rate
15%
150
160
125
130
200
220
180
100
90
Flat rate
20%
190
190
160
180
250
280
220
125
120

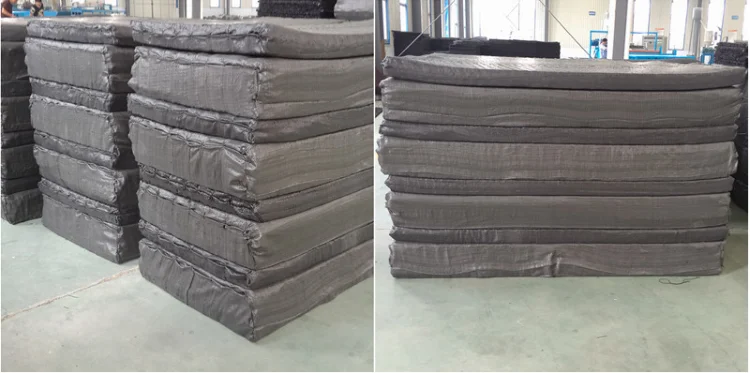

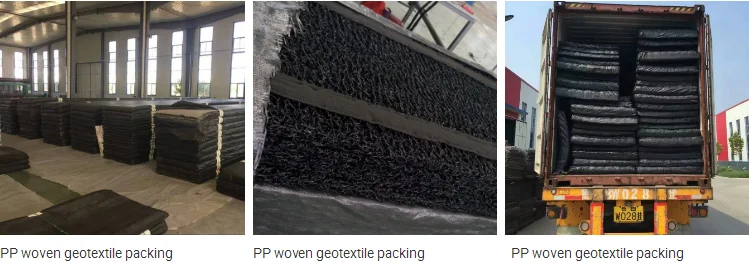

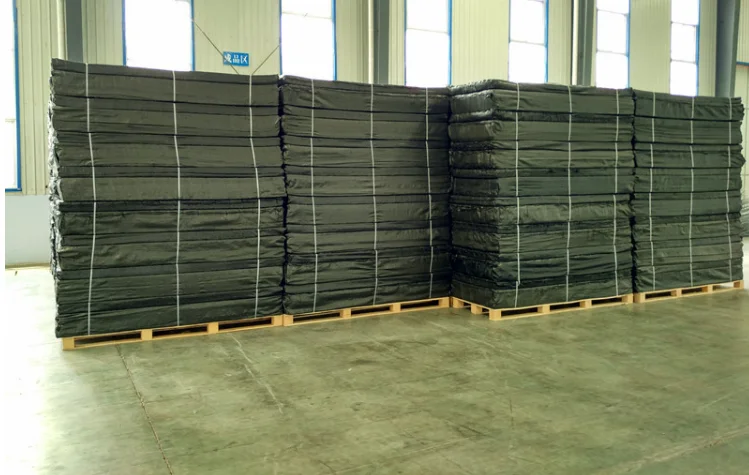

Packaging & Shipping
Packaging is using standard packaging, you can also follow the request.
Company Information
Tai'an Dingkun Trading Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.
Our Services
Service is our corporate philosophy, we will give you the best service to you, if your product in use, encountered any problems, we are willing to help you solve the problem.
1.We can provide free factory similar sample and delivery charge at your side
2.We can make sample with your design proposal at your cost.we can provide matched die-cutting document for your designing use in advance.
3.The sample can be ready right after we have discussed the processing details and confirm your payment for it in 4-7 work days.it may be extension for some special or complicate ones.
Our customer
Contact Us
If you have any questions, you can contact us at any time
FAQ
Q1. Can you do OEM? A1. Yes.of course.We can produce the products as per your request. If you can offer samples to us,it will be more convenient. Q2. If I want to order a small quantity goods,can you do it? A2. If the product you need we have stock available,that would be great,you can choose the instock goods. but if not, don’t worry, we can take your order with our other clients’ order to be produced together. But it needs to wait some time . Q3. Can I get a sample from your company?Should I pay for the express fee? A3. If you can accept our available sample,we can offer free sample to you. If you want a customized sample,we can renegotiate the cost. About the express fee,please offer a freight collected account and pay for the express fee by your side. After confirming your order, the sample’s freight cost will be deducted from your order’s total cost. Q4. How will you follow my order? A4. When the goods are started to produce,we will take photos for the goods and send it to you. If you find any production deficiencies,please contact us to correct it. We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the latest news about your order. After the goods are finish,we will take photos for the goods and packing to you before shipping. Q5. What is your exporting countries? A5. We have good sales performance and win good international reputation in more than 15 Countries and regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.
