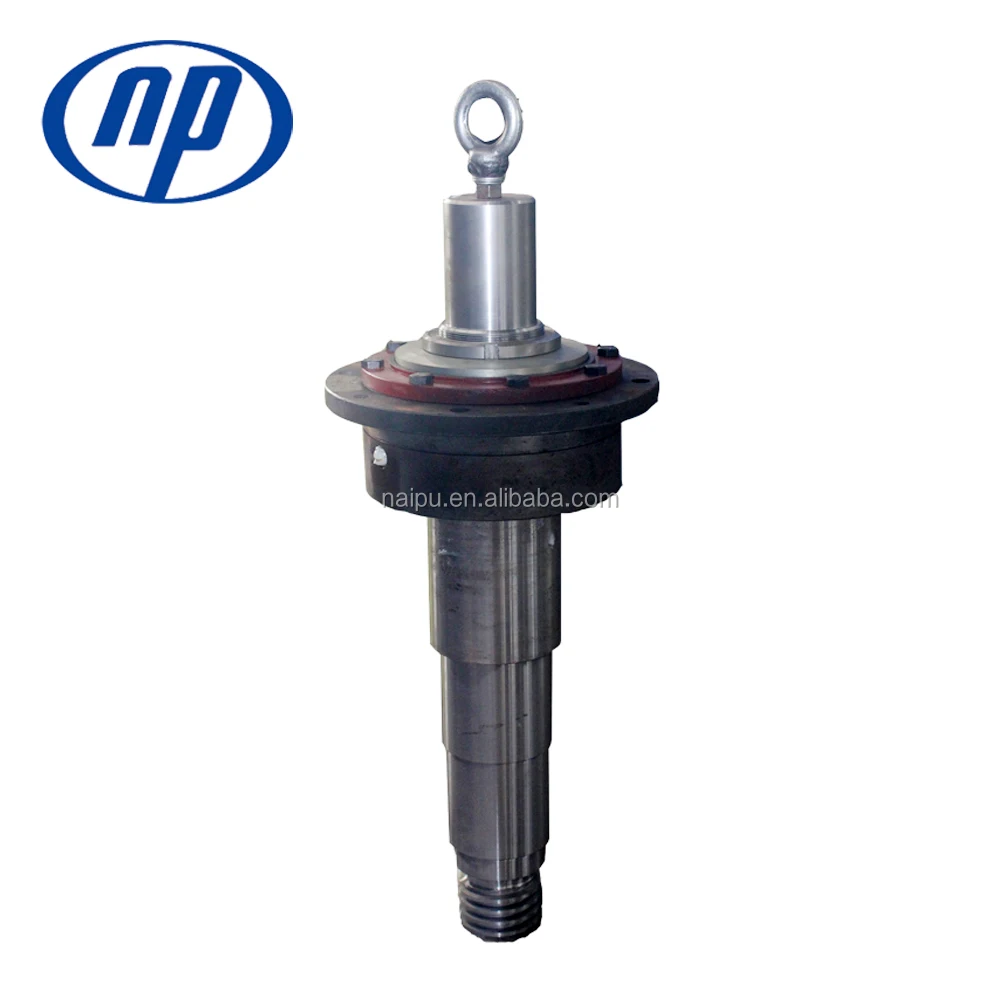

Shijiazhuang Slurry Pump Standard and OEM Steel Forging Casting Shaft

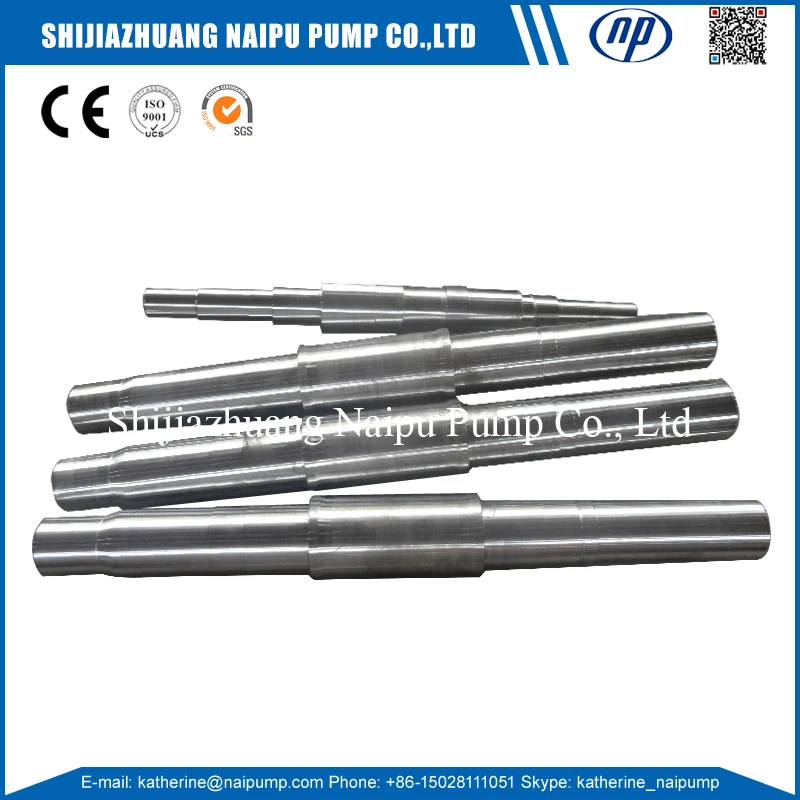

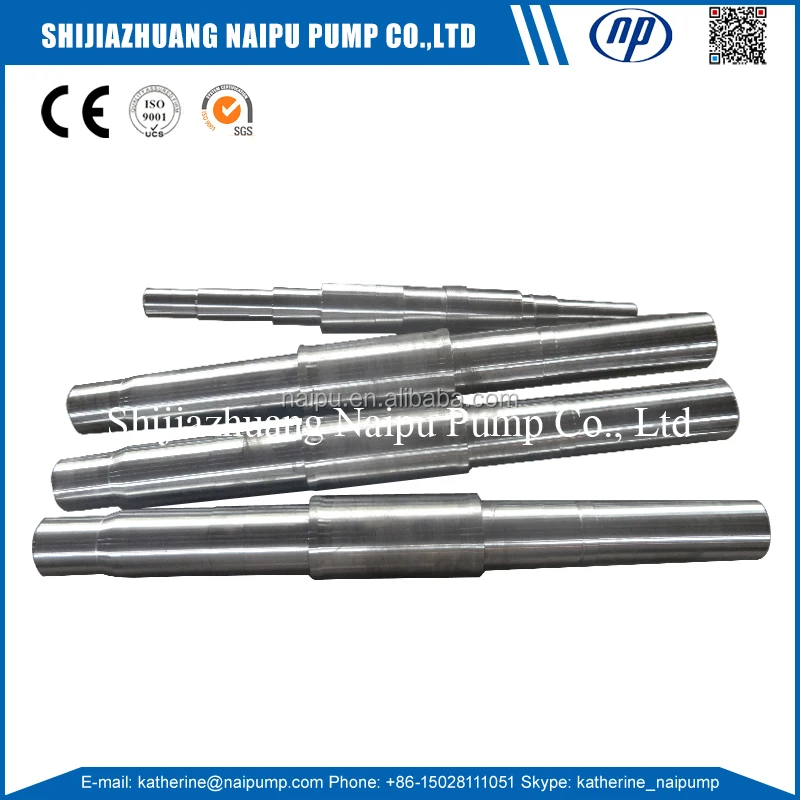

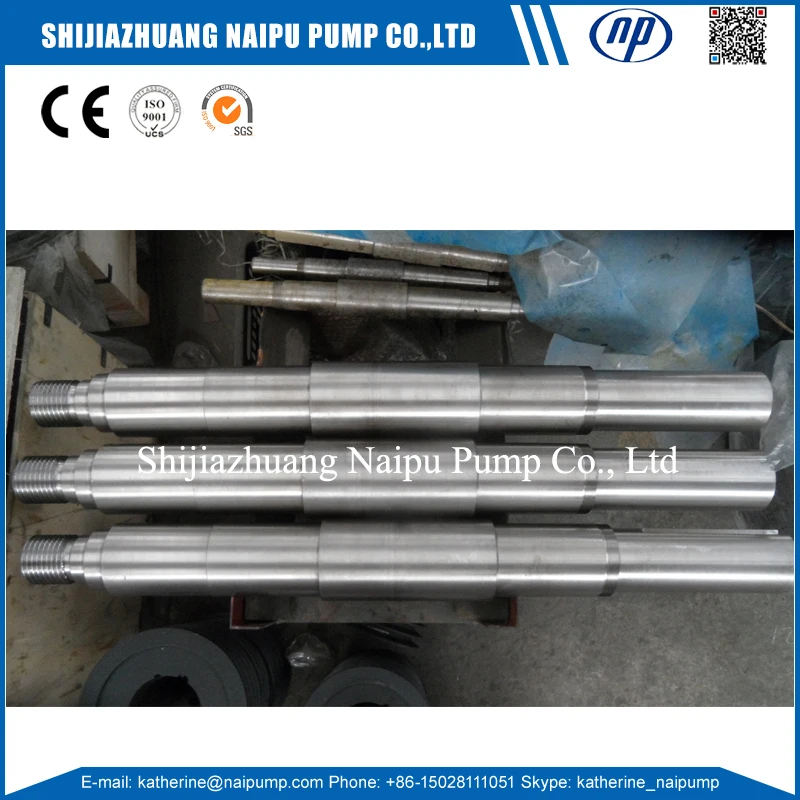

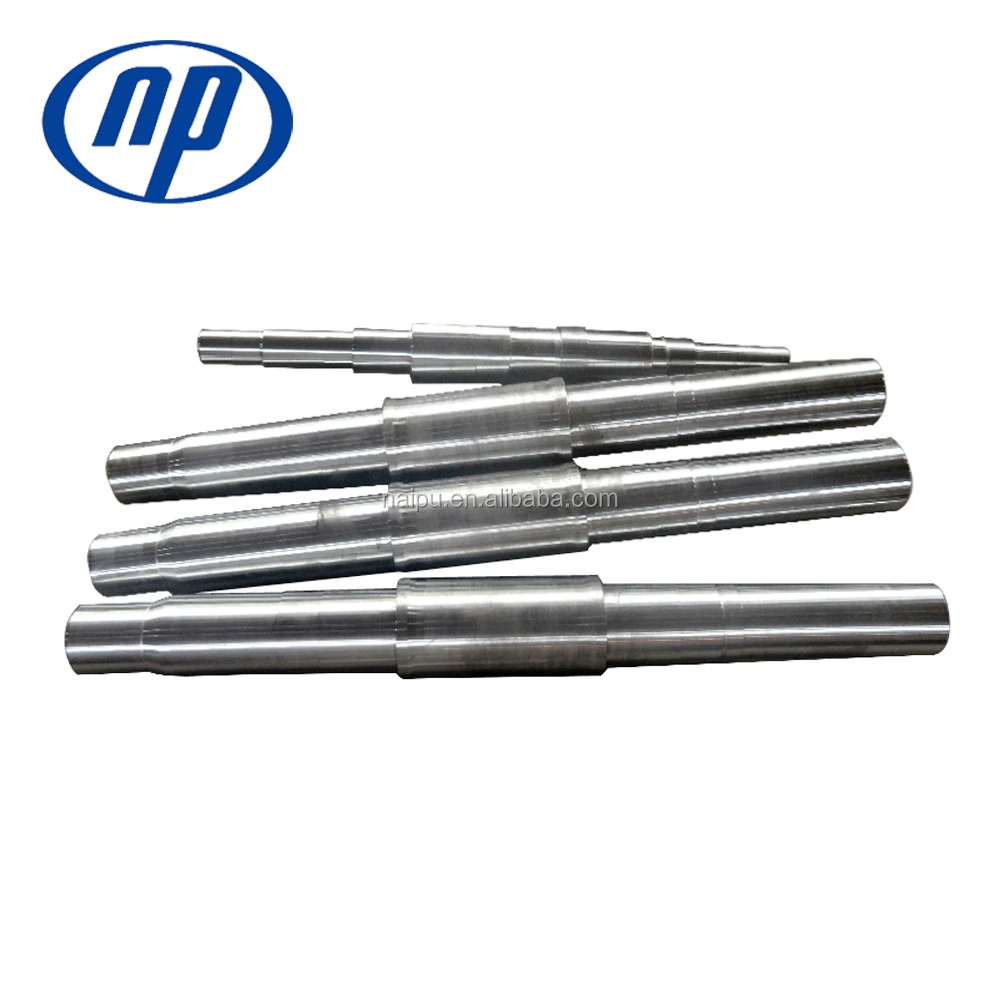

Alloy Forged Steel Shaft

Specialized in slurry pumps, minig pumps, sand dredging pumps and spare parts for all kind of pumps, welcome OEM project.
Material: Stainless steel, steel, 42CrMo, 42CrMo4, 4140 , SCM440, KmTBCr26, Cr15Mo3, Cr36, Cr12, high Cr-Mn and other antifriction metal.

Produce Processing:

EAF + LF + VD +(ESR) + Forged + Heat Treatment (optional) + machining

Hot forged, Heat-treatment (Normalized / Annealed / Quenched / tempered), Rough machining.

Black, Peeled, Turned and Polished

Chemical Analysis , Ultrasonic Inspection , Hardness Test etc.

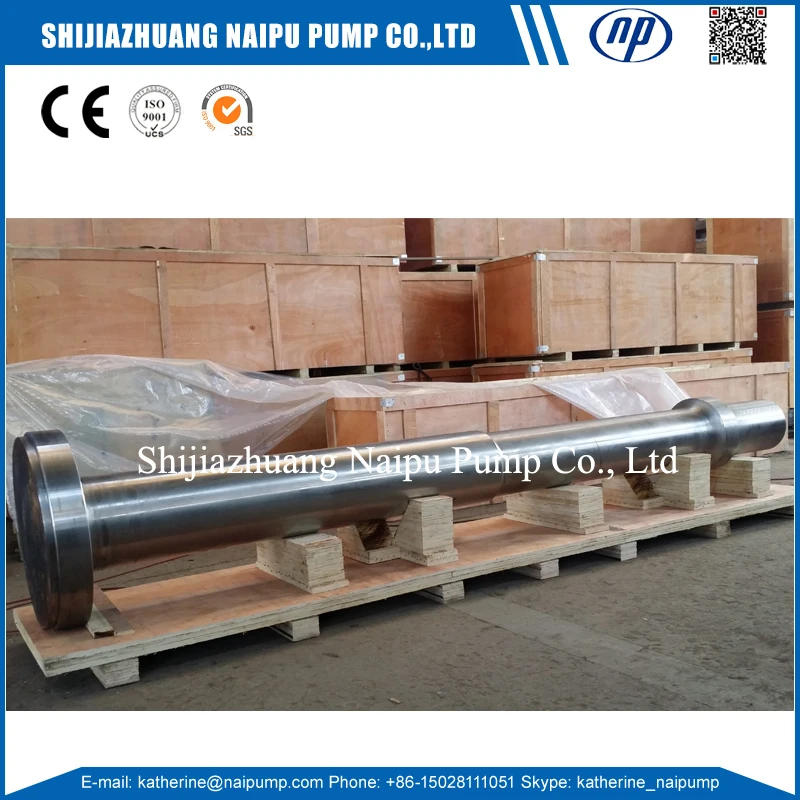

OEM range OD.150-750mm, Weight≤20T

Slurry pump spares material

Horizontal Slurry Pump Shaft part code: B073M, C073M, CAM073M, D073M, DAM073M, E073M, EAM073M, FAM073M, X073M, XAM073M, R073M, XY073, SH073M, TH073M...

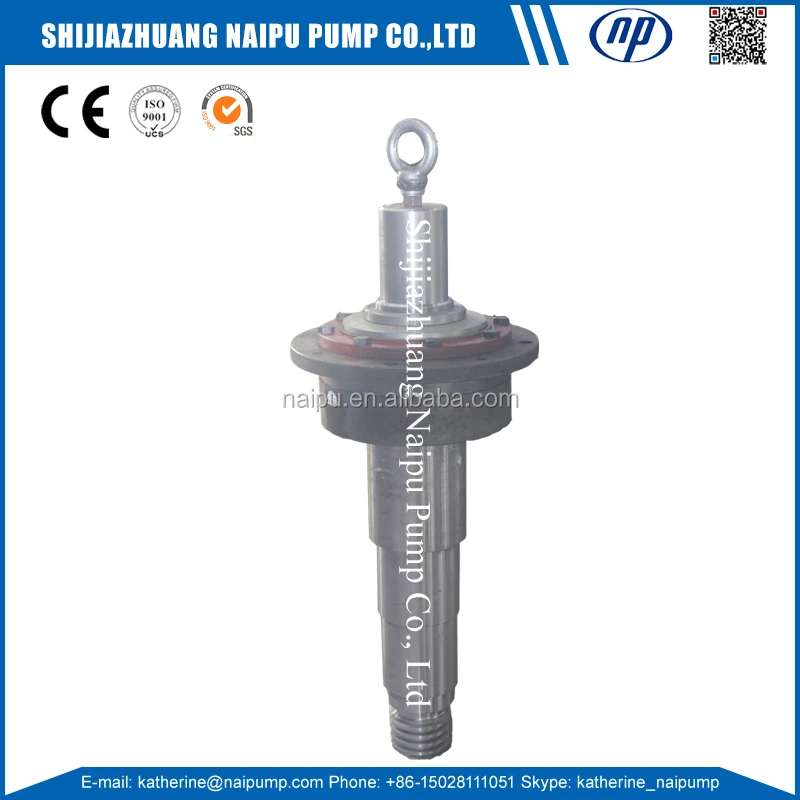

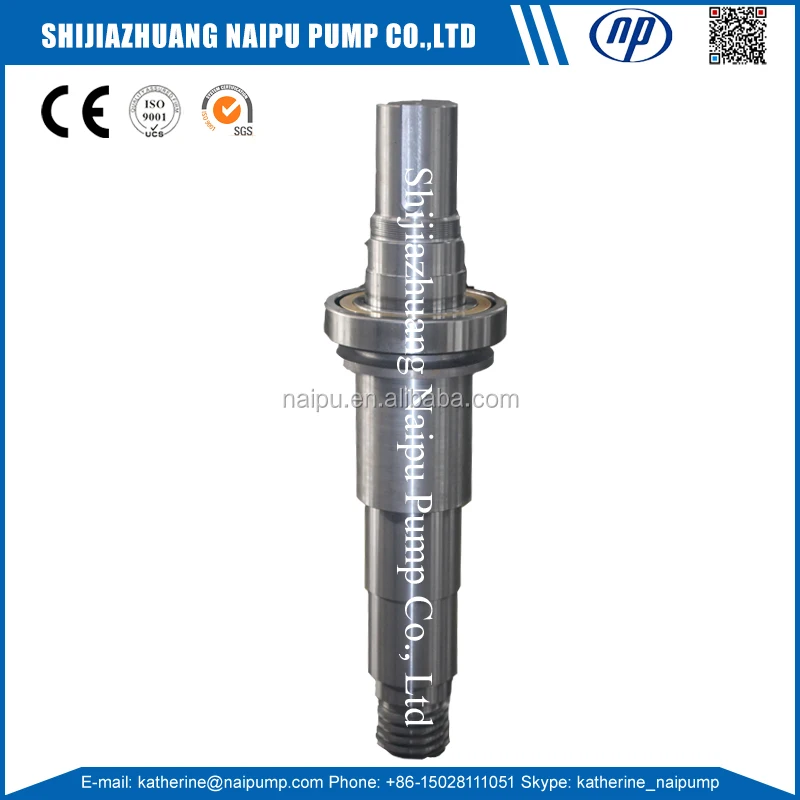

Vertical Slurry Pump Shaft Part Code No.: PV4073E, PV4073G, PVR4073E, PVR4073G, PVR4073J, PVR4073L, QV65073E, QV65073G, QV65073J, 65QVL-SP-08E, 65QVL-SP-08G, 65QVL-SP-08J, QVR65073E, QVR65073G, QVR65073J, 65QVL-SPR-01E,  65QVL-SPR-01G, 65QVL-SPR-01J, RV10073G, RV10073J, RV10073L, RV10073M, RV10073Q, RVR10073G, RVR10073J, RVR10073L, SV15073J, SV15073L, SV15073N, SVR15073J, SVR15073L, SVR15073N, SV20073L, SV20073N...

1) Shaft material: 45#, 40Cr, SS304, SS315...

2) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

3) Lantern ring material: 304, 316,  PTFE, Cu...

4) Bearing housing/ bearing end cover material: G01, D21...

5) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR...

Detailed Images



Pump Construction

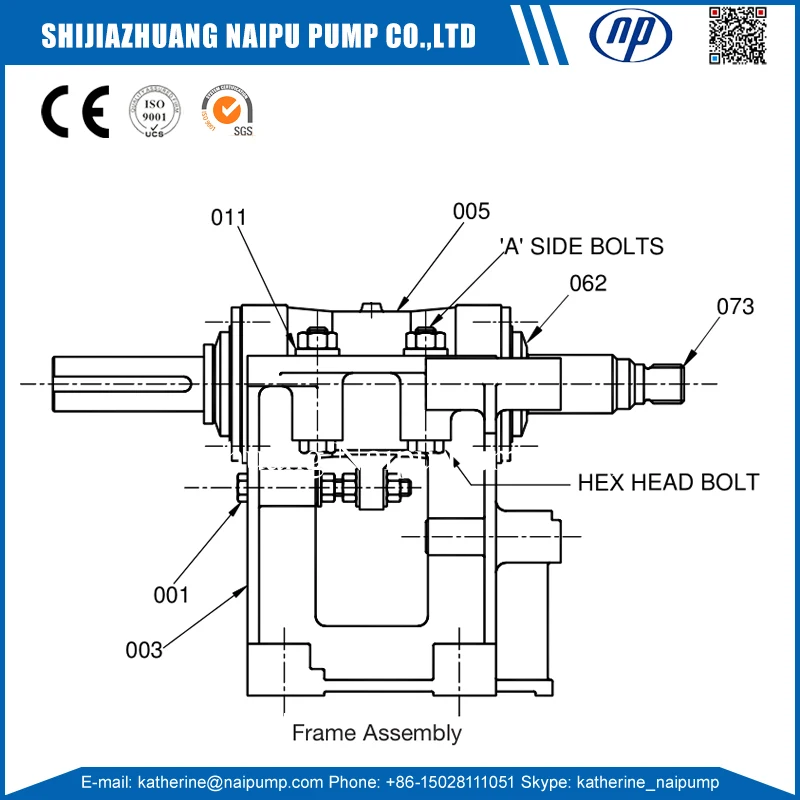

Horizontal slurry pump construction drawing





Certifications

CE, SGS, ISO9001 Certification





NaiPu Main Pump Model



AH(R)	L(R), M	HH	SP(R)	G	AF Series
1.5/1B-AH(R)	20A-L	1.5/1 C-HH	40PV-SP(R)	6/4D-G	2QV-AF
2/1.5B-AH(R)	50B-L(R)	3/2D-HH	65QV-SP(R)	8/6E-G	3QV-AF
3/2C-AH(R)	75C-L	4/3E-HH	100RV-SP(R)	10/8F-G	6SV-AF
4/3C-AH(R)	100 D-L	4/3X-HH	150SV-SP(R)	10/8S-G	8SV-AF
6/4D-AH(R)	150E-L	6/4F-HH	200SV-SP	12/10G-G
6/4E-AH(R)	300S-L	6/4X-HH	250TV-SP	14/12G-G
8/6E-AH(R)	10/8 R-M	6S-H		14/12T-G
8/6R-AH(R)	10/8 E-M	8/6S-H		16/14 G-G
10/8F-AH(R)		8/6X-H		16/14TU-GH
10/8X-AH(R)		6S-HP		16/14H-GH
12/10ST-AH(R)		8/6S-HP		18/16G-G
14/12ST-AH(R)		8/6X-HP		18/16TU-GH
16/14TU-AH(R)
20/18G(TU)-AH(R)

Related Products

Naipu pump produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.

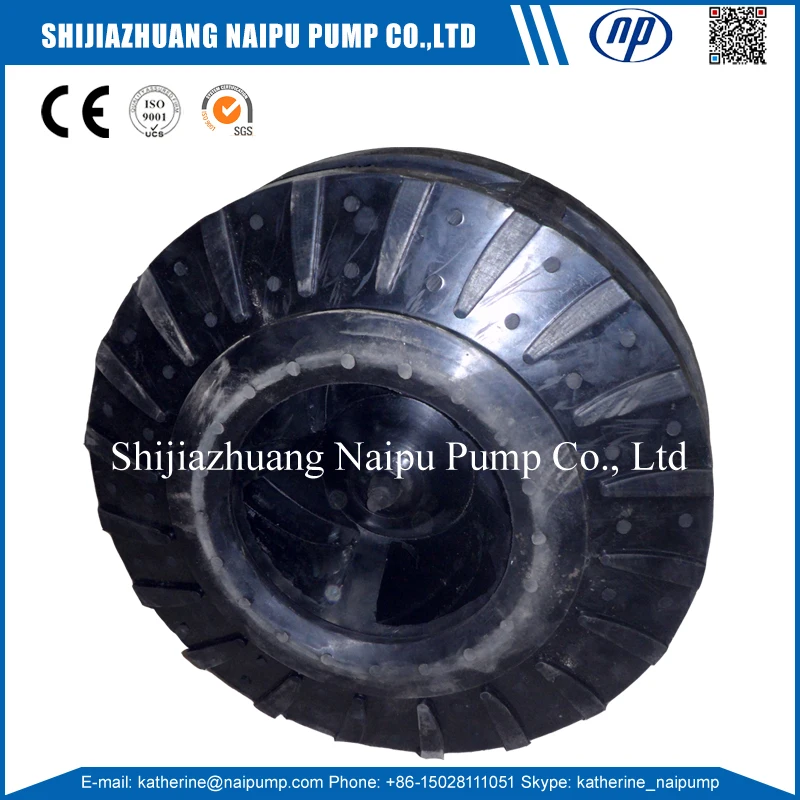

F6147EPR55 Impeller	D3036HS1R55 Frame Plate Liner

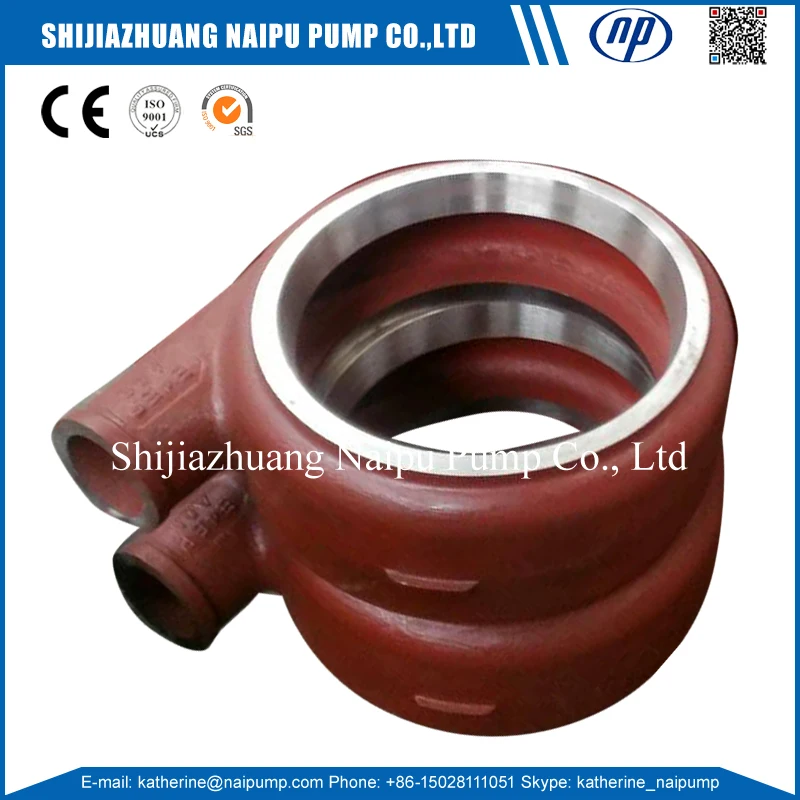

E6135 Clamp Ring	F6110EPA05 Volute Liner





Company Information

Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps and spare parts. Which own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop.



Various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.



Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.



Naipu is willing to undertake any OEM(Original Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.
