High Quality CAN bus Interface I/O Series Modules

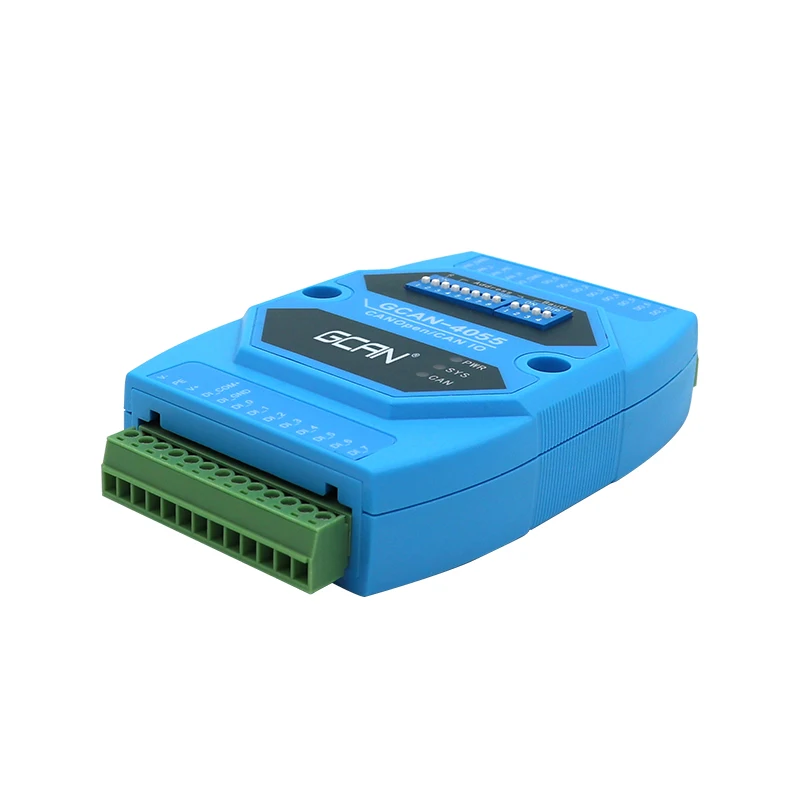

GCAN-4055 is an I/O module that communicates with the standard CANopen protocol and has 8-channel digital input and output. Users can use the GCAN-4055 module to collect digital or switching signals, and output voltage signals to control relay, switch, indicator light and other equipment.

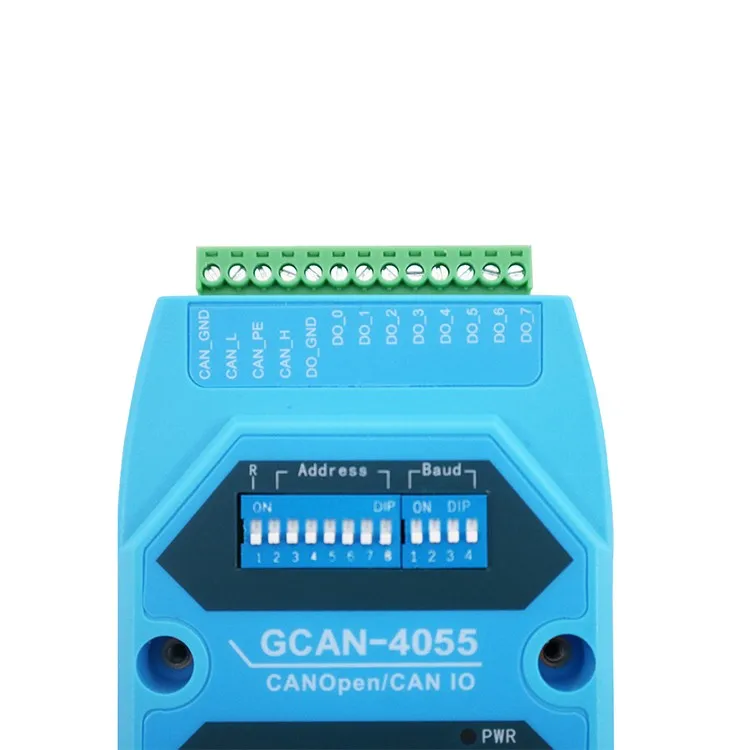

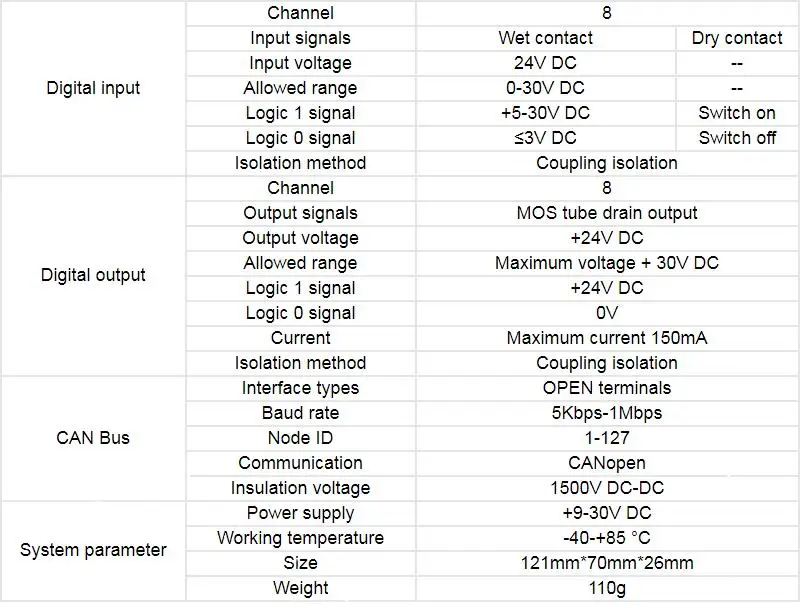

△\tCAN-Bus uses four terminals, which are defined as Can H, Can L, Can GND, Can PE.

△Digital output interface: 8-channel digital output interface, +24V150mA.

△Power interface: support +9~30V power supply, applicable to most industrial sites.

△Digital interface: 8 channel digital interface, support dry contact, wet contact.CANopen

The GCAN-4055 module uses the PDO (Process Data Object) to collect or output digital signals ，and send the parameters in the SDO command.

Trigger mode: only the DI or DO state changes,the TPDO will sand.
Cycle mode: GCAN-4055 sand TPDO data overtime.You need to send the SDO command read and write parameters when the GCAN-4055 is in a pre-operational state or operating state.

△Distributed control system controlled by CAN-Bus.

△Switching signal acquisition.;

△A large number of digital signal unified control.;

△PLC and other cooperative use of CAN-Bus communication.
