Top Quality Mini Trap Rock Pc 600X400 Hammer Crusher With Competitive Price Large Capacity
- Category: >>>
- Supplier: Henan Yuhong Heavy Machinery Co. Ltd.
Share on (60743038592):
Product Overview
Description

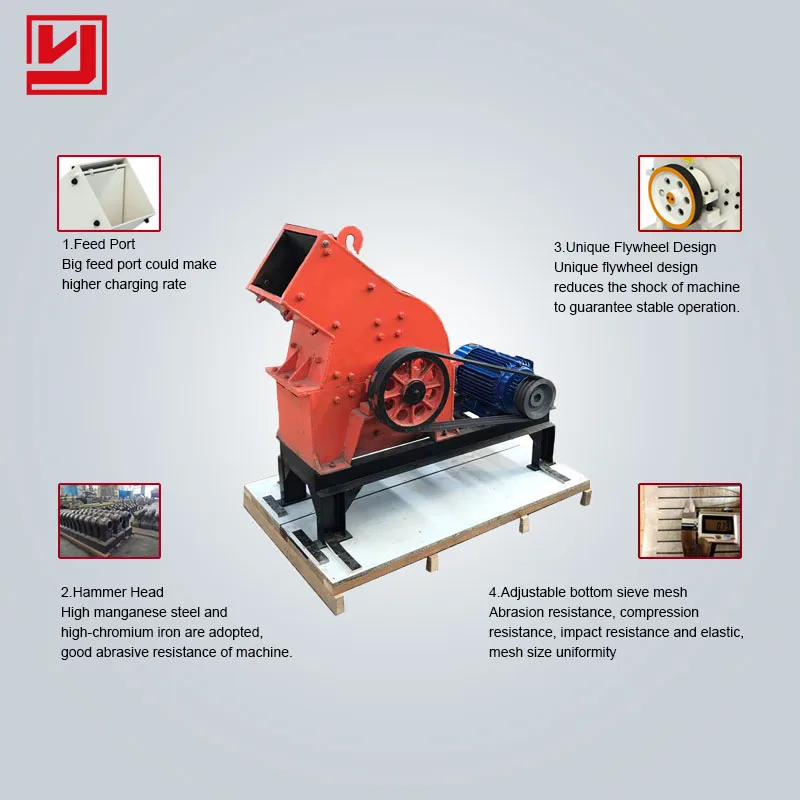

4 ADVANTAGES OF PRODUCT STRUCTURE

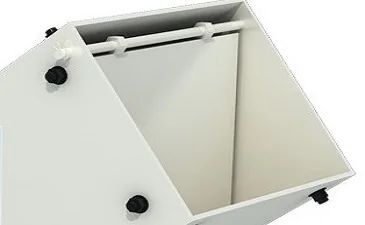

1. Feed Port:Big feed port could make higher charging rate

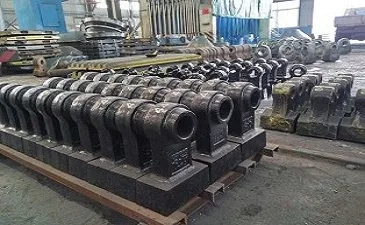

2. Hammer Head:High manganese steel and high-chromium iron are adopted, good abrasive resistance of machine.

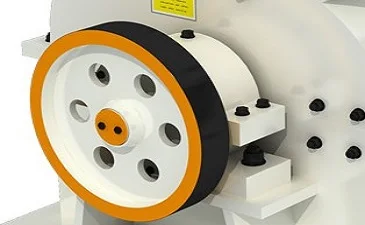

3. Unique Flywheel Design:Unique flywheel design reduces the shock of machine to guarantee stable operation.

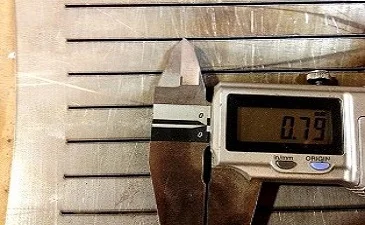

4. Adjustable bottom sieve mesh:Abrasion resistance, compression resistance, impact resistance and elastic,mesh size uniformity

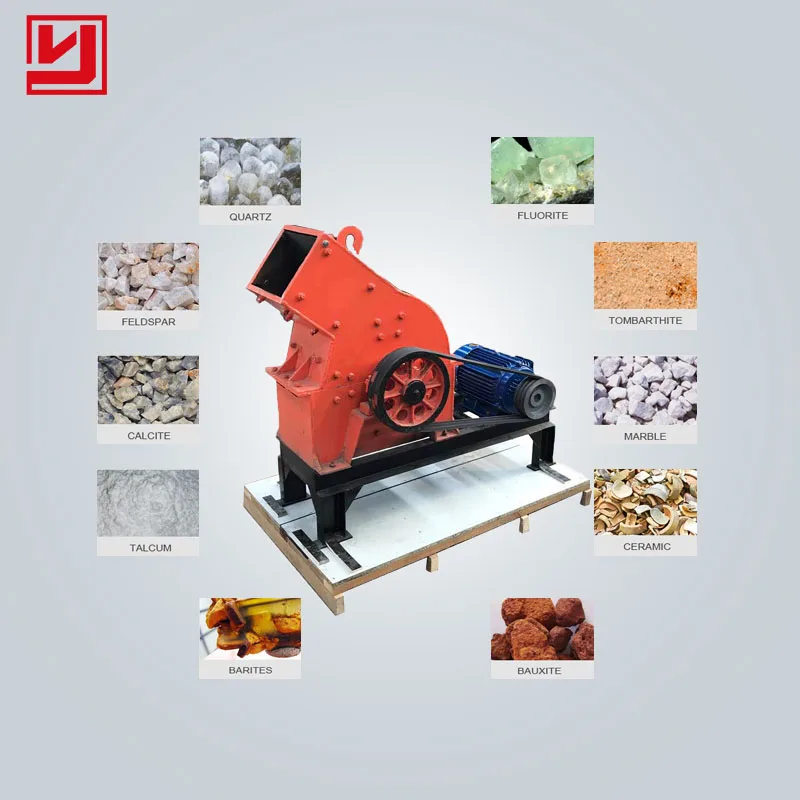

APPLICABLE MATERIALS
The Hammer Crusher is directly crush the 600-1800 mm maximum particle size material to a period of 25 or 25 mm below. such as: limestone, granite, marble, basalt, iron ore, pebble, river stone, shale, bluestone, coal, cobble, construction material

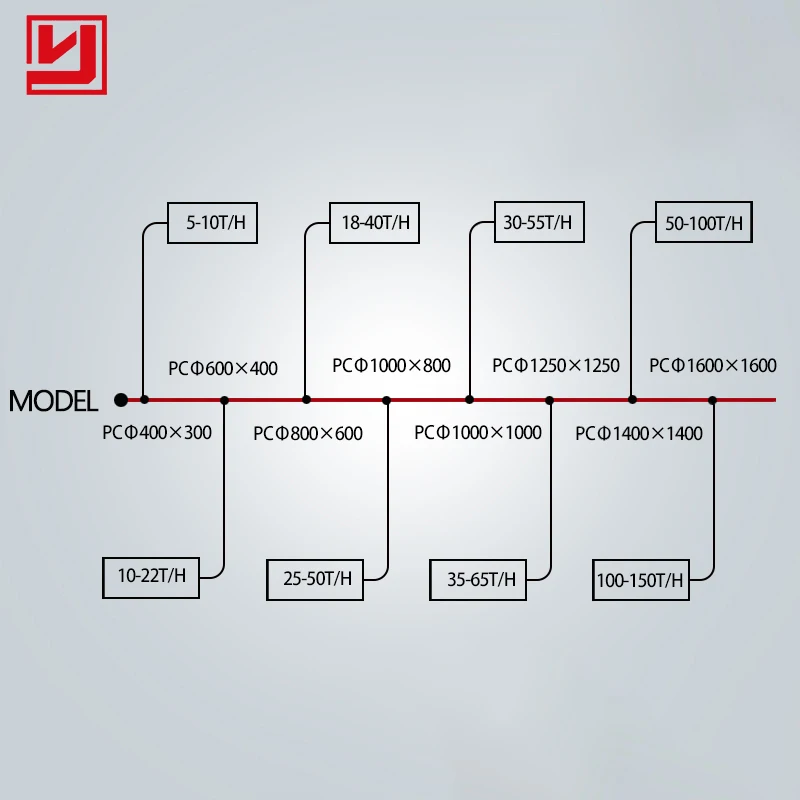

PRODUCT PARAMETERS
Specifications | Feeding Size | Discharging size | Capacity | Motor power | Total weight | Dimensions |
PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |
PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600×1390×1575 |
PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800×1590×1775 |
PCΦ1250×1250 | ≤350 | ≤35 | 35-65 | 132 | 14 | 2060×1600×1890 |
PCΦ1400×1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365×1870×2220 |
PCΦ1600×1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050×2850×2800 |
PRODUCTION LINE
The Crushing plants make use of a large range of equipment, such as a pre-screener, loading conveyor, intake hopper, magnetic separator, crushing unit, such as jaw crusher and cone crusher etc.
1. Raw materials are evenly and gradually conveyed into jaw stone crushing equipment for primary crushing via the hopper of vibrating feeder.
2. The crushed stone materials are conveyed to crushing plant by belt conveyor for secondary crushing before they are sent to vibrating screen to be separated.
3. After separating, qualified materials will be taken away as final products, while unqualified materials will be carried back to the stone crushing equipment for re-crushing. And customers can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Of course, according to different requirements, customers can adjust the size of their final products from this stone crushing plant.
4. Clients will get the satisfactory products after objects being crushed for several times. Dust is generated during the working process while the dust control units are needed.
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for Hammer crusher material?
A2: Our Yuhong has a high standard on choosing material of hammer Crusher.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
