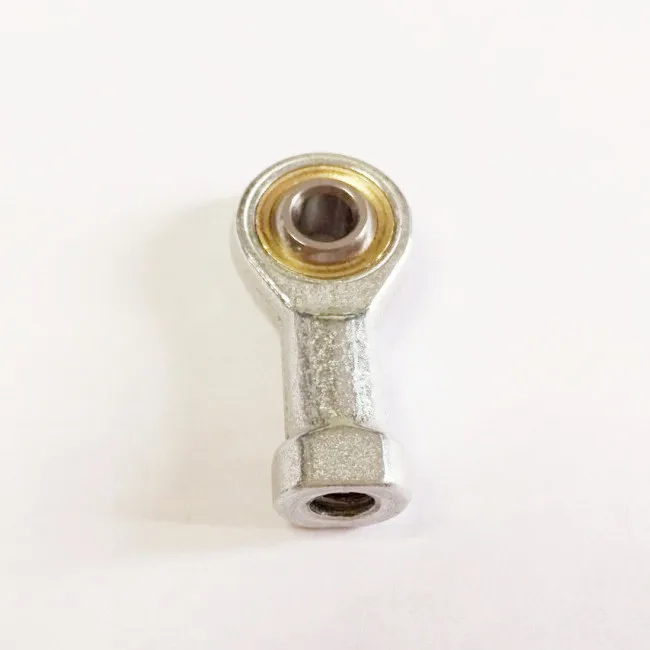

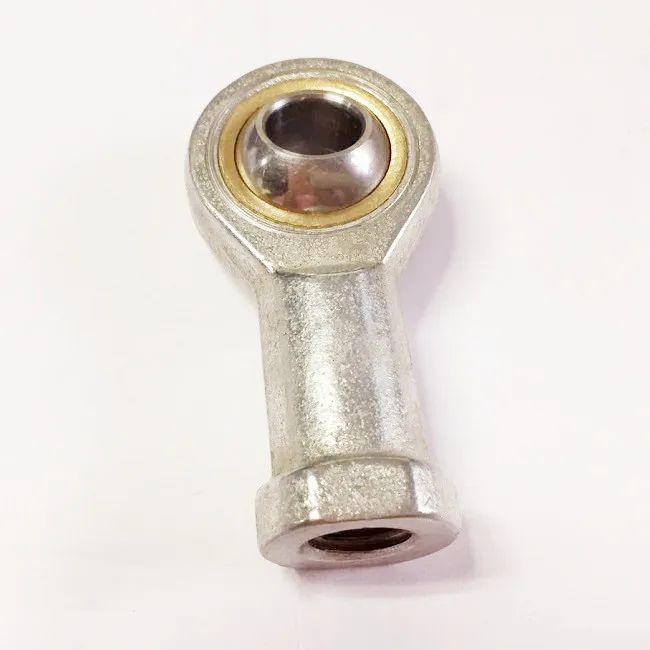

Threaded Rod End Bearing Articulating Joint Heim Bearings SI8T/K
Product Description
Threaded Rod End Bearing Articulating Joint Heim Bearings SI8T/K
Description:
Rod end bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
Feature:
1. Bearings with a stretching rod, stretching with right or left-hand male thread.
2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.
3. Rod ends permissible operating temperature, are available on - 30 °C to + 80 °C temperature range of use, and keep the right to bear ability.
Application:
Rod end bearings are widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.
it is generally used in low speed of swing motion, the angular motion, can bear larger load, can bear radial load, axial load or the joint of the radial, axial load.
Datas:

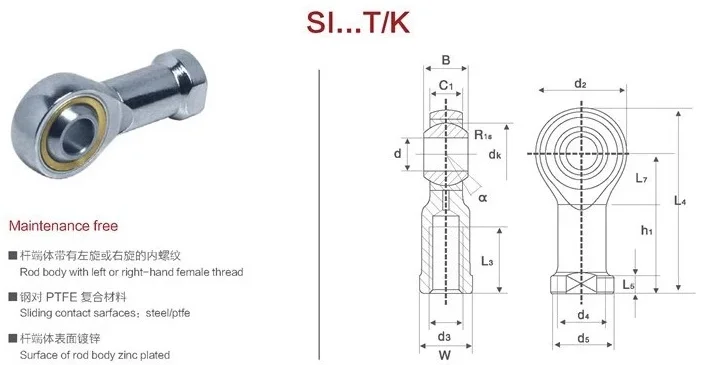

Data sheet:
| ITEM | Dimension(mm) | Weight | |||||||||||||
| d | d3 | B | C1 | L3 | W | d2 | h1 | L4 | L5 | d4 | d5 | dk | a | kg | |
| 6H | min | ≈ | |||||||||||||
| SI5T/K | 5 | M5x0.8 | 8 | 6 | 10 | 9 | 18 | 27 | 36 | 4 | 8.5 | 11 | 11.11 | 13 | 0.016 |
| SI6T/K | 6 | M6x1.0 | 9 | 6.75 | 12 | 11 | 20 | 30 | 40 | 5 | 10 | 13 | 12.7 | 13 | 0.022 |
| SI8T/K | 8 | M8x1.25 | 12 | 9 | 16 | 14 | 24 | 36 | 48 | 5 | 12.5 | 16 | 15.875 | 14 | 0.047 |
| SI10T/K | 10 | M10x1.5 | 14 | 10.5 | 20 | 17 | 28 | 43 | 57 | 6.5 | 15 | 19 | 19.05 | 13 | 0.077 |
| SI12T/K | 12 | M12x1.75 | 16 | 12 | 22 | 19 | 32 | 50 | 66 | 6.5 | 17.5 | 22 | 22.225 | 13 | 0.1 |
| SI14T/K | 14 | M14x2.0 | 19 | 13.5 | 25 | 22 | 36 | 57 | 75 | 8 | 20 | 25 | 25.4 | 16 | 0.16 |
| SI16T/K | 16 | M16x2.0 | 21 | 15 | 28 | 22 | 42 | 64 | 85 | 8 | 22 | 27 | 28.575 | 15 | 0.22 |
| SI18T/K | 18 | M18x1.5 | 23 | 16.5 | 32 | 27 | 44 | 71 | 93 | 10 | 25 | 31 | 31.75 | 15 | 0.32 |
| SI20T/K | 20 | M20x1.5 | 25 | 18 | 33 | 30 | 50 | 77 | 102 | 10 | 27.5 | 34 | 34.925 | 14 | 0.42 |
| SI22T/K | 22 | M22x1.5 | 28 | 20 | 37 | 32 | 54 | 84 | 111 | 12 | 30 | 38 | 38.1 | 15 | 0.54 |
| SI25T/K | 25 | M24x2.0 | 31 | 22 | 42 | 36 | 60 | 94 | 124 | 12 | 33.5 | 42 | 42.86 | 15 | 0.72 |
| SI28T/K | 28 | M27x2.0 | 35 | 24 | 51 | 41 | 66 | 103 | 136 | 14 | 37 | 46 | 47.63 | 15 | 0.82 |
| SI30T/K | 30 | M30x2.0 | 37 | 25 | 51 | 41 | 70 | 110 | 145 | 15 | 40 | 50 | 50.8 | 17 | 1.1 |
