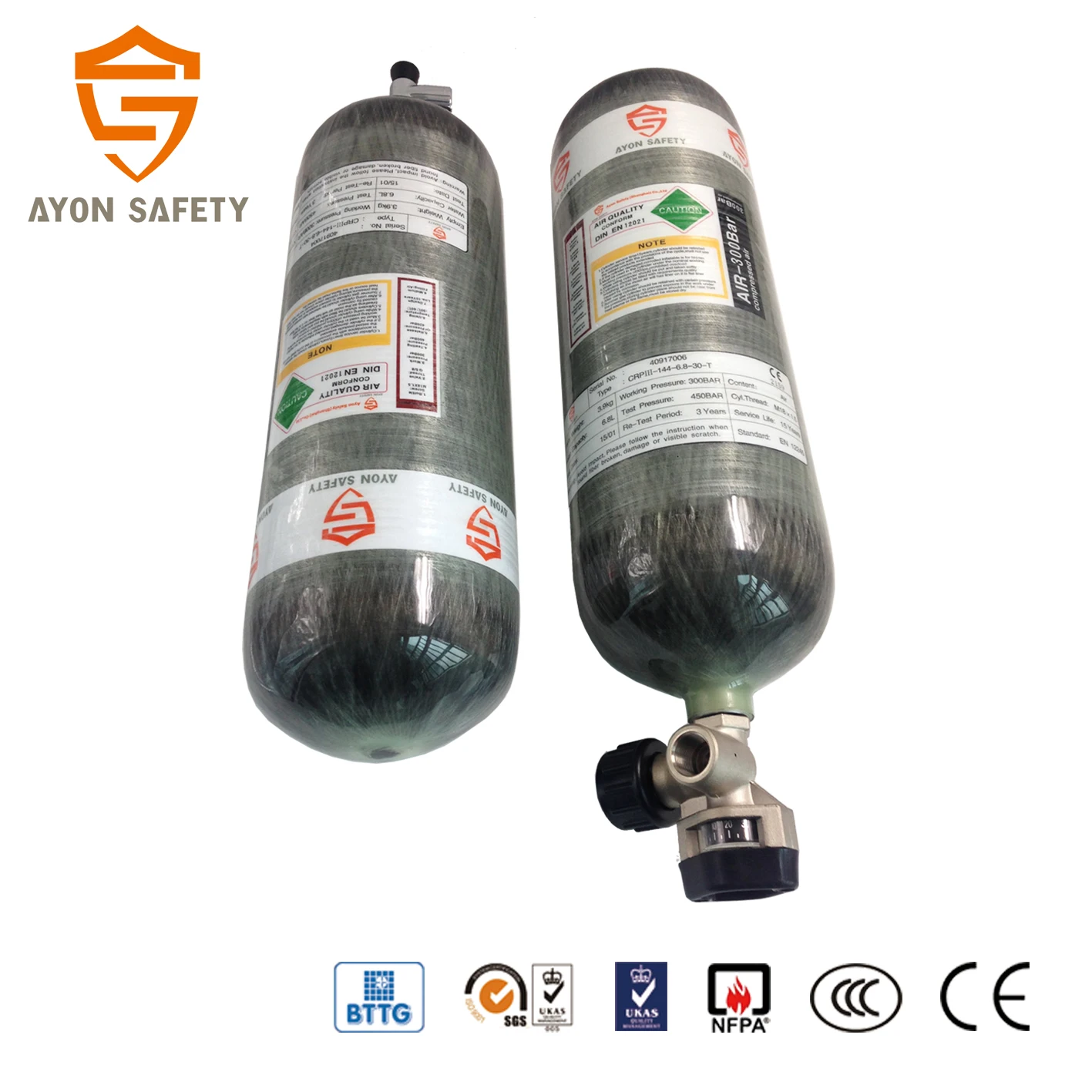

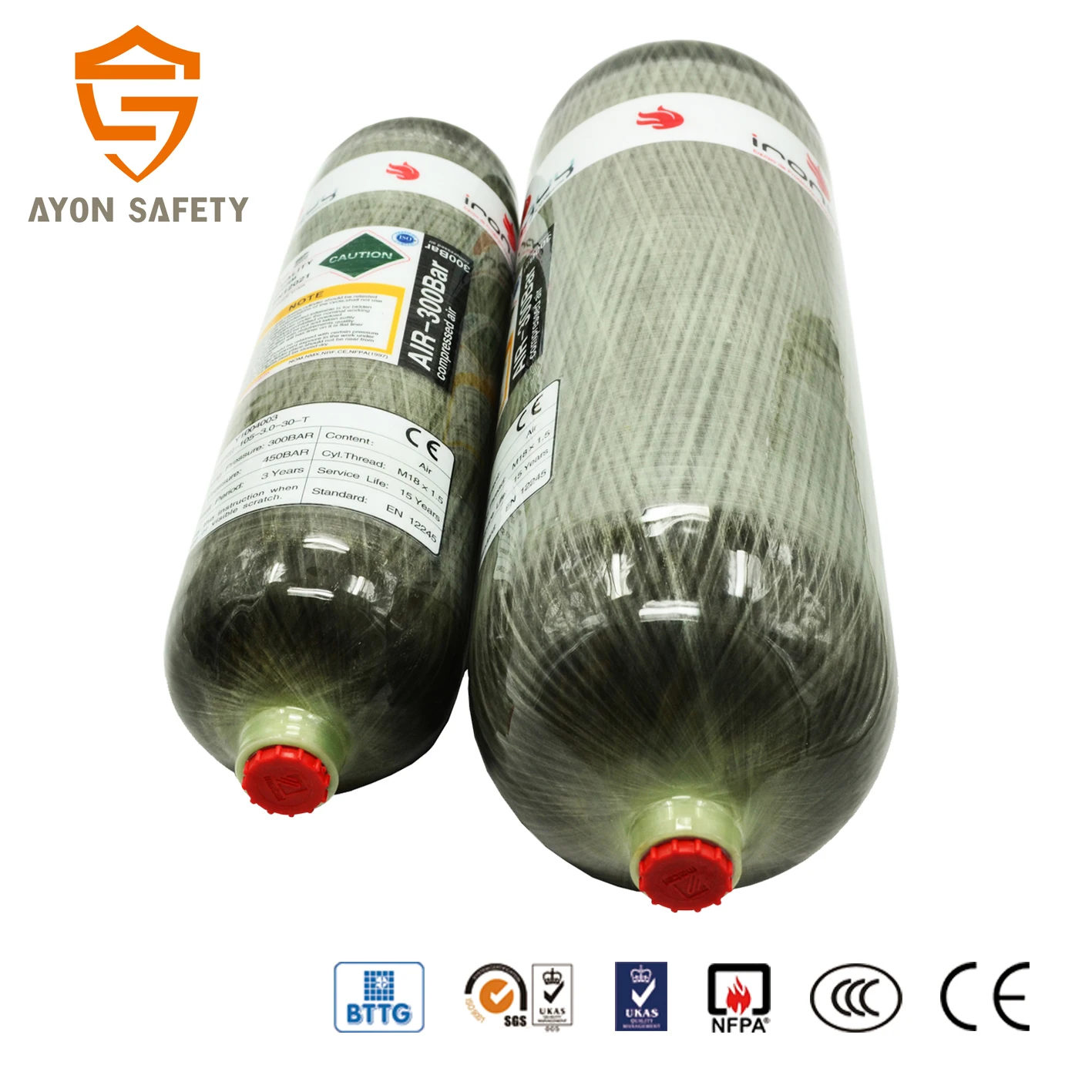

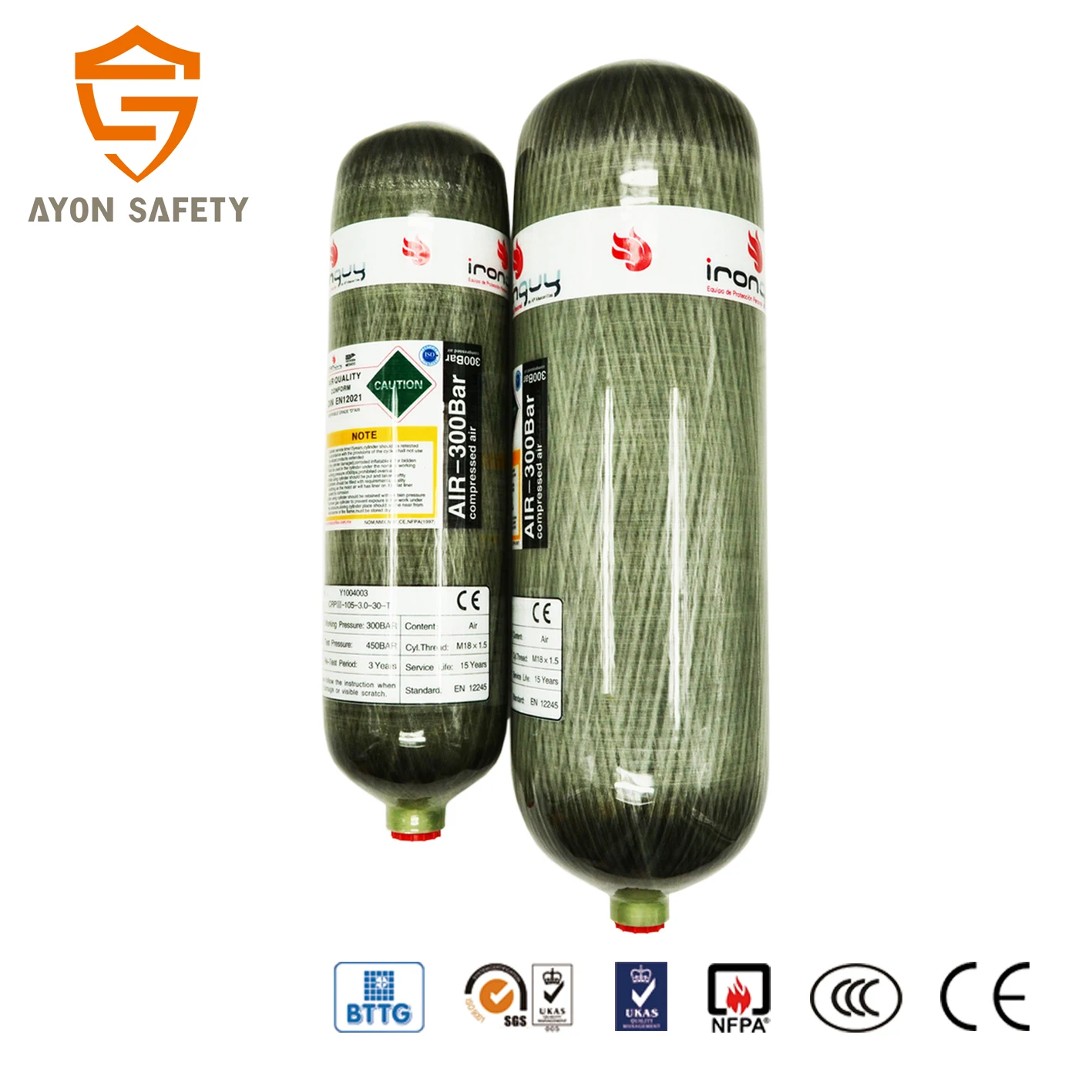

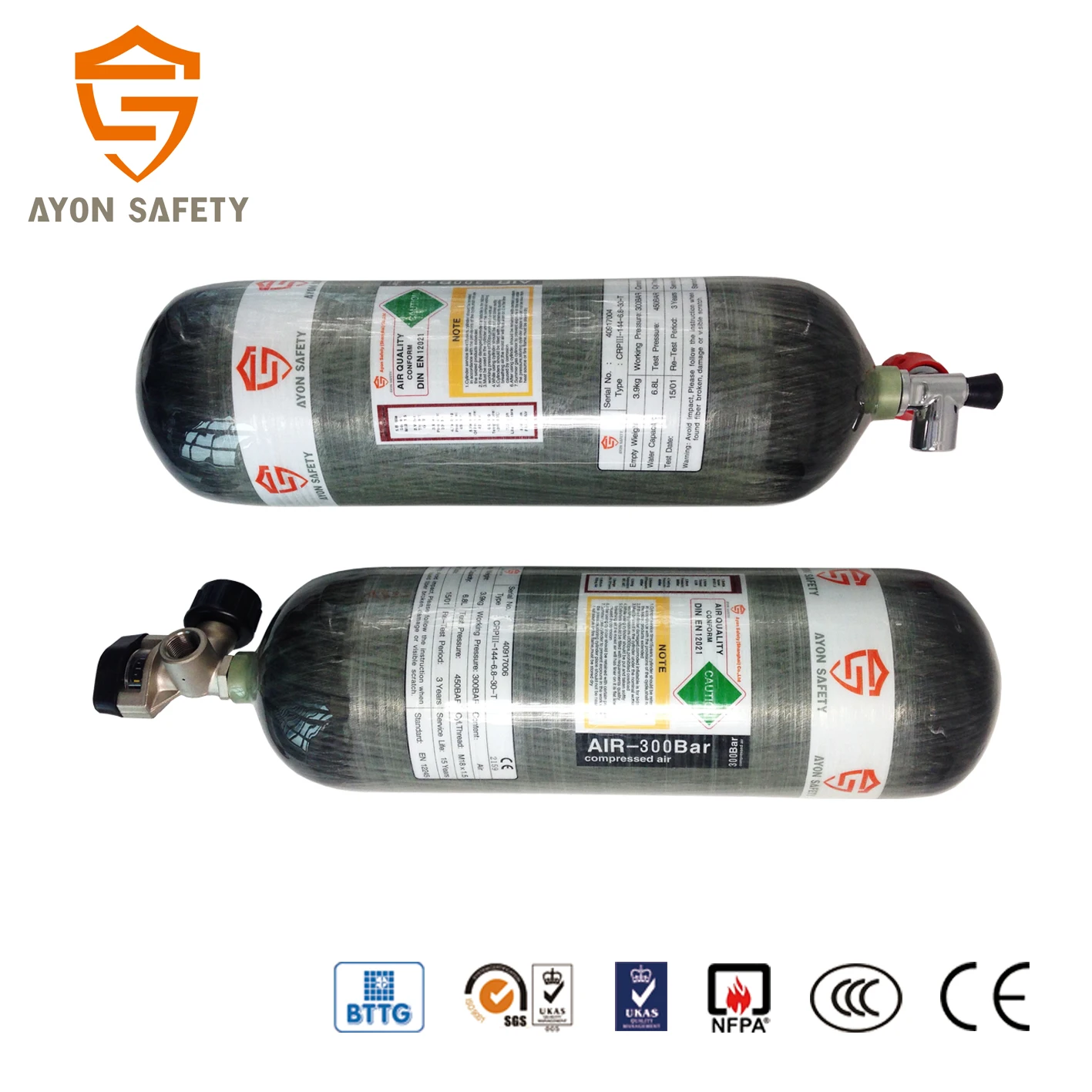

Made in China 2L/2.17L/ 2.4L/2.5L/2.7L/3L/4.7L/6.8L/9L/12L scba and life support cylinder carbon fiber air gas cylinders

Product Overview

Description

















AS(AyonSafety) SCBA and life support cylinders feature aluminum alloy liner with thin wall and full-wrapped composite material exterior with carbon fiber and glass fiber, which are suitable for SCBA, oxygen respirator, fire extinguisher, medical aid and emergency, as well as for use in automobile, space industry, etc.







SPECIFICATIONS:



Type	3/30		6.8/30		9/30
Filling gas	AIR
Usage time	≥30mins(30L/min during breathing)		≥60mins(30L/min during breathing)		≥90mins(30L/min during breathing)
Total weight	2.1KG		3.9KG		5.3KG
Material	Carbon fiber composite material (Full-wrapped Carbon fiber)
Water Capacity	3L		6.8L		9L
Service pressure	30M Pa
Test pressure	45M Pa
Outer Diameter	114mm	157mm		175mm
Length	446mm	530mm		560mm
Thread size	M18*1.5mm















































Characteristics & Features:



AS(AyonSafety) SCBA and life support cylinders offer the following advantages:

1. Light weight: with aluminum alloy tank inside, the weight is  only one-third of the steel cylinders;

2. Shock resistance/high wear and corrosion-resistance

The outer layer  full wrapped with high strength glass fiber features.

3. Extra longlifetime and best protection performance.

Inner layer full wrapped with high strength carbon fiber features.



4. High pressure resistance;

5. Leakage first before explosion;

6. No splashing fragment in explosion
