For home automation Android 6.0 tablet pc with customized SPI I2C interface
- Category: >>>
- Supplier: Shenzhen Sibo Industrial & Development Co. Ltd.
Share on (60743114860):
Product Overview
Description
For home automation Android 6.0 tablet pc with customized SPI I2C interface
Overview
We are Sibo factory which is specialised in producing tablets for home automation. With the experience of 16 years, we can offer you the best quality and professional technology support. Now we have 7", 9" and 10.1" tablet for your choice.
The model Q896S 7 inch screen is very designed for home automation. With the design of two glasses screen no battery, no buttons, it looks simple and very nice. You can use DC IN or POE powered. We have three wall mounting methods: On wall, inwall flush mounting and on glass wall mounting. You can easily install the each attractive place.
Product Description
Features:
- Android 6.0 Operating system
- Support MQTT protocol
- Support customized I2C, SPI interface
- No button, no battery
- Front camera: 0.3MP
- Network: wifi, Ethernet, bluetooth, external 3G USB dongle
- power supply: AC 100V-240V, DC 9V-36V, POE (IEEE802.3af, 48V)
- Interface: HD out, DC IN, RJ45, USB
- Mounting: bracket for on-wall, in-wall, on-glass wall mounting
Special optional functions:

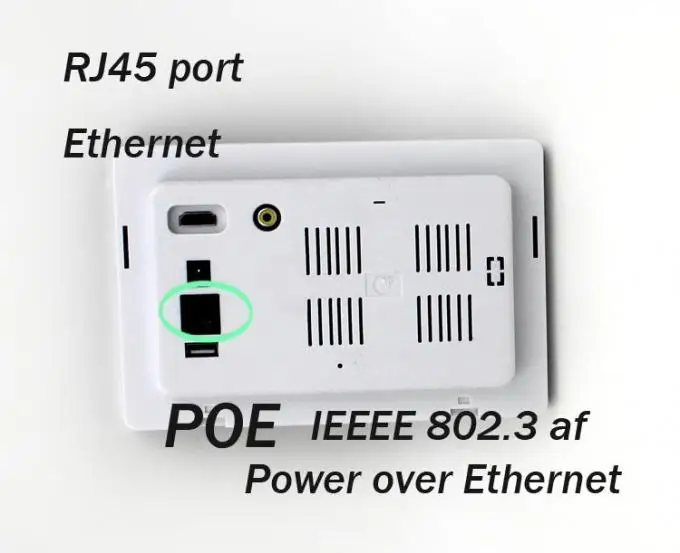

- POE Feature (Power over Ethernet, IEEE802.3af, 48V)
- RS232 x2
- RS485 x1
- GPIO (inputx1, outputx2)
- Three-colors LED on the top of tablet
- NFC (13,56MHZ, support Mifare MF1 IC S50 card)
- ARDUINO NANO PCB (ATMega168PA MCU)
- Second USB Port for HOST Mode
Warm note: The final price depends on the functions you need. Any hardware is optional like wifi, bluetooth, USB, camera, speakers, microphone, etc. We can customize the tablet according to your requirement.
Specification
| Model Number | Q896S | |||
| Hardware Specs | Processor | Allwinner A83T processor | ||
| CPU | 8-Core ARM Cortex A7 CPU, 1.2Ghz | |||
| Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 | |||
| RAM | 2GB | |||
| Nand Flash | 8GB | |||
| Software Feature | System | Google Android 6.0 | ||
| Video | H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols | |||
| Audio | Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers) | |||
| Language | Support multi-languages | |||
| Interfaces | Back | HD Out | ||
| DC IN Power Terminal (9V-36V) | ||||
| Ethernet Interface(RJ45) | ||||
| USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode | ||||
| Optional:RS232,RS485 | ||||
| Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 | ||
| LAN Port | Ethernet RJ45 | |||
| Power Supply | DC IN | DC 9V - 36V | ||
| Boot Up | Auto Boot | Auto Boot Up When Power Supplies | ||

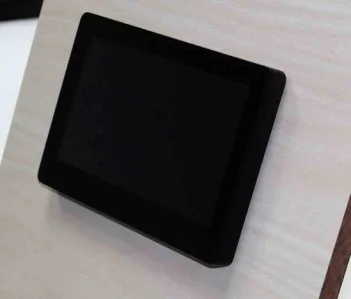

On wall mounting
With metal box

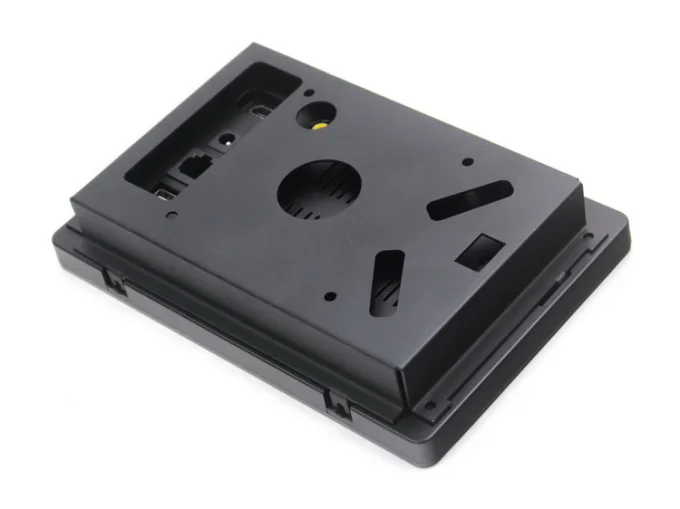

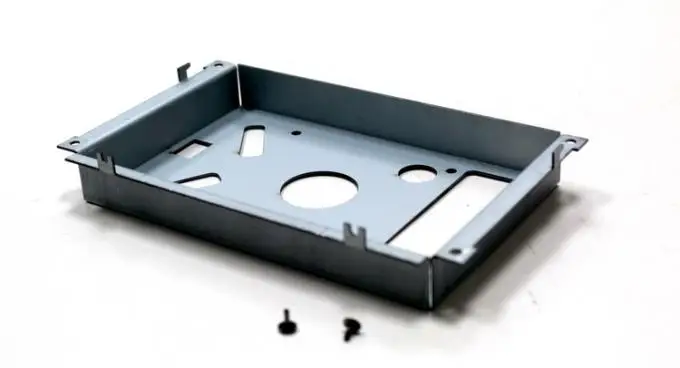

In wall flush mounting
Our Services
As a full service manufacturer of tablet, we offer OEM and ODM services.
Custom Services:
- Branding/Packaging
- Custom logo/boot up splash screen
- Customizable GUI
- Boot up to time clock application
- Lock down displays
- Pre-loaded apps
- Custom ROM
Aftersale Service:
- Technique support(we offer sample app and code for your programming)
- Warranty for 1 year
FAQ
1. Are you manufacturer?
Yes, we are proffesional manufacturer for home automation with the experience of 16 years.
2. Where is your factory?
We are in Shenzhen, China.
3. Do you support OEM/ODM?
Yes
4. What payment do we support?
Alibaba, West union, T/T
5. What shipping method do we use?
DHL, UPS, TNT, Aramex, EMS
6. Do you support sample purchase?
Yes
Company Information
About us:
Founded in 2001, Sibo has been dedicating to achieve excellence in designing, building and delivering a huge range of electronic applications. We help meet specific needs with custom tailored solutions.
With our designing and manufacturing capacity, we will devote our expertise and knowledge to meet your business needs by designing and providing the right products to fully implementing Taxi Cabs Advertising Interactive purpose.
Contact person
Contact Person: Nancy Li
Skype/Whatsapp: +8618688735429
Wechat: chinasibo
Fax: +86-755-26977632
Web: //www.sibochina.com.cn/
SHENZHEN SIBO INDUSTRIAL & DEVELOPMENT Co.,LTD
We support sample order and small quantity is available! Welcome your inquiry!
