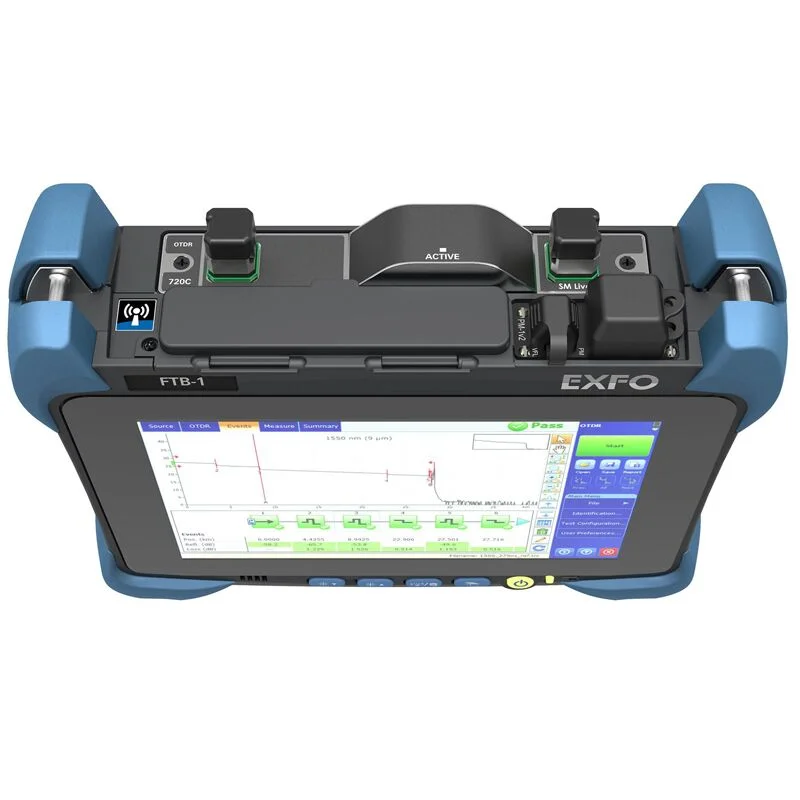

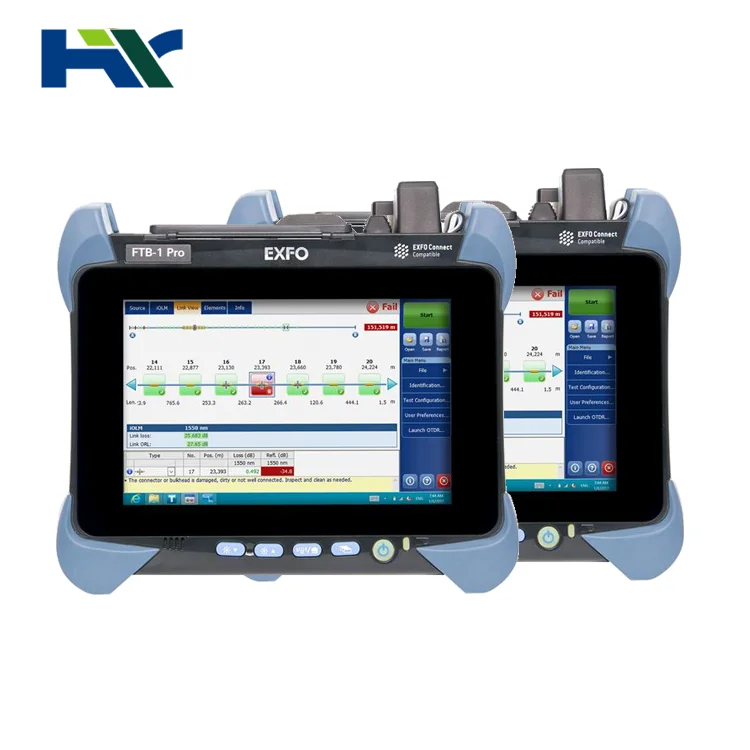

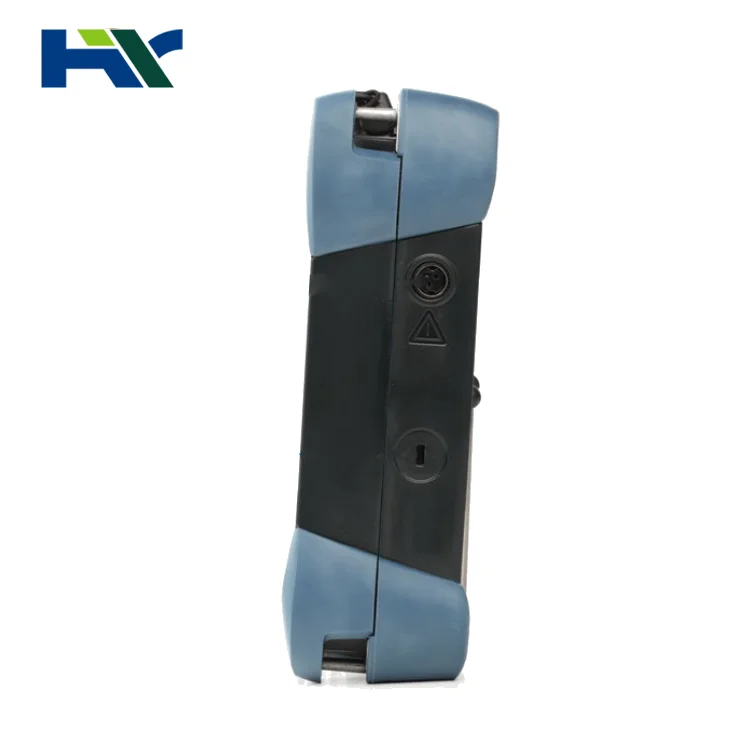

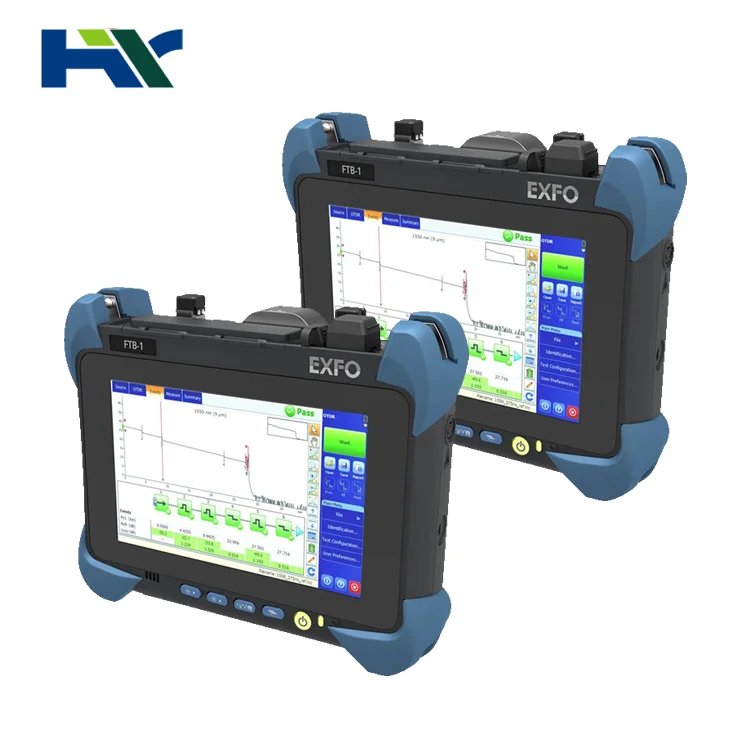

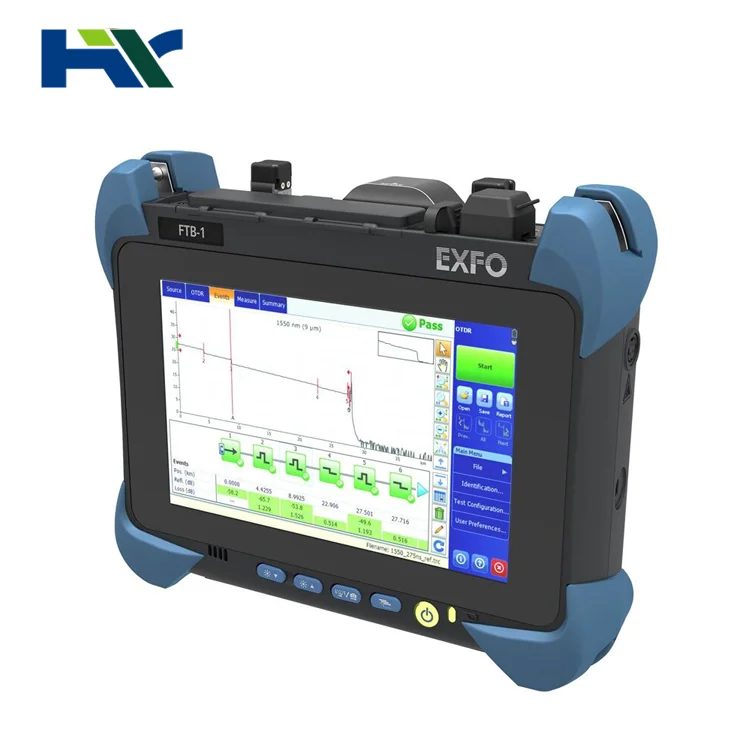

Original Canada Metro/Long Haul EXFO FTB 1 750C/FTB 1 750C OTDR
Original Canada Metro/Long-Haul EXFO FTB-1-750C/FTB 1 750C OTDR
Original Canada Metro/Long-Haul EXFO FTB-1-750C/FTB 1 750C OTDR
Original Canada Metro/Long-Haul EXFO FTB-1-750C/FTB 1 750C OTDR
Original Canada Metro/Long-Haul EXFO FTB-1-750C/FTB 1 750C OTDR
Original Canada Metro/Long-Haul EXFO FTB-1-750C/FTB 1 750C OTDR
Original Canada Metro/Long-Haul EXFO FTB-1-750C/FTB 1 750C OTDR

Original Canada Metro/Long Haul EXFO FTB 1 750C/FTB 1 750C OTDR

Share on (60743149397):


Price:$2,500.00 - $4,800.00

Quantity:


Product Overview

Description







Feature



  • Connects anywhere: USB, Mobile, Wi-Fi, Virtual private network(VPN) and .

  • Loaded with utilities: equipped with all the tools needed to optimize field testing, plus any third-party applications

  • Like a PC: available with a dual- or quad-core processor and Windows operationg system

  • EXFO Connect-ready: automated asset management; data goes through the cloud and into a dynamic database.

  • Optional in VFL and OPM function

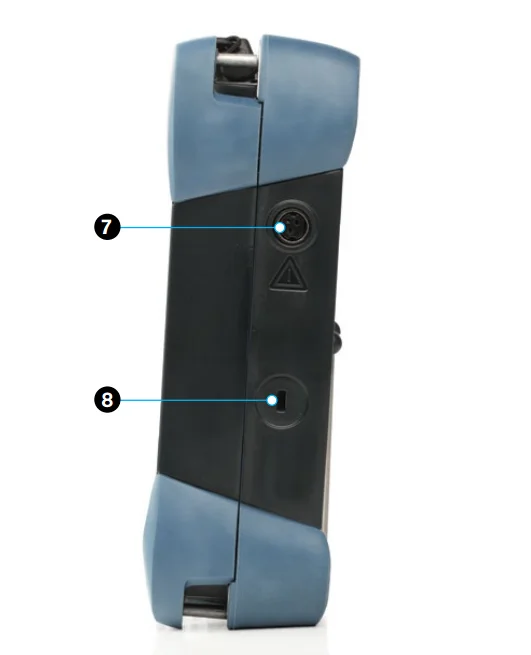

  • 3.png5.png





Application


Applications and Modules:



  • FTB-720C Access OTDR

  • FTB-720C LAN/WAN OTDR

  • FTB-730C FTTx/MDU OTDR

  • FTB-735C Metro/FTTx OTDR

  • FTB-750C Long-Haul OTDR

  • FTB-880 V2 NetBlazer 10G Tester

  • FTB-870 V2 NetBlazer 10G Tester

  • FTB-700G V2 series optical, Ethernet, CPRI and Multiservice Test Modules

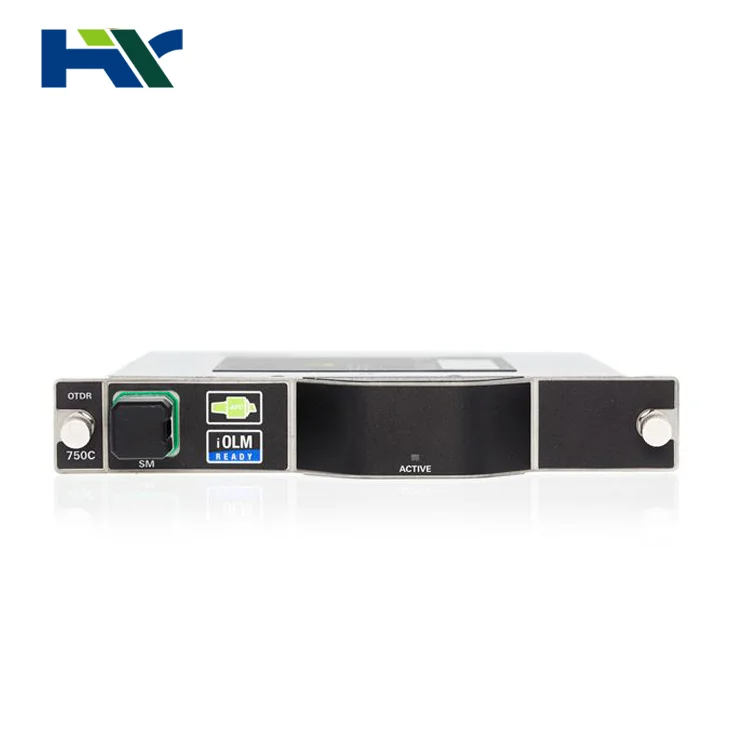

The FTBx-750C is an OTDR with a high dynamic range of 46 dB and is designed to characterize metro and long-haul networks.


With its industry-leading level of resolution, the FTBx-750C is ideal to test long links and perform bidirectional measurements on transmission cables forhighly accurate fiber characterization.


Parameters:

































display



touch screen,colour,800×480TFT,178mm(7 inch)



connector



Two USB2.0 port
RJ-45 LAN 10/100/1000Mb/s
Optical fiber probe end connection checks (video)
Built-in  and WIFI(optional)



storage






8GB internal memory(flash memory)
16GB internal memory(flash memory),optional



battery



Replaceable lithium ion battery
8hoursoperating time Telcordia(Bellcore)Optional extended time batteries



power supply



AC/DC adapter, input 100 ~ 240 VAC, 50 ~ 60 Hz, 2 A maximum, 24 VDC output, 90 W



main engine



Intel Atomprocessor
Windows Embedded operating system (the standard version)












































GENERAL SPECIFICATIONS



Temperature



Operating



-5 °C to 50°C



Storage



-40 °C to 70 °C



Relative humidity



0 % to 95 % non-condensing



Size (H x W x D)



322 mm x 197 mm x 109 mm (12 11/16 in x 7 3/4 in x 4 5/16 in)



Weight



2.5 kg (5.4 lb)



Vibration



< 1.5 g at 10 Hz to 500 Hz (on three main axes)



Mechanical shock



< 760 mm on six sides and eight main edges (according to GR-196-CORE)







Advantage



  • Most efficient testing solution for long-haul cable characterization

  • Maximum fault-finding capability and powerful bidirectional measuring ability with the iOLM

  • Compact platform for ease of use in the field

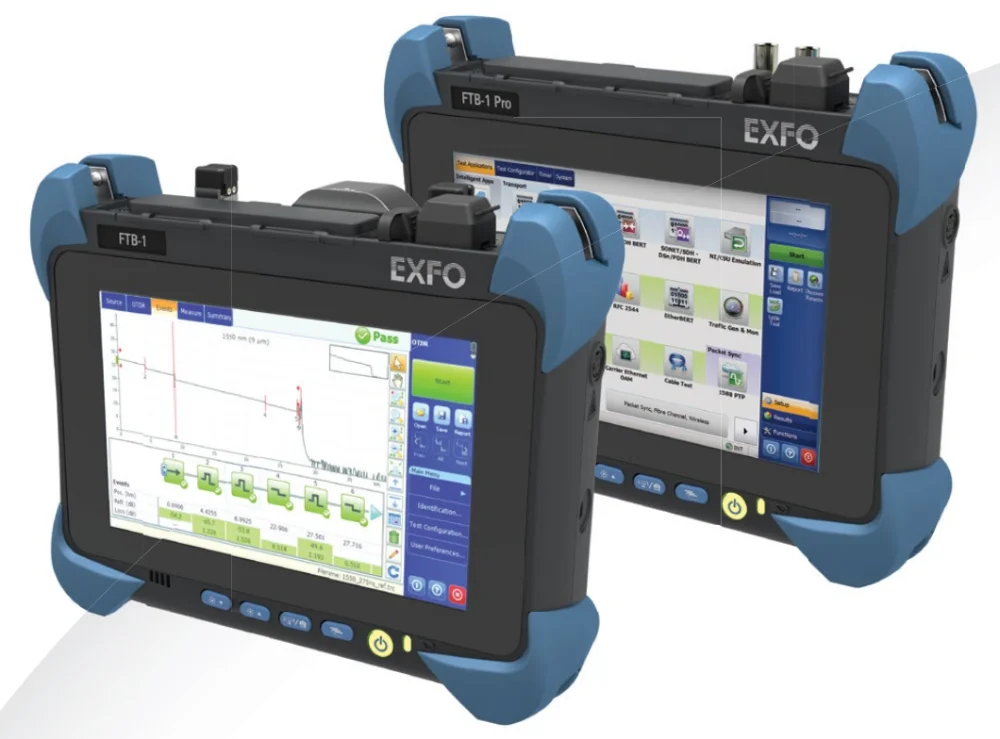

  • 4.png
