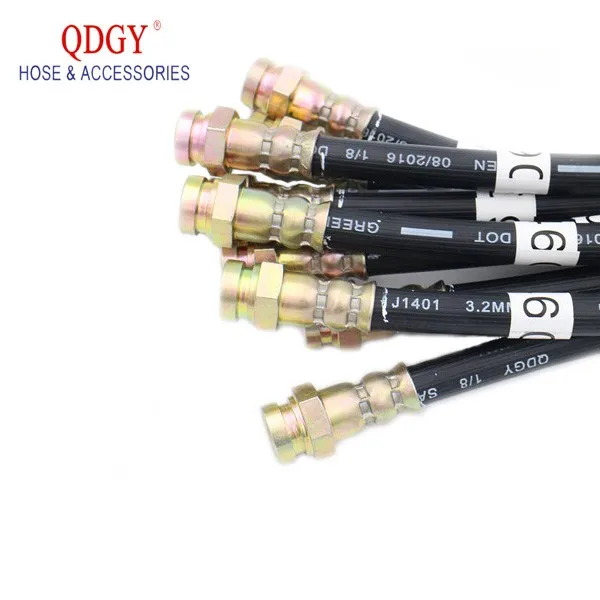

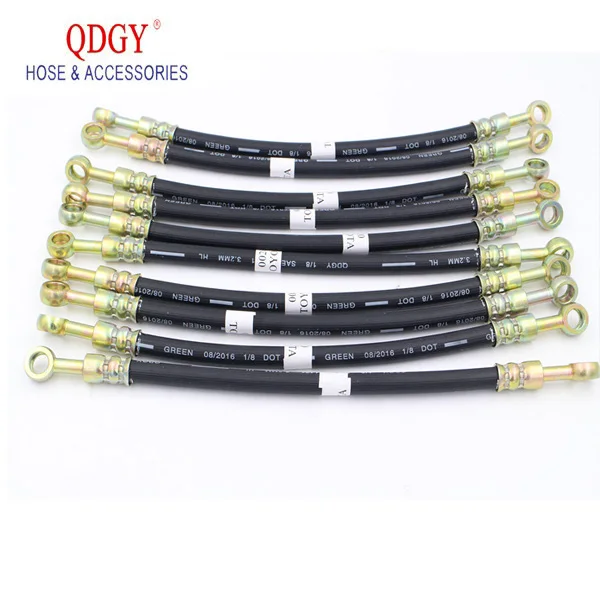

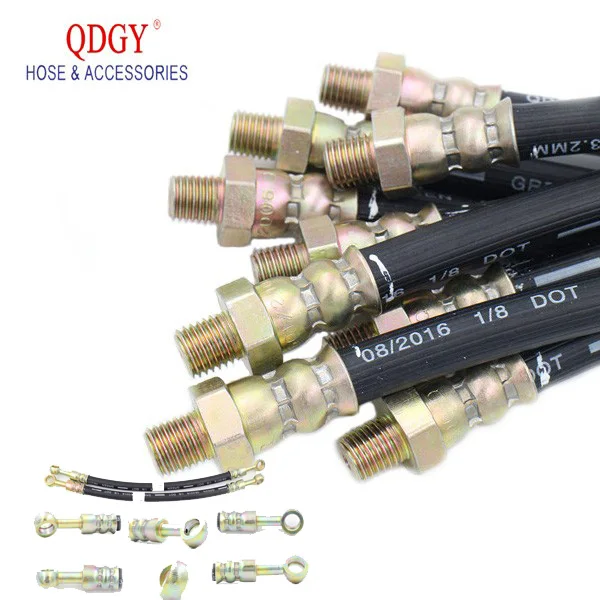

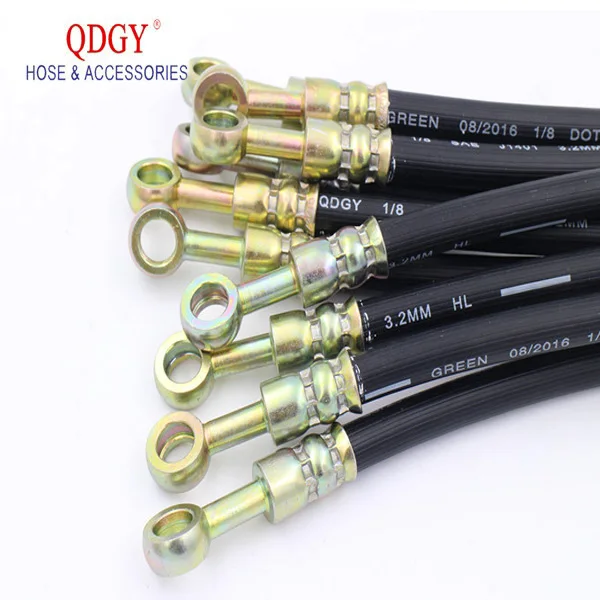

3.2mm x 7.5mm 1/8 Dot Sae j1401 rubber brake hose
- Category: Auto Brake Hose >>>
- Supplier: Qingdao Guosong Machinery Parts Co. Ltd.
Share on (60743156892):
Product Overview
Description
3.2mm x 7.5mm 1/8 Dot Sae j1401 rubber brake hose
Hose Discription
--- Product Description --- www.qdgybrakehose.com
BRAKE HOSE application & function:
BRAKE HOSE: used in auto / car / motor / motorcycle / vehicle / truck / braking system, to transfer the braking medium in the automobile brake, the braking force is guaranteed to be transmitted to the automobile brake shoe or brake clamp to generate braking force, so that the brake is effective at any time.

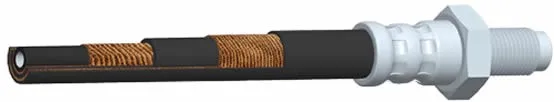

Rubber Brake Hose Specifications:
| Inner Diameter | Outer Diameter | Outer layer | Double braid | Inner layer |
| 1/8" (3.2mm) | 0.413" (10.5mm) | EPDM | PVA | EPDM |
| 3/16" (4.8mm) | 0.492" (12.5mm) |
Rubber Brake Hose Advantages:
- Built to DOT and SAE automotive industry quality and safety standards.
Hoses constructed of EPDM rubber and PVA braid, offering high dynamic strength and chemical & thermal resistance

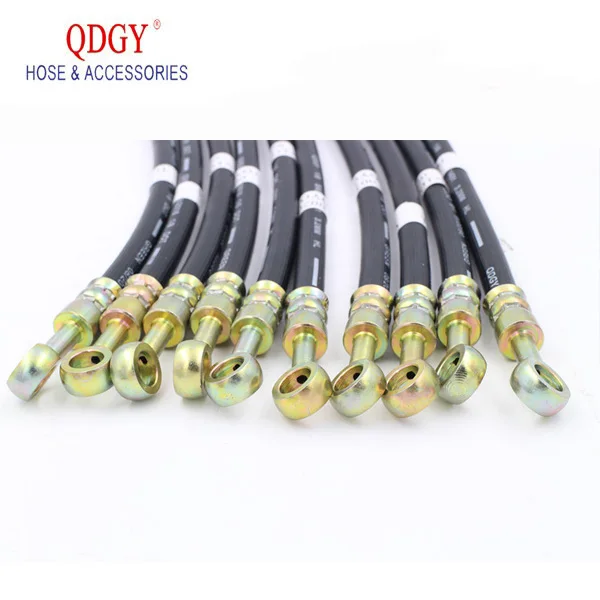

Brake Hoses with banjo end fittings are packaged with new copper washers to assure proper sealing.
Brake Hoses tested up to 4,000 PSI without rupture based on burst test
Application:
For use in braking system of the vehicle.

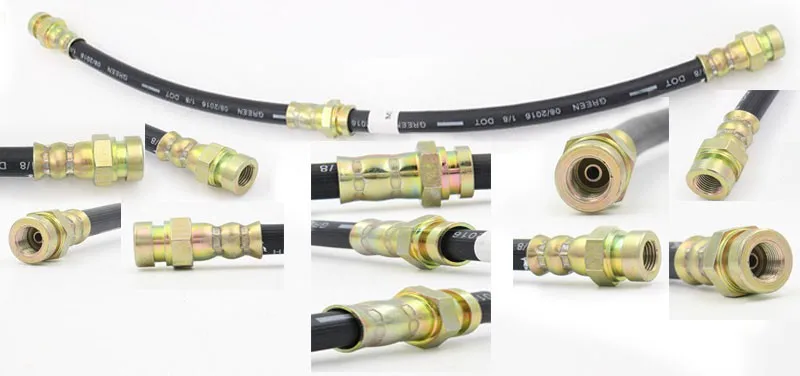

Brake Hose Assembly :
| Fitting1 | Hose length | Fitting2 | Accessories |
| Female M10X1 | 426mm | Female M10X1 | Have |

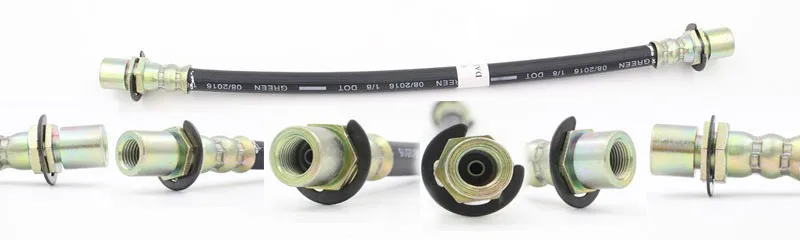

Brake Line details:
| Fitting1 | Hose length | Fitting2 | Accessories |
| Female M10X1 | 426mm | Female M10X1 | Have |
Packaging & Shipping
Packaging: www.qdgybrakehose.com
QDGY common package: PVC bag in carton box with QDGY logo
Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package
Brake hose assembly package:
- 10-50pcs in one plastic bag
- Single package by plastic bag
- Single package by plastic bag with sticker and label
- Single package by paper box
- PVC box with label
- Final package is 5 layer carton then in pallet
Lead time: www.qdgybrakehose.com
For fitting: common fitting within 30 days;special fitting within 40 days.
For brake hose: wihithin 20 days.
For brake hose assembly: within 40 days.
Please noted: Exact lead time is based on details order ,please contact with us for the details information.
Shipping: www.qdgybrakehose.com
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Conveniently by air or by ocean with cheaper freight fee.
Advance workshop
QDGY hose factroy:
QDGY hose fitting factory:
CNC machine tools imported from Japan
High quality technical engineer
Strict quality control standards
First class technical designer
Make the safest and most reliable products
Why chose us?
We are a member of Trade Assurance service in //alibaba.com. that is new service provided by alibaba,which can provides buyers with a number of trade safeguards protect buyers' payment to suppliers, and to ensure suppliers fulfill their obligations regarding order and delivery time and product quality. |
| √ | Famous trademark of China |
| √ | Passed TS16949,ISO9001,DOT... |
| √ | National enterprise abiding by contract and keeping good faith |
| √ | National key high-tech enterprise |
| √ | Top ten influential brand of China brake hose and fittings industry |
| √ | First place in production and sales of brake hose and fittings in China |
| √ | ISO quality system certificate enterprise |
| √ | Professional sales teams ,technical engineers and pratical workers,safety |
What can I do for you? | |
| 1. | Delivery time:30days after your deposit, which also will be on basis of your order. |
| 2. | Warranty:12 months. |
| 3. | Payment: 30% in advance by T/T 70% before shipment,other payments can be acceptable by negotiation. |
| 4. | Designing factory,technical support project. |
| 5. | Before sale service,middle sale service ,after-service will be supported |
| 6. | Related hose ,tube ,end terminal fittings,accessories and so on for sale. |
| 7. | All necessarry documents . |
QDGY Team
Testing Euipment
Testing Equipment & Test report:
Burst Pressure test Machine,Hot & Cold test machine,Tensile test machine,Valumeteric expansion test machine ,Slat Spray test machine,Flex whip test machine.... We supply whole SAE J1401 brake hose Test process ,and stricly high quality control system promote us to go to futher bright future,if you want high quality and reasonable price ,find us,we will satisfy you.
Test Items | Test Condition | Standard | Test Results |
ID | Normal | 3.2mm | 3.15~3.45mm |
OD | Normal | 10.5mm | 10.30~10.70mm |
Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
1500psi | 0.42cc/ft max. | 0.20~0.22cc/ft | |
2900psi | 0.61cc/ft max. | 0.41~0.43cc/ft | |
Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
Whip | 235~250psi | >35h | >70h |
Tensile | tensile speed:218±3mm/min | >1446N | 2400N |
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
FAQ
----FAQ---
Q1: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,teflon brake hose,teflon s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.
