High frequency switching mode copper dc plating 200A12V rectifier with remote control
- Category: >>>
- Supplier: Wuxi Kenuo Environmental Protection Equipement Co. Ltd.
Share on (60743169855):
Product Overview
Description
Product Description
High frequency switching copper dc plating 200A12V rectifier
| Item | Content |
| Input voltage | 1 phase 110V,220V;3 phase AC 380V, 480V, 415V, ±10%, 50-60Hz |
| Output DC current | Rated 500A~50KA |
Output DC voltage | Rated 12V-48V |
| Protection class | Up to IP54 for water cooling, IP32 for air cooling |
| Efficiency | >90% @ rated output |
| Power factor | ≥0.93 @ rated output |
| Ambient temp. | Max. 50°C |
| Cooling | Water or forced air cooling |
| Regulation range | Stepless at constant voltage or current 0-100% |
| Control precision | Voltage/current≤1% |
| Control mode | Constant current/voltage/power |
| Operation mode | Manual/remote |
| Manual control | Local digital panle Remote digital box |
| Relative humidity | 15%-85%RH |
| PLC interface | RS485, 0-10V/4-20mA |
| Communication protocol | MODBUS,Profibus, Profinet |
| Process programming | Available |
| Polarity reverse | Available |
| Spare parts | Available |
| HMI | Touch panel or digital meters/buttons |
| Package | Plywood case for export |

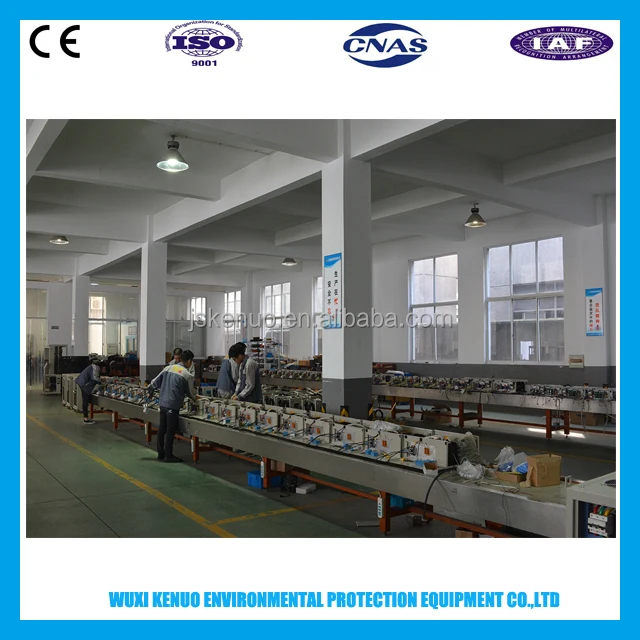

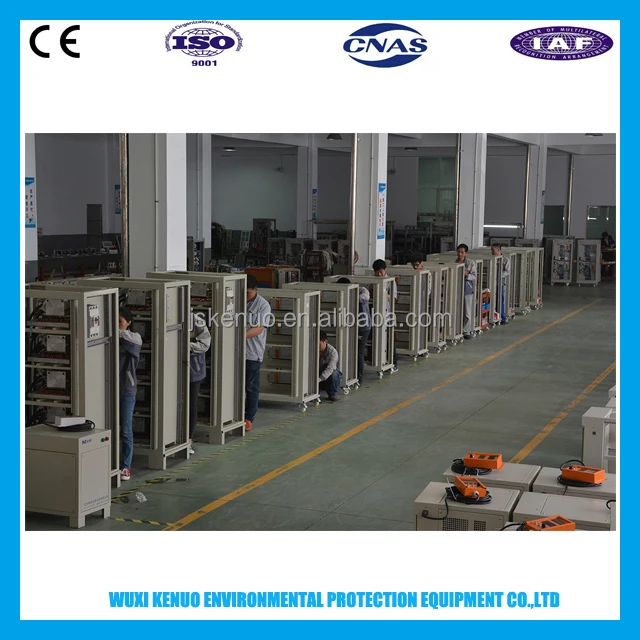

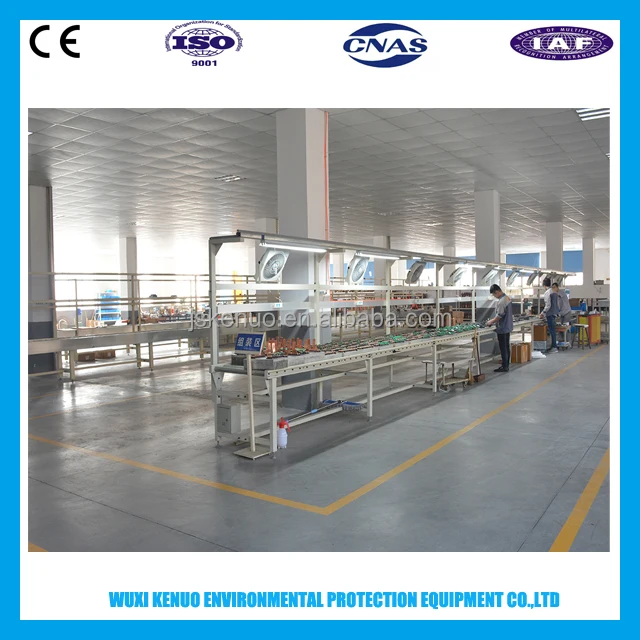

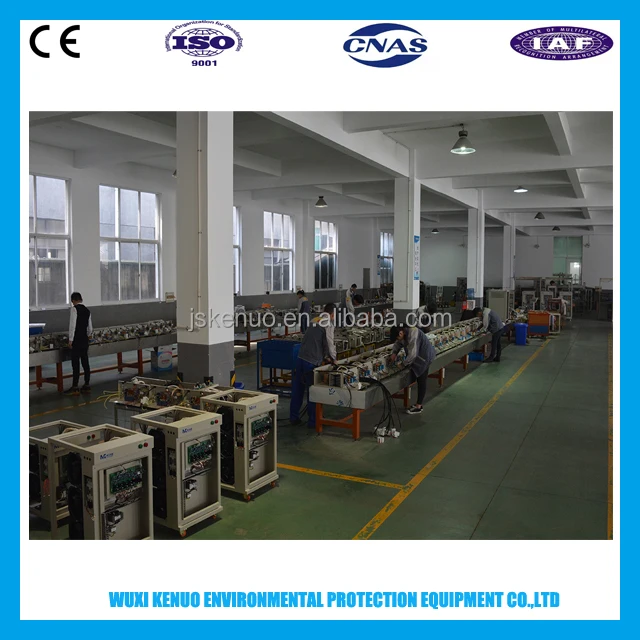

Factory Show
Customer case
Contact detail
Contact person:Henry
Mob/Whatsapp/Skype:+8615888178040
