QS 205 10inch 4000W 48V 72V Hub Motor V3 Electric Motorbike complete Conversion Kits Speed 100KM/H
- Category: >>>
- Supplier: Jiashan Neopower International Trade Co. Ltd.
Share on (60743261734):
Product Overview
Description
QS 205 4000W 48V-72V 10inch Hub Motor V3 Electric Motorbike complete Conversion Kits Speed 100KM/H
The parts list as follows,
1pc x QS205 10inch 4000W (50H) V3 Hub Motor
1set x 220mm Disc brake system with caliper
1pc x Twist Hall Throttle
1pc x DKD Display
1pc x Controller ND72530 with Bluetooth

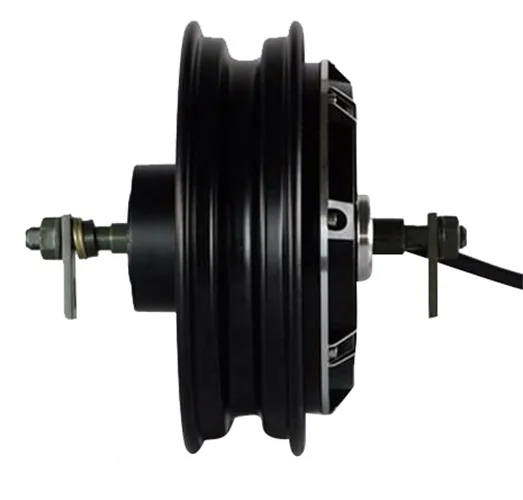

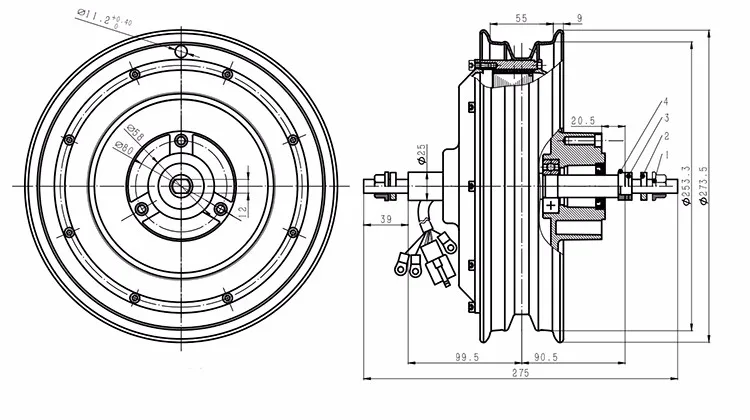

1. QS205 10INCH 4000W Hub Motor 50H V3 Type
Motor Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Double axle out with 10inch rim
3. Rim size:2.15-10
4. Matching Tire: 3.0-10, 3.5-10
5. Magnet Height: 50MM
6. No. of Pole Pairs: 16 pairs
7. Rated Power: 4000W
8. Peak Power: 5100W
9. Rated Voltage: 72V
10. Speed: 90-100km/h
11. Max No-load RPM: 1400RPM
12. Max Torque: 150N.M
13. Max Efficiency: 88%
14. Continious current:61A
15. Max current:90A
16. Brake type: Disc brake
17. Rear Fork width for installation: 200mm
18. Winding Core material: Aluminium
19. Cross Section of Phase wire: 10 mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: Optional
22. Max. Working Temperature: 70 degree, Peak 120 degree
23. Waterproof Grade: IP54
24. Color: Black or Silver
25. N.W./ G..W. : 14kgs / 15kgs
26. Package Size: 34*34*33CM

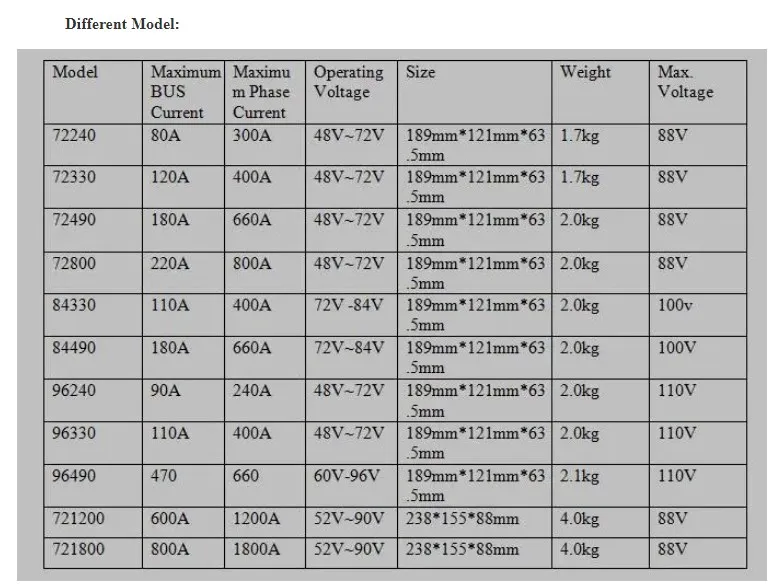

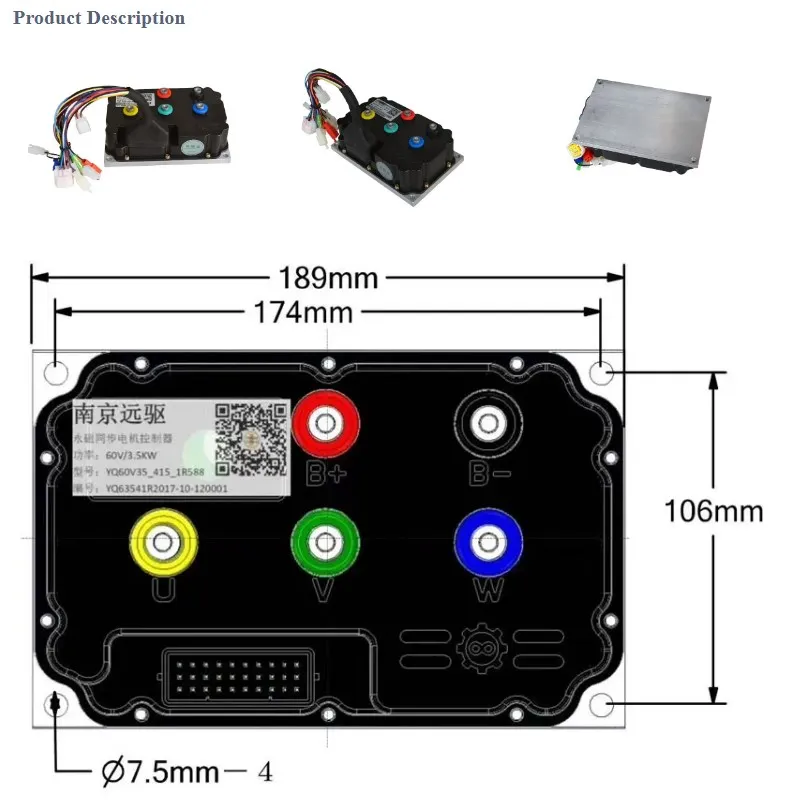

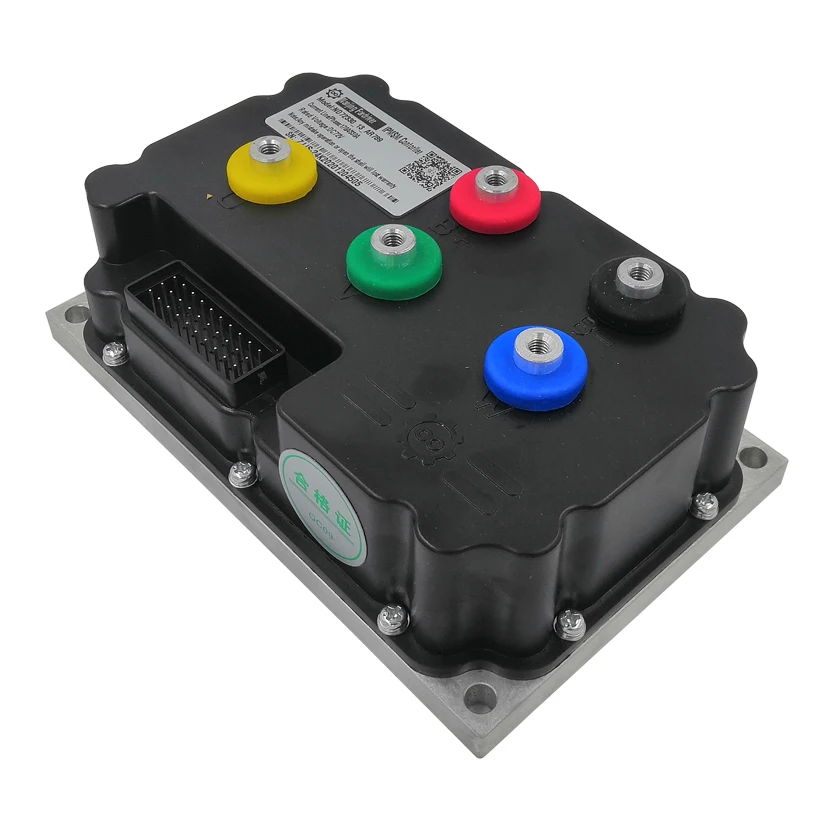

2.5000W Electric Scooter BLDC Controller Fardriver ND72530
The Controller package included parts as below,
1 piece Controller 72530
1 piece Bluetooth module for Cell Phone(as default)
1 piece Complete wiring
1 piece Software(Will be sent by Email)
The color of controller will be shipped in randomly.
Pls kindly note,the ND72490 is updated to ND72530.
Features:
The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors. It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles. Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.
Rich software parameter configuration:* Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online. * The maximum speed of forward and backward, economic speed can be set. * The overall bus current and phase current can be set. * The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.
Perfect protection function:
Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control Items.

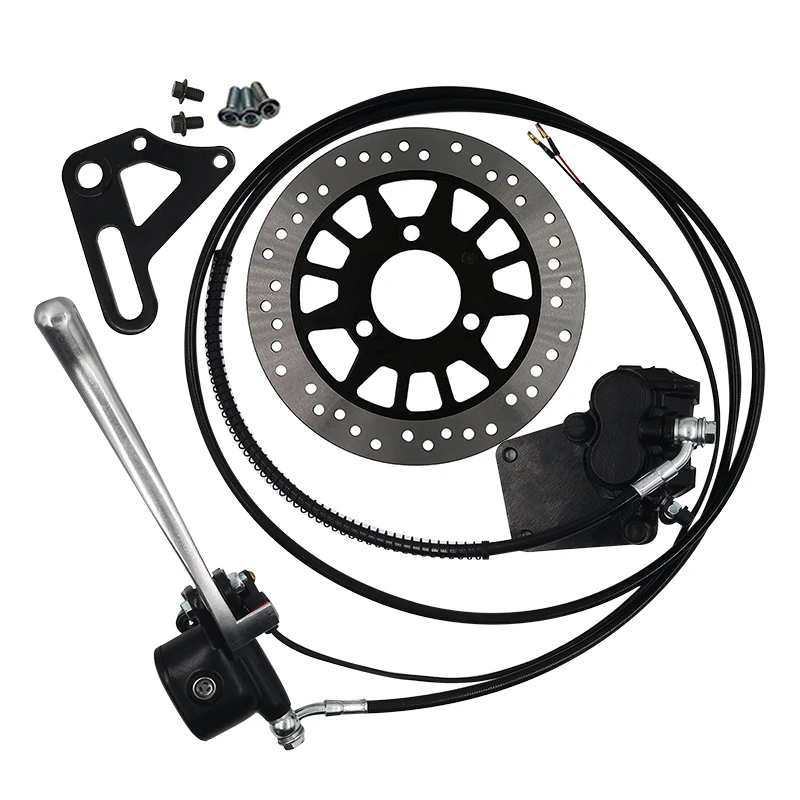

3. Disc brake system
Disc dia. 220mm
With caliper,oil pipe and brake handle

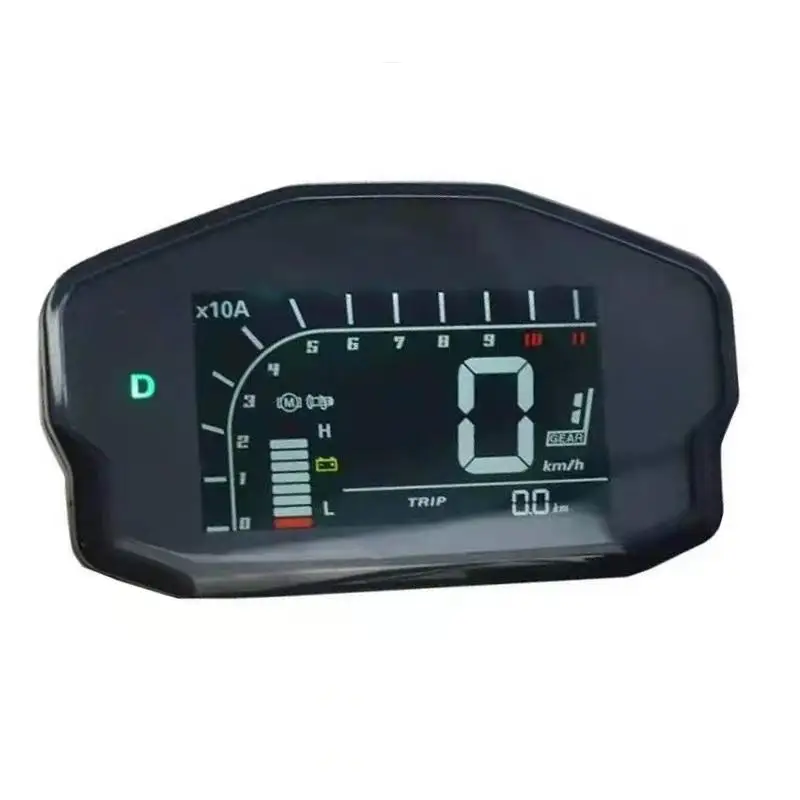

4. E-Scooter Moped Speedometer 061-DKD Display Dashboard
Model: 061 Adjustable Speedometer
Display: LCD 4.3inch
Voltage:48V,60V,72V(72V as default)
Protection: IP67
Size:Length-162.5mm, Width-93.7mm
Functions:
Displays Fault Code,Travel range, Speed, Battery volume, lighting and so on
Adjustable settings
Support CAN conmmunication,ONE-LIN (ONE-LIN as default)

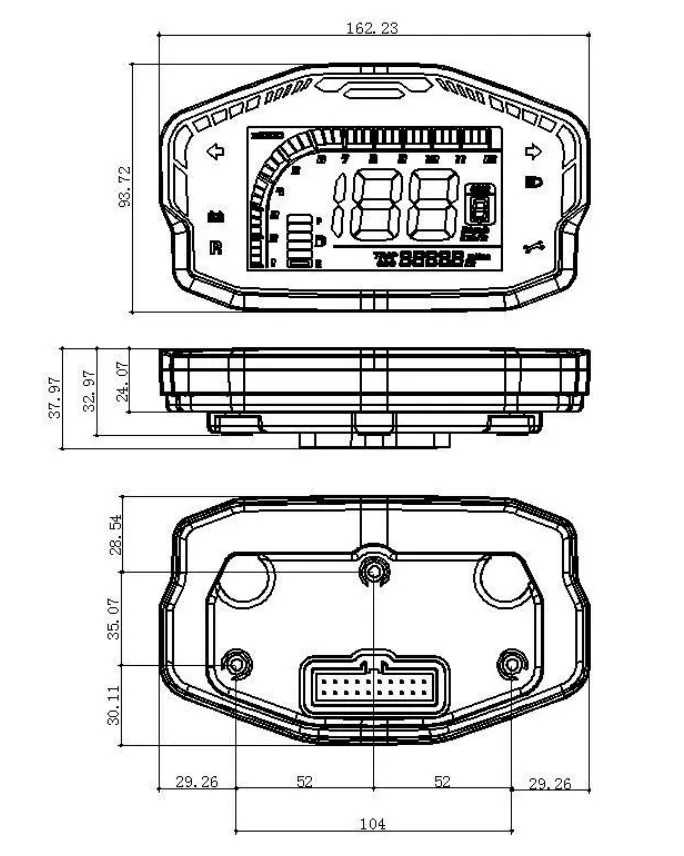

Dimensions:

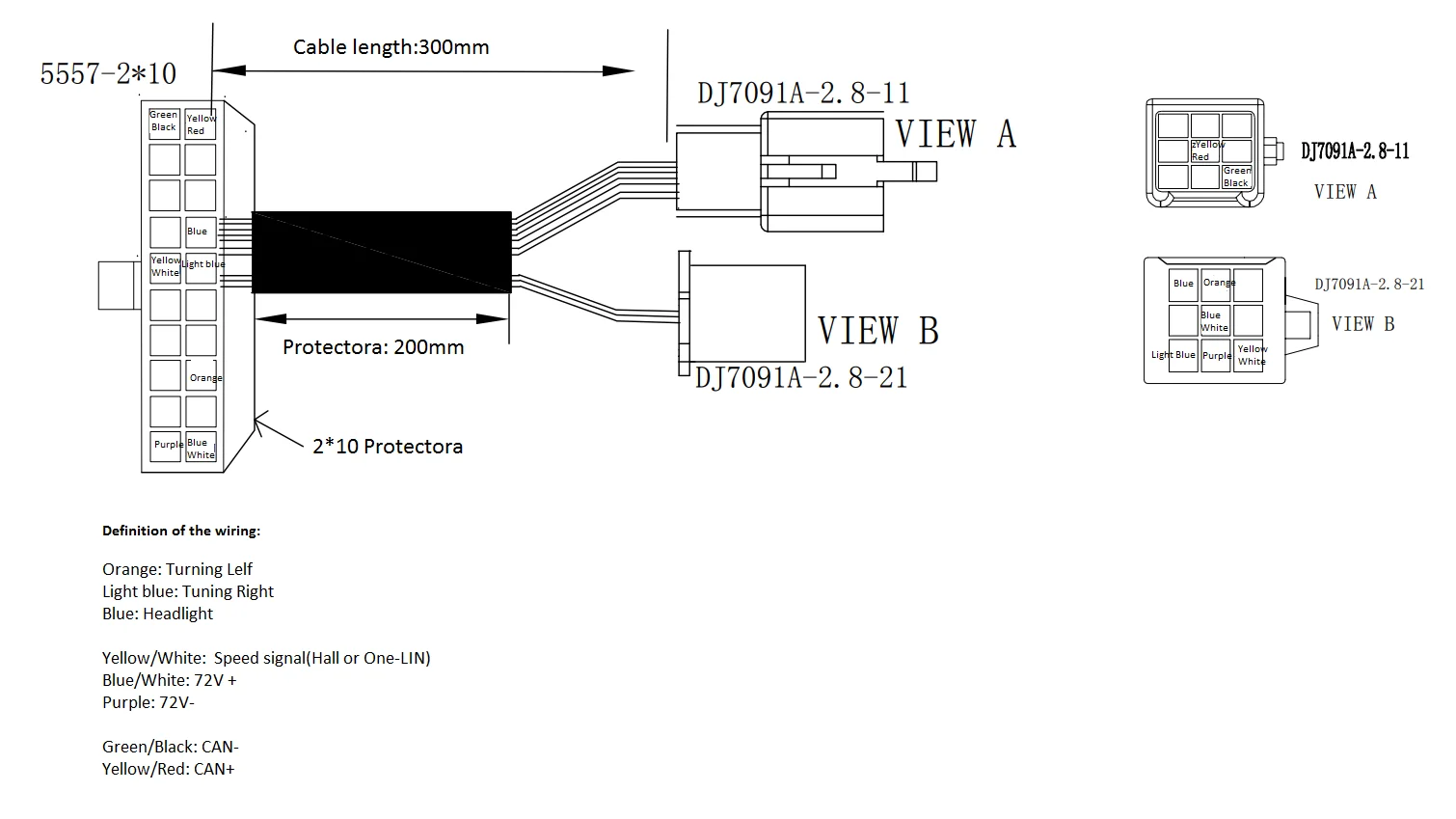

Wiring Diagram:

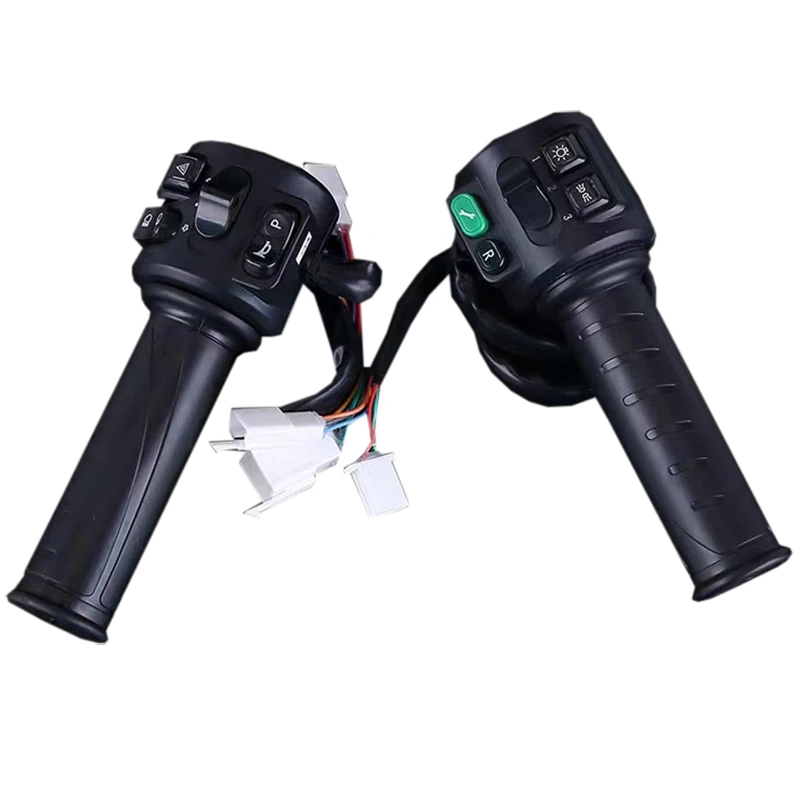

5. Twist Throttle
This throttle can be used for almost Hall type electric bicycle, scooter, motorcycle.
Functions: Three Speed Gear, P Gear,Reverse, One Click Repair,Left Turn Signal, Right Turn Signal, Headlight,Speaker,Parking Light.
The color of the corresponding wire may change.
You only need to disassemble the handle when installing, and you can see the wiring at the corresponding position to be clear.

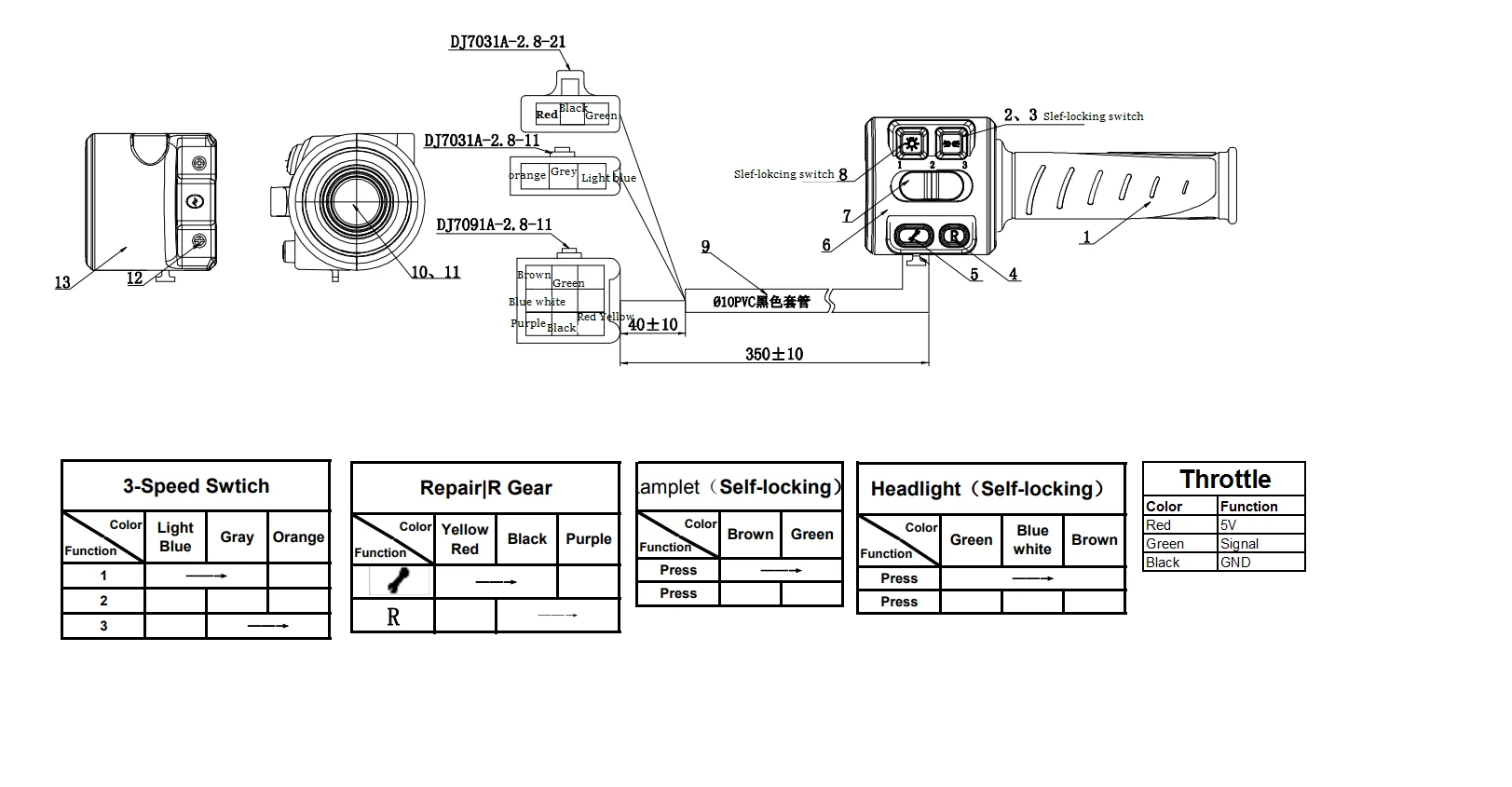

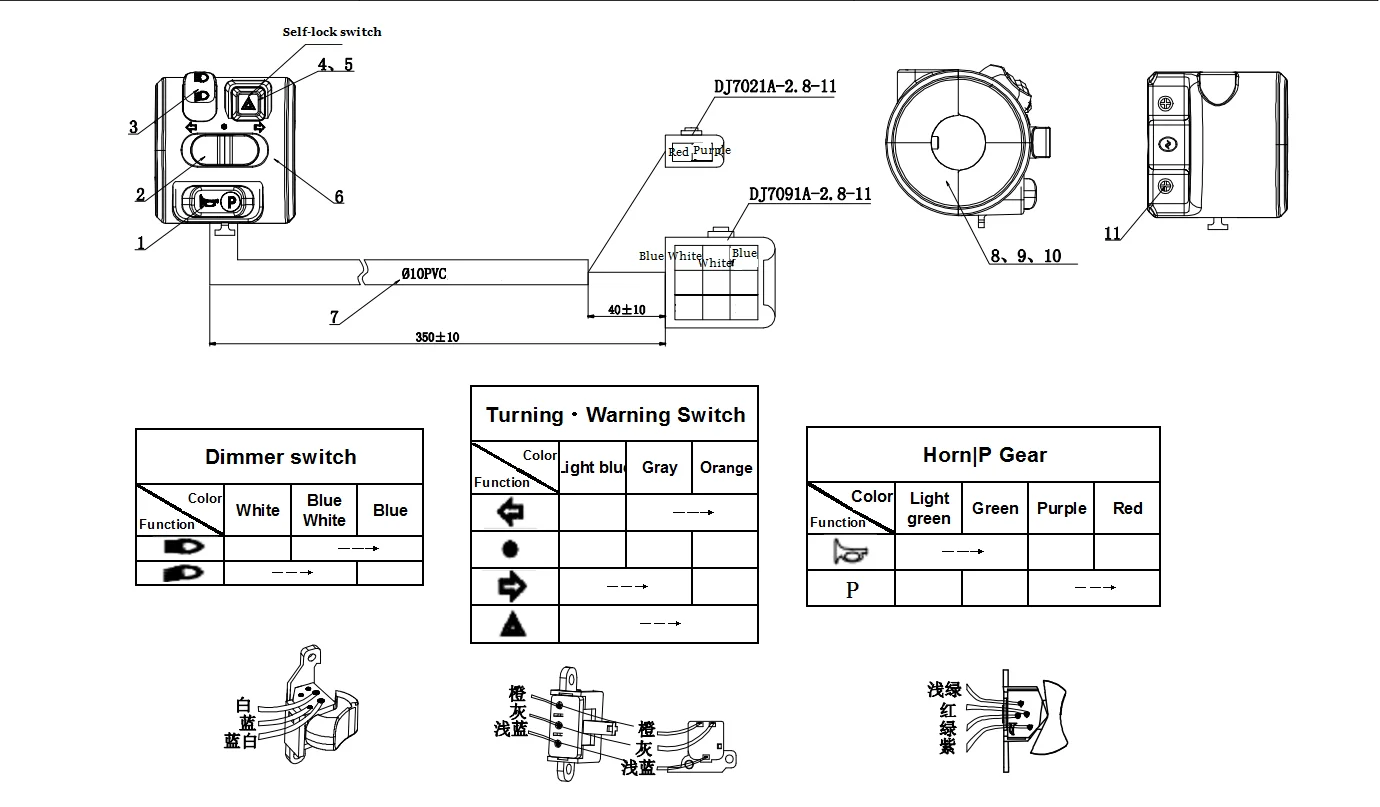

Wiring Diagram
