24V 150A alternator for portable generator Automobile Parts
- Category: >>>
- Supplier: Shenzhen U-Classy Technology Industry Co. Ltd.
Share on (60743263798):
Product Overview
Description

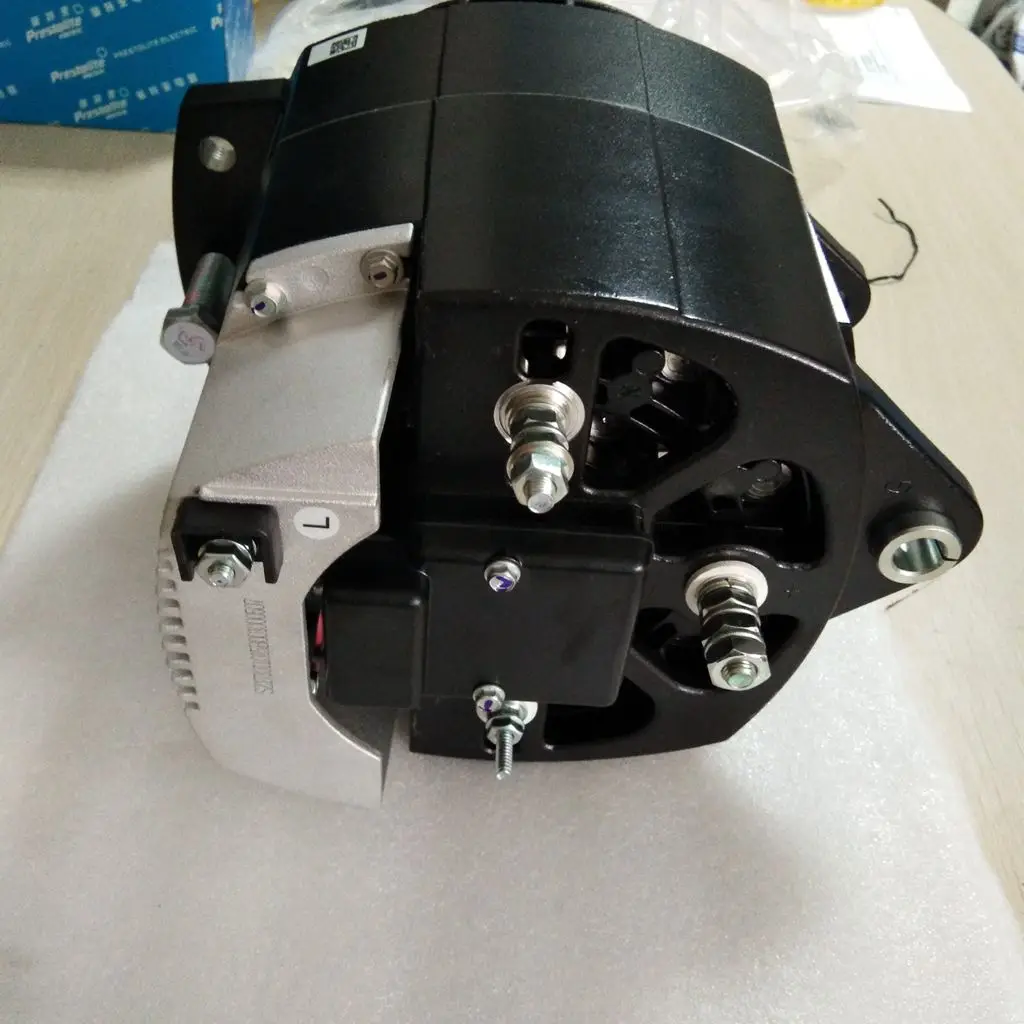

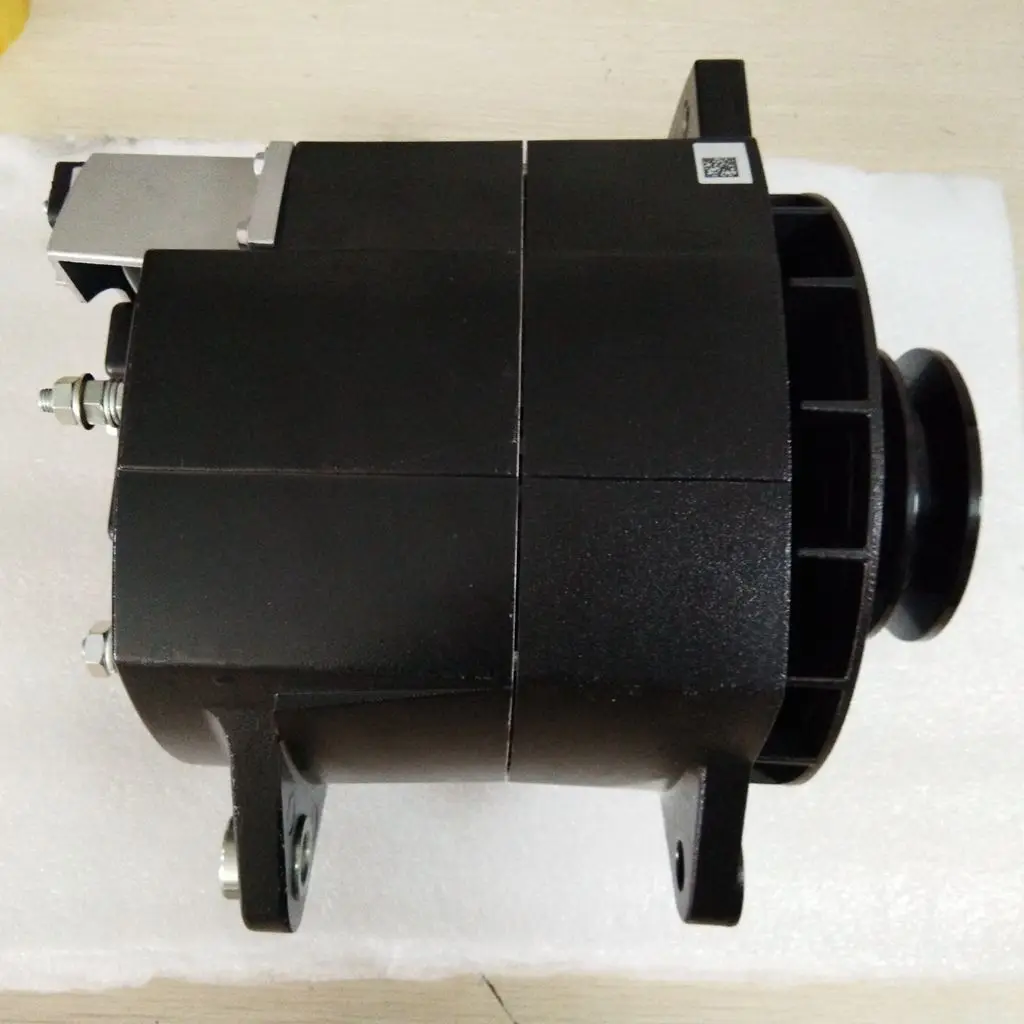

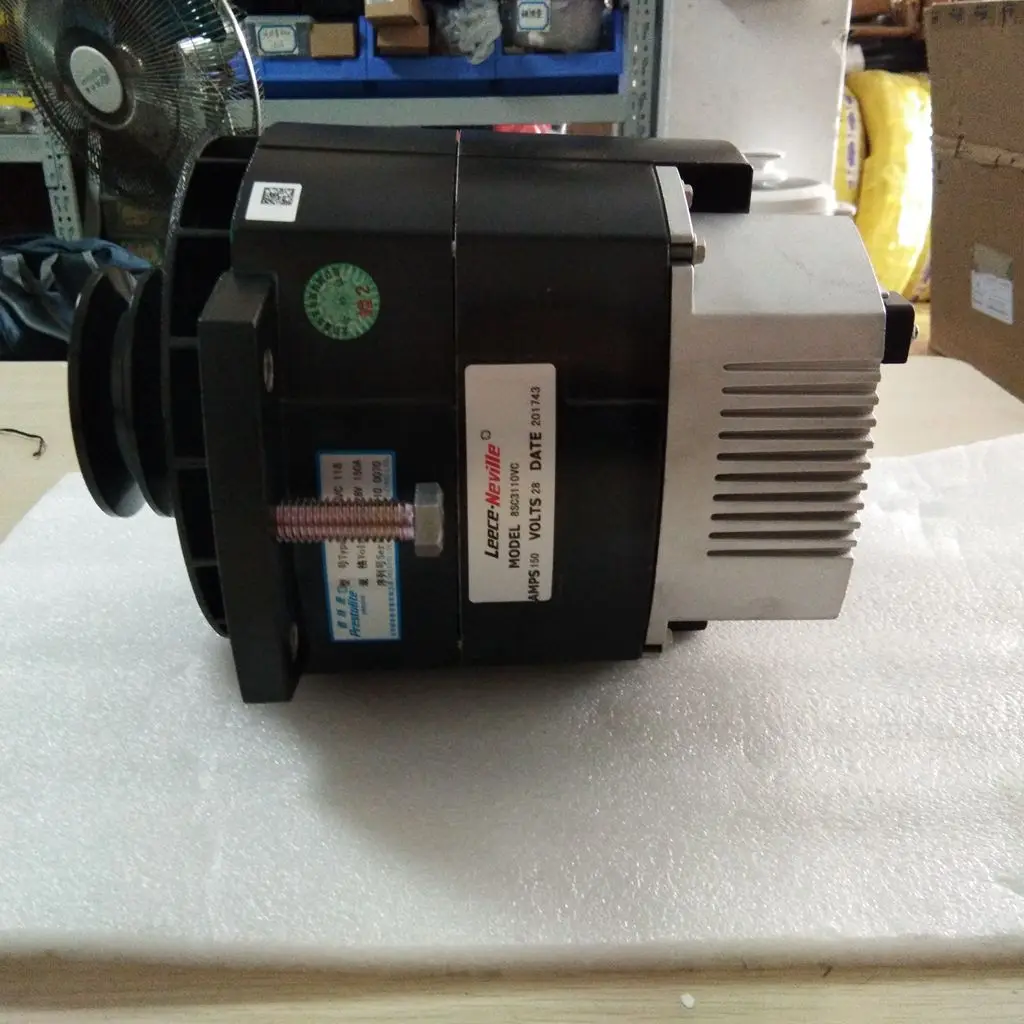

8SC3110VC 8SC 24V 150A BATTERYLESS ALTERNATOR
Technical Specifications
| Series number | 8SC/SCJ |
| Notes | BATTERYLESS WITH 24V EXCITE. SAME AS 8SC3110V WITH CHINA LABELS |
| System voltage | 24 |
| Output | 150 |
| Mounting style | J-180 |
| Rotation | CLOCKWISE |
| Housing coating | RAW |
| Mounting bolt size | 1/2-13 UNC |
| Mounting holes | 3 |
| Positive stud size | 5/16-24 UNF |
| Negative stud size | 1/4-28 UNF |
| Rectifier location | INTERNAL |
| Shaft diameter | 7/8 INCH |
| Excitation type | Ignition Excite |
| Regulator location | Integral |
| Regulator number | 8RL3023C |
| Diode trio | No |
| Pulley included | No |
| Lamp driver | No |
| Adjustable regulator | No |
| Remote sense | No |
| Smart check | No |
| Batteryless | Yes |
