Fruit juice concentrate
- Category: >>>
- Supplier: Shanghai Triowin Intelligent Machinery Co. Ltd. [Shanghai China]Shanghai
Share on (60743283763):
Product Overview
Description
Product Description

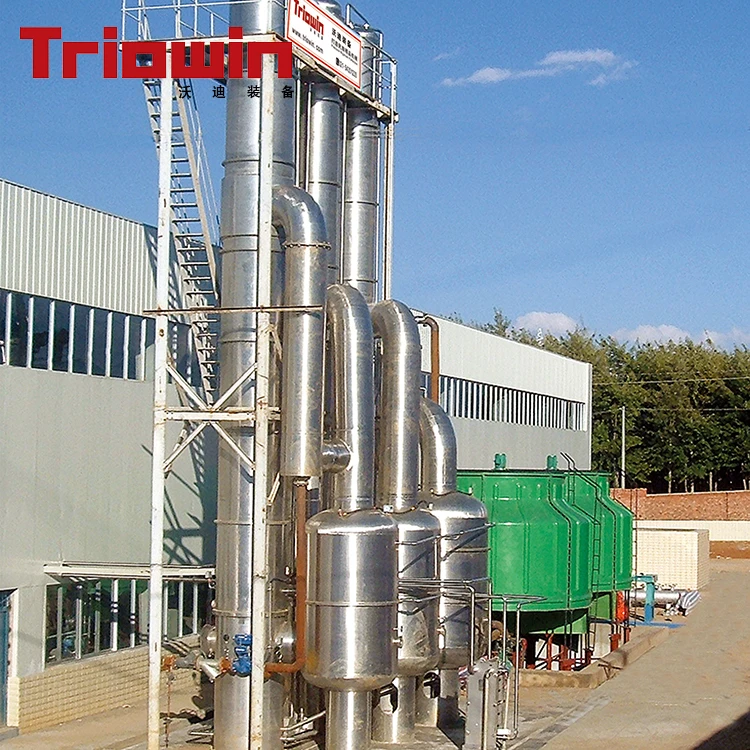

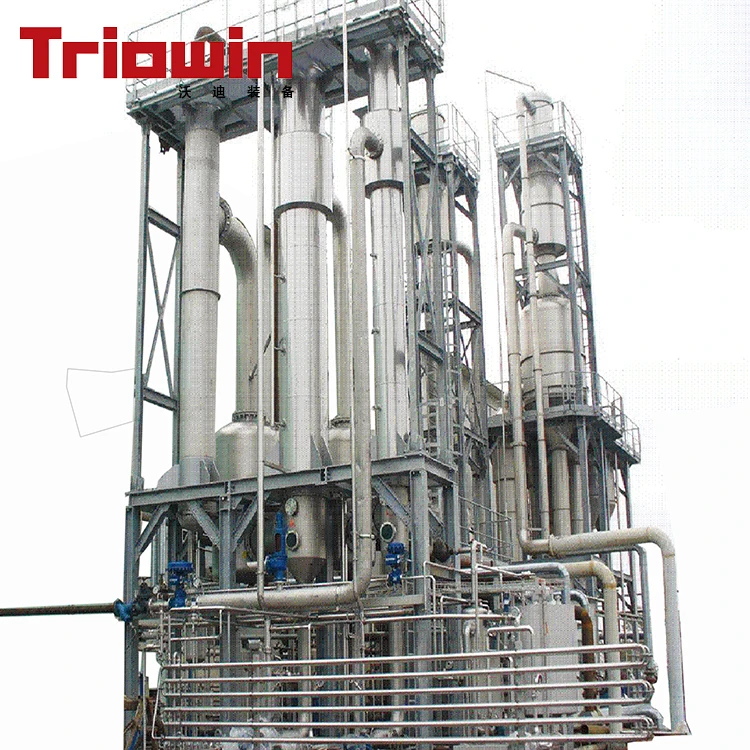

Machine for Fruit juice concentrate
Suitable for evaporation of heat-sensitive product(such as milk,juice,starch, etc.) in continuous process with high performance for end product quality control,energy saving and high stability.
| Model | TW15B1200 | TW15B2400 | TW15C3600 | TWC15C10000 | TWC15C20000 | |||||||||
| Hydraulic times(effect) | 1 | 2 | 1 | 2 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |
| Hydraulic capacity(/lh) | 1200 | 2400 | 3600 | 10000 | 20000 | |||||||||
| Vacuum degree(kpa) | 65-73 | 89-91 | 65-73 | 89-91 | 59 | 78 | 90 | 52 | 76 | 88 | 52 | 76 | 88 | |
| Evaporation temperature(℃) | 67-73 | 46-50 | 65-73 | 46-50 | 76 | 62 | 48 | 75-80 | 55-65 | 45-50 | 75-80 | 55-65 | 45-50 | |
| Heating temperature(℃) | 82-86 | 67-73 | 87-90 | 70 | 40 | 76 | 62 | 93 | 80 | 65 | 93 | 80 | 65 | |
| Finished product concentration(%) | 45-65 | 48-65 | 48-65 | 45-72 | 45-72 | |||||||||
| Heat pump pressure(mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.6-0.8 | 0.6-0.8 | |||||||||
| Steam consumption(kg/h) | 500 | 1000 | 1550 | 3300 | 6600 | |||||||||
