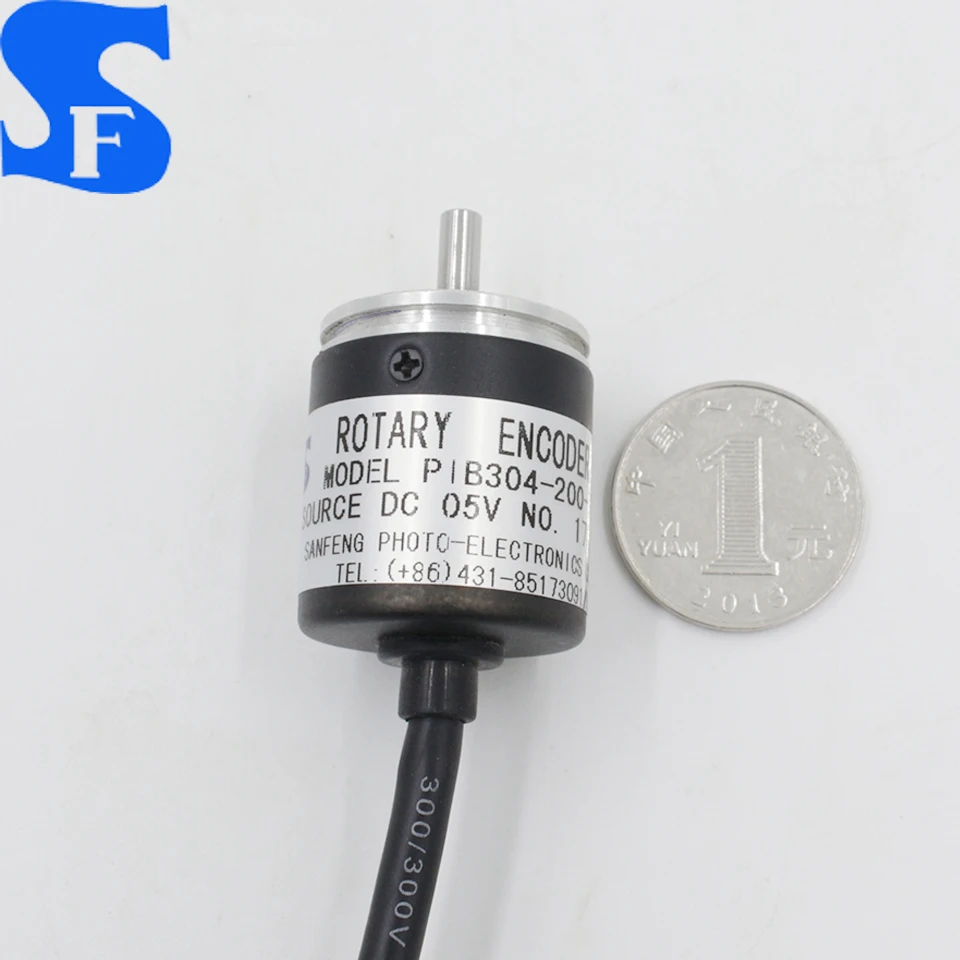

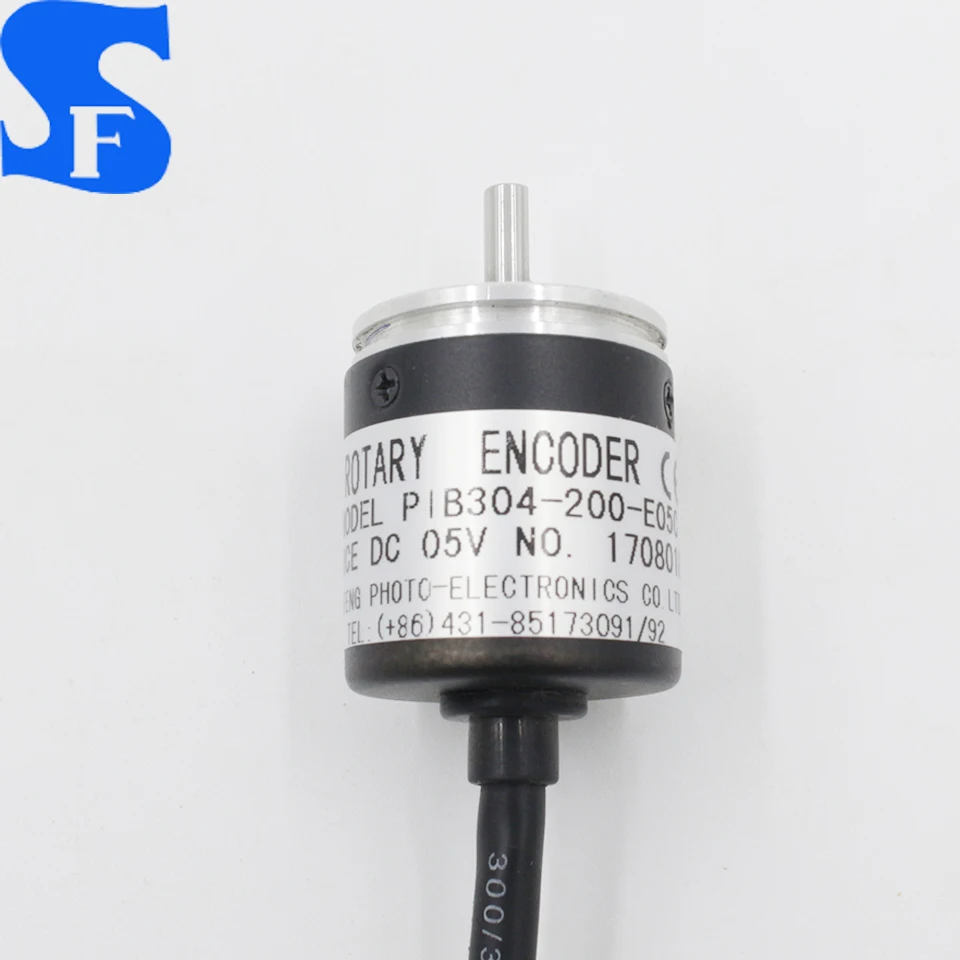

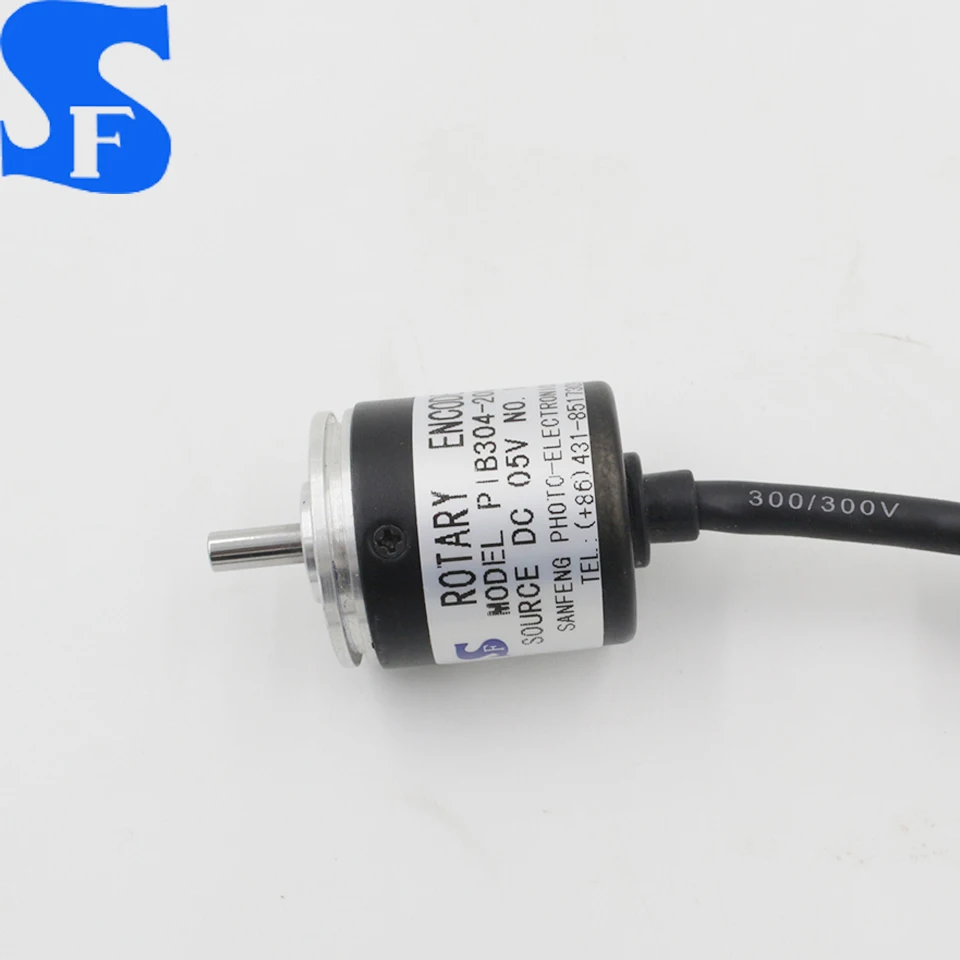

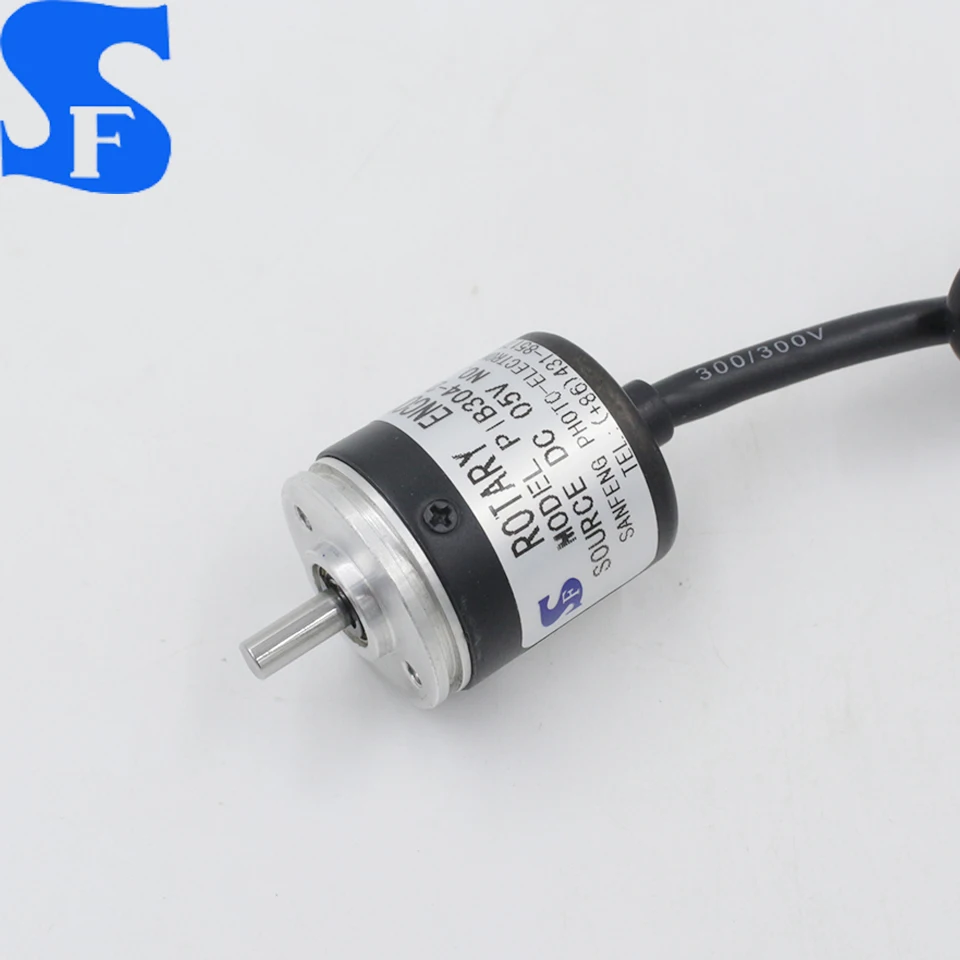

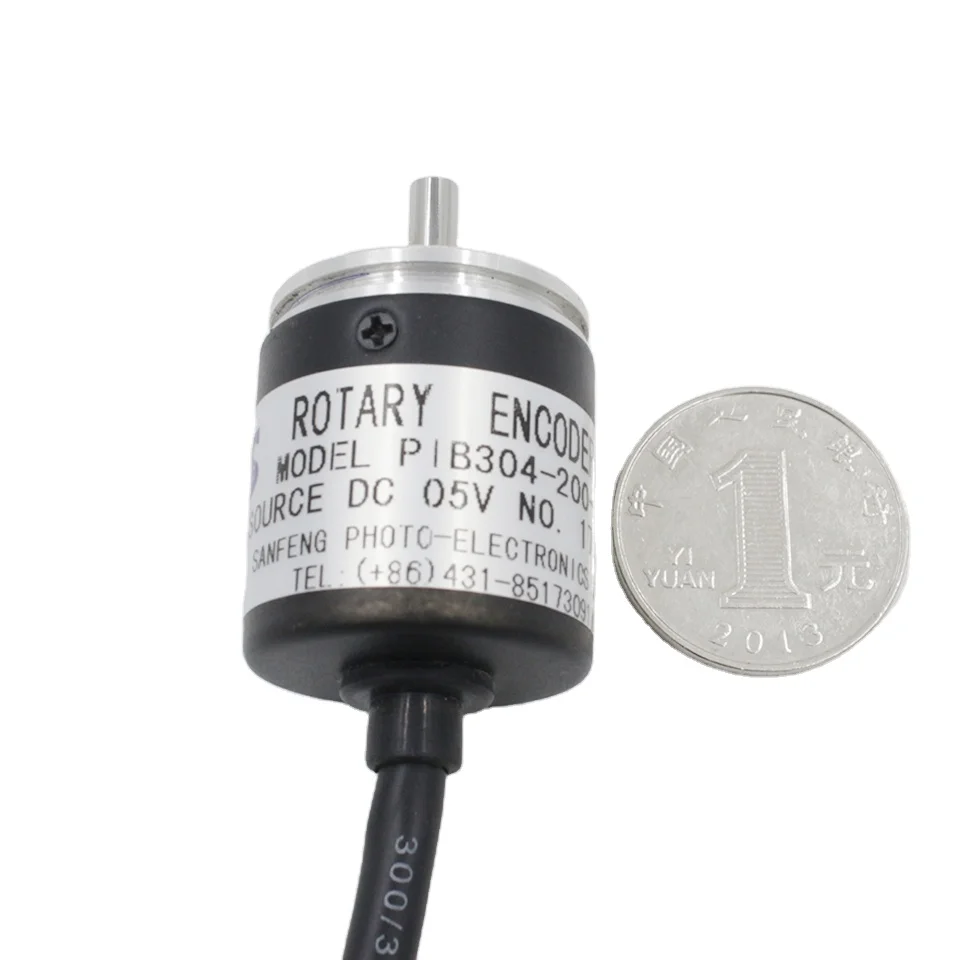

PIB254 200 E05C 25mm diameter 4mm shaft mini type rotary encoder
- Category: >>>
- Supplier: CHANGCHUN SANFENG OPTICAL ENCODER CO. LTD
Share on (60743288645):
Product Overview
Description
PIB254-200-E05C 25mm diameter 4mm shaft mini type rotary encoder
Resolution | 200P/R | |||
Supply Voltage | DC5V | |||
VH Output Voltage | ≥Vcc*70% | |||
VL Output Voltage | ≤0.5V | |||
Current Consumption | ≤150mA | |||
Output Phase | A.B.Z | |||
Frequency Response | 100kHz Max | |||
Rise / Fall Time | ≤1μS /Driver≤0.1μS | |||
Starting Torque | 1.5*10-3N*m(+25℃) | |||
Starting Loading | Radial | 20N | Axial | 10N |
Rotating Inertia | 4*10-7Kg*m2 | |||
Max Rotating Speed | 5000r/min | |||
Vibration Resistance | 50m/s2(10-200Hz)(3 Times in xyz Direction) | |||
Shock Resistance | 980m/s2(3 Times in xyz Direction) | |||
Protection | IP54 | |||
Operating Temperature | -10℃~+70℃ | |||
Storage Temperature | -20℃~+80℃ | |||
Operating Humidity | 30~85%RH | |||
Weight(no cable) | 0.1Kg | |||
Accessories | SE/PE Coupling | |||
Cable Color | Red | Black | White | Green | Yellow | Blue | Pink | Brown | Shield | |
Output Form | C/E/F | VCC | 0V | A | B | Z | - | - | - | FG |
L/D | VCC | 0V | A | B | Z | A(_) | B(_) | Z(_) | FG | |
If you have any question,feel free to contact me.
Are you a trading company or a manufacturer? |
We are a manufacturer of 20 years experience. |
Do you accept OEM brand? |
Accept large OEM brand customers, or a large number of customers. |
Does your product have a factory inspection? |
Every product we send is strictly factory inspection. |
How long will you ship the goods? |
Our delivery time ranges from 3 days to 3 weeks. |
Can you provide free samples? |
Regular products provide samples according to the original price. Customized products are provided at cost price. |
What kind of packing do you send? |
We use high-quality corrugated paper packing box, internal environmental protection buffer material. |
What is our loading port? |
Dalian port, or apply for other ports. |
How long is your quality guarantee period? |
The guarantee period for our products is one year. |
