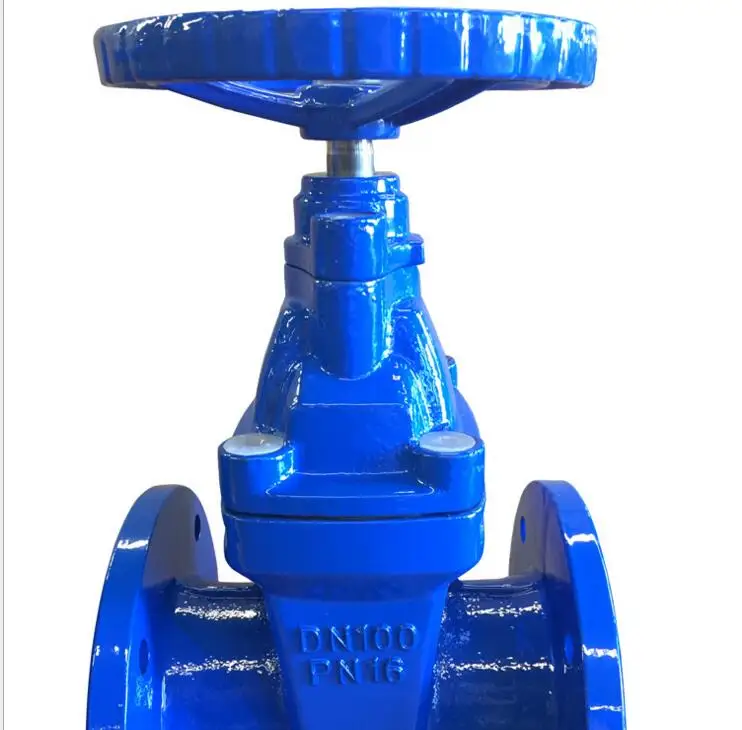

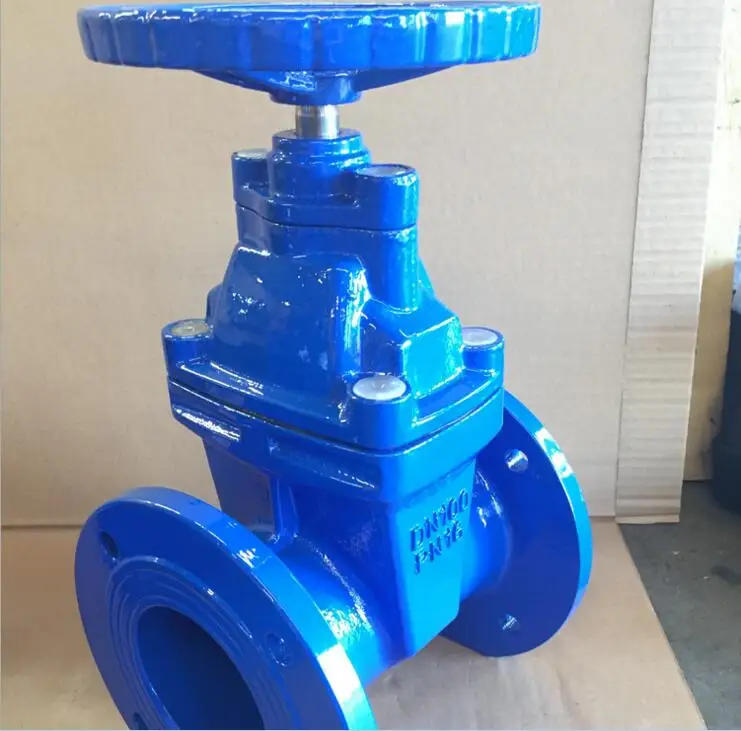

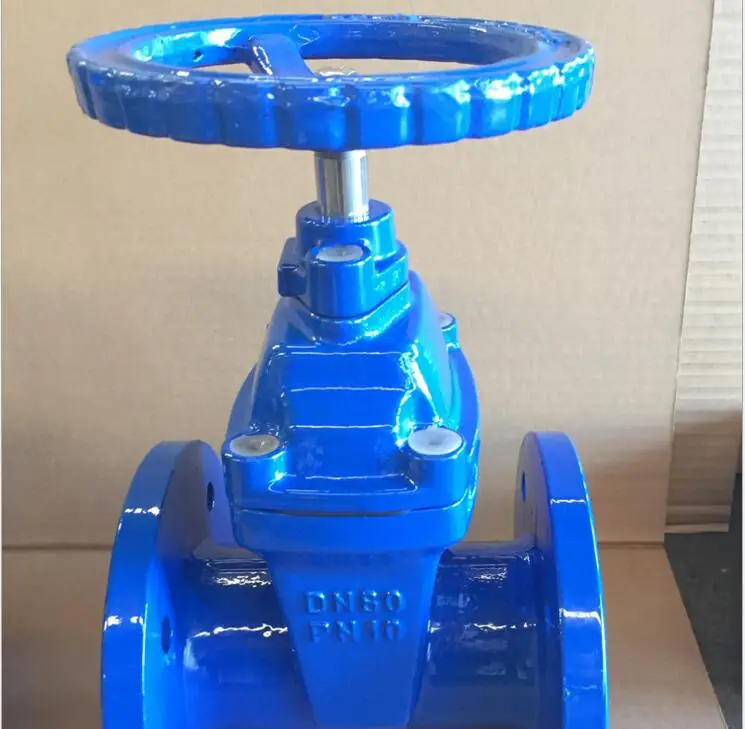

F4 resilient seated cast iron gate valve, DN100 cast iron gate valve
F4 resilient seated cast iron gate valve, DN100 cast iron gate valve
F4 resilient seated cast iron gate valve, DN100 cast iron gate valve
F4 resilient seated cast iron gate valve, DN100 cast iron gate valve

F4 resilient seated cast iron gate valve, DN100 cast iron gate valve

Share on (60743288790):


Price:RUB 379.09 - RUB 1,137.27

Quantity:


Product Overview

Description

Product Description

 1.resilient seated gate valve, DN100 F4 nonrising gate valve,DN100 F4 gate valve,resilient seated gate valve, nonrising gate valve



2.Body material: nodular cast iron



3.Connection:flange



4. DN.50-1000mm



5.operator:manual

Product Information : DIN F5 resilient seat gate valve
Size
DN150
Design as BS EN 1171 / DIN 3352 F5.
Face-to-Face dimension conforms to BS EN558-1 series 15, DIN 3202 F5.
Flange drilling is suitable for BS EN1092-2, DIN 2532 / DIN 2533.
Epoxy fusion coating
Main Materials list
Part
Material
Body
Ductile Iron
Disc(Plate)
Ductile Iron
Seat
EPDM
Shaft(Stem)
WCB or Casting Iron
Pressure and Temperature ratings
Working Pressure
10 bar 16 bar
Shell:
15 bars; Seat: 11 bar.
Shell:
24bars; Seat: 17.6 bar.
Working Temperature
10°C to 120°C (EPDM)
Suitable Media
Water, Oil and gas.
