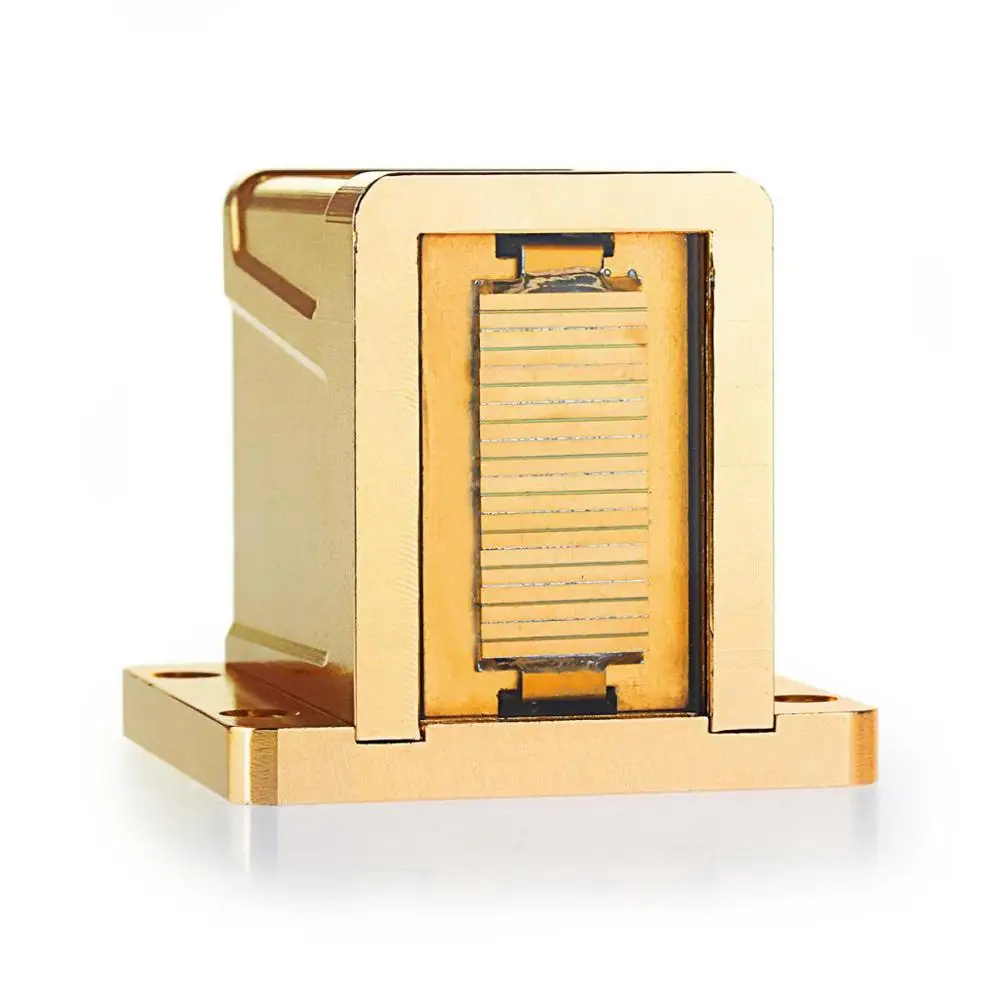

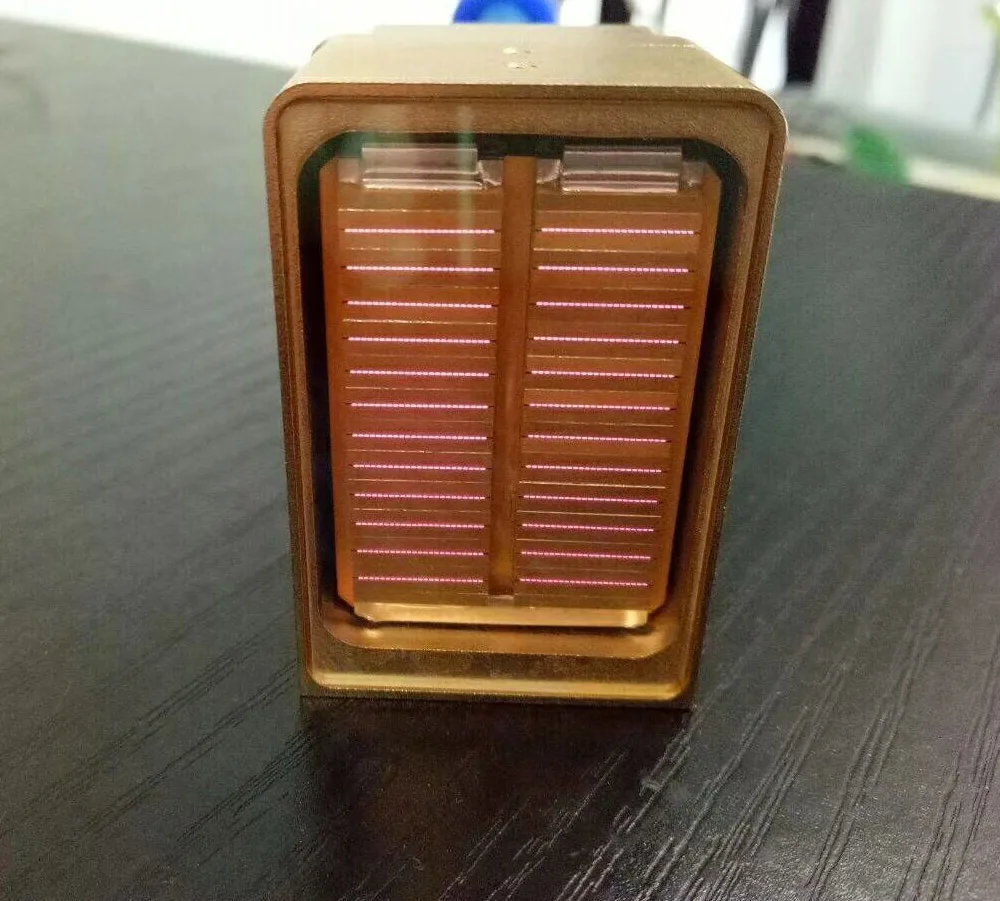

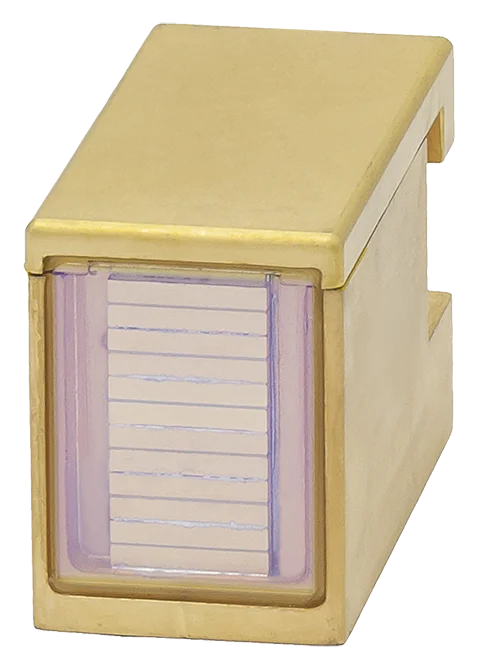

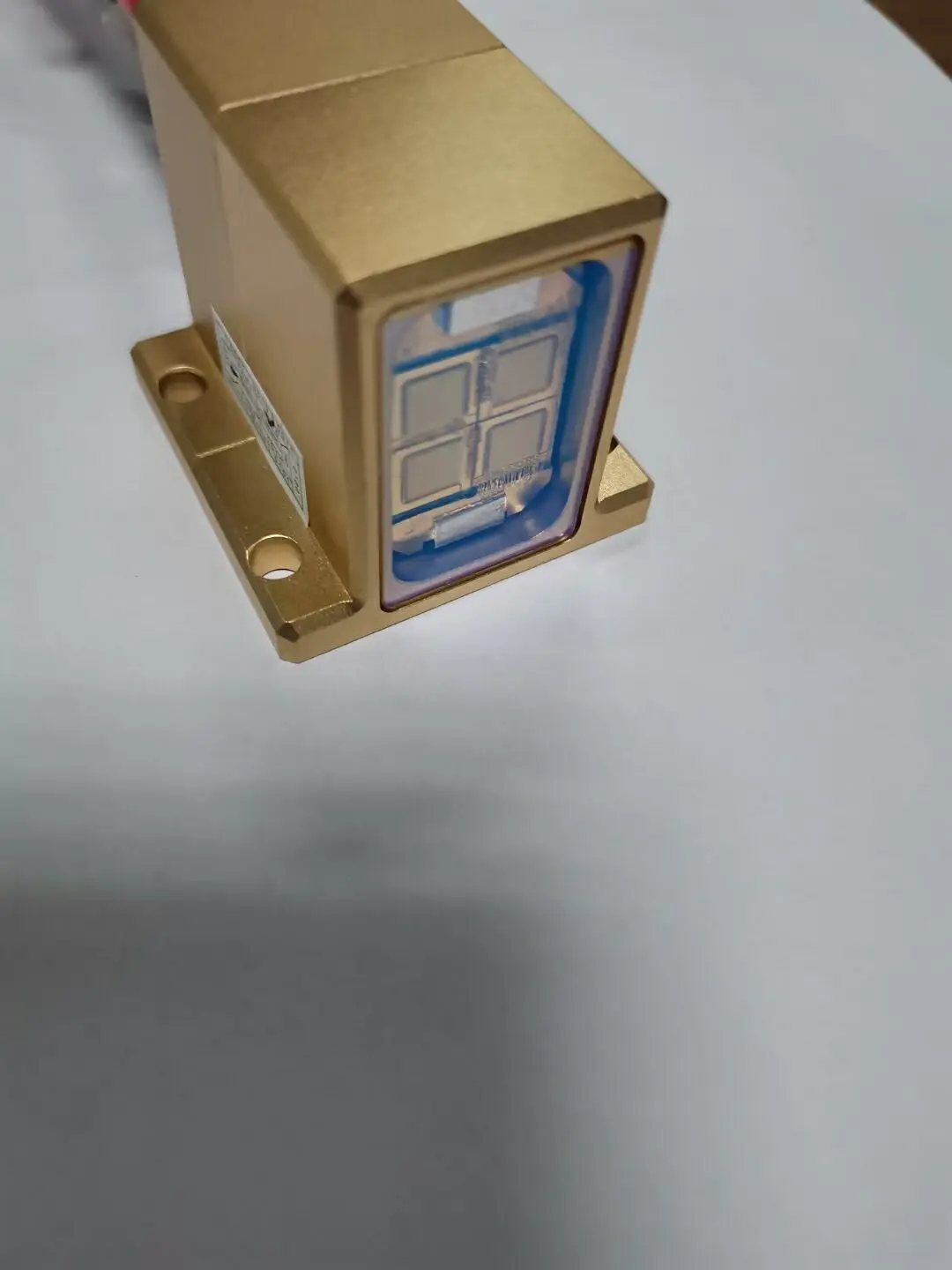

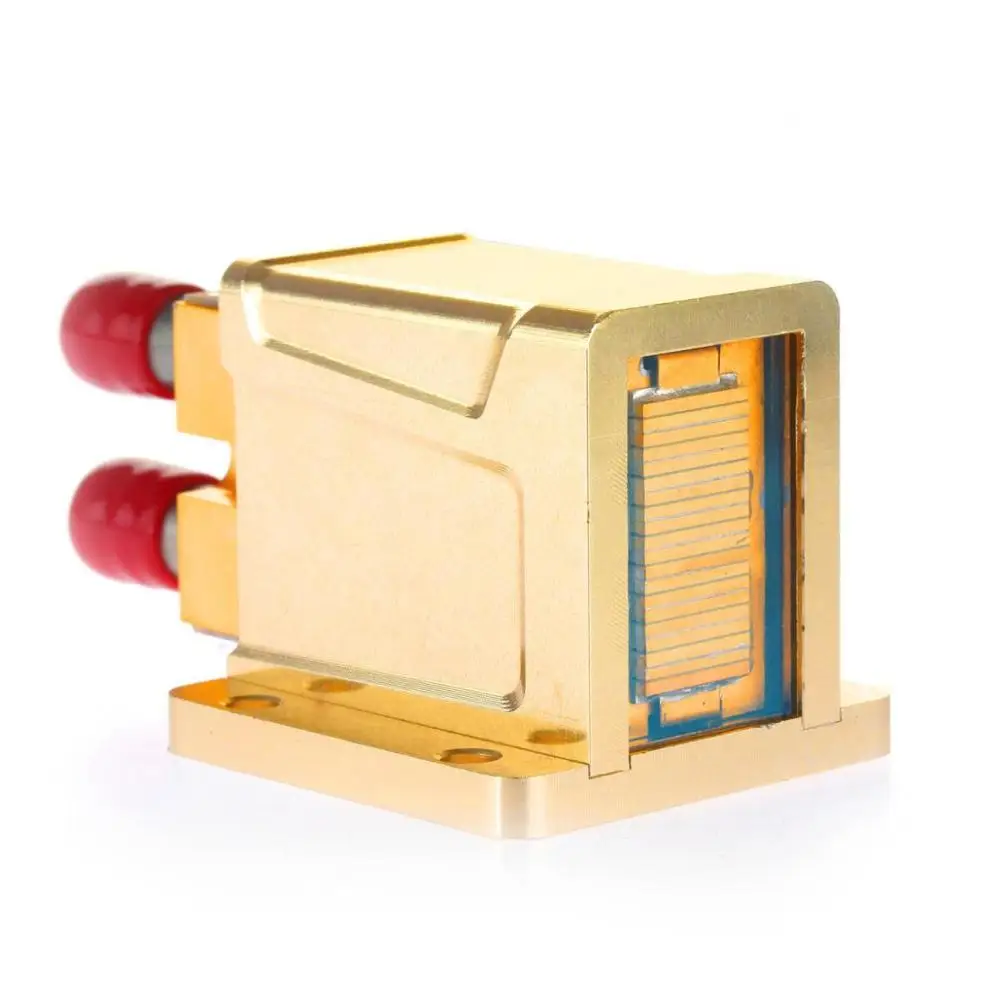

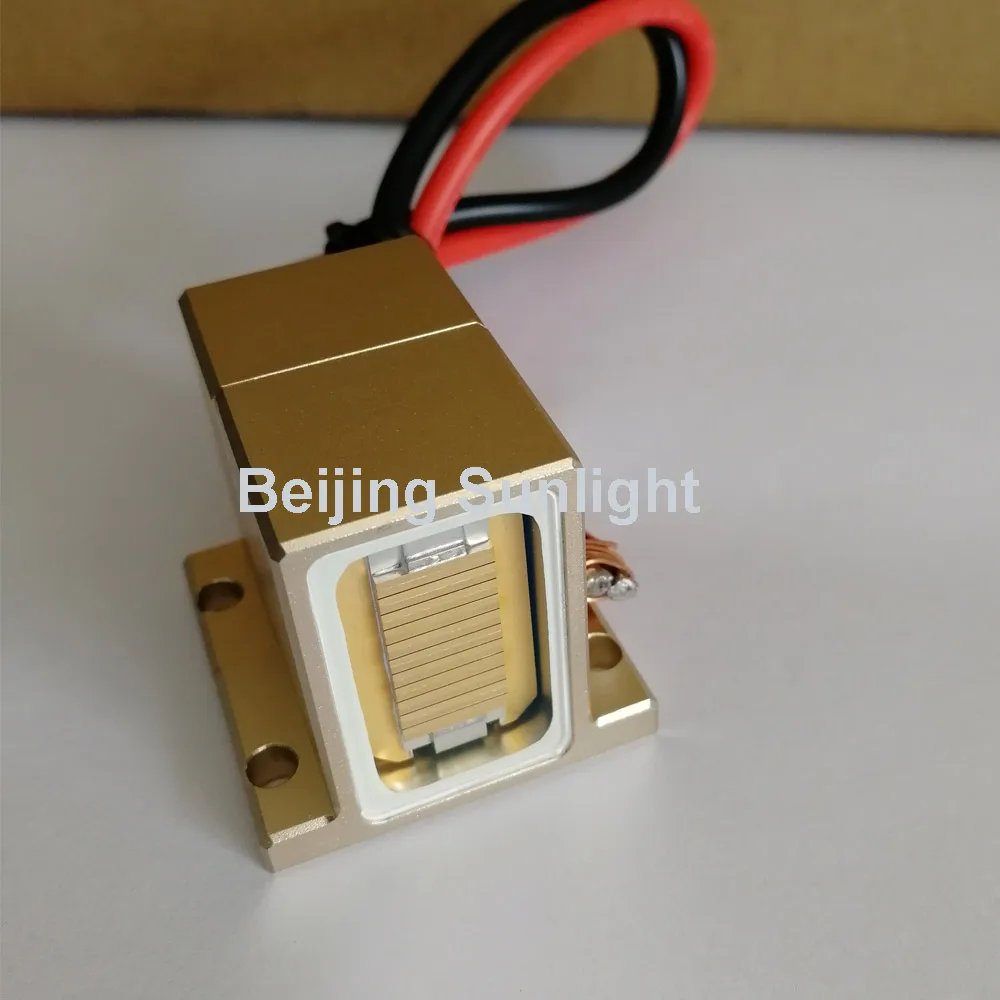

USA Diode Laser Bars Module

Product Overview

Description

High quality Diode Laser Bars Module



Features

AuSn Solder Assembly,Higher Reliability

Multi-wavelengths available 755nm,810nm,1064nm.

Operating Current : 50~95A

Pulse Width: 10~400ms

Expected life : 20 million shots

High Power Conversion Efficiency : 45~48%



Appication

Medical & Aesthetics

Permanent Hair Removal

Pumping Source



We have different shapes for option.

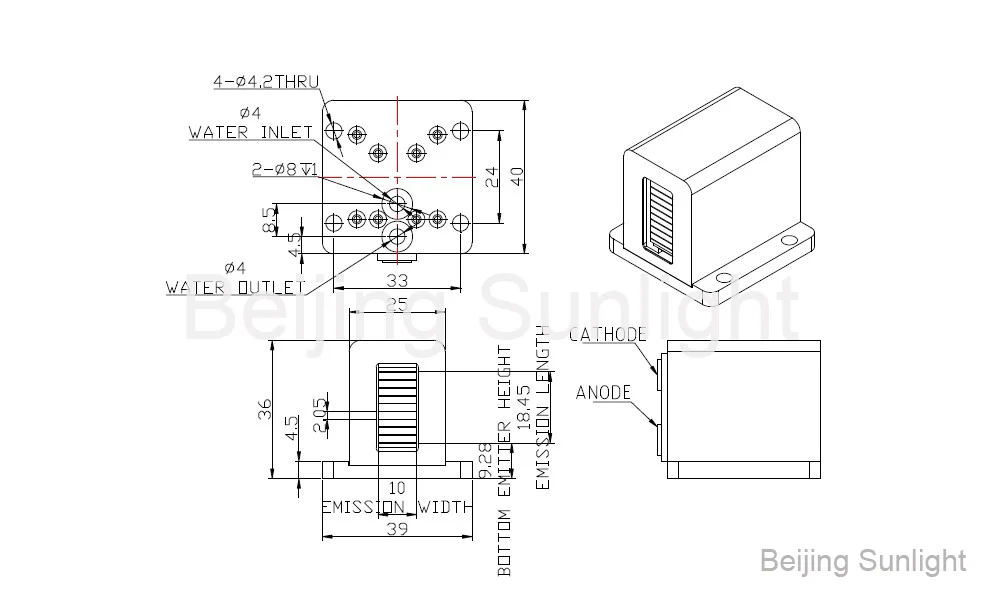

Here is an example for 10 bars module sizes :









CW/QCW laser diode bars



Wavelength	Peak power	Bar Power	BARS Pieces
755nm,808nm,1064nm	500W-800W	50W-80W	10
755nm,808nm,1064nm	500W-800W	80W-120W	6
755nm,808nm,1064nm	800W-1200W	50W-80W	16
755nm,808nm,1064nm	800W-1200W	80W-120W	10
755nm,808nm,1064nm	500W-800W	50W-80W	10
755nm,808nm,1064nm	500W-800W	80W-120W	6
755nm,808nm,1064nm	500W	100W	5
755nm,808nm,1064nm	1200W	100W	12
755nm,808nm,1064nm	600W	100W	6
