Low table MH 102B Full automatic strapping machine for carton

Product Overview

Description

Low table MH-102B Full-automatic  strapping machine for carton

Product description:

MH - 102B low station unmanned type packing machine is suitable for the assembly line, low mesa mesa of the machine is equipped with eight power galvanized embossing roller, which can realize the automatic detection, automatic packaging, automatic transmission, roller embossing treatment increased the goods stay at the time of the friction force, make the packaging more precise position.Widely used in food, chemical industry, clothing, postal, logistics and other industries.

Performance characteristics:

·PLC control, stable performance.

· automatic detection, automatic packaging, automatic transmission and high efficiency.

· imported electrical appliances with longer service life.

· optional automatic alarm device, missing belt and automatic fault alarm.

· it can be used in single machine, and it can also be used with the unmanned packaging line.

Technical Parameters:

Model	MH-102B
Strapping force	230kg
Strapping speed	2.5second/strap
Frame size	W800*H600mm[could custom]
Applicable Straps	polypropylene[Width 9-15mm,thickness 0.55-1.2mm]
Voltage	220V-450V.50HZ  0.75KW
Machine size	L1900*W630*H1760mm
Table height	450mm
Machine weight	150kg
Electric configuration	PLC Control,France'"TE",JAPAN "OMRON"
Strapping type	Parallel 1-several packing strips

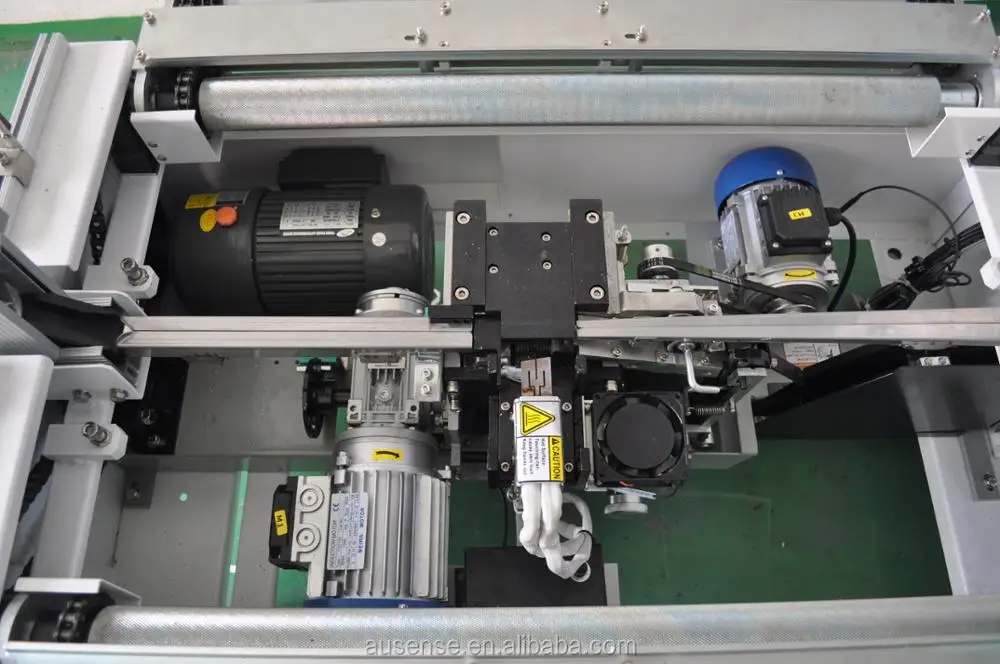

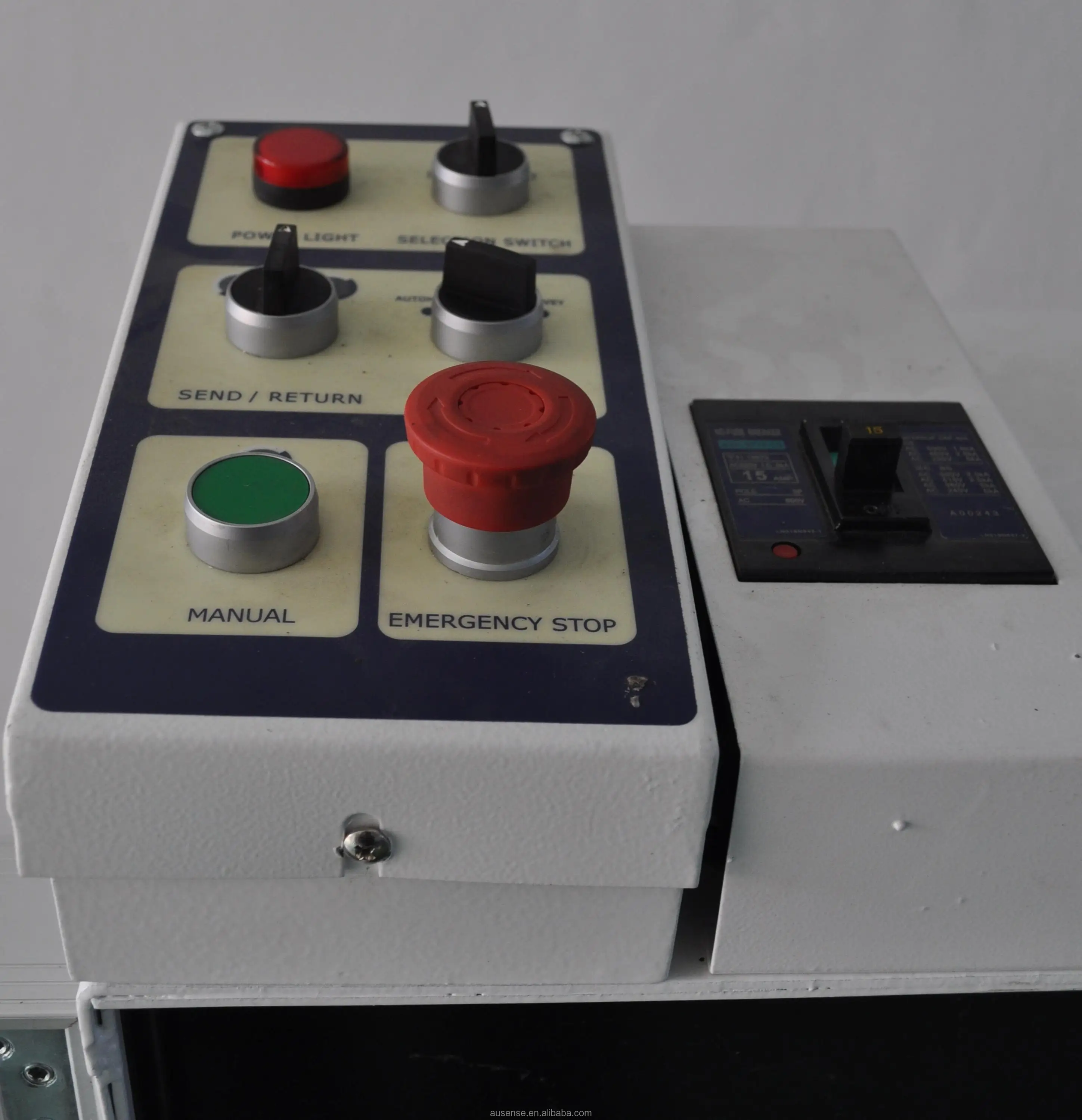

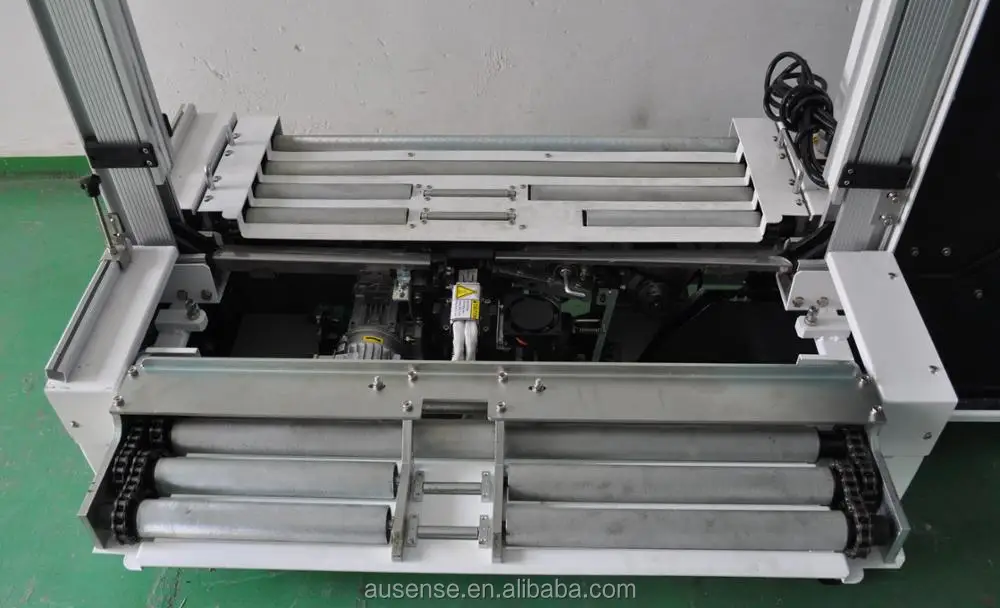

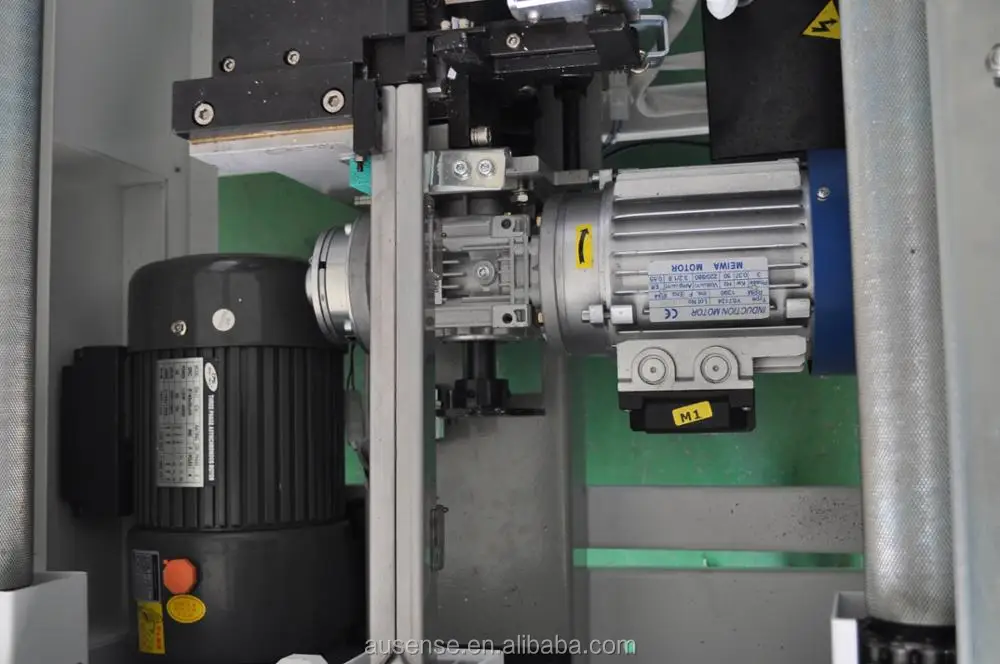

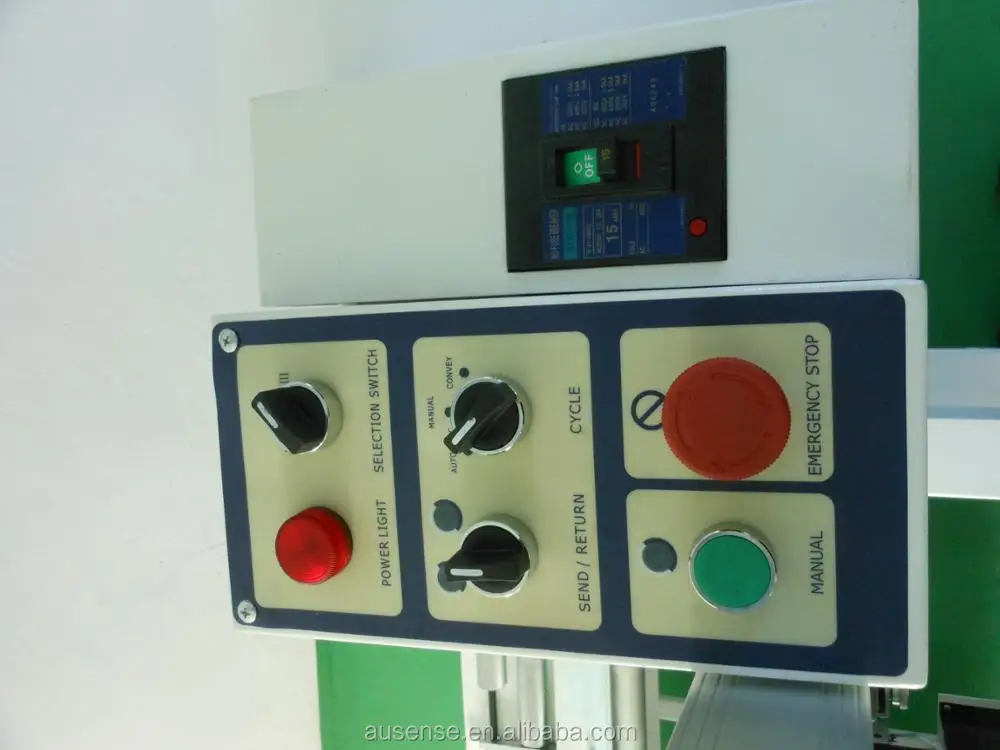

 More pictures:

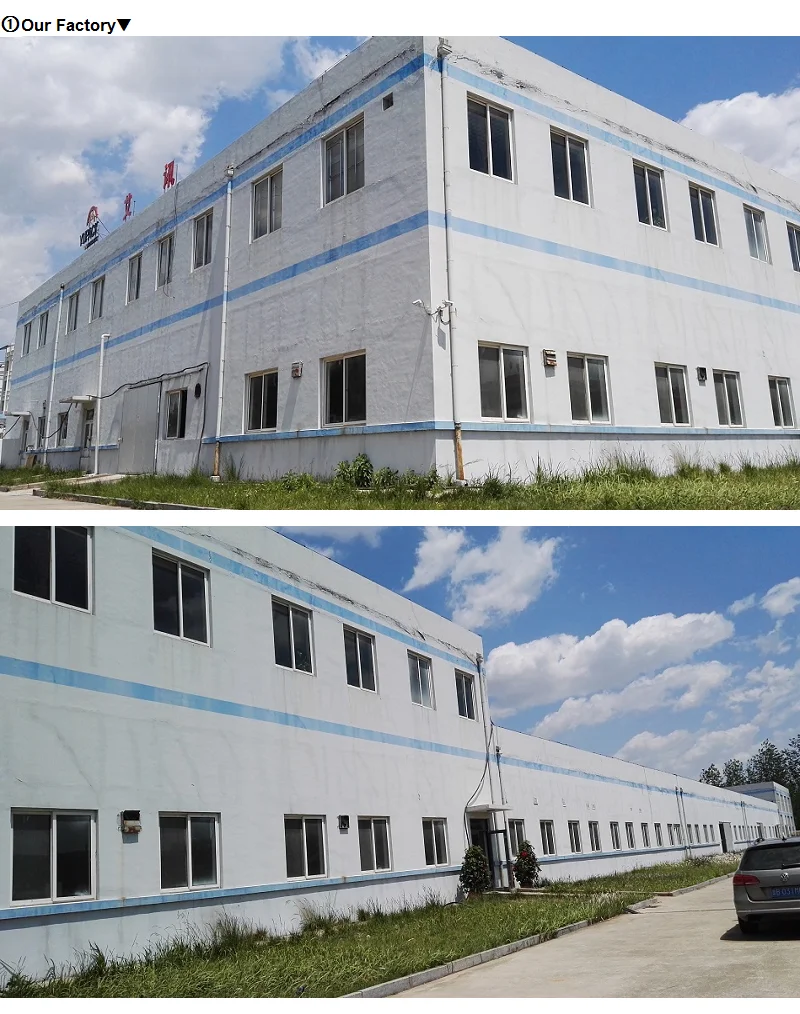

 About Us
