Factory Price High impact corrosion resistant alumina ceramic liner tiles
- Category: >>>
- Supplier: Zibo Qimingxing New Material Incorporated Co. Ltd.
Share on (60743350099):
Product Overview
Description

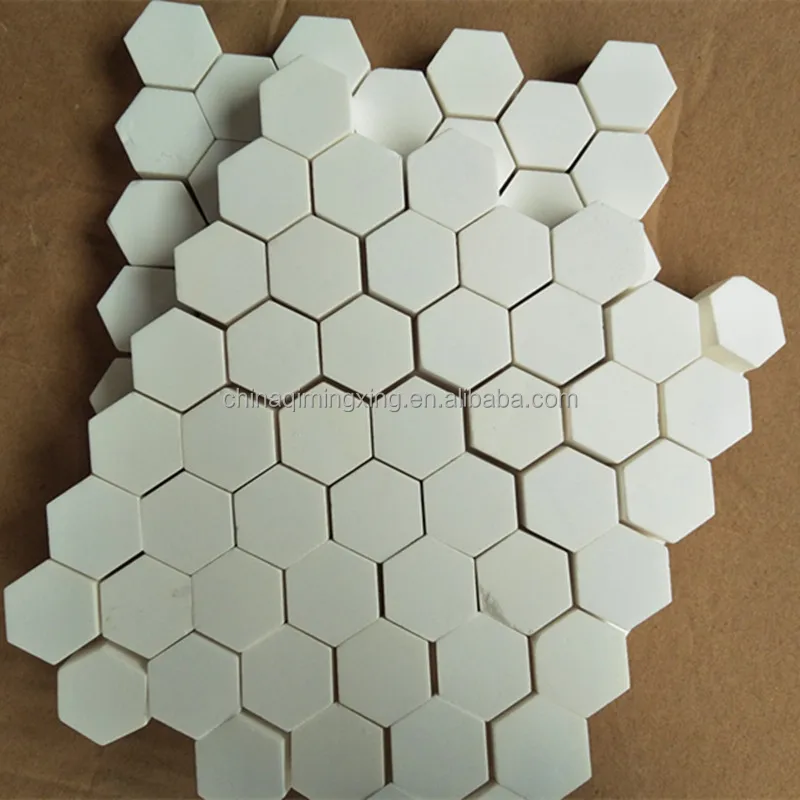

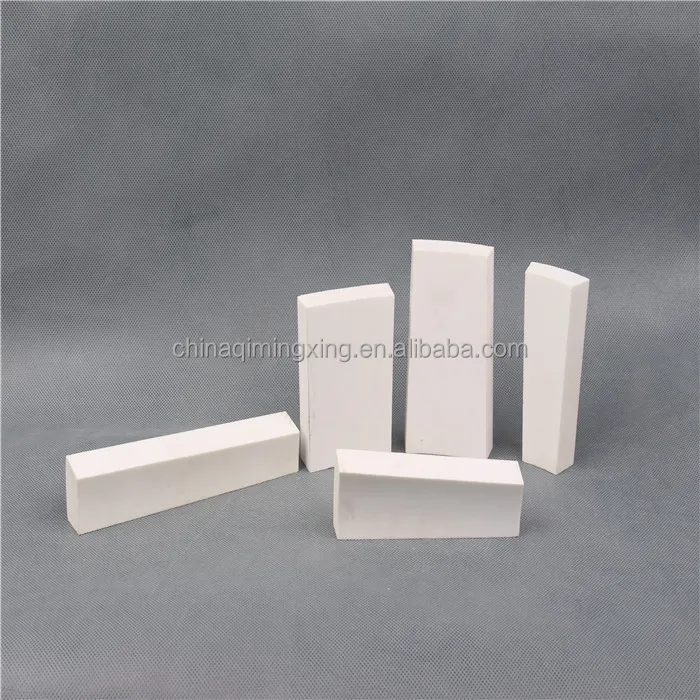

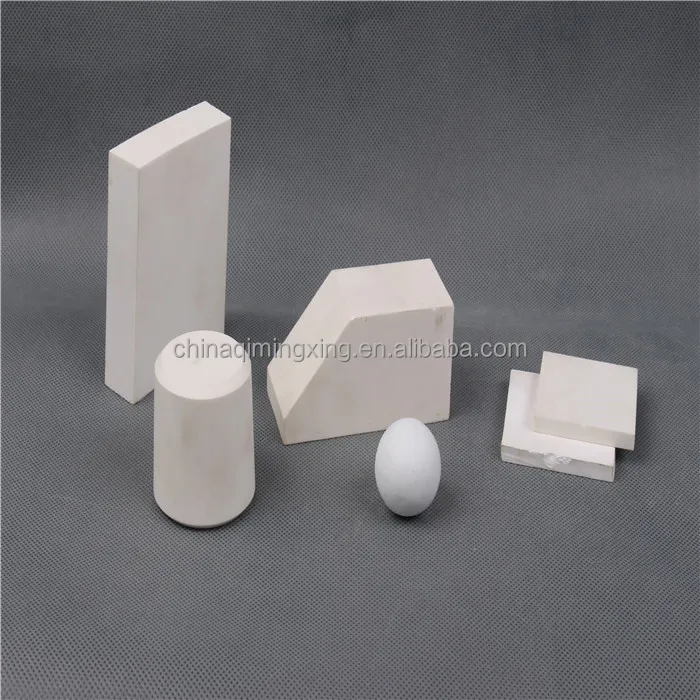

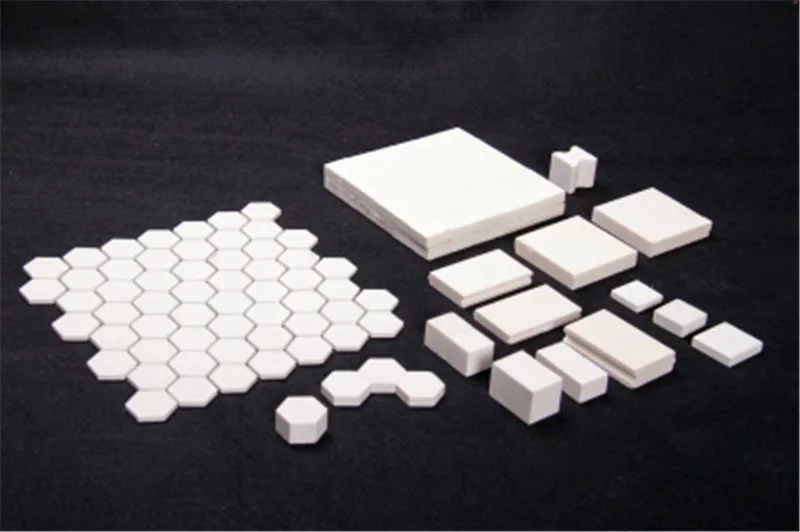

Factory Price High impact corrosion resistant alumina ceramic liner tiles
Category | 92 Series | 95 Series | T 95 Series | 99 Series | ZTA | ZrO2 |
Al2O3 | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
Fe2O3 | ≤0.25 | ≤0.15 | ≤0.15 | ≤0.1 |
| / |
ZrO2+Ye2O3 | / | / | / | / | ≥23% | ≥99.8% |
Density | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.80g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
HV Hardness N/mm2(MPa) | 980 | 1040 | 1100 | 1250 | 1360 | 1100 |
Bending Strength MPa | 260 | 280 | 320 | 350 | 400 | 1000 |
Compression strength MPa | 1150 | 1200 | 1250 | 1300 | 1400 | / |
Fracture Toughness MPam 1/2 | 3.68 | 3.72 | 3.94 | 4.5 | 5.5 | 7 |
Wear Volume | ≤0.55cm3 | ≤0.50cm3 | ≤0.35cm3 |
| ≤0.15cm3 | ≤0.10cm3 |
| pplication Industry from FIRSTAR | ||
| Industry | Equipment System | Equipment parts |
| Cement | Pre-blending system for crashing limestone and crude fuel | Chute,Bunker,Pulley lagging,discharge cone |
| Raw mill system | Feed chute,Retaining ring,Scraper plate,Seal ring,Pipeline,Bucket guard,Cyclone,Powder concentrator body,Bunker | |
| Cement mill system | Chute,Bunker,Fan vane wheel,Fan casing,Cyclone,Circular duct,Conveyer | |
| Ball mill system | Pulverizer exhauster's body and vane wheel,Powder concentrator's body,Pulverized coal's pipeline,Hot air duct | |
| Sintering system | Inlet/Outlet bend,Wind value plate,Cyclone,Chute,Dust collector's pipe | |
| Afterheat system | Separator's pipeline and wall | |
| Steel | Raw material feeding system | Hopper,Silo |
| Batching system | Mixing bunker,Mixing barrel,Mixing disk,Disk pelletizer | |
| Sintered material transport system | Hopper,Silo | |
| Dedusting and Ash discharge system | Dedusting pipeline,Bend,Y-piece | |
| Coking system | Coke hopper | |
| Medium-speed mill | Cone,Separation buffles,Outlet pipe,Pulverized coal's pipeline,Burner cone | |
| Ball mill | Classifier,Cyclone separator,Bend,Powder concentrator's Inner shell | |
| Thermal power | Coal handling system | Bucket wheel machine,Coal Hopper,Coal Feeder,Orifice |
| Ball mill system | Separator's pipe,elbow and cone,Coal mill's elbow and straight tube | |
| Medium-speed mill | Coal mill body,Separation buffles,Cone,Pipeline,Elbow | |
| Fall mill | Pulverized coal's Pipeline and Elbow | |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Ash discharge system | Fan duster's shell,Pipeline | |
| Port | Transporting material system | Bucket wheel machine's disk and hopper,Transfer point's hopper,Unloader's hopper, |
| Smelting | Transporting material system | Measuring hopper,Coke hopper,Vibrating screen's chute,Head valve,Intermediate Bin,Tail bin |
| Batching system | Batch hopper,Mixing machine | |
| Burning system | Ash bucket,Pump calcine tube,Hopper | |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Chemical | Transporting material system | Hopper,Silo |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Processing equipment | Vibromill liner | |
| Coal | Coal handling system | Bucket wheel machine,Coal Hopper,Coal Feeder,Silo |
| Coal washing system | Hydrocyclone | |
| Mining | Transporting material system | Hopper,Silo |
