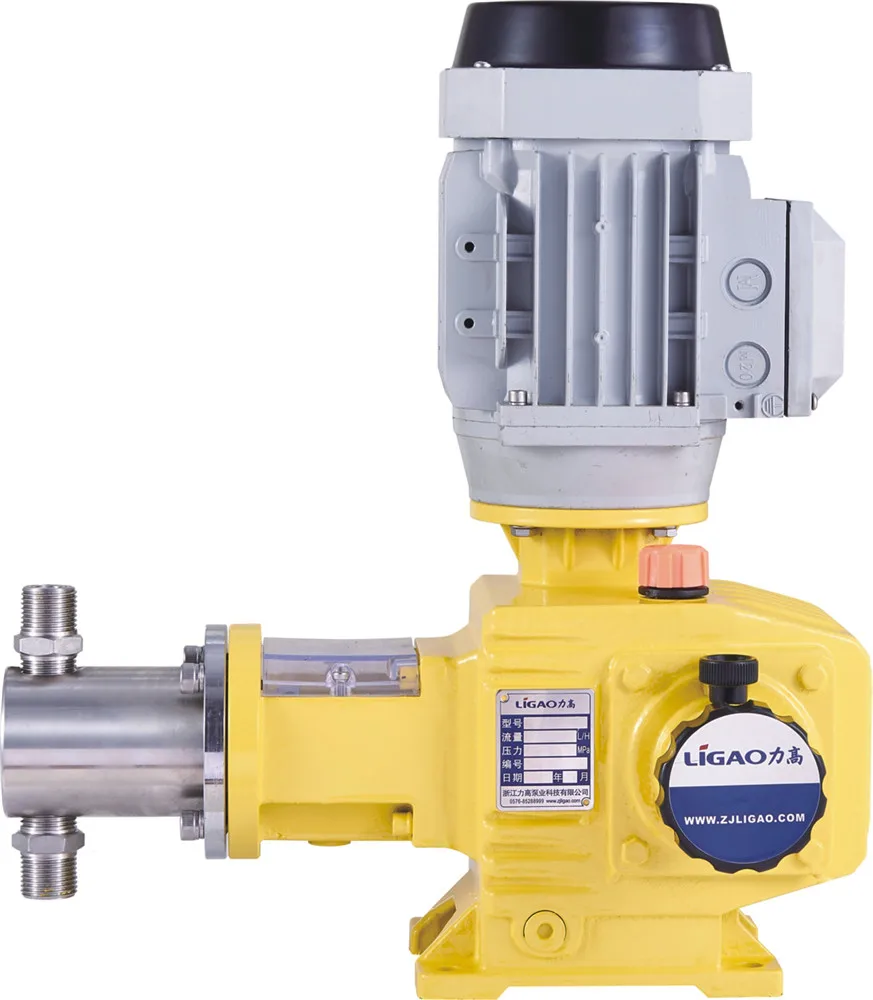

Precision Plunger Metering Pump

Product Overview

Description

Model	Flow                 l/h	Pressure Mpa	Plunger diameter mm	Stroke mm	Pump Speed min	Motor Power KW	Inlet and outlet diameter	Connection Method
JSX 1/30	1	30	6	20	40	0.37	DN6	6*12 Nozzle sleeve welding
JSX 2/40	2	40	6		80
JSX 3/32	3	32	8
JSX 5/20	5	20	10				DN8	8*14 Nozzle sleeve welding
JSX 8/14	8	14	12
JSX 15/7.6	15	7.6	16
JSX 25/5.0	25	5.0	20				DN10	10*16 Nozzle sleeve welding
JSX 40/3.2	40	3.2	25
JSX 50/2.5	50	2.5	28
JSX 70/2.0	70	2.0	32
JSX 85/1.6	85	1.6	35
JSX 100/1.3	100	1.3	38
JSX 125/1.0	125	1.0	42
JSX 150/1.3	150	1.3	38		120
JSX 200/1.0	200	1.0	42
