Ball Joint Rod End Bearing Fish Eye Bearing PHS5
Product Description
Ball Joint Rod End Bearing Fish Eye Bearing PHS5
Description:
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end(which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. The heim joint's advantage is that the ball insert permits the rod or bolt passing through it to be misaligned to a limited degree (an angle other than 90 degrees). A link terminated in two heim joints permits misalignment of their attached shafts (viz., other than 180 degrees) when used in tension. When used in compression, the through-rods are forced to the extreme ends of their ball's misalignment range, which cocks the link at an oblique angle.
Application:
This kind of bearings are widely used in engineering hydraulic oil cylinder, forging machine tools, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries,etc.

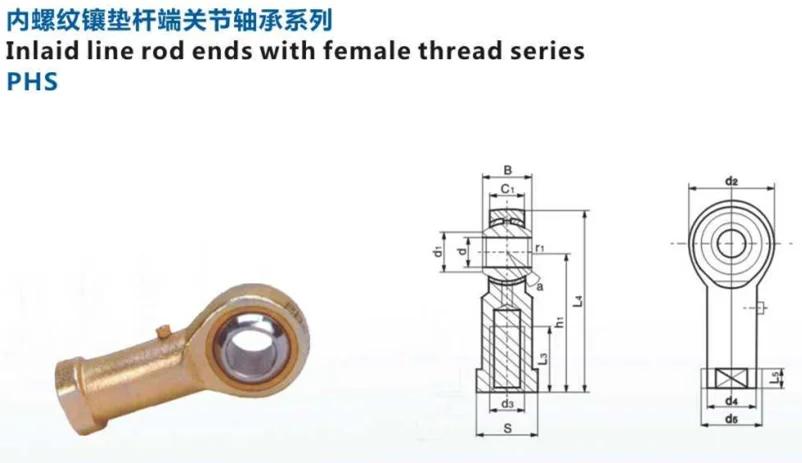

Data:
| Part No. | Dimensions mm | Load ratings KN | Weight Kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| d | d3 6H | B | C1 | W | L3 min | d2 | L4 | h1 | L5 | d4 | d5 | dk | d1 | α ≈ | dyn. Cd | stat. Cs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PHS 5 | 5 | M5×0.8 | 8 | 6 | 9 | 10 | 16 | 35 | 27 | 4 | 8.5 | 11 | 11.11 | 7.70 | 13 | 3.25 | 5.70 | 0.016 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PHS 6 | 6 | M6×1.0 | 9 | 6.75 | 11 | 12 | 18 | 39 | 30 | 5 | 10 | 13 | 12.70 | 8.96 | 13 | 4.3 | 7.20 | 0.022 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PHS 8 | 8 | M8×1.25 | 12 | 9 | 14 | 16 | 22 | 47 | 36 | 5 | 12.5 | 16 | 15.875 | 10.4 | 14 | 7.2 | 11.6 | 0.047 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PHS10 | 10 | M10×1.5 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 | 19.05 | 12.9 | 13 | 10 | 14.5 | 0.077 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PHS 12 | 12 | M12×1.75 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 15.4 | 13 | 13.4 | 17 | 0.10 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PHS 14 | 14 | M14×2.0 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 | 25.40 | 16.9 | 16 | 17 | 24 | 0.16 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
