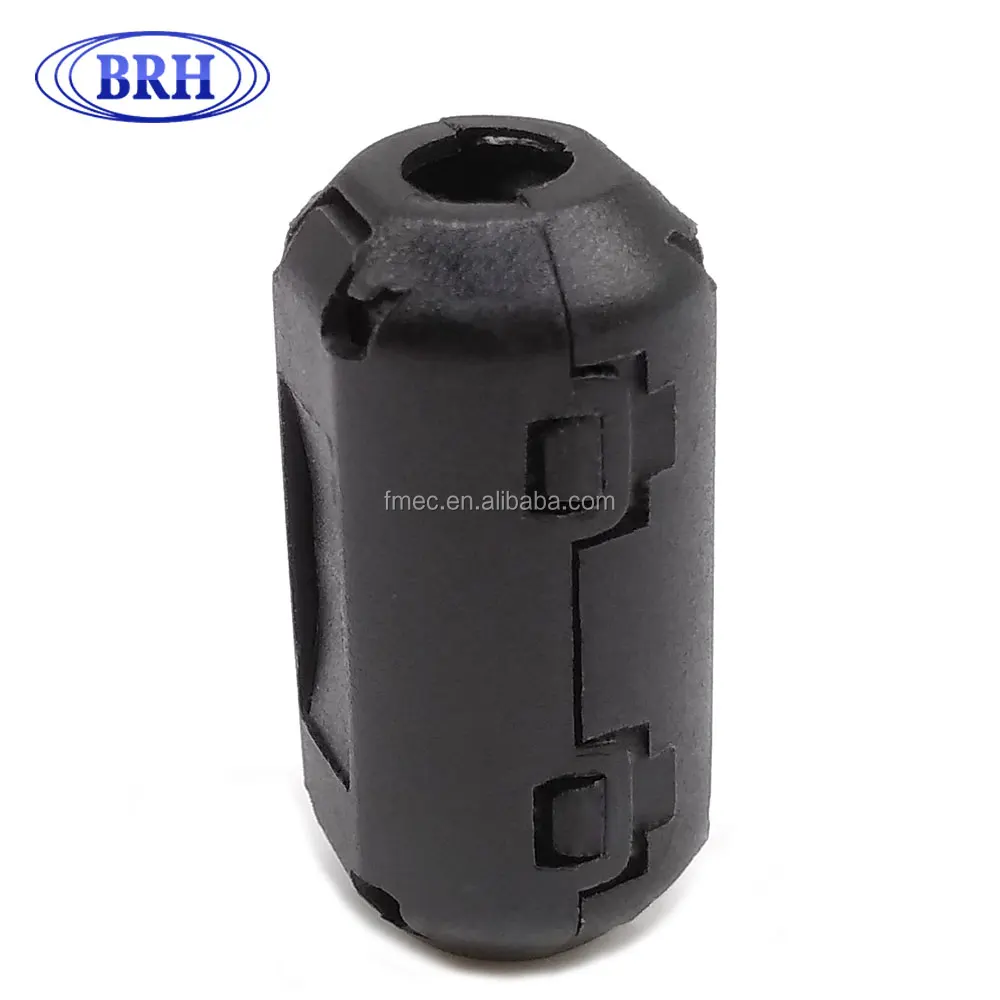

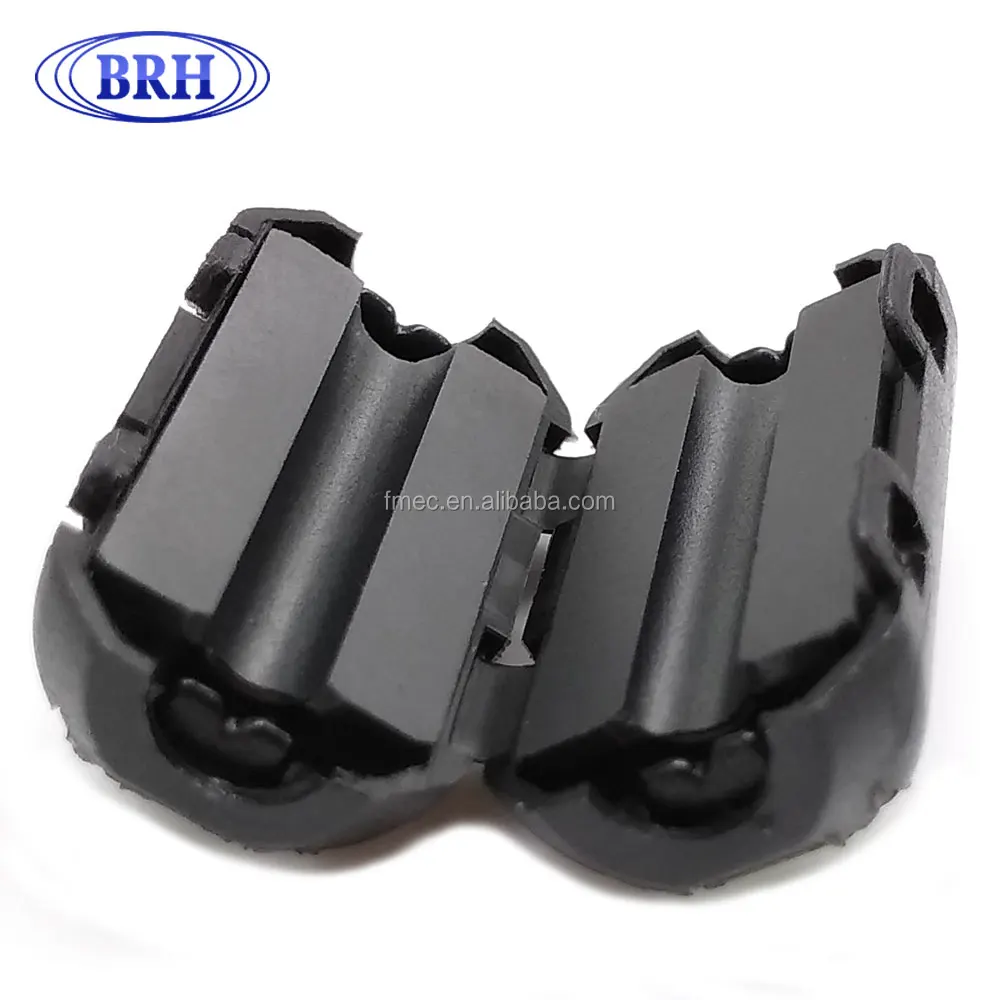

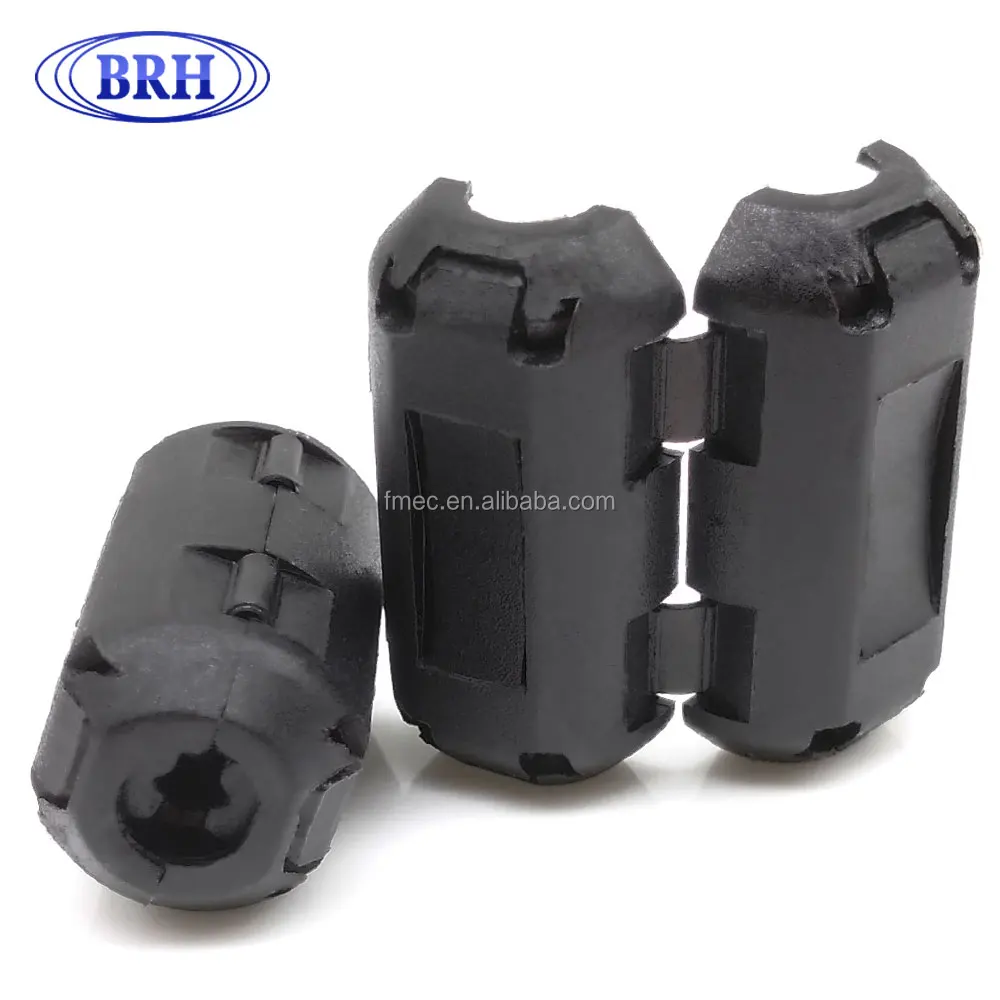

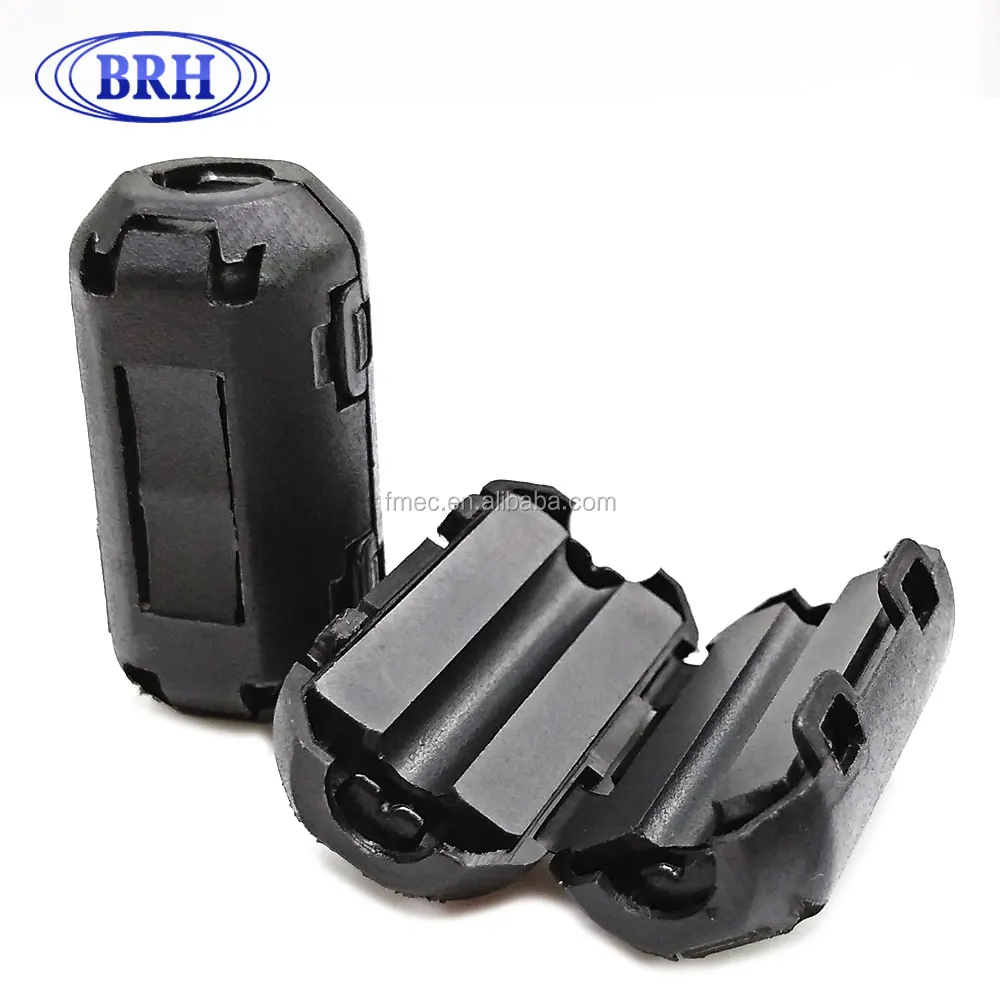

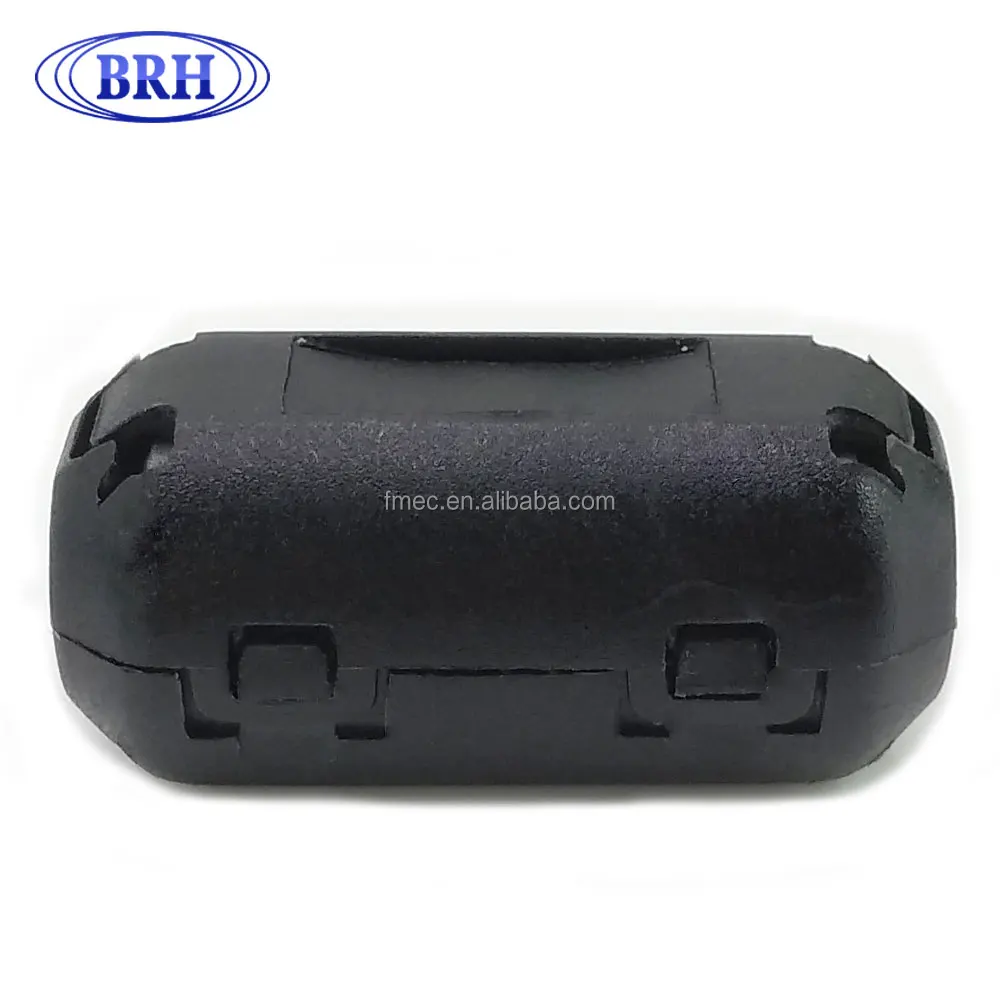

High Quality Best Price Ferrite Core EMI Noise Reducing Filter

Share on (60743394295):


Price:

Quantity:


Product Overview

Description


Description
\t

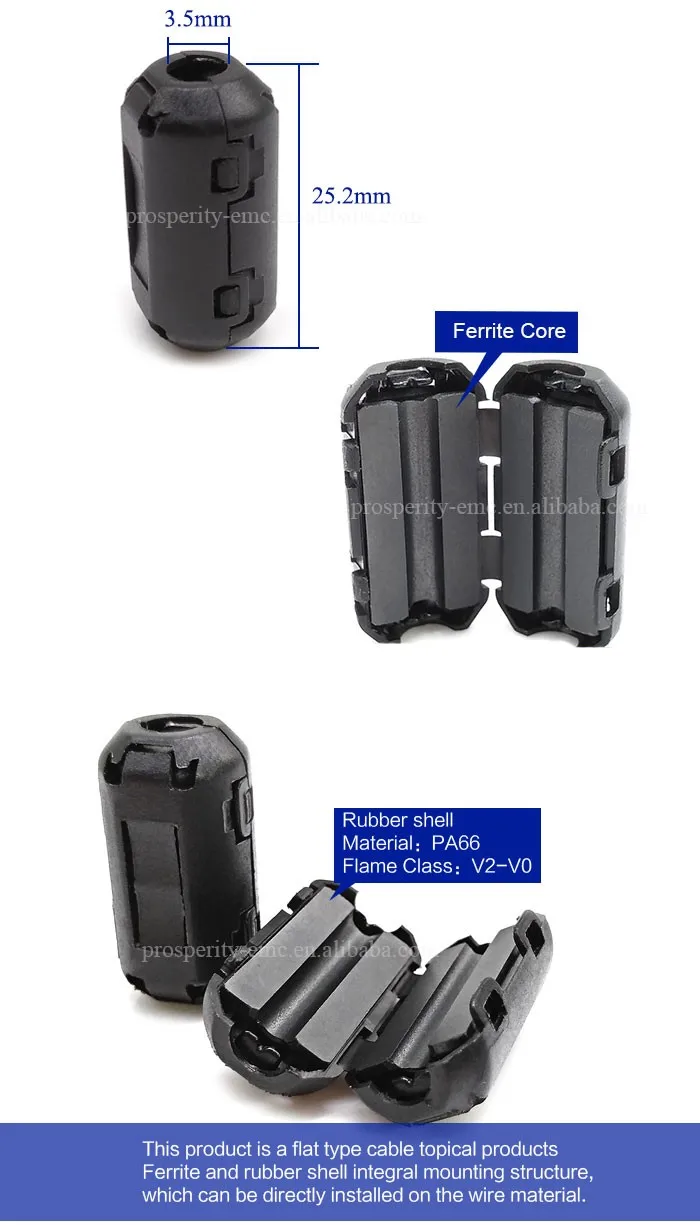

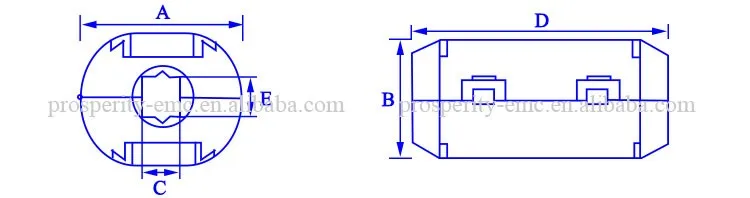

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
D
\t
A2 RC 103B
\t
13.0±1.00
\t
11.8±1.00
\t
3.5±0.80
\t
25.2±1.00

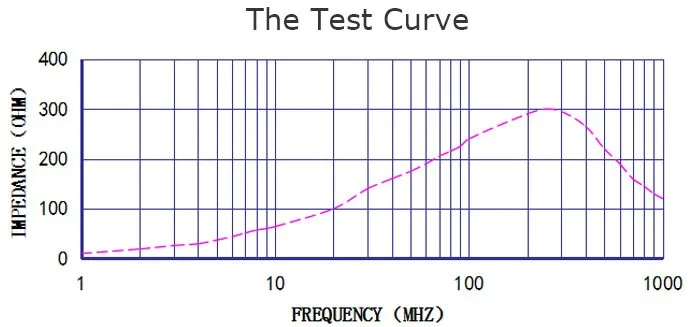

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2-RC-103B
\t
25 MHz
\t
92Ω MIN
\t
100 MHz
\t
207Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
 m/m
\t
 m/m
\t
Suggest
\t
92Ω MIN
\t
207Ω MIN
\t
13.±1
\t
11.8±1
\t
3.5±0.8
\t
25.2±1
\t
1
\t
115.45
\t
250.78
\t
12.96
\t
11.82
\t
3.47
\t
25.27
\t
2
\t
117.68
\t
242.48
\t
13.02
\t
11.83
\t
3.48
\t
25.18
\t
3
\t
114.38
\t
250.52
\t
12.98
\t
11.78
\t
3.52
\t
25.22
\t
4
\t
119.62
\t
252.54
\t
13.01
\t
11.79
\t
3.51
\t
25.23
\t
5
\t
117.54
\t
251.19
\t
13.03
\t
11.82
\t
3.52
\t
25.35
\t
6
\t
116.95
\t
249.68
\t
12.97
\t
11.78
\t
3.49
\t
25.24
\t
7
\t
119.54
\t
251.53
\t
13.05
\t
11.83
\t
3.48
\t
25.22
\t
8
\t
113.21
\t
245.68
\t
13.03
\t
11.85
\t
3.51
\t
25.19
\t
9
\t
110.58
\t
254.72
\t
13.02
\t
11.87
\t
3.48
\t
25.27
\t
10
\t
118.64
\t
248.79
\t
13.05
\t
11.82
\t
3.52
\t
25.29
\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
116.36
\t
249.79
\t
13.01
\t
11.82
\t
3.50
\t
25.25
\t
R
\t
9.04
\t
12.24
\t
0.09
\t
0.09
\t
0.05
\t
0.17
\t
The above test data for reference,Actual results may differ due to different production batches
