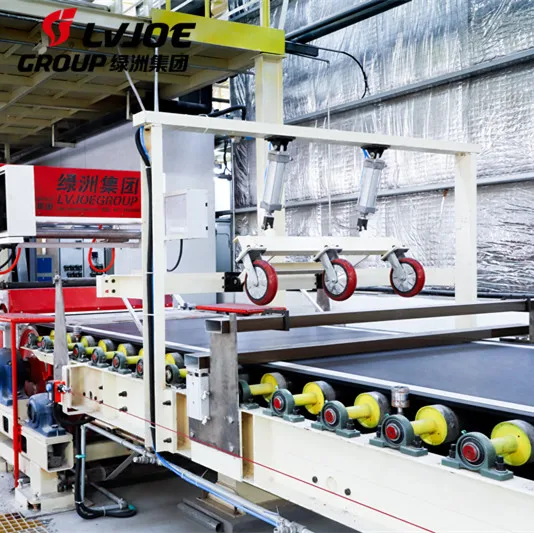

30 million Gypsum Board Production Line/Plasterboard Making Machine
- Category: >>>
- Supplier: Hebei Lvjoe Machinery Manufacturing Group Co. Ltd.
Share on (60743396466):
Product Overview
Description
30 Million Square Meters Output Per Year Gypsum Board Machine
Plaster Board Machine
Gesso Board Machine Manufacturing
1. Paper Supplying System
Application: used to provide paper to the gypsum board.
Composition: The paper roll lifting machine, uncoiling device, pneumatic paper receiving machine, paper storing machine, paper pulling machine, paper guiding machine, scoring machine and automatic correction machine.
Advantage: The high accuracy paper connecting way and high precision electro-hydraulic alignment device, along with the automatic marking device palyed very big roles for shaping, and ensured the good apperance quality.

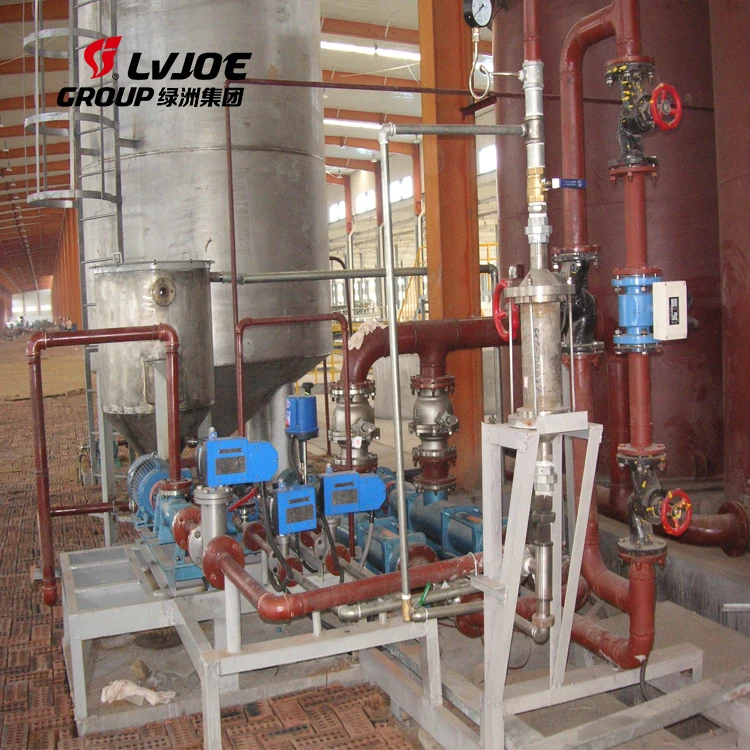

2. Foaming System
Mainly consists of paper slurry,foaming agent,starch,water and additive etc.
All slurry has the feedback signal of level indication and chain control each batching process according to the process requirement.
3.Forming system
This part is mainly the forming of wet gypsum board can be adjusted manually

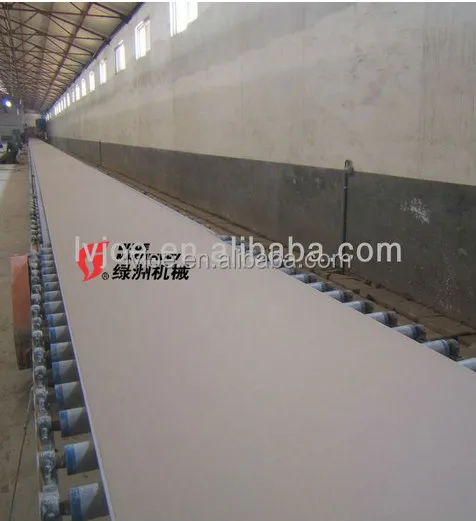

4.Conveying system
This part is composed of two sets solidification belt machine and one conveying roller machine. The three machines need to run synchronically.

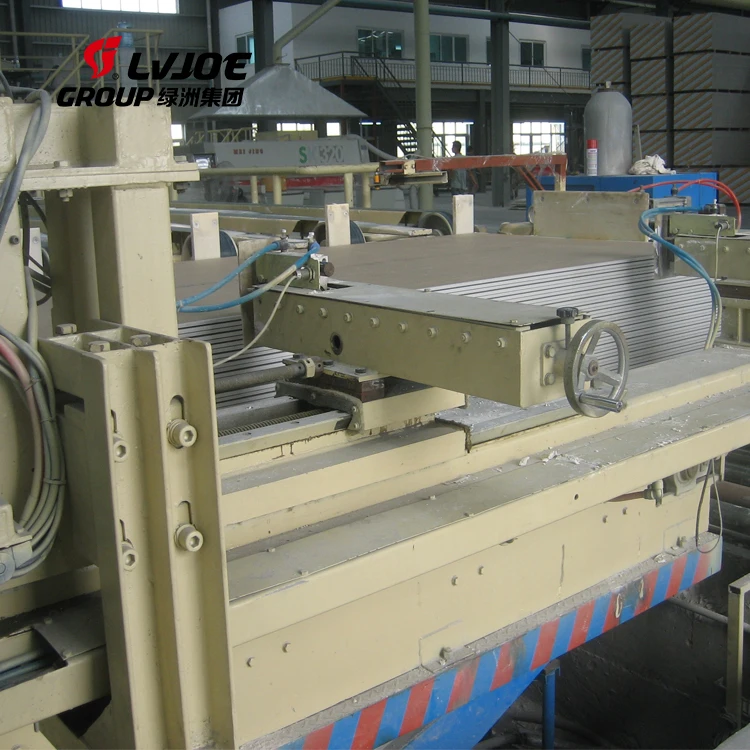

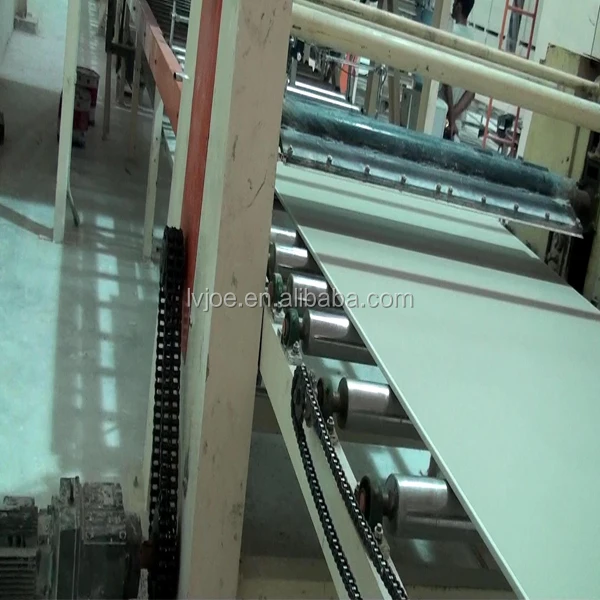

5.Cutting system
Whole cut control algorithm is achieved by the separate PLC.

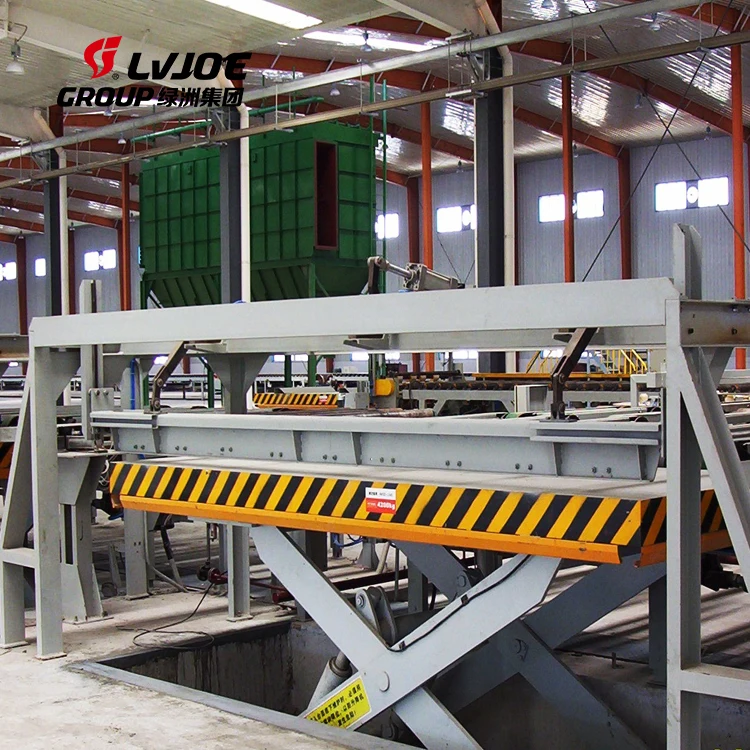

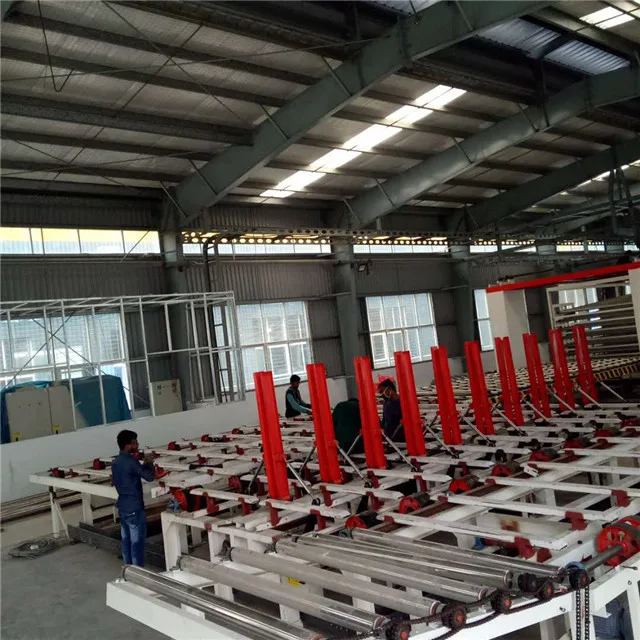

6.Transferring system
This part mainly function is gypsum board acceleration conveying,overturning,transit conveying and lifting.

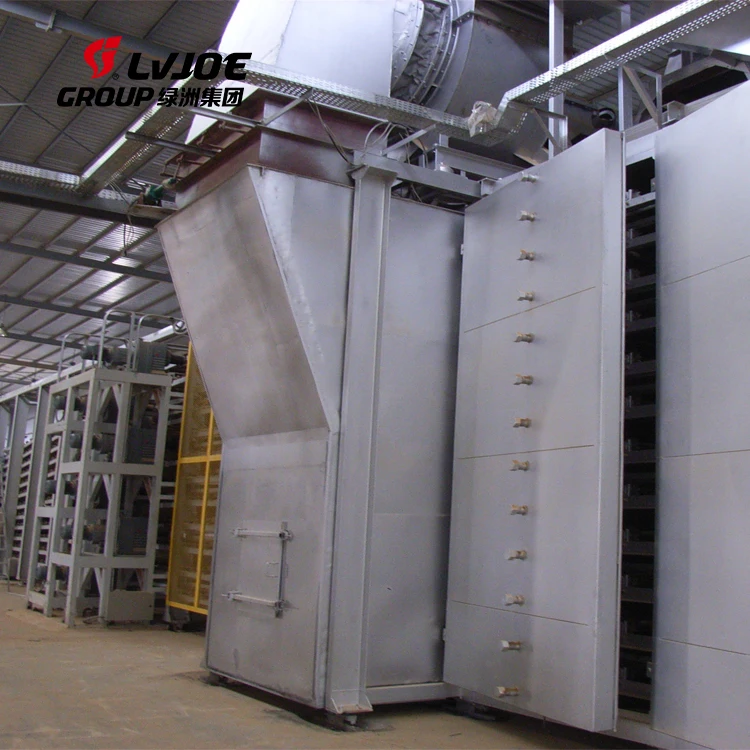

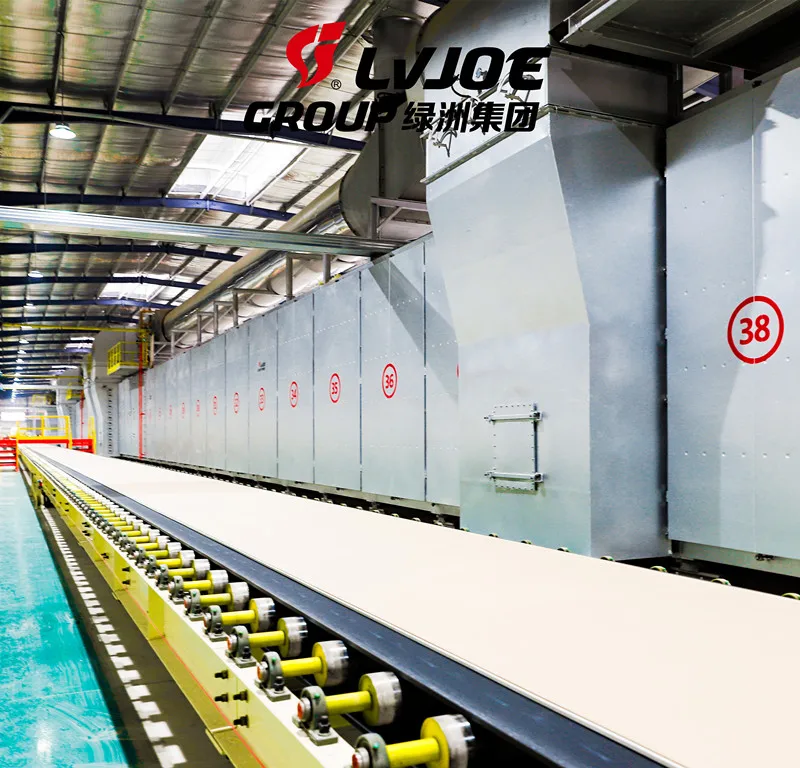

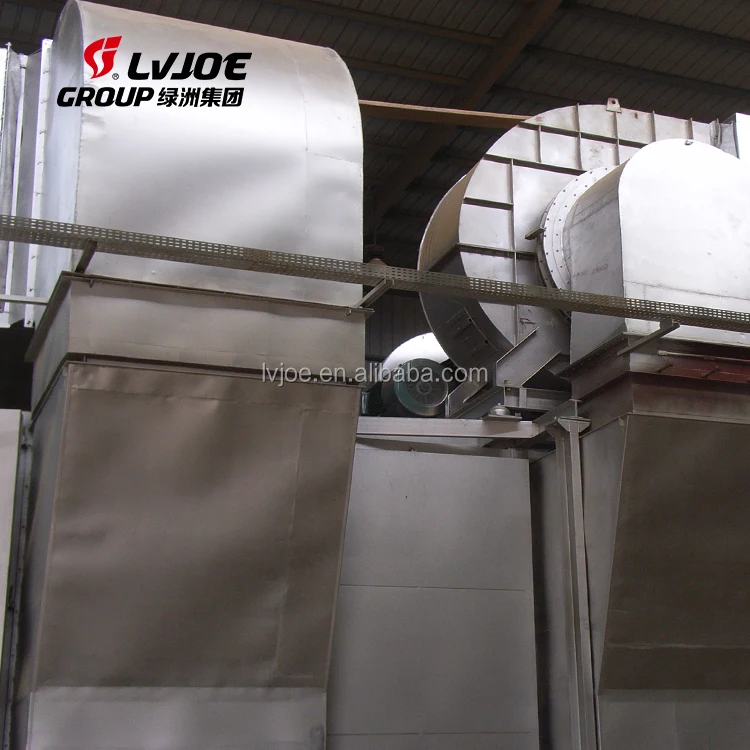

7.Drying system
Low heat consumption, heat preservation is good
8. Finished products converying system
This part mainly includes fast outlet,sizing and stacking which are all equipped double.
9.Fast outlet system
Can achieve the equipment failure without stopping
10.Sizing system
This part consists of transverse machine,storage roller,board colse folder and sizing device.
11.Stacking system
This part consists of two sealing machines,stackers.
12.Control center system
Host part adopts RS VIEW as the monitoring software table to monitor the whole production process.
The general monitoring system displays the production process in front of operators and managers.
Packaging & Shipping
Above loading photos of gypsum board production line are for your reference:
1. | All the electrical parts will load in wooden case,and others will in nude packing or bulk etc. |
2. | And all the goods will load in 40HQ,if the boiler is over weight or oversize then will load in framework or bulk freighter. |
3. | And if you have any requirements about the packing,we will do it according to that. |
Our Services
Guarantee:
1 year (except the easy worn parts such as bearings, electric buttons).
Installation and debugging:
2 to 4 months when the buyer prepare the installation and commission conditions.
Technology training:
The training is free of charge , and our engineer will be on duty to train your worker.
FAQ
1.Why price is high?
A:Where do you think high?Which product make you feel ours is high?In the current market,there is no cheap one than us during the same level.If you want to say small workshop,indeed,their machine is cheaper,but not on the same level.
2.How much is your cost?
A:Do you have a well known about our product?If not,you can not judge fairly about our machines whether cheap or expensive.You care about price because you want have profit.Know more about our product and marketing strategies,or take a visit of our factory,you will know well about price.
3.Why your price is cheap?
A:That is our selling points and product strategies.First,we buy a large number of material,and reduce the cost.Second,we have good faith management,no bad assests,the mnagement can be maximized efficiency.
4.What should do if happens quality problem?
A:No one wants problems.The reason caused by delivery,we will analyse at once,if our problems,we take responsibility,pls don’t worry,we will follow by the contract,solve problems immediately and provide good service to you.
Any questions, please feel free to contact me
