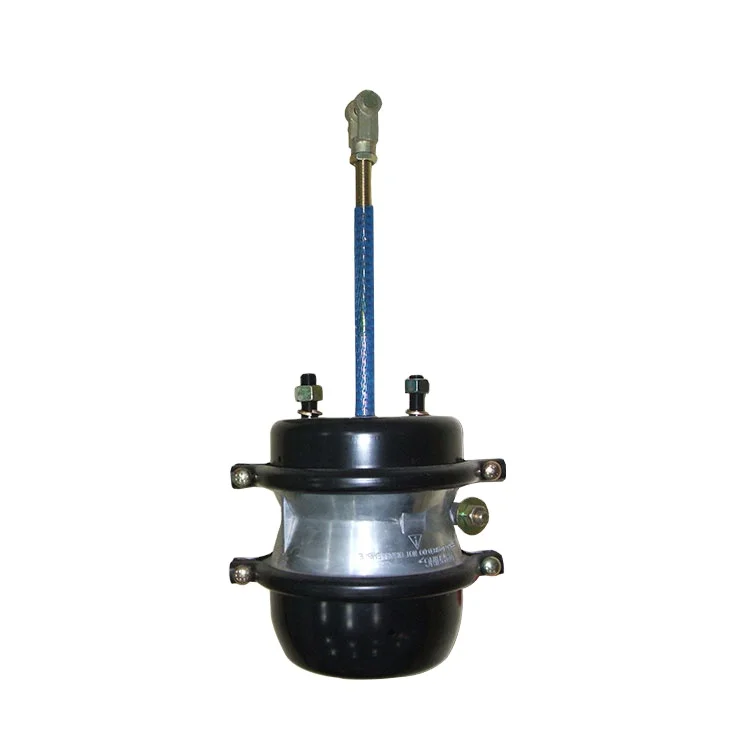

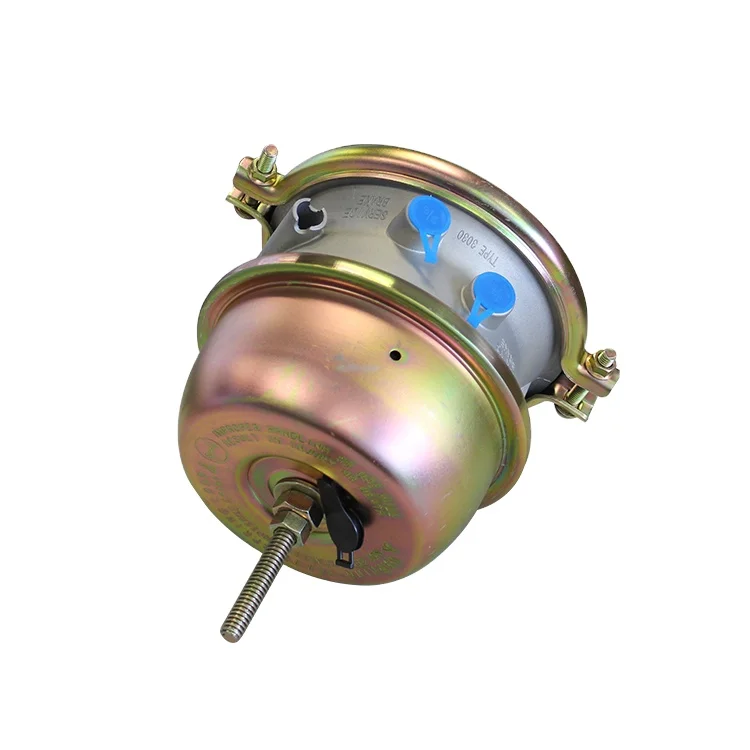

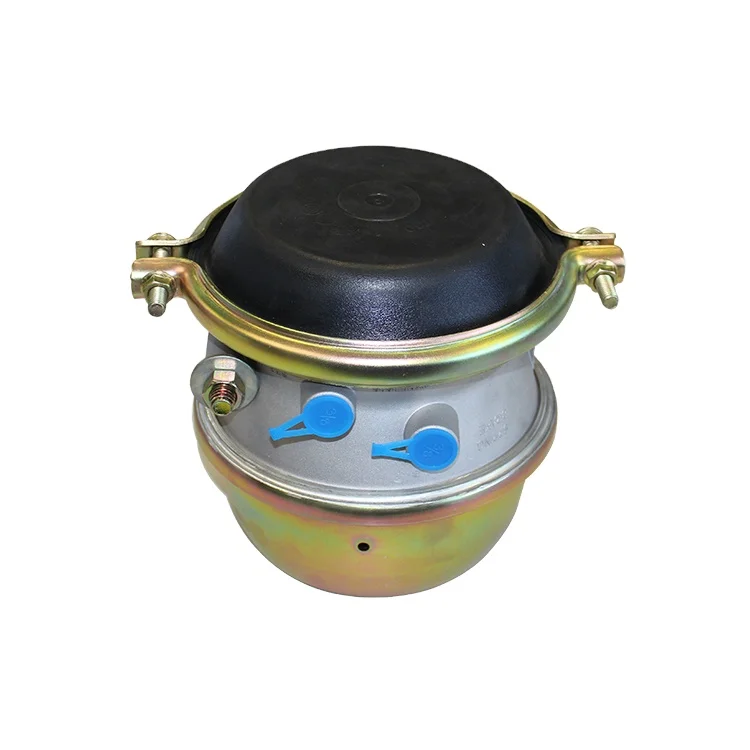

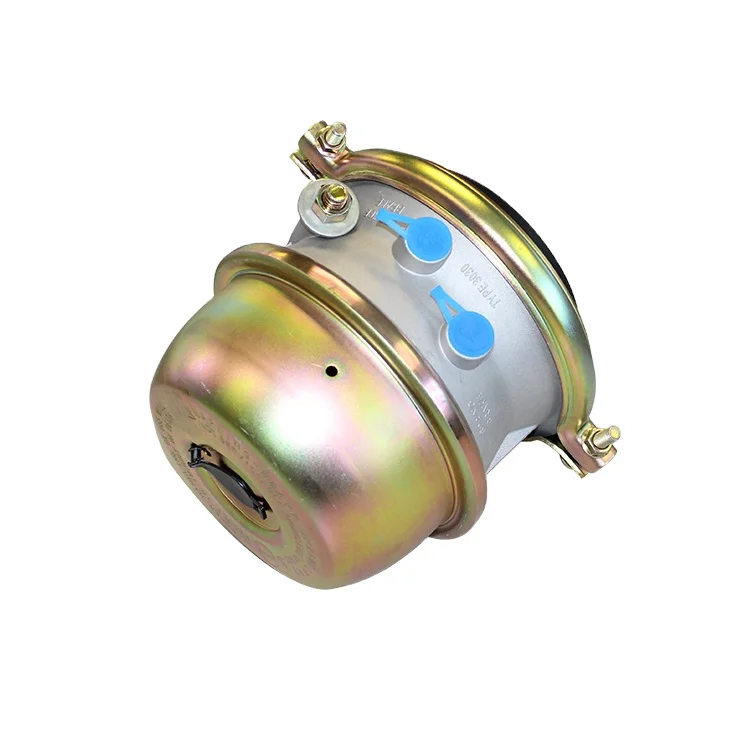

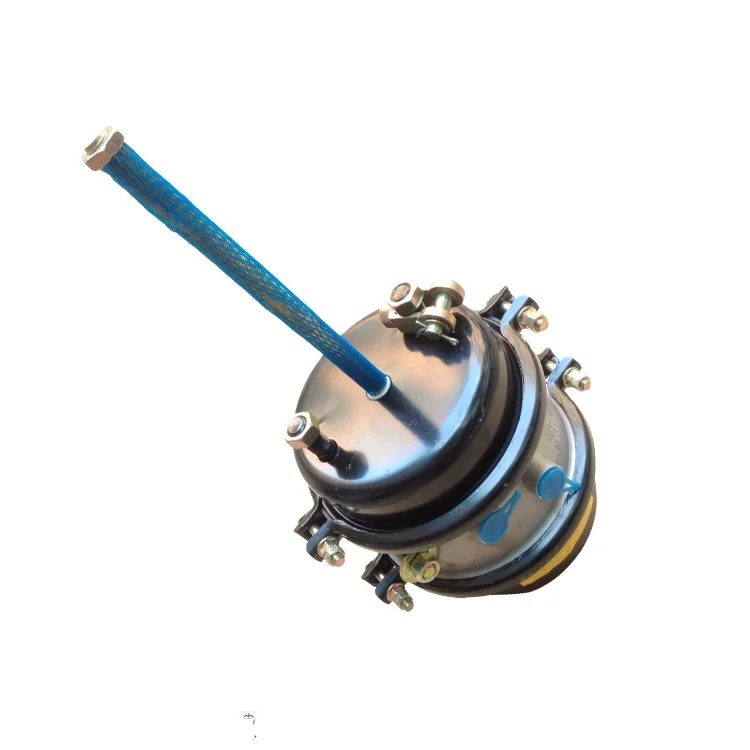

Manufacturer Truck Parts Brake Chamber T30/30 Double Air Chamber Long Stroke Spare Part

Product Overview

Description

Manufacturer Truck Parts Brake Chamber T30/30 Double Air Chamber Long Stroke Spare Part

 1>Product Introduction of the Manufacturer Truck Parts Brake Chamber T30/30 Double Air Chamber Long Stroke Spare Part

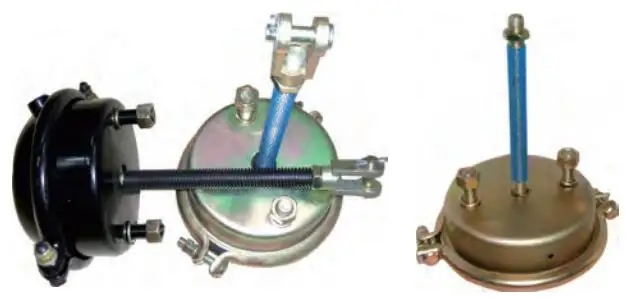

T3030 Double Air Brake Chamber for Heavy Truck produced by Lahoo Auto. Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. There are two kinds of air brake chambers — service and spring brake chambers.



2> Product Specification of the Manufacturer Truck Parts Brake Chamber T30/30 Double Air Chamber Long Stroke Spare Part

Item No.	Stroke	R1	R2	L1	L2	L4	Push Rod Thread	Air Inlet Thread	Mounting Bolt Thread	Weight
	mm	mm	mm							kg
LHC-T3030	64	125	105	238±5	285±5	255±5	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	9.5

3> Product Feature And Details of the Manufacturer Truck Parts Brake Chamber T30/30 Double Air Chamber Long Stroke Spare Part

Name: T3030 Double Air Brake Chambers

Name: air brake chambers

Material: Steel, Aluminum

Max operating pressure: 800Kpa ~ 1Mpa

Operating temperature: -40 °C~+80 °C

Stroke: 0-76MM

Life-time: Service Chamber: ≥1000000 times

Life-time: Parking Chamber: ≥200000 times

Aplication: Universal

Leading Standard: SAE J1469-95 by Society of Automobile Engineers USA
