Product Overview

Description


Description
\t

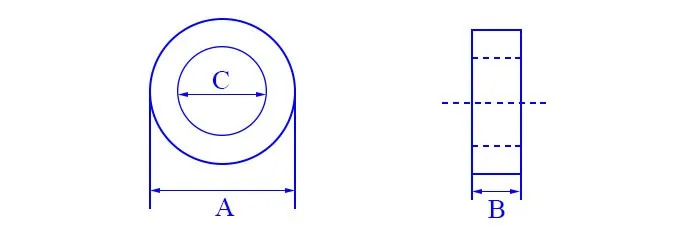

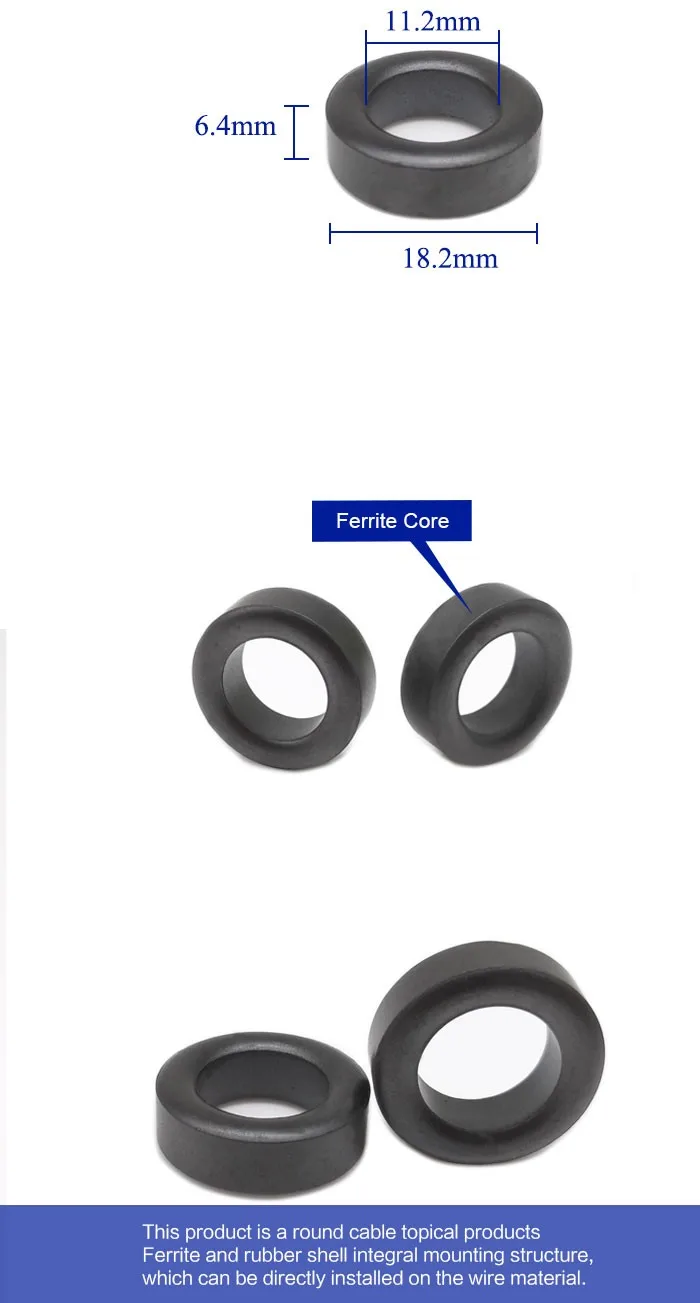

SIZE CODE （mm)
\t
A
\t
B
\t
C
\t
A2 T 18.2*6.4*11.2
\t
18.2±0.7
\t
6.4±0.5
\t
11.2±0.5
Parameter
\t
Electrical Requirements
\t
SIZE CODE （mm)
\t
A2 T 18.2*6.4*11.2
\t
25 MHz
\t
20Ω MIN
\t
100 MHz
\t
62Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t

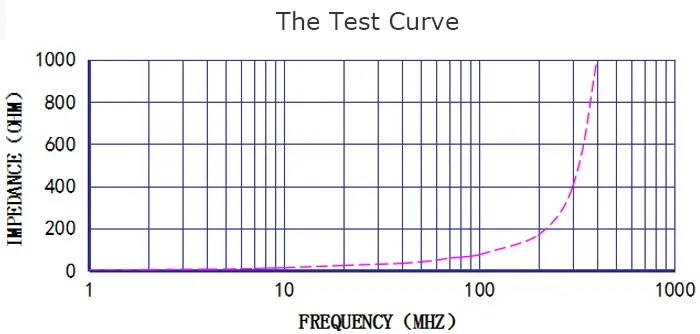

Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
Suggest
\t
20Ω MIN
\t
62Ω MIN
\t
18.2±0.7
\t
6.4±0.5
\t
11.2±0.5
\t
1
\t
25.01
\t
73.01
\t
17.82
\t
6.29
\t
11.05
\t
2
\t
24.08
\t
76.05
\t
17.80
\t
6.26
\t
11.02
\t
3
\t
25.16
\t
75.01
\t
17.83
\t
6.28
\t
11.05
\t
4
\t
24.79
\t
74.05
\t
17.82
\t
6.26
\t
11.01
\t
5
\t
25.18
\t
74.10
\t
17.82
\t
6.27
\t
11.09
\t
6
\t
25.19
\t
74.01
\t
17.80
\t
6.27
\t
11.03
\t
7
\t
25.72
\t
76.05
\t
17.99
\t
6.28
\t
11.00
\t
8
\t
25.16
\t
76.01
\t
17.82
\t
6.28
\t
11.02
\t
9
\t
24.15
\t
77.06
\t
17.98
\t
6.29
\t
11.09
\t
10
\t
26.01
\t
76.01
\t
17.82
\t
6.29
\t
11.02
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
25.05
\t
75.14
\t
17.85
\t
6.28
\t
11.04
\t
R
\t
1.93
\t
4.05
\t
0.19
\t
0.03
\t
0.09
\t
The above test data for reference，Actual results may differ due to different production batches
