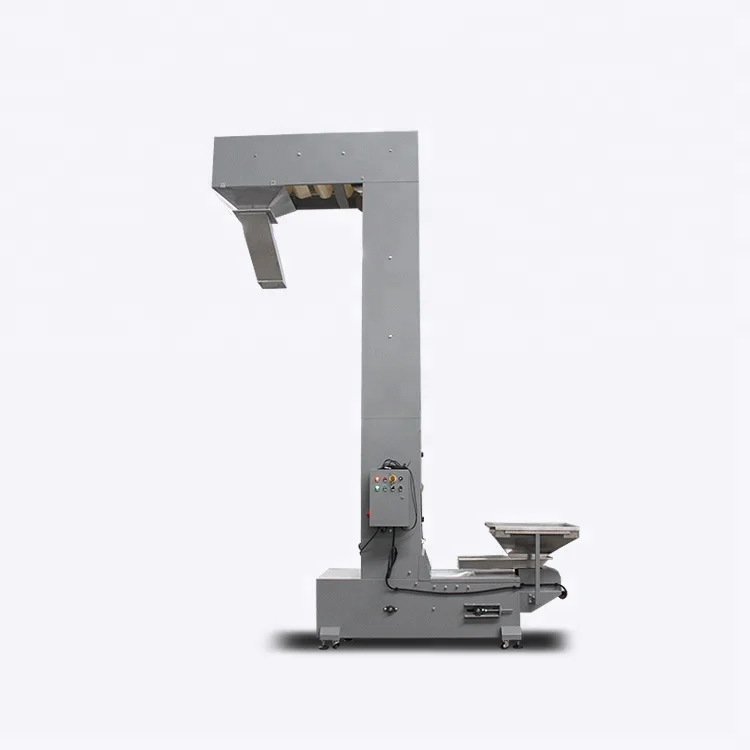

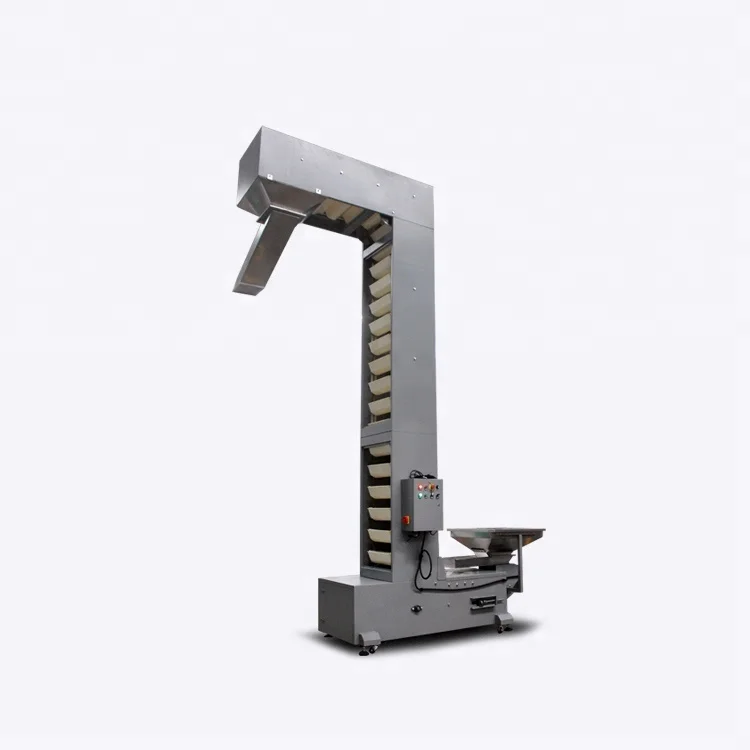

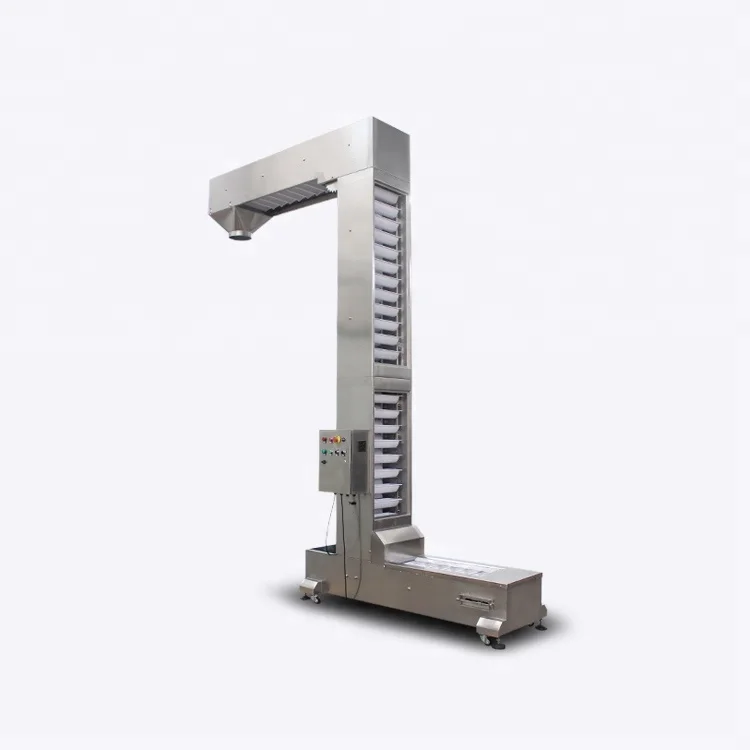

CE certificate and stainless steel chain 3.8 liter Z shape bucket elevator
- Category: >>>
- Supplier: Focus Machinery Co. Ltd.
Share on (60743443170):
Product Overview
Description

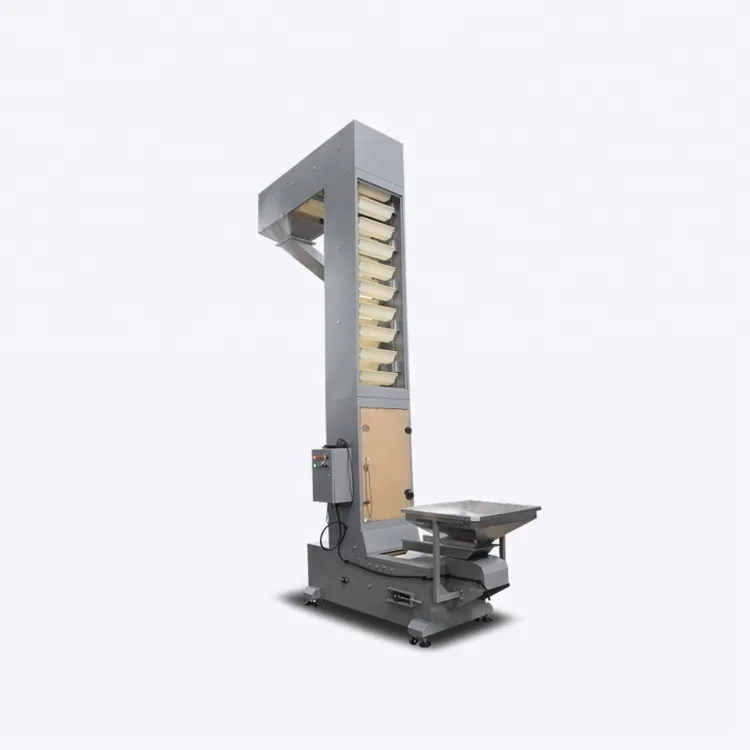

CE certificate and stainless steel chain 3.8 liter Z shape bucket elevator
Product Description
Standard Technical details |
FM-3B3 Z type Conveyor Application: Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit.
2. The bucket elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices

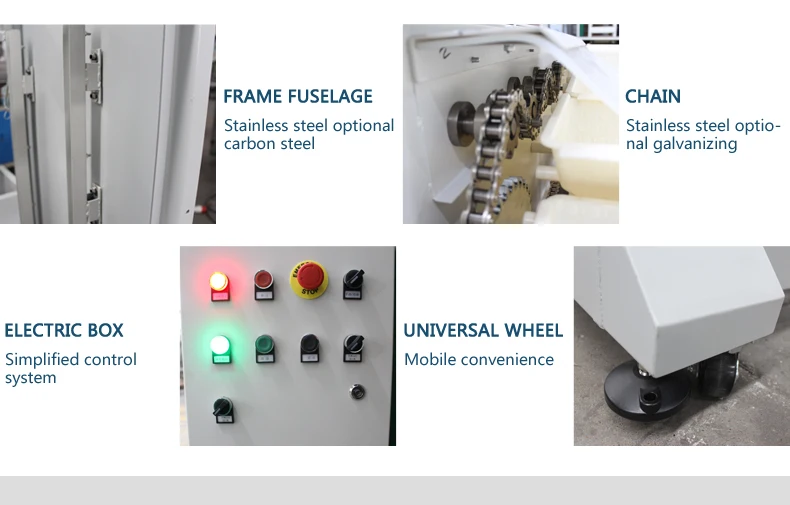

3. All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.
4. The geared reducer motor drived the machine have a stable performance prolong the machine life and easy to maintenance.
Discharge options:
1. Over the end discharge
2. Single or multiple discharges
3. anywhere in circuit available
4. Stainless steel and carbon steel.
Specification:
Model | FM-3B3 Z type conveyor | |||
Bucket Volume | 1.0L | 1.8L | 3.8L | 6.5L |
Numbers of discharge | Single | Single | One or Multi-discharge | One or Multi-discharge |
Machine structure | Stainless steel or Painted steel | |||
Production Capacity | 2-3 m³/h | 4-6 m³/h | 6.5-8 m³/h | 8.5-12 m³/h |
Machine packed dimension(mm) | 3165*640*3886mm | 3213*782*3896mm | 3353*852*4020mm | 3580*990*4210 |
Voltage | Three phase 380V or single phase 220V, 50HZ/60HZ | |||
Power Supply | 0.75KW | 0.75KW | 1.5KW | 2KW |
Chick here to order and have your FREE ACCESSORY SAMPLE in 10 days!!!
Your order are safer with Alibaba Trade Assurance
On-time shipment and pre-shipment product quality safeguards
Refund up to the covered amount agree with us
Our Trade Assurance Limit : US $90,000
Our Services
· We will provide the best service in the sale.
· We will ensure high quality to meet your any requirements.
· Professional engineers can design any special packaging solutions for you.
· We assure all the machines one year to maintain good quality and high efficient performance, and provide life-long maintenance services.
· Other auxiliary machines are available,including weighers,conveyors,such as screw weigher, bucket elevator and belt conveyor, etc.
FAQ
1. For providing exact quote, below information is needed.
What to convey?
What is the packing volume and net weight?
2. What is the delivery time?
About 25-35days for standard machines.
3. What about installation and commissioning?
Our price does not include the installation and commissioning charge. The buyer should pay for the round-ticket, visa charge, food and accommodation if installation is need.
4. Any training or after sale service?
Training of machine operating and machine maintaining in our factory is free.
Technical help via internet is free.
