CE&FCC Certified 2.4ghz CC2530 ZigBee RF Module for Wall Switch
- Category: >>>
- Supplier: Xuzhou Ennfu Scientific Company Limited
Share on (60743454172):
Product Overview
Description
Product Description
CE and FCC Certified 2.4ghz CC2530 Zigbee RF Module
Max.data transmit distance up to 390 meters.
1) Description:

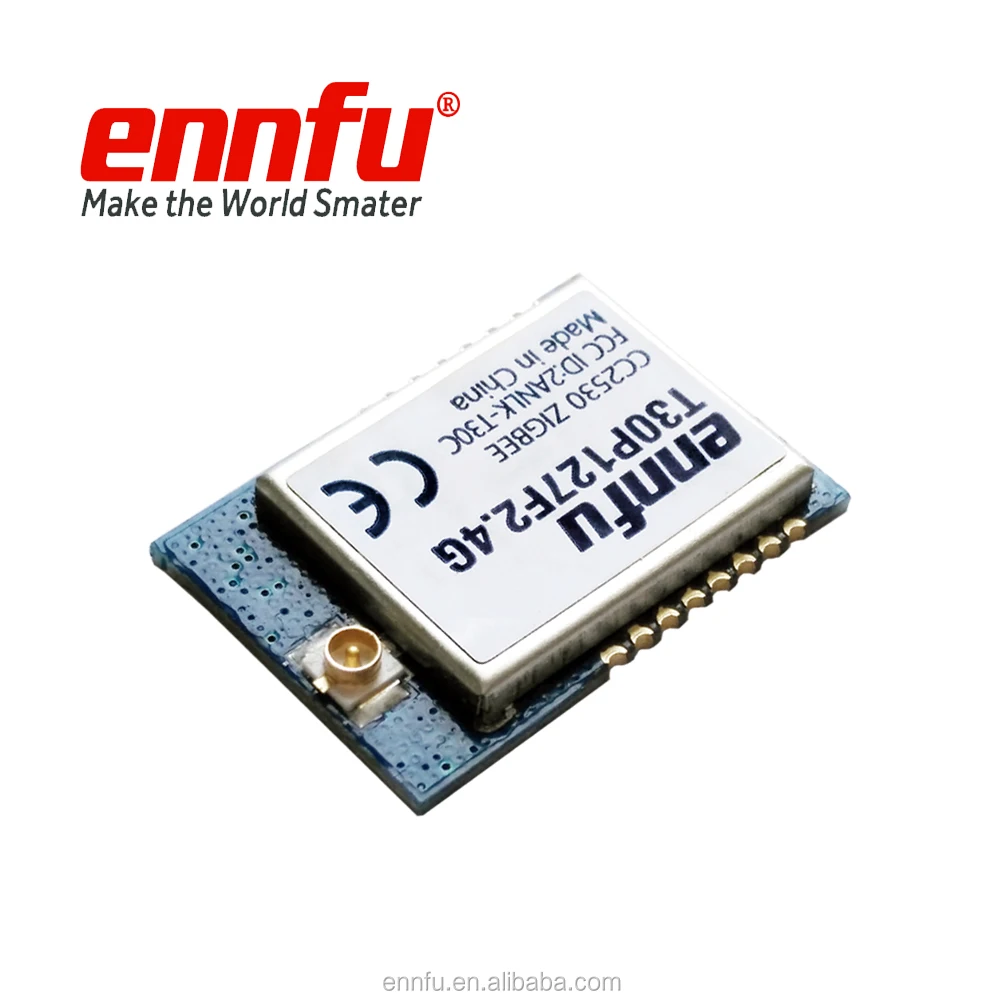

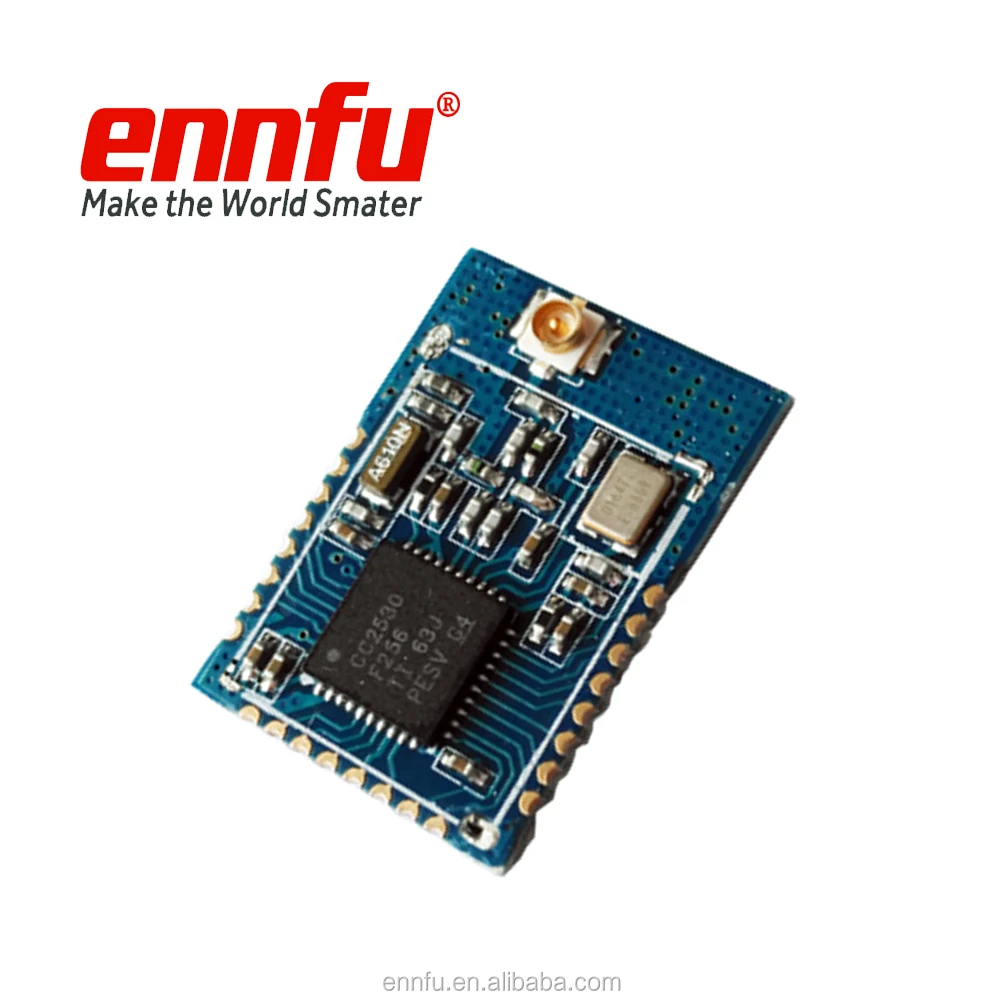

T30P127F2.4G is a tiny volume integrated 2.4GHz zigbee wireless module,which was based on TI CC2530 Zigbee RF chip technology, adopted standard IEEE 802.15.4 protocol.
1\tRF IC TI CC2530

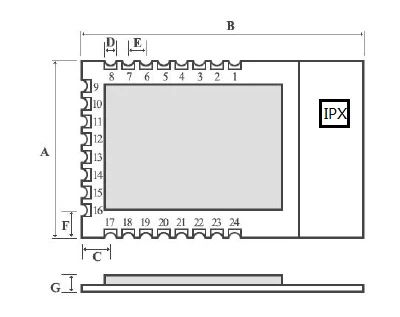

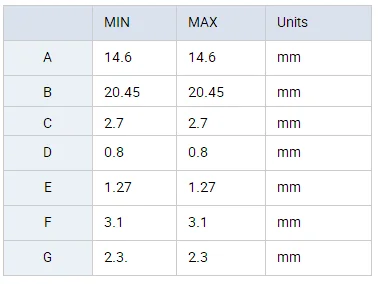

2\tModule Size\t14.6*20.45*2.7mm, Including IPEX
3\tModule Weight\t1.2mg, Including IPEX
4\tWorking Frequency\t2405~2480MHz\t2.4GHz, IEEE 802.15.4 Protocol
5\tCraft\tImmersion Gold\tSMT,ROHS
6\tInterface Mode\t3*8*1.27mm Pitch\tSMD
7\tSupply Power\t2.0~3.6V DC\t
8\tCommunication Level\t+0.7V~+5V\t
9\tMax.actual test distance\t≈390m\tTest Condition:
Weather:Sunny, 35℃;Relative Humidity:65%;Test location:Open space;Antenna Gain:3DB; Height:2m;
2\tModule Size\t14.6*20.45*2.7mm, Including IPEX
3\tModule Weight\t1.2mg, Including IPEX
4\tWorking Frequency\t2405~2480MHz\t2.4GHz, IEEE 802.15.4 Protocol
5\tCraft\tImmersion Gold\tSMT,ROHS
6\tInterface Mode\t3*8*1.27mm Pitch\tSMD
7\tSupply Power\t2.0~3.6V DC\t
8\tCommunication Level\t+0.7V~+5V\t
9\tMax.actual test distance\t≈390m\tTest Condition:
Weather:Sunny, 35℃;Relative Humidity:65%;Test location:Open space;Antenna Gain:3DB; Height:2m;
Speed Rate:250K.
Power: 2.5mW
10\tAir Ratio\t250Kbps\t
11\tSend Power\t4dBm\t
12\tShut Current\t1.2uA\t
13\tSend Current\t28mA@4dBm\t
14\tReceive Current\t27mA\t
15\tCommunication Interface\tI/O\tMCU sleep,Wireless shut,Voltage:3.3V
16\tSend Length: 1~103Bytes\tPower supply must exceed 100mA
17\tReceive Length: 1~103Bytes\tAverage current
18\tRSSI Support\tSupport\tAll I/O pins of MCU, please see IC manual for detail.
19\tAntenna Interface IPEX\tSingle data packet
20\tWorking Temperature\t-40℃~+85℃\tSingle data packet
21\tRelative Humidity :10%~90%\tPlease see IC manual.
22\tStorage Temperature: -40~+125℃\tAntenna external
23\tReceive Sensitivities: 97dBm@250Kbps\tIndustrial grade
Power: 2.5mW
10\tAir Ratio\t250Kbps\t
11\tSend Power\t4dBm\t
12\tShut Current\t1.2uA\t
13\tSend Current\t28mA@4dBm\t
14\tReceive Current\t27mA\t
15\tCommunication Interface\tI/O\tMCU sleep,Wireless shut,Voltage:3.3V
16\tSend Length: 1~103Bytes\tPower supply must exceed 100mA
17\tReceive Length: 1~103Bytes\tAverage current
18\tRSSI Support\tSupport\tAll I/O pins of MCU, please see IC manual for detail.
19\tAntenna Interface IPEX\tSingle data packet
20\tWorking Temperature\t-40℃~+85℃\tSingle data packet
21\tRelative Humidity :10%~90%\tPlease see IC manual.
22\tStorage Temperature: -40~+125℃\tAntenna external
23\tReceive Sensitivities: 97dBm@250Kbps\tIndustrial grade
Typical Applications:
• Industrial Control and Data Monitoring
• Environmental and Health Monitoring
• Home Automation, Entertainment and Toys
• Security, Location and Asset Tracking
• Emergency and Disaster Response
• Military/Battlefield Applications
• Industrial Control and Data Monitoring
• Environmental and Health Monitoring
• Home Automation, Entertainment and Toys
• Security, Location and Asset Tracking
• Emergency and Disaster Response
• Military/Battlefield Applications

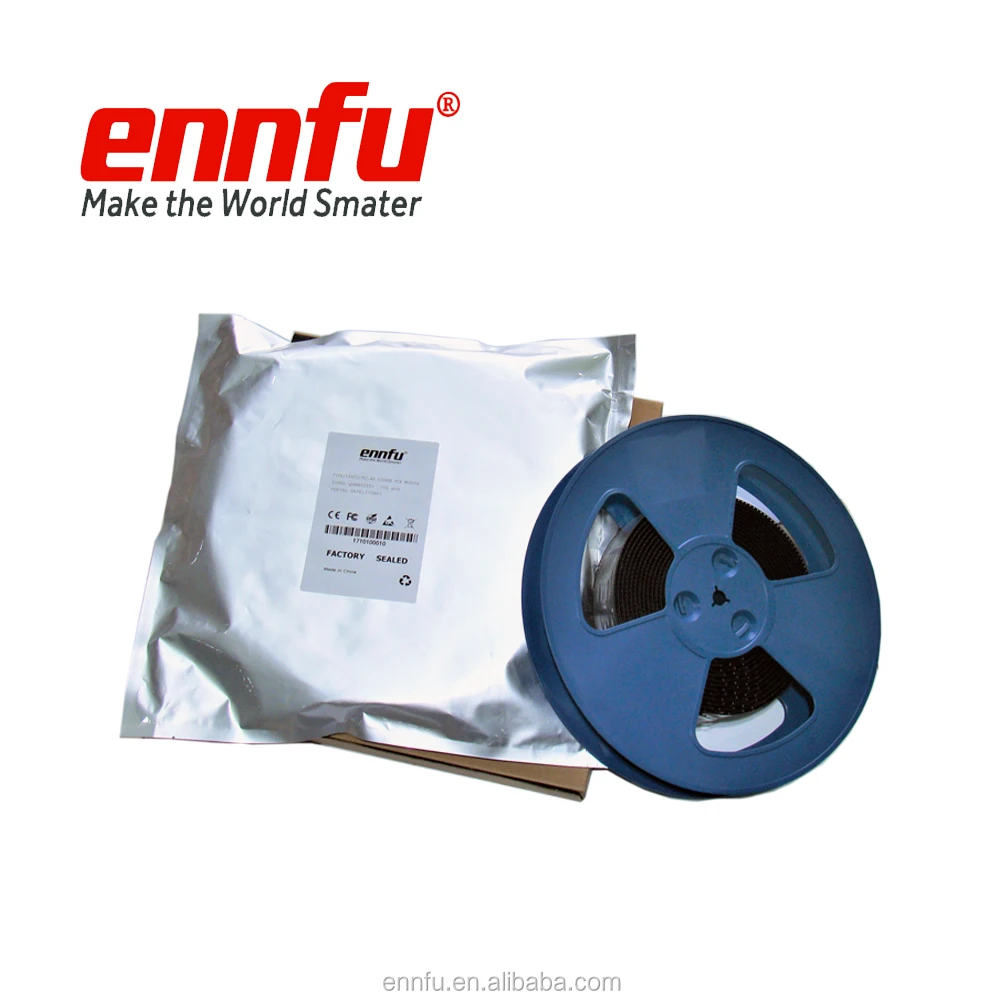

Package:
Related Products
ZIGBEE CORPORATOR+WIFI GATEWAY WITH RS232/485/IO OUTPUT
CC ZIGIBEE Development kit
T30PA127F2.4G ZIGBEE PCB MODULE-800meters
Our Company
The Ennfu Scientific,as one of a most important smart NB-IOT wireless devices Designer and Manufacturer in China,we focused and strove to make the world smarter and more sustainable through our continuous innovation.
All of our wireless products strictly complied with CE,FCC,ROHS complaints,and that will ensure the clients greatly reduce the developing new product time.
WE BELIEVE: WiN=WIN
Your Success is our Success! Chat us now for more information!
COMPANY LOCATION:TONGSHAN,XUZHOU CITY,JIANGSU PROVINCE,CHINA 221116
BEAUTIFUL HOMETOWN-XUZHOU CITY
XUZHOU,CALLED "PENGCHENG"IN THE ANCINENT TIMES,IS THE LARGEST CITY IN NORTHERN JIANGSU AND ALSO IS CHINESE SECOND LARGEST RAILWAY HUB.THERE ARE MORE THAN 2000YEARS HISTORY.AND 9 EMPERORS BORNED HERE IN THE HISTORY.
YUNLONG MOUNTAIN
YUNLONG LAKE OUTVIEW-FROM SOUTH
LOCAL TRAFIC
4 QINGYA SMT LINES:

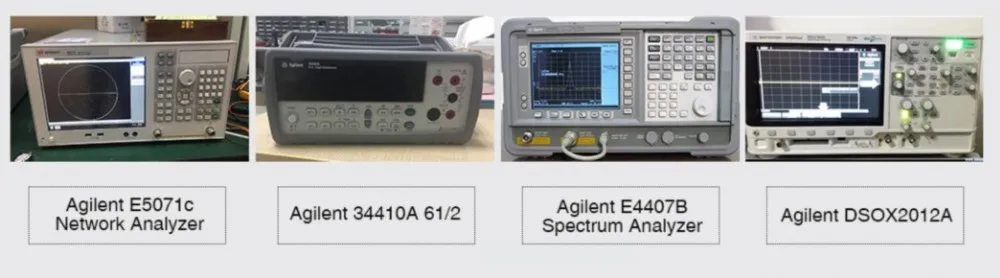

RESERACH AND TEST DEVICES OUTVIEW
