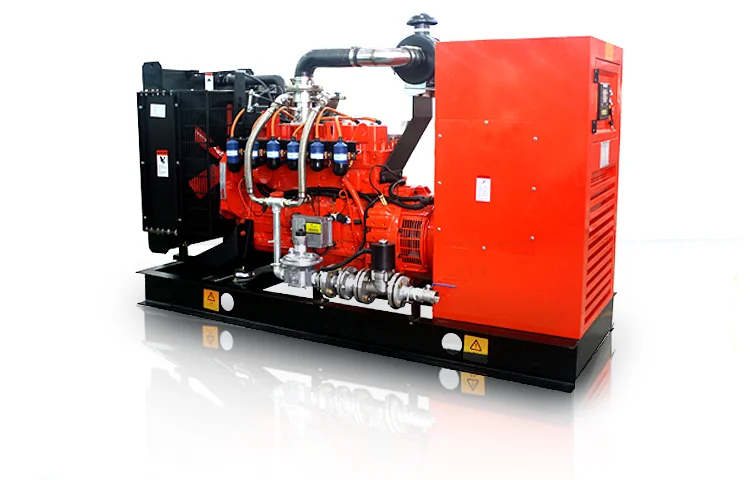

250 kw Power electric super silent natural biogas generator

GAS GENSET DATA

Genset model

KDGH250-BG

Continuous power (kW/kVA)

313/250

Connection type

3 phases 4 wires

Power factor cosfi

0.8 lagging

Voltage(V)

415/240

Frequency (Hz)

50

Rated current(Amps)

434

Voltage Stabilized regulation

≤±1.5%

Voltage Instantaneous regulation

≤±20%

Voltage Recovery time (s)

≤1

Voltage Fluctuation ratio

≤1%

Voltage Wave aberration ratio

≤5%

Frequency Stabilized regulation

≤1%(adjustable)

Frequency Instantaneous regulation

-10%~12%

Frequency Fluctuation ratio

≤1%

Net weight(kg)

4100

Genset dimension (mm)

4200X1620X2300

 Engine Data

Model

HGKT19

Type

4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning

Engine output

336kW

Cylinders& Arrangement

6, line type

Bore X Stroke(mm)

159X159

Displacement(L)

18.9

Compression ratio

11:1

Speed

1500RPM

Aspiration

Turbocharged

Cooling Method

Cogen/Water cooled by radiator

Carburetor/gas mixer

Manual control(standard)/

Automatic control (option)

Ignition controller

Altronic CD1 unit

Firing order

1-5-3-6-2-4

Governor type(speed regulating type)

Electronic governing, Huegli Tech

butterfly valve

MOTORTECH

Starting method

Electric, 24 V motor

Idling speed(r/min)

700

Gas consumption(m³/kWh)

0.6 maximal

Oil recommended

SAE 15W-40 CF4 or above

Oil consumption

≤0.5 g/kW.h
