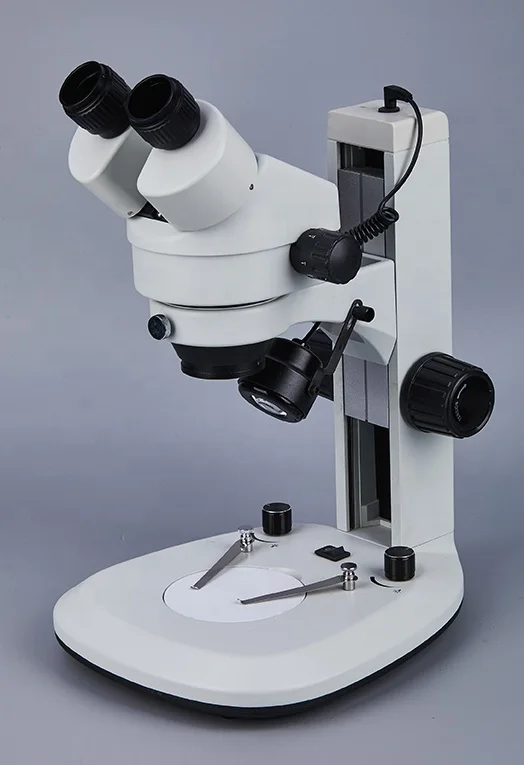

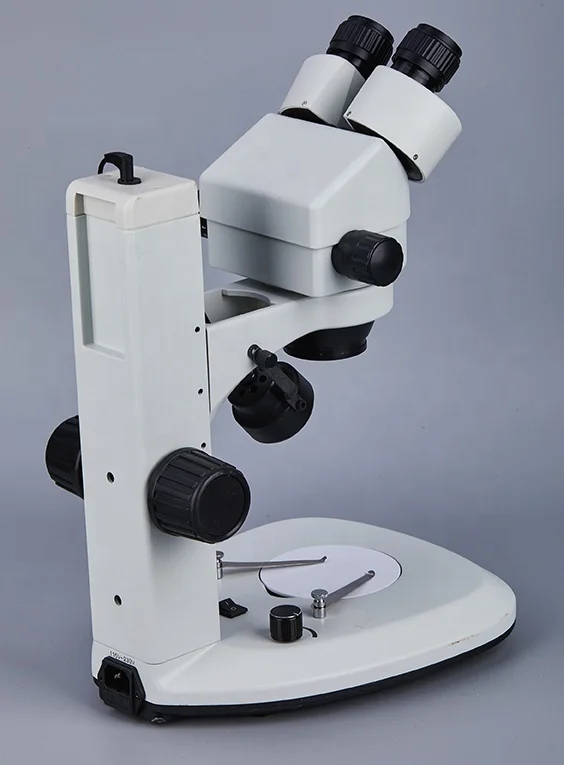

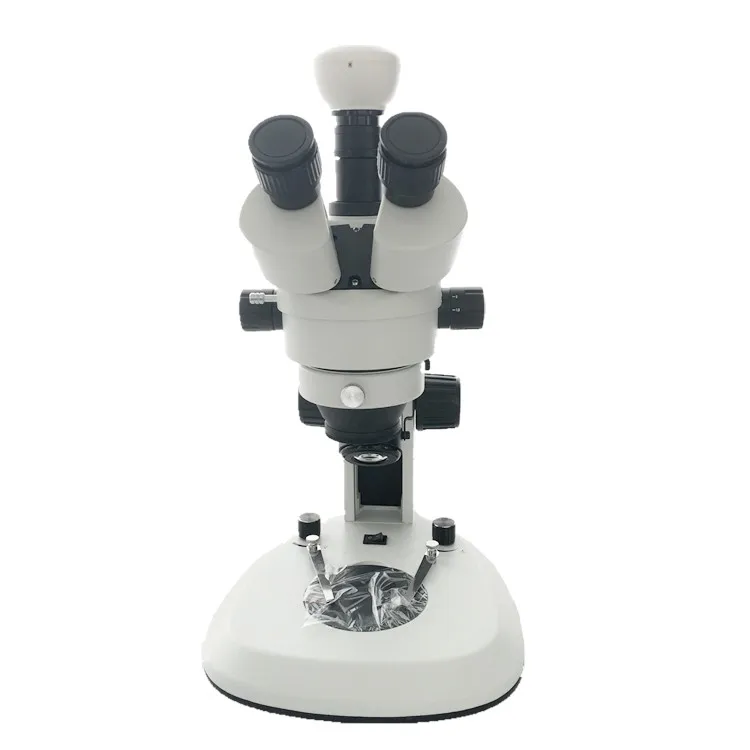

E0745 CLTS LED Digital Stereo 7X 90X Magnification Trinocular Microscope with Camera interface

E0745-A High Precision Binocular Long Working Distance Zoom Stereo Microscopes

E2040-C Binocular Industrial Stereo Zoom Microscope with LED light

E0745-C Continuous Variable Times LED Stereo Binocular Microscope 7X-45X

We are Microscope manufacturer, we can produce our microscopes to replace worldwide famous brand both in performance and quality with most competitive price

Configuration:

Features:

1.magnification range:standard fitting: 0.7X ~ 4.5X maching eyepiece and auxiliary lens,
2.continuous variable times optional (magnification can be extended to 14X ~ 180X)
3.objective: continuous change times objective 0.7X ~ 4.5X times zoom ratio 6.3:1 to ensure the image plane pyrobitument
4.viewing head: inclined 45 ° ,360° rotation, PD 54~76mm, bilateral diopter adjustment (± 5),binary or terary,spectral ratio 20%/80%
5.eyepiece :Eyepiece standard configuration: 10X/20mm wide field of vision, wide angle,high eyepots, provide convenience to wearing glasses observer
6.optional eyepiece: 10X/20mm (with micrometer) 15X/15mm 20X/10mm
7.working distance: standard configuration: 100mm (effective distance) equipped with auxiliary lens can be extended to 26mm-287mm
8.Auxiliary lens\toptional: 0.5X/177mm,, 2X/26mm
9.light source :12V 15W, and halogen lamp 110V voltage,American plug European plug
optional LED up and bottom light source
10.focusing :foucing handwheel tightness is adjustable, lifting range 50mm
11.photographic camera interface: cooperate with special interface ,can meet ordinary camera ,digital camera,analog CCD,digital CCD

Following photos are the microscopes assembled with electric objective

Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5-7 days for samples; 15-30 days for batch goods.

Payment Terms
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs

1.We are Alibaba Assessed Gold Supplier.
2. OEM service can be provided
3.100% QC inspection Before Shippment.
4. CE/FCC listed,competitve price.
5) Engineer team with 10 years experiences in the field of optical inspection, overall integration ability of optical industry resource.
6) Export team with 5 years experiences offer you professional service.
7)once purchase the whole life technical support
