FTDI chip DMX512 support Win7 Win8 Win10 USB RS485 Freestyler DMX software controller cable for stage lights
- Category: >>>
- Supplier: Shenzhen Ewormart Electronics Limited
Share on (60743474227):
Product Overview
Description
Product Description
FTDI chipset DMX512 support Win7 Win8 Win10 USB RS485 DMX software controller cable for stage lights
Usb To Dmx Interface Adapter Stage Lighting Disco Light Dj Dmx Interface
Usb Party Lights Beam Usb Led Dmx 512 Interface

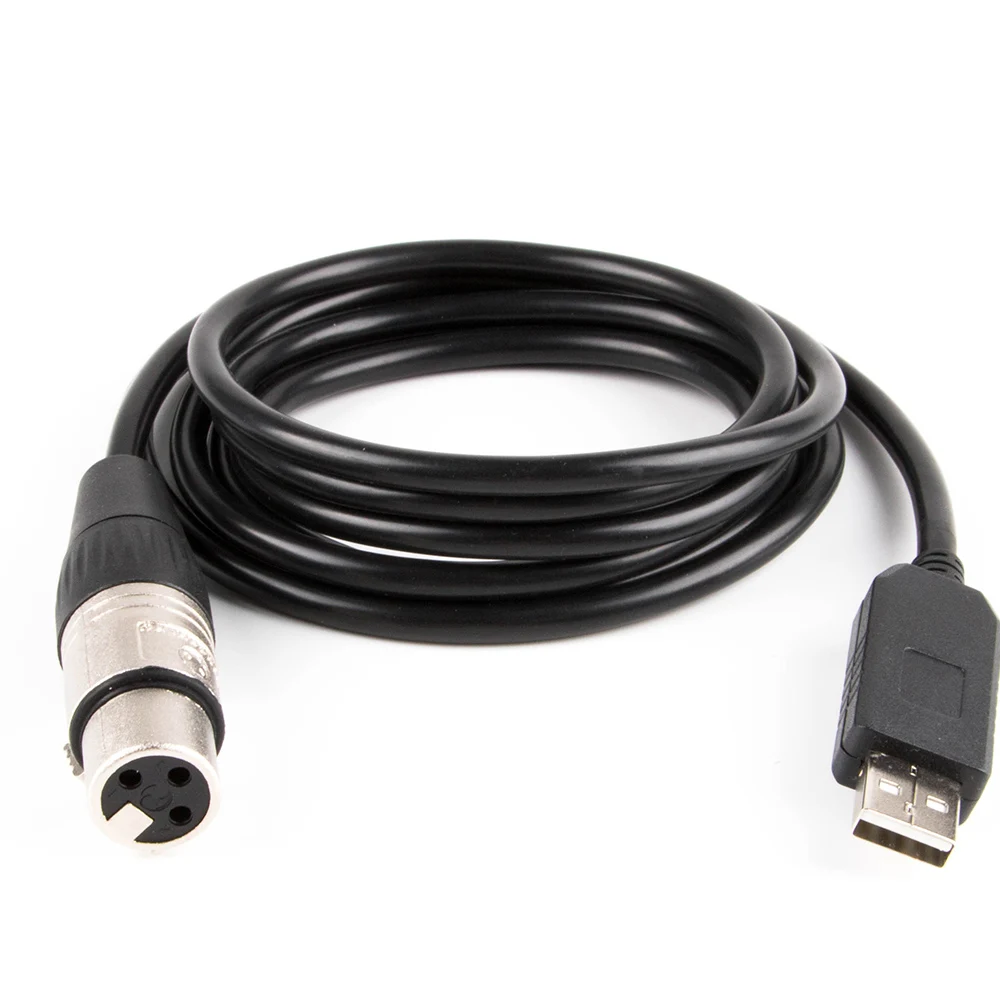

USB to RS485 dmx cable for Stage Lighting Equipment control

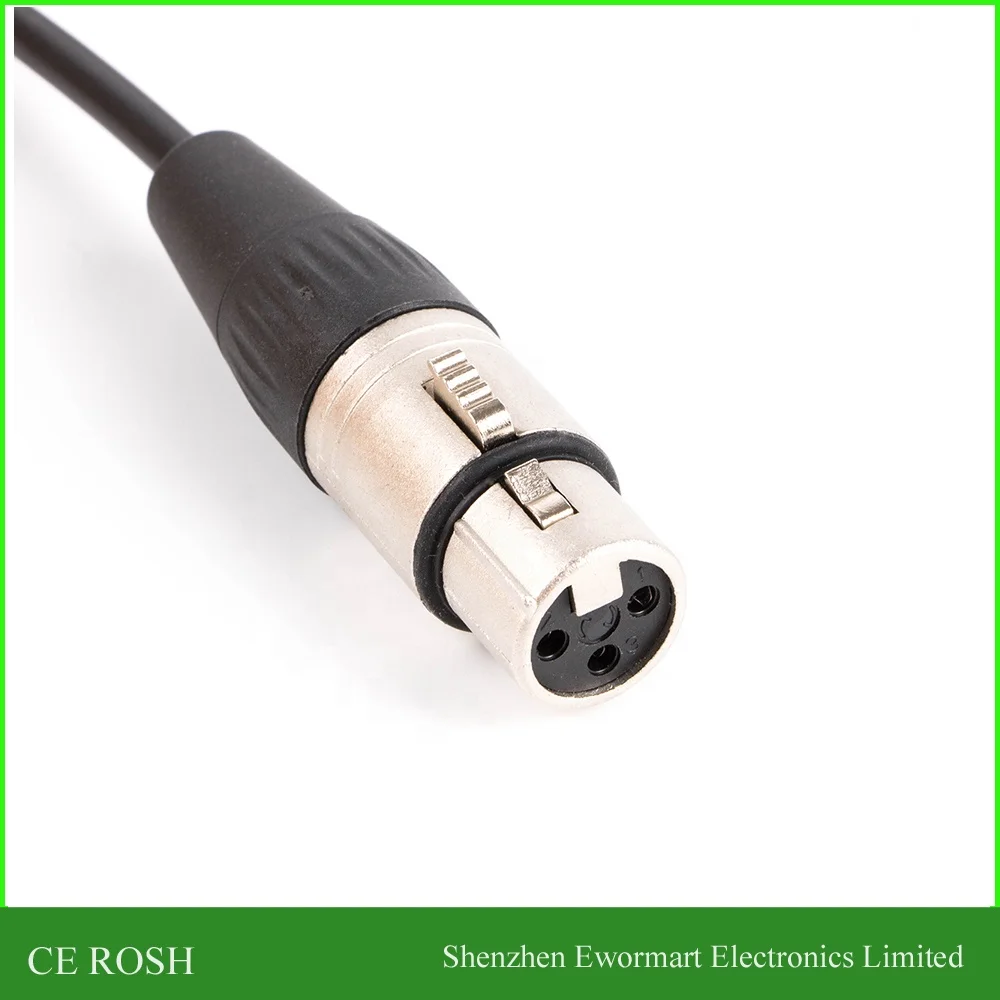

USB RS485 TO XLR 3P female socket for dmx cable XLR 3P male/female, XLR 3P female
USB RS485 converter
FT232+SP485 300 ~ 3Mbps baud rate
Up to 5km distance transfering half duplex,
non-isolated ESD protection integrated
Support Android, Support Win 8, Win 7, win 10, Linix, Mac OS, Android
Internal 1024 byte EEPROM
support Vendor ID re-write,
support Mprog3.5
Support FTDI VCP driver and D2XX driver
26AWG * 3 core, OD4.0mm, PVC jacket
FTDI driver download website:ftdichip.com;
Freestyler software download website:freestylerdmx.be
DMX software website: dmxcontrol.org/en/downloads.html

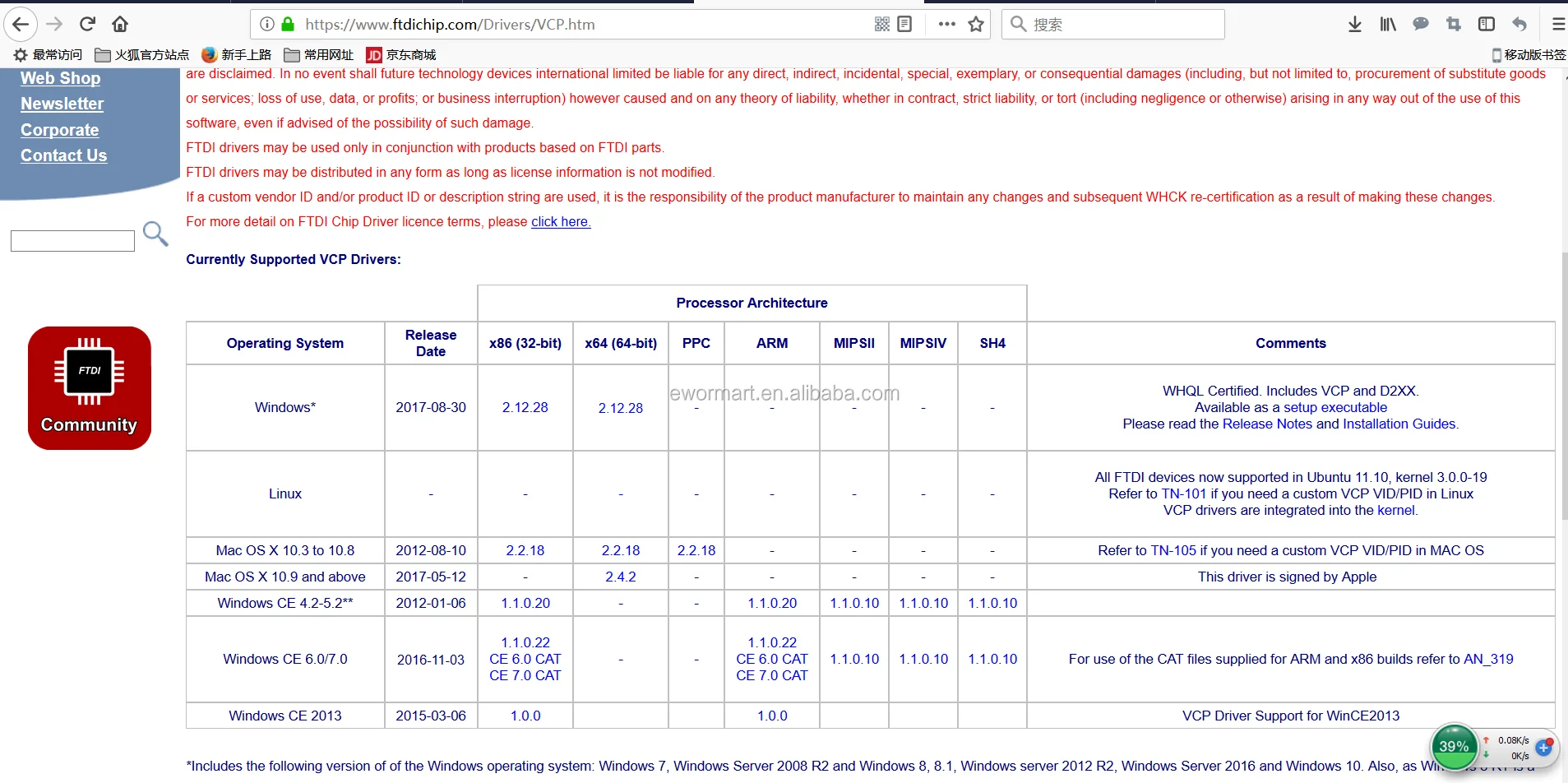

USB Drivers are available which allow FTDI devices to work with the following operating systems:
Windows 10 Windows
8.1 x64 Windows 8 Windows 8 x64 Windows
Server2012 Windows
Server 2008 R2
Windows 7 Windows 7 x64
Windows Server 2008 Windows Server 2008 x64
Windows Vista Windows Vista x64
Windows Server 2003 Windows Server 2003 x64
Windows XP Windows XP x64
Windows ME
Windows 98
Linux Mac OS X Mac OS 9 Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android Windows RT
Package: 1XDMX control RS485 cable
Usb Party Lights Beam Usb Led Dmx 512 Interface
USB to RS485 dmx cable for Stage Lighting Equipment control
USB RS485 TO XLR 3P female socket for dmx cable XLR 3P male/female, XLR 3P female
USB RS485 converter
FT232+SP485 300 ~ 3Mbps baud rate
Up to 5km distance transfering half duplex,
non-isolated ESD protection integrated
Support Android, Support Win 8, Win 7, win 10, Linix, Mac OS, Android
Internal 1024 byte EEPROM
support Vendor ID re-write,
support Mprog3.5
Support FTDI VCP driver and D2XX driver
26AWG * 3 core, OD4.0mm, PVC jacket
FTDI driver download website:ftdichip.com;
Freestyler software download website:freestylerdmx.be
DMX software website: dmxcontrol.org/en/downloads.html
USB Drivers are available which allow FTDI devices to work with the following operating systems:
Windows 10 Windows
8.1 x64 Windows 8 Windows 8 x64 Windows
Server2012 Windows
Server 2008 R2
Windows 7 Windows 7 x64
Windows Server 2008 Windows Server 2008 x64
Windows Vista Windows Vista x64
Windows Server 2003 Windows Server 2003 x64
Windows XP Windows XP x64
Windows ME
Windows 98
Linux Mac OS X Mac OS 9 Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android Windows RT
Package: 1XDMX control RS485 cable

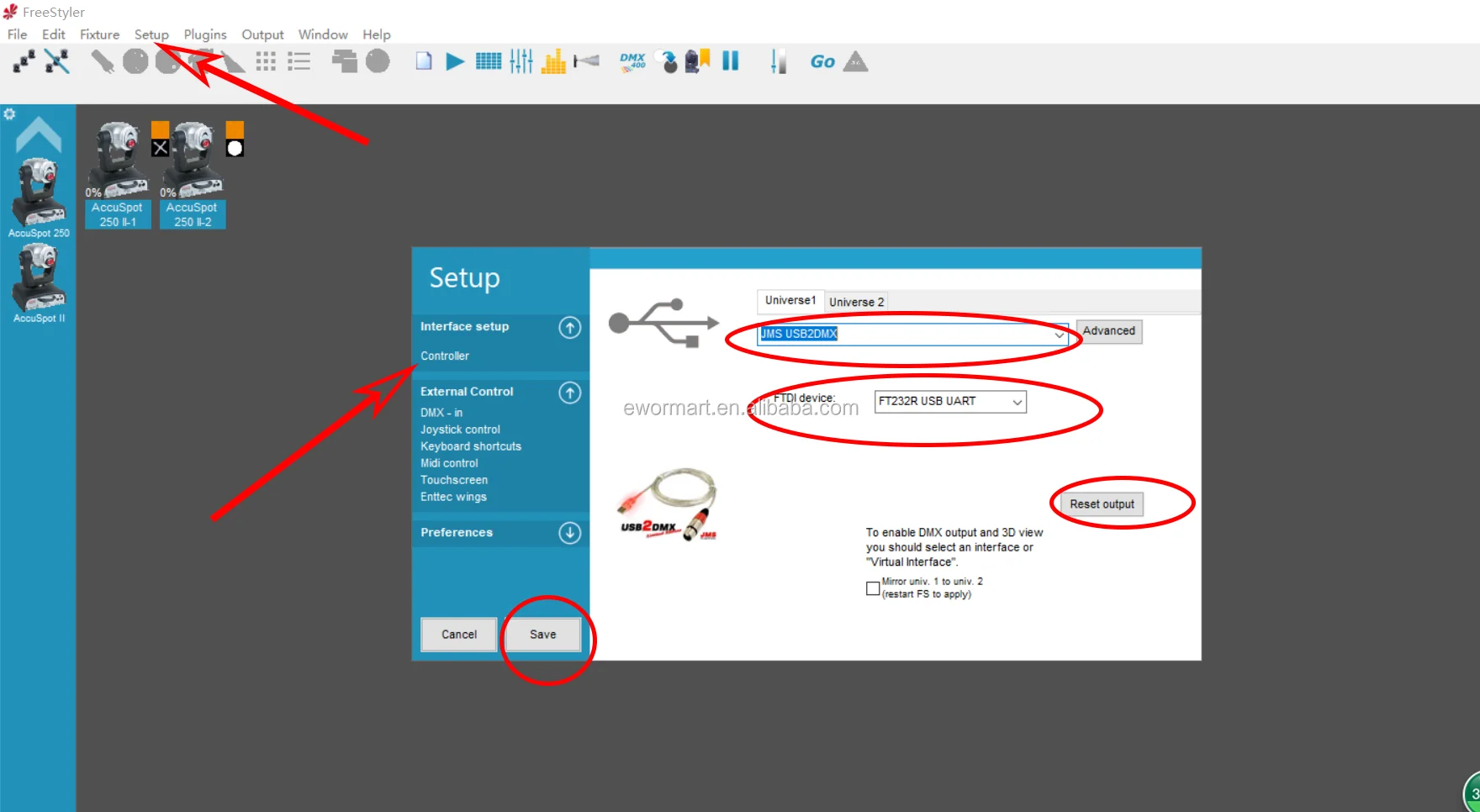

USB TO DMX Interface Control Cable Install Software Test Guide:
1, Connect your PC to DMX stage light, 2.download and install the FTDI driver, 3,Download and install the freestyler software; 4. Setting the software detail . 5 . Test it .
Specification
item | value |
Type | USB Cable |
Certification | CE ROHS |
Use | COMPUTER, Mobile Phone |
Brand Name | YIDAMA-TONGLE |
Model Number | DMX-RS485 |
Place of Origin | China |
Guangdong | |
USB Type | Standard |
Material | PVC, Pure Copper |
Connectors | USB 2.0 Connector, DMX |
Jacket | PVC |
Products Status | Stock |
Conductor | Tinned Copper |
Length: | 100cm 180cm 500cm optional |

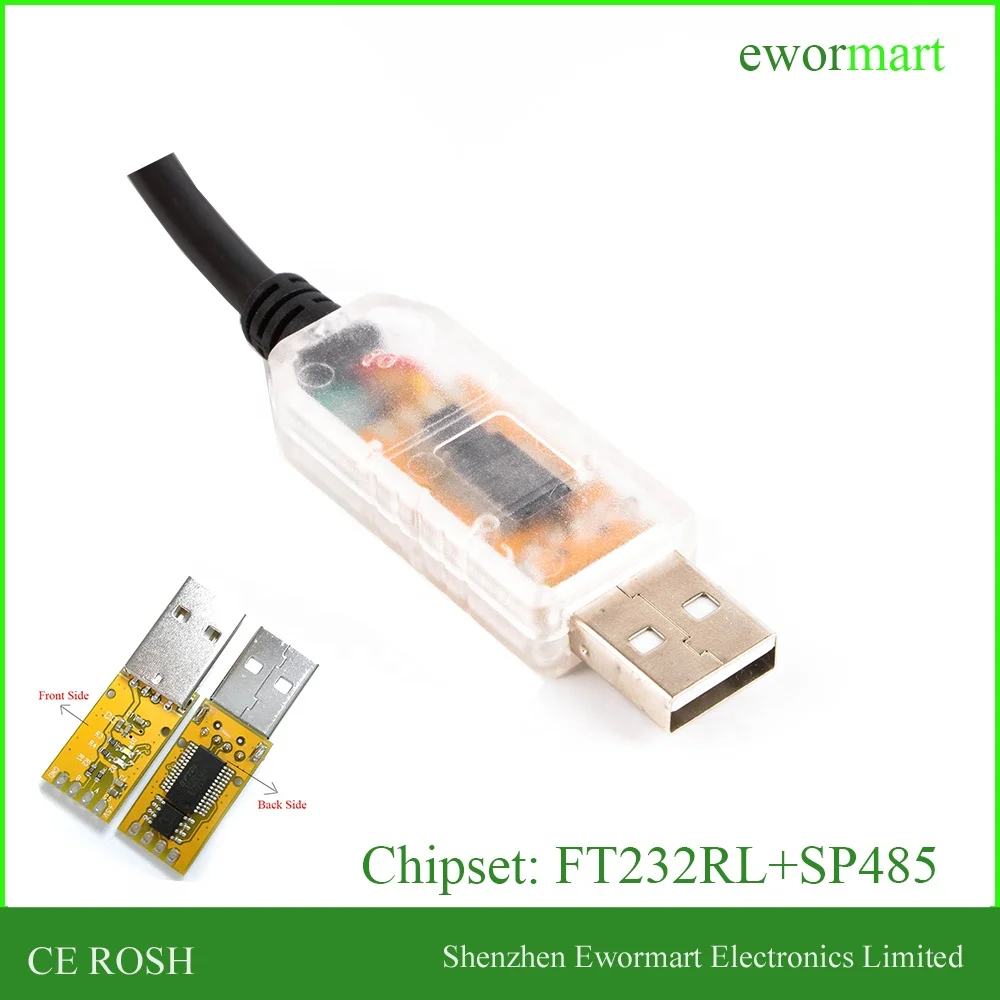

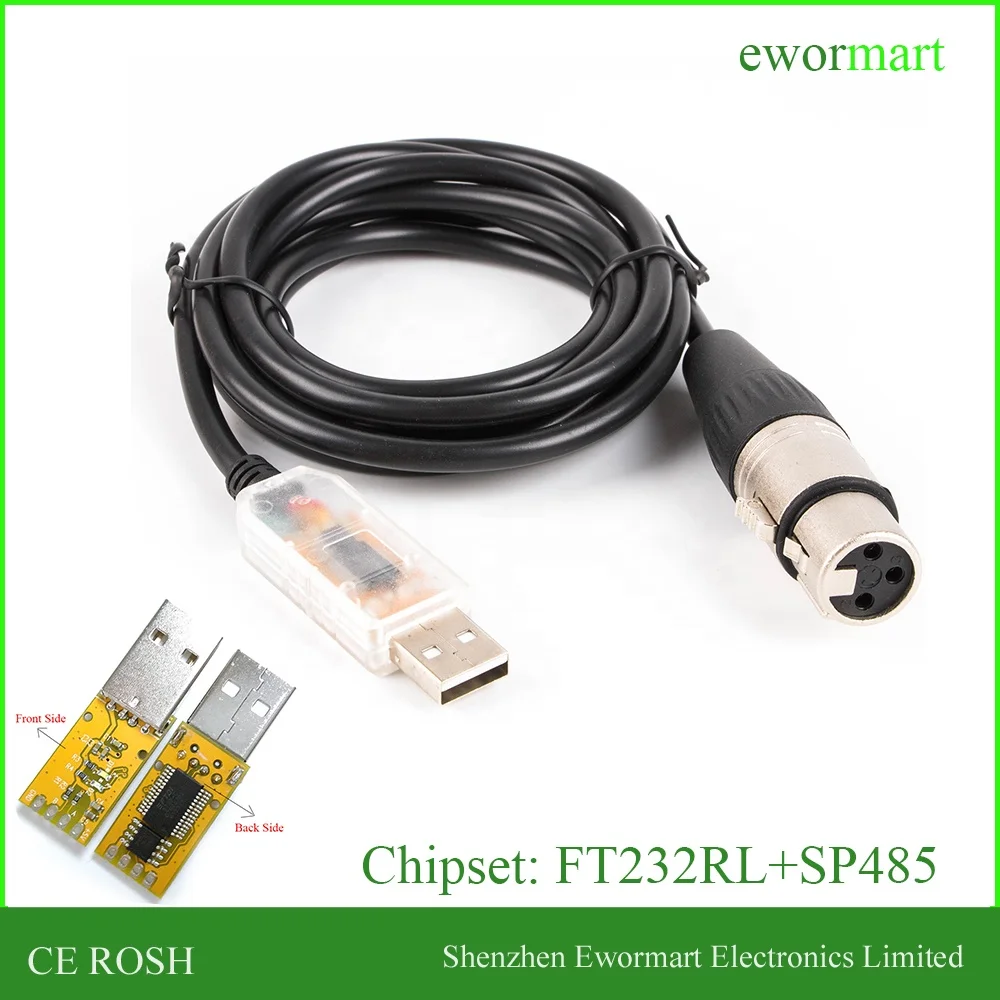

Chipset | FT232RL+SP485 |
Conductor | Bare copper Wire |
Jacket | PVC |
Application | DMX stage cable |
Color | USB transparent+ black cable |
OD | 3.5MM |
Connector | USB2.0 A male |

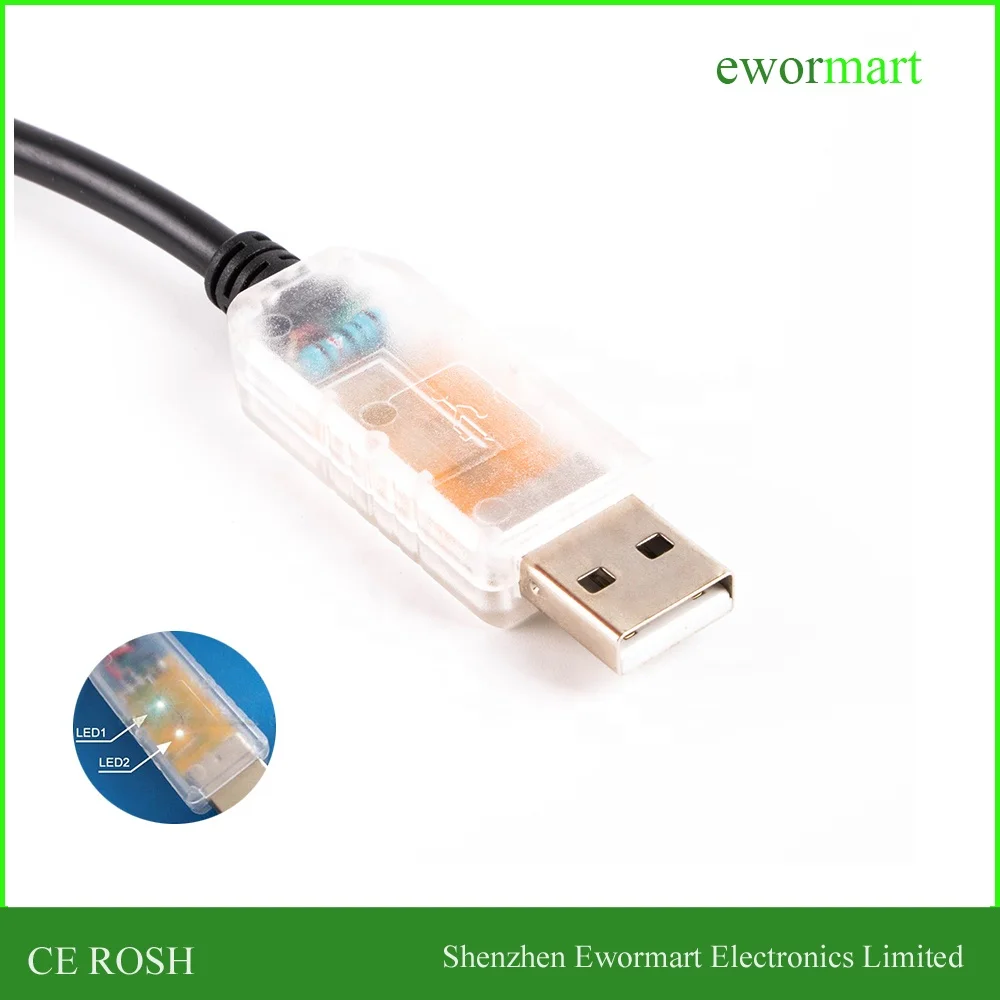

Led | with led signal light |
Packing & Delivery

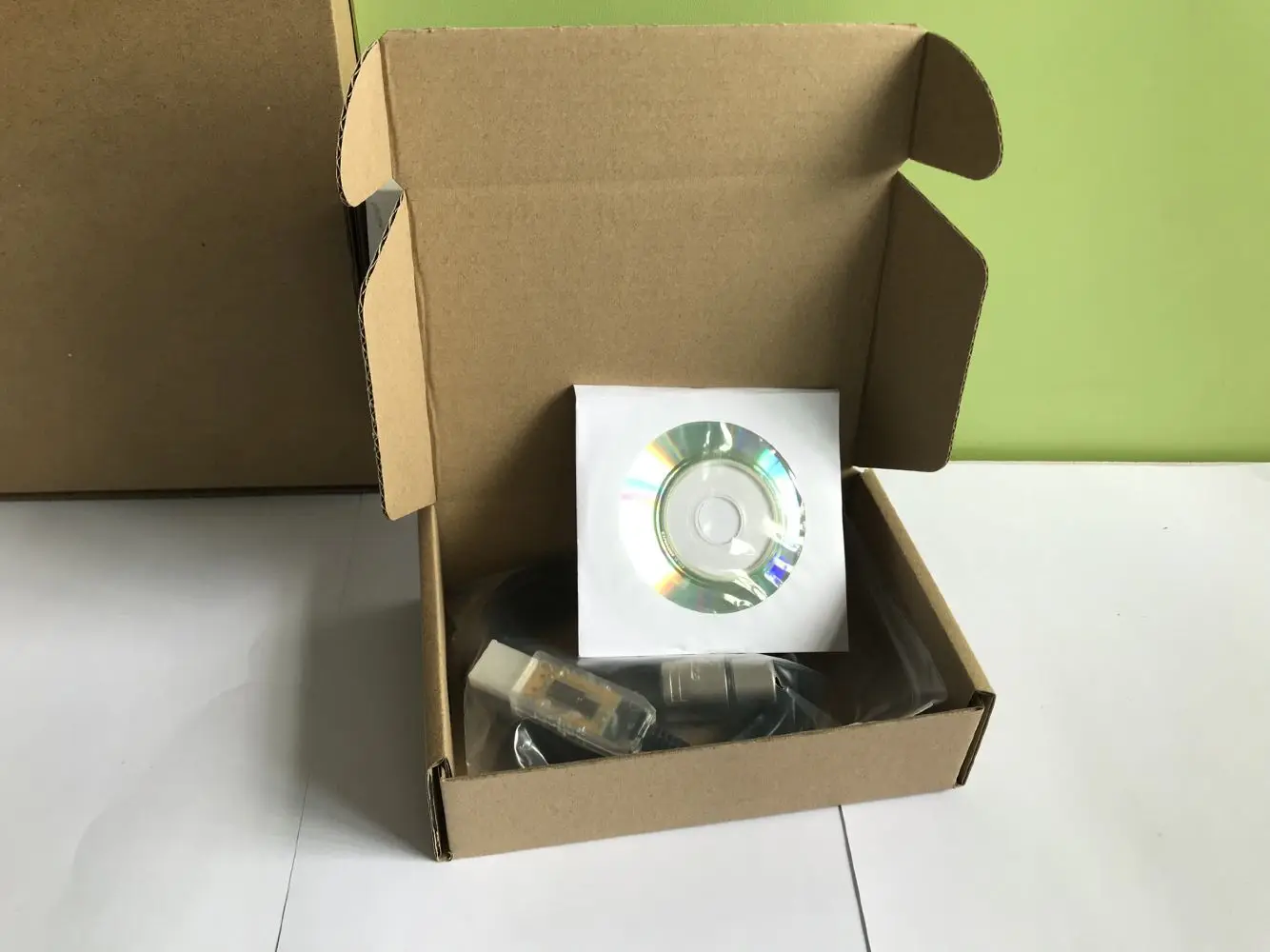

PE bag,then in carton
