Ротационная формовочная машина Fangda Roto 4 ARM на 6 станций в Китае
- Category: Rotational Molding Machine >>>
- Supplier: Yantai Fangda Rotational Molding Co. Ltd.
Share on (60743481618):
Product Overview
Description

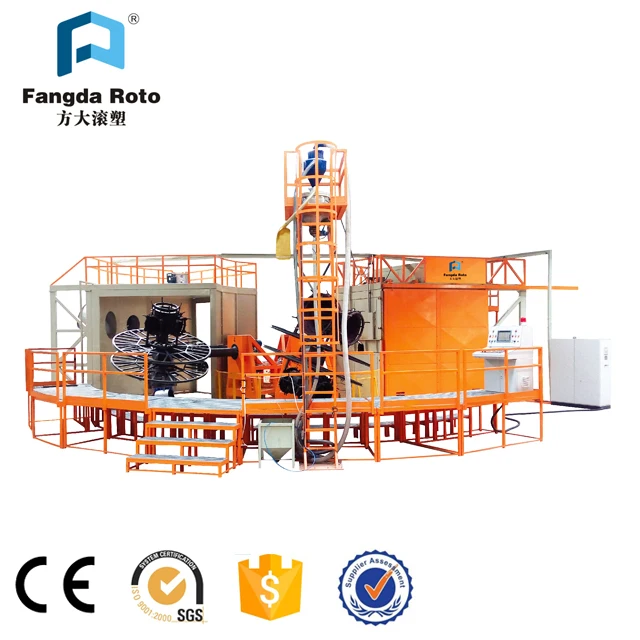

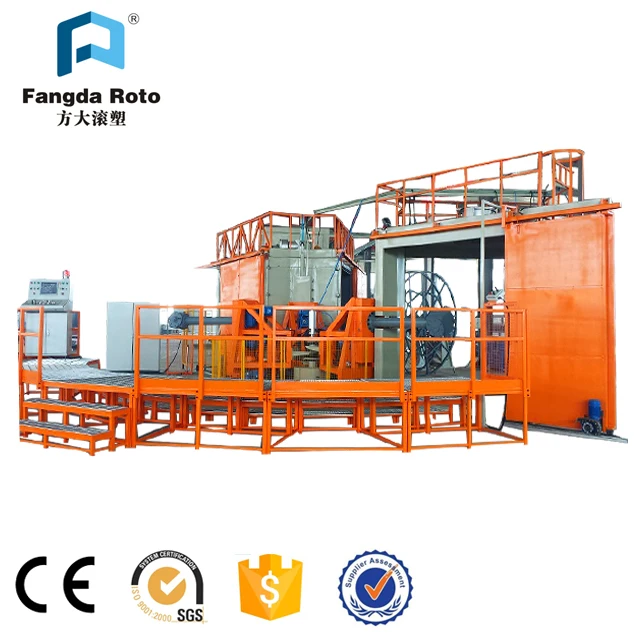

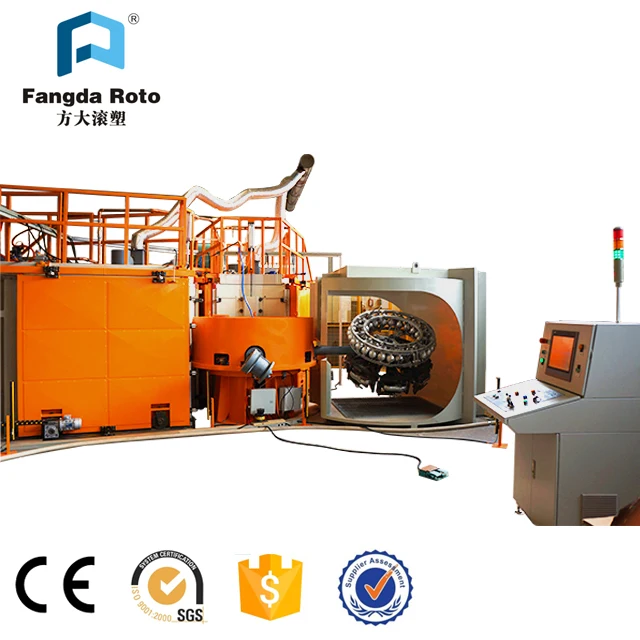

Fangda Roto 4 Arms 6 Stations Rotational Molding Machine in China
Model No. | Machine Dimension(m) | Oven Inner Dimension(m/inch) | ||||
3 arms 5 stations | 4 arm 6 stations | L(m) | W(m) | H(m) | ||
FD3-2600 | FD4-2600 | 12.7 | 11.1 | 4 | 2.6*2.6*2.6 | |
FD3-3100 | FD4-3100 | 14.8 | 13.1 | 4.5 | 3.1*3.1*3.1 | |
FD3-3600 | FD4-3600 | 16.3 | 14 | 5 | 3.6*3.6*3.6 | |
FD3-4100 | FD4-4100 | 18.7 | 16.5 | 5.6 | 4.1*4.1*4.1 | |
FD3-4600 | FD4-4600 | 20.7 | 17.6 | 6.1 | 4.6*4.6*4.6 | |
FD3-5100 | FD4-5100 | 21.7 | 18.6 | 6.6 | 5.1*5.1*5.1 | |
Working arm paramenters | Max.load | |||||||||
A | B | C | D | E | F | G | H | Straight Arm | L offset Arm | C offset Arm |
R1200 | 350 | Φ1900 | Φ1800 | 600 | \\ | \\ | \\ | 900 | 700 | \\ |
R1400 | 360 | Φ2300 | Φ2100 | 800 | \\ | \\ | \\ | 1300 | 900 | \\ |
R1700 | 360 | Φ2800 | Φ2600 | 910 | \\ | \\ | \\ | 1500 | 1000 | \\ |
R1900 | 400 | Φ3160 | Φ3000 | 1100 | \\ | \\ | \\ | 2000 | 1200 | \\ |
R2150 | 420 | Φ3500 | Φ3200 | 1300 | \\ | \\ | \\ | 2500 | \\ | 1600 |
R2400 | 420 | Φ3900 | Φ3500 | 1530 | 3750 | 2750 | 3974 | 3000 | \\ | 2000 |
