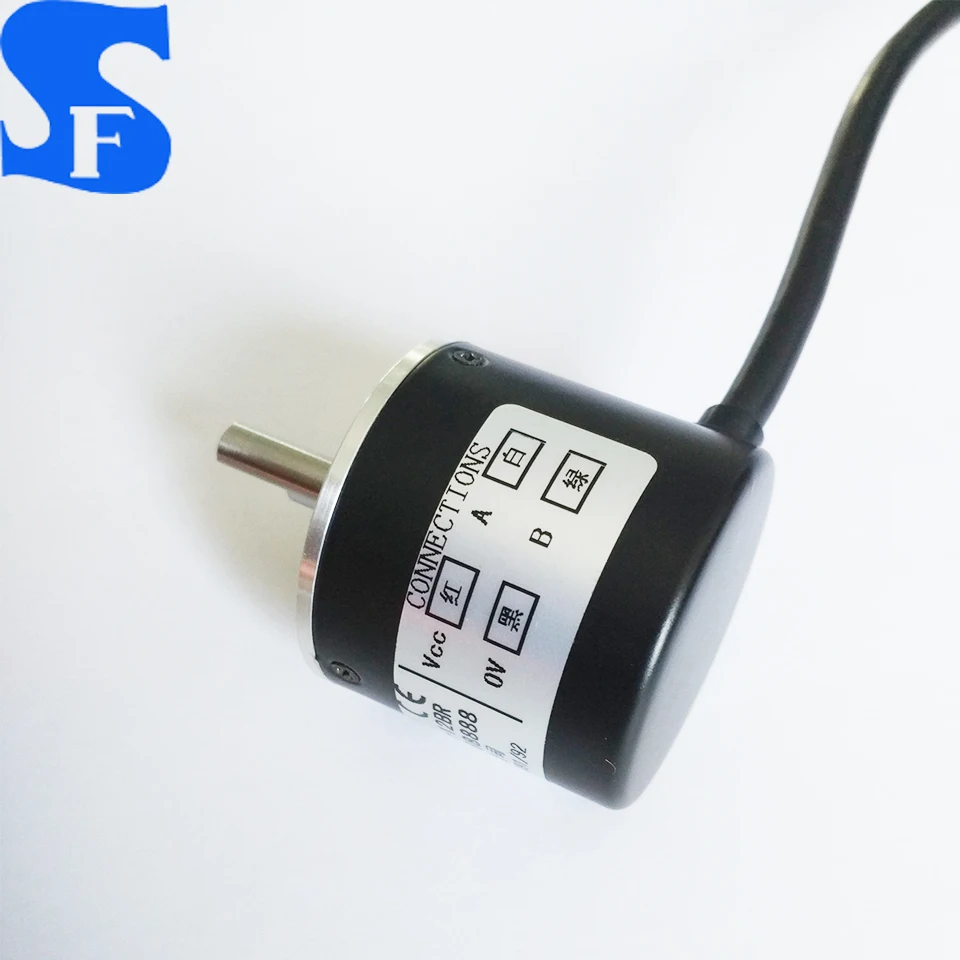

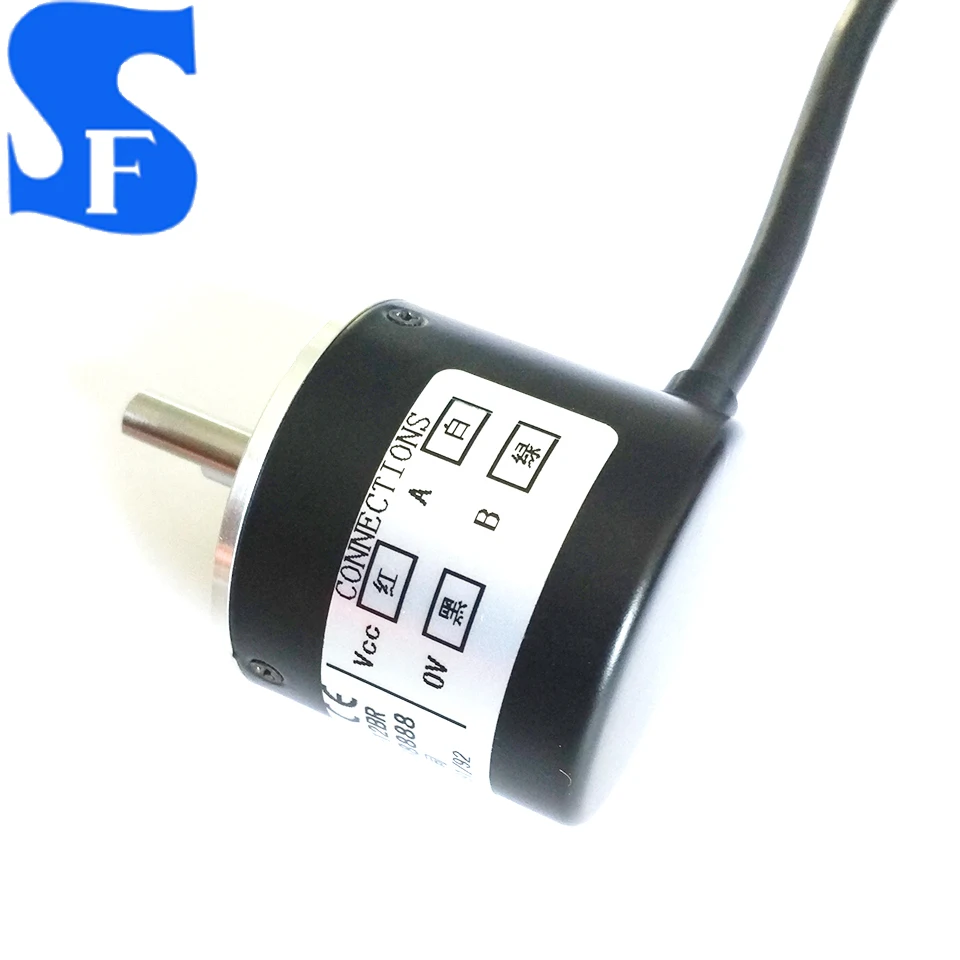

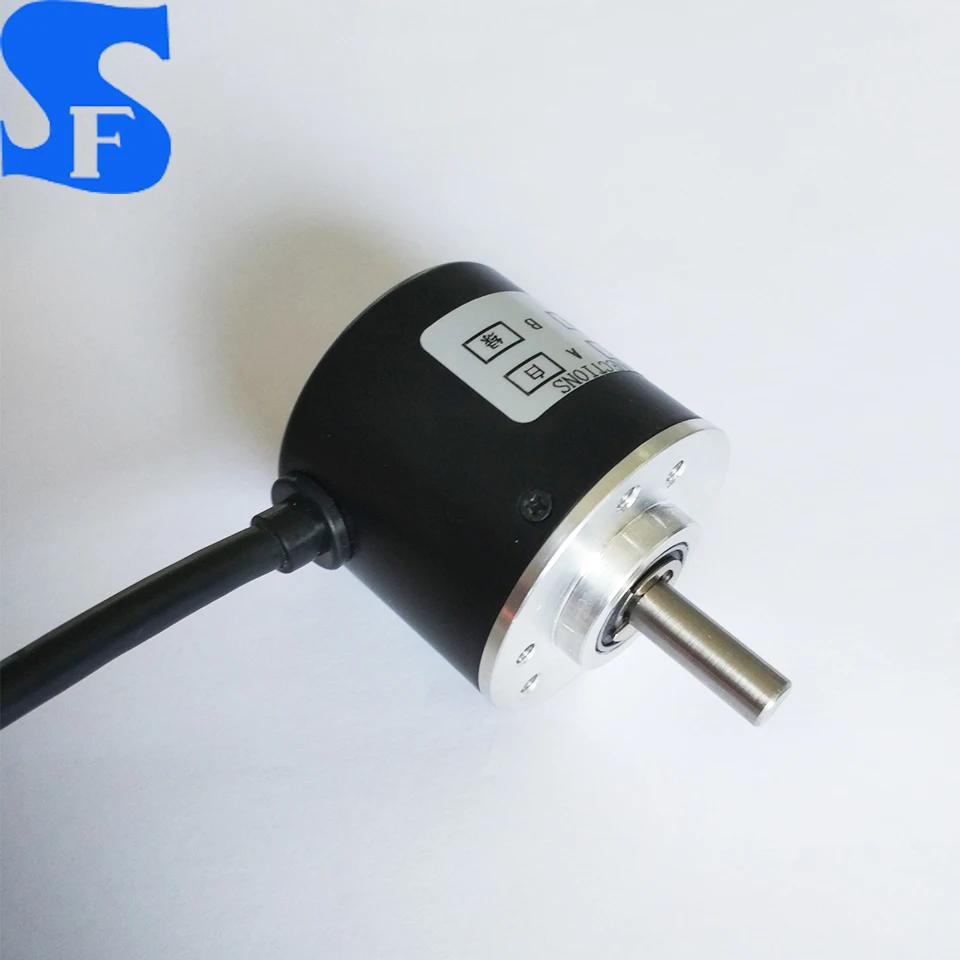

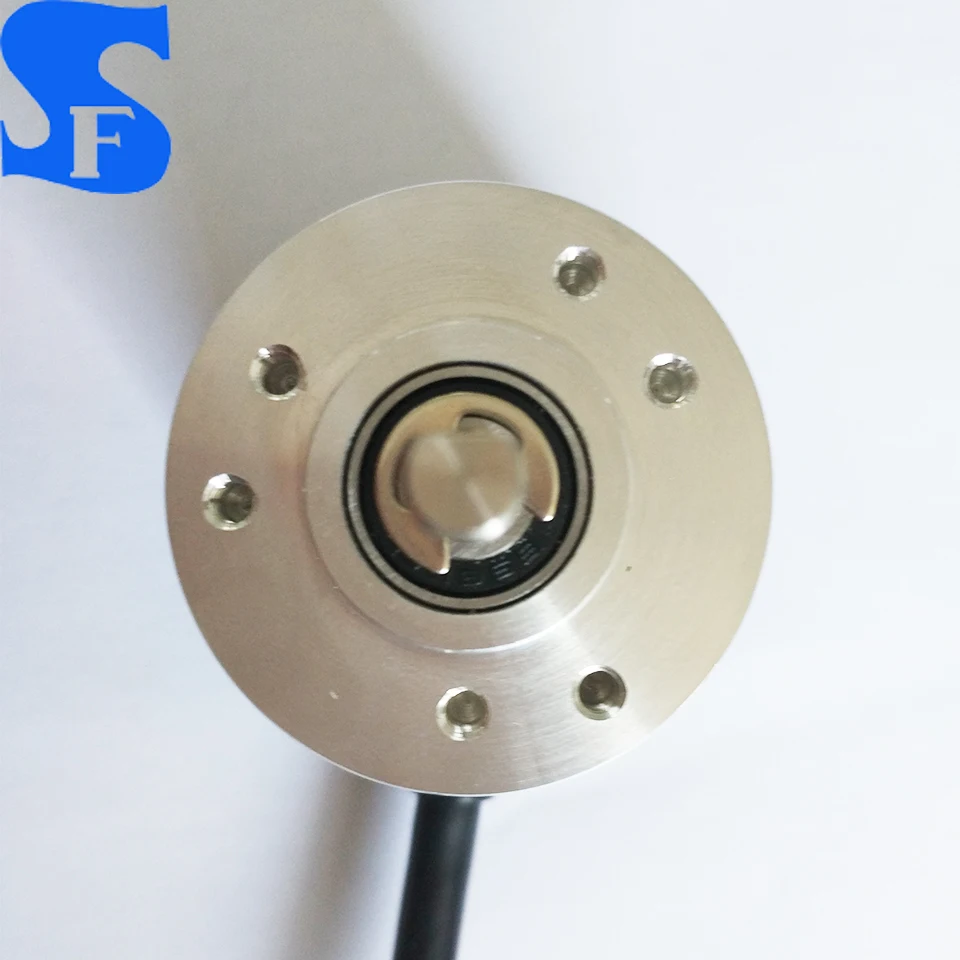

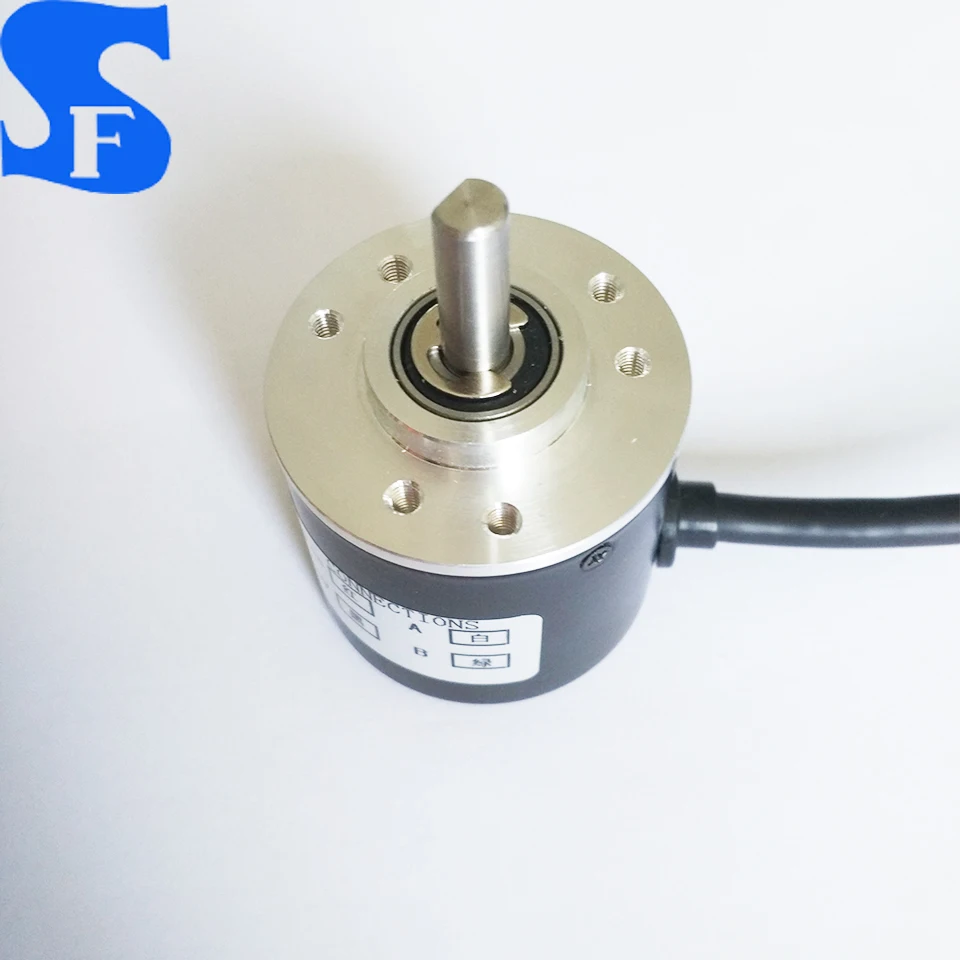

hot selling high IP grade solid shaft magnetic absolute encoder

Resolution

2ⁿ(n≤14 absolute,n≤12 incremental)

Supply Voltage

DC 8~24V±0.25V

V_H Output Voltage

5V

V_L Output Voltage

≤0.3V

Current Consumption

≤50mA

Output Phase

A.B

Frequency Response

115200

Rise / Fall Time

≤1μS

Starting Torque

2*10^-3N*m(+25℃)

Shaft Loading

Radial

20N

Axial

10N

Rotating Inertia

4*10^-7Kg.m²

Max Rotating Speed

3000r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in xyz Direction

Shock Resistance

980m/s²  3 Times in xyz Direction

Protection

IP54

Operating Temperature

-10℃~+75℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.18Kg

Accessories

SE/PE Coupling

Cable Color

Red

Black

White

Green

Output Form

Rs422

Vcc

0V

A

B

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
