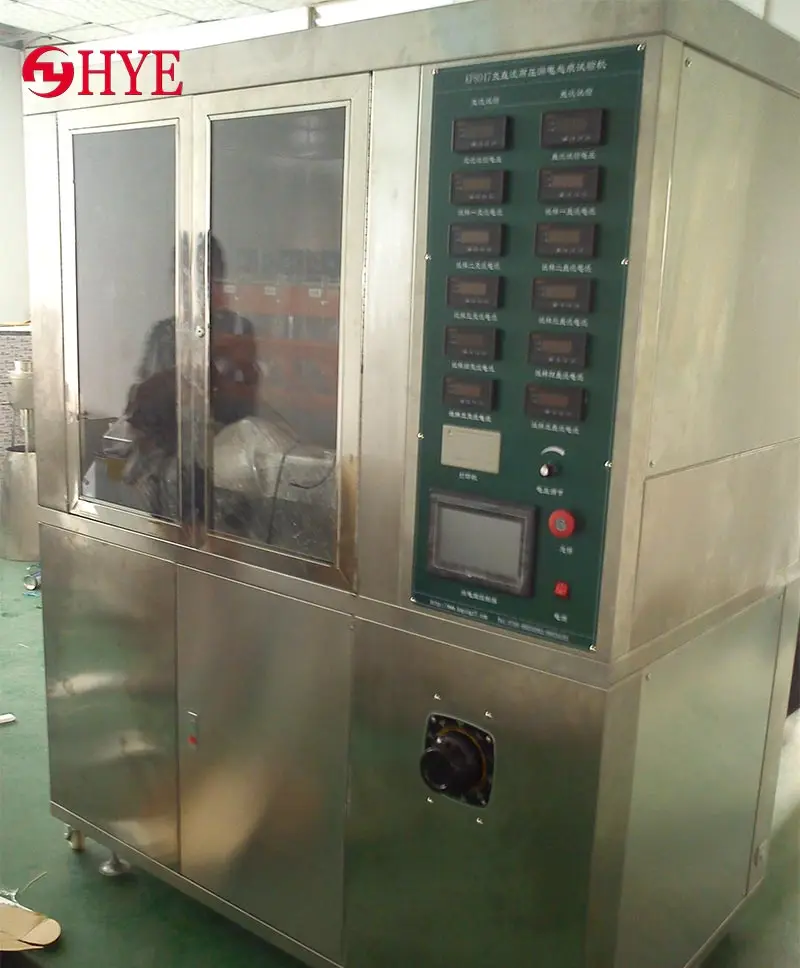

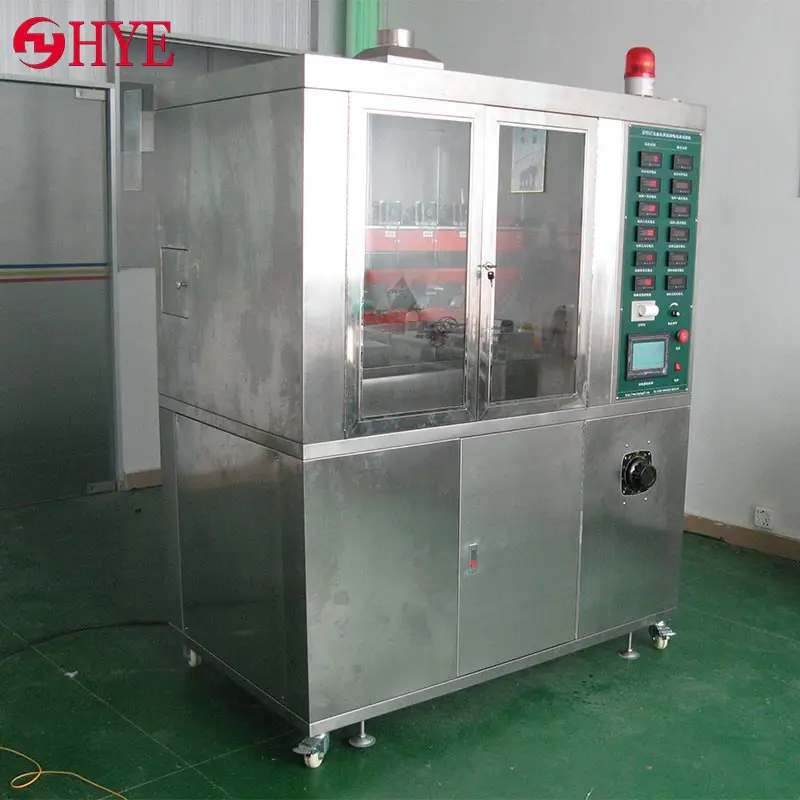

IEC 60587 high voltage evaluating resistance to tracking and erosion testing machine

KP8020 IEC 60587 high voltage evaluating resistance to tracking and erosion testing machine ASTM D2303

1. Electrode: 0.5mm thick Material: Stainless steel;

2, the upper and lower electrode distance: 50.0mm ± 0.1;

3, test voltage: 100V-10000V stepless adjustable;

4, regulator: Output: 0 ~ 250V adjustable;

5, test transformer: the highest output voltage AC 10KV (or DC 12KV can be set through the touch screen);

6, high-precision regulator: output AC220V accuracy of ± 1%;

7, when the loop current is 60mA, cut off the voltage output;

8, test time: 6 hours;

9, drop accuracy: 0.5%;

10, voltage stability: ± 1%;

11, tracking judgment:

According to the standard GB/T6553-2003/4.1.2, the voltage (2.5kV, 3.5kV and 4.5kV) is applied to the sample, and a certain flow rate drops the polluted liquid. The current below 60mA continues for 6H. Flow is passed;

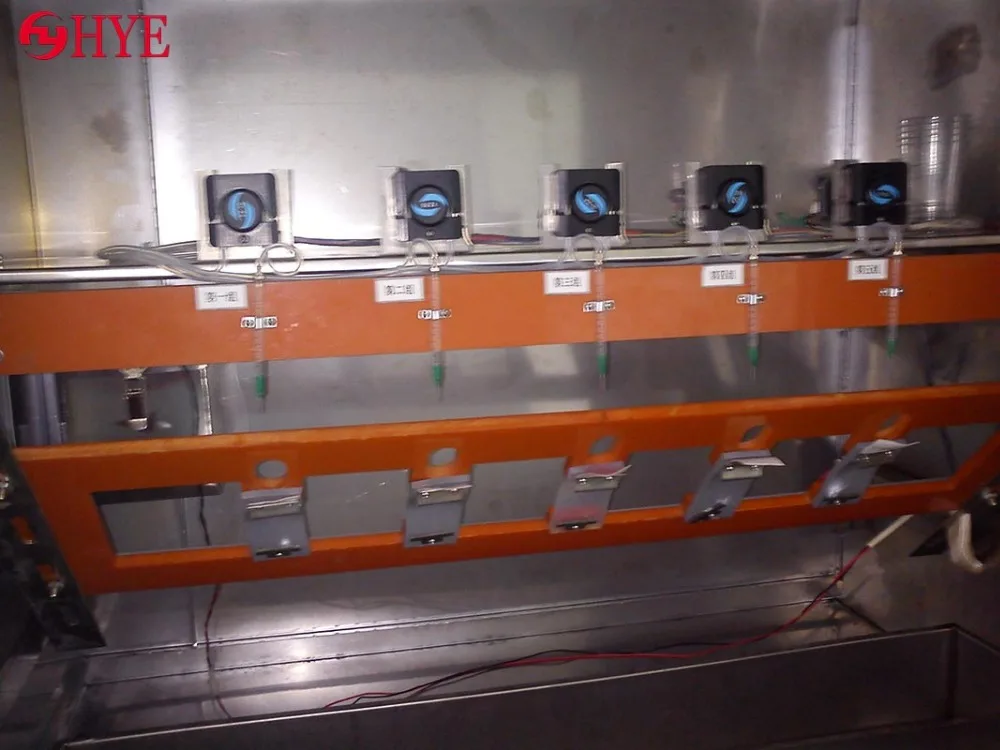

12. Dropping device:

Revel precision peristaltic pump, flow rate 0.00185 ~ 20 ml / min, working speed 0.1 ~ 50 rev / min, flow accuracy error: <0.5%;

13, the output voltage: AC / DC (switchable)

14, the number of experimental groups: five groups

15. Control device: Siemens PLC + Taiwan Wei Lun touch screen control, precise control, simple operation, fully humanized design, automatic generation of report after the test is finished, the panel thermal printer can print test results at the right time;

15, studio volume: 900L * 650W * 950H (mm); volume is 0.56m3.

16, chassis: SUS304 stainless steel (drawing surface);

17. The sewer tank is made of 316 stainless steel and a sealed device is installed.

18, the instrument dimensions: 1330L * 910W * 1880H (mm)

19, weight: about 400KG

Wooden packing

24 hour online technical support and 100% quality warranty for 12 months except consumable parts.
