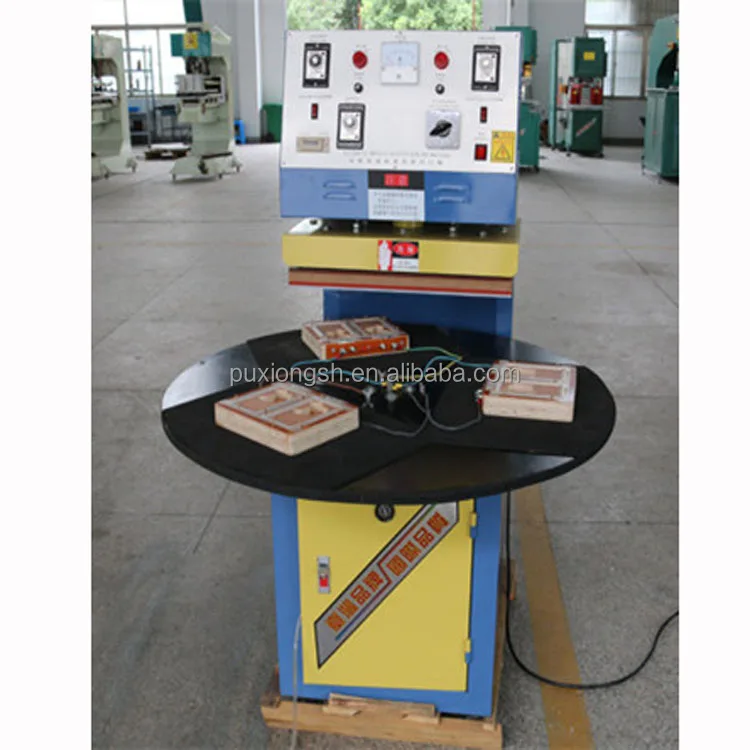

The machine is also known as card and plastic sealing machine with impulse heating principle,which is one of the most fast and stable machine with competitive price.The machine is traditional type in blister packaging field,which is especially used in single paper card and blister sealing packaging,but cannot be used in double blister packaging or sandwich packaging.which is widely applied in hardware,stationary,toys, electron,supplies,cosmic and pills packaging etc,such as toilet cleaner,glue,eraser,correction tape, lighter,pen,socket,injection,battery,toothbrush lipstick etc.

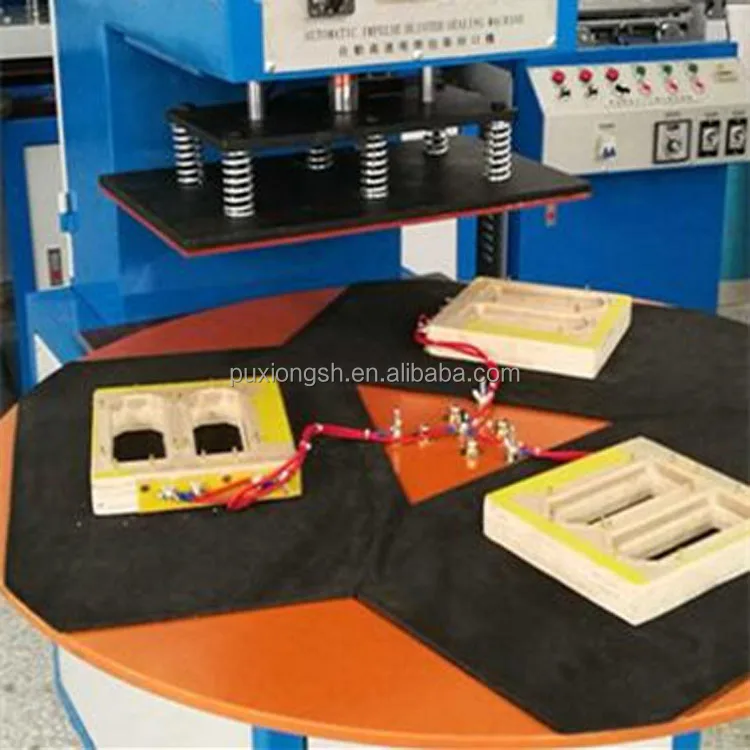

1.The operation is easy and flexible:Tidy paper card,product,blister before putting into the mold manually,turn rotary table for sealing,put the product,three station cycle time is between four seconds to six seconds,depends on the operating experience.
2.Packaged products are various:The machine is mainly suitable for the user group with demands on product varieties and saving cost.
3.The biggest advantage of the machine is the price is cheaper than normal machine,and sealing mold is more cheap.With high production capacity,the machine is the priority in blister packaging field.
Model NO.
PXBP-I02A
Operation mode
Mechanical
Working process
Release material manually--turn table manually--weld automatically--take out product manually
Output power
3KW
Power supply
380V,50Hz,3P (domestic),Customized ( foreign )
Pressure mode
Pneumatic ≤0.6MPA (adjustable)
Upper electrode
300*500mm
Working table height
760mm
External dimension
1100*960*1430mm
Weight
Around 300KG
Production capacity
For reference :10secs/piece,360times/hr,depends on how much experience the employees have
1.The operation is easy and flexible:Tidy paper card,product,blister before putting into the mold manually,turn rotary table for sealing,put the product,three station cycle time is between four seconds to six seconds,depends on the operating experience.
