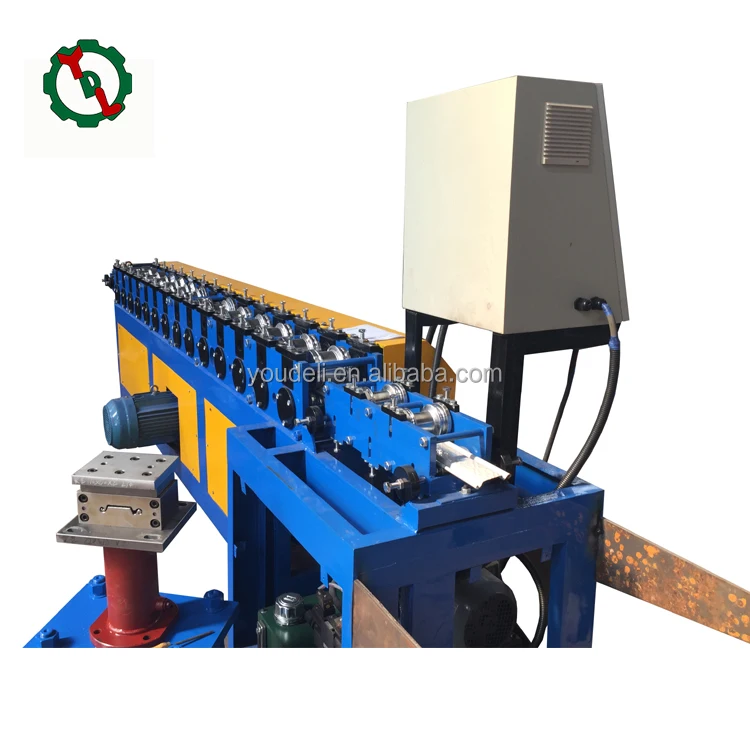

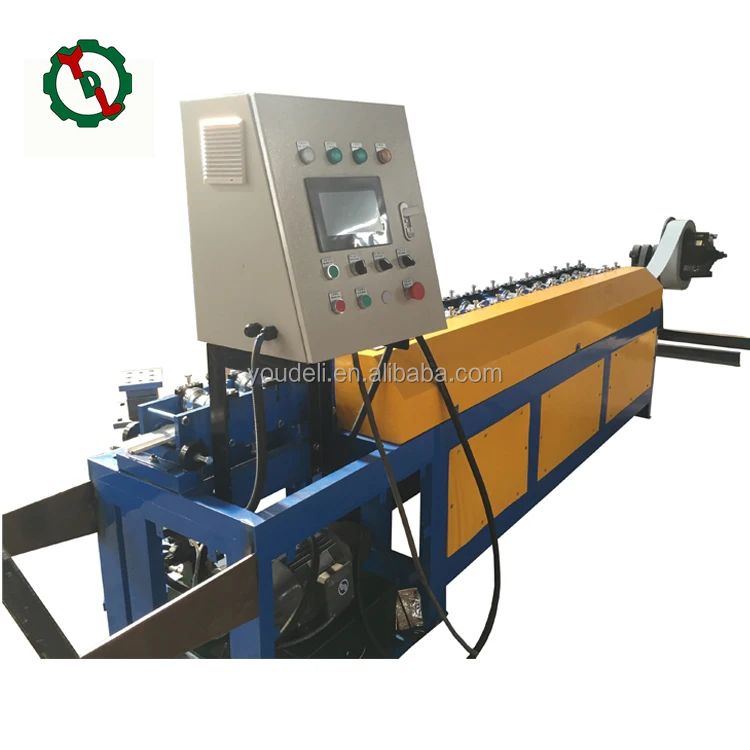

High Quality Rolling Door Roll Forming Machinery

Share on (60743534342):


Price:$10,000.00

Quantity:


Product Overview

Description


High Quality Rolling Door Roll Forming Machinery--_16.jpg


Rolling Door Machine



Technical Parameters


































































 Size



 5600*1000*1400mm



 Weight



 1550KGS



 Voltage



 220V/60HZ/3PH



 Motor Power



 4KW



 Hydraulic Power



 2.2KW



 Forming Steps



 14+3steps for reshape



 Forming Speed



 8-12m/min



 Effective Width



 85mm



 Feeding Material Width



 136mm



 Material Thickness



 0.6-0.8mm



 Thickness for common use and test



 0.6mm,0.8mm



 Tolerance



 ±2mm



 Roller material



  High grade 45# forged steel,   polished


  and plated hard chrome for the   rollers



 Material of principal axis



 High grade 45# forged steel



After-sales Service Provided



Engineers available to service machinery overseas






Main Accessories




























































No



Items



Quantity



Remarks



1



Manual/Hydraulic Uncoiler



1set



Up to customer



 2.



rolling door machine



Feeding device



1set







Hydraulic system



1set







Roll forming system



1set







Hydraulic Forming Cutter



1set







Protective cover



1set



Up to customer



3



PLC control system with touch screen



1set







4



Run out table



4pcs



Up to customer

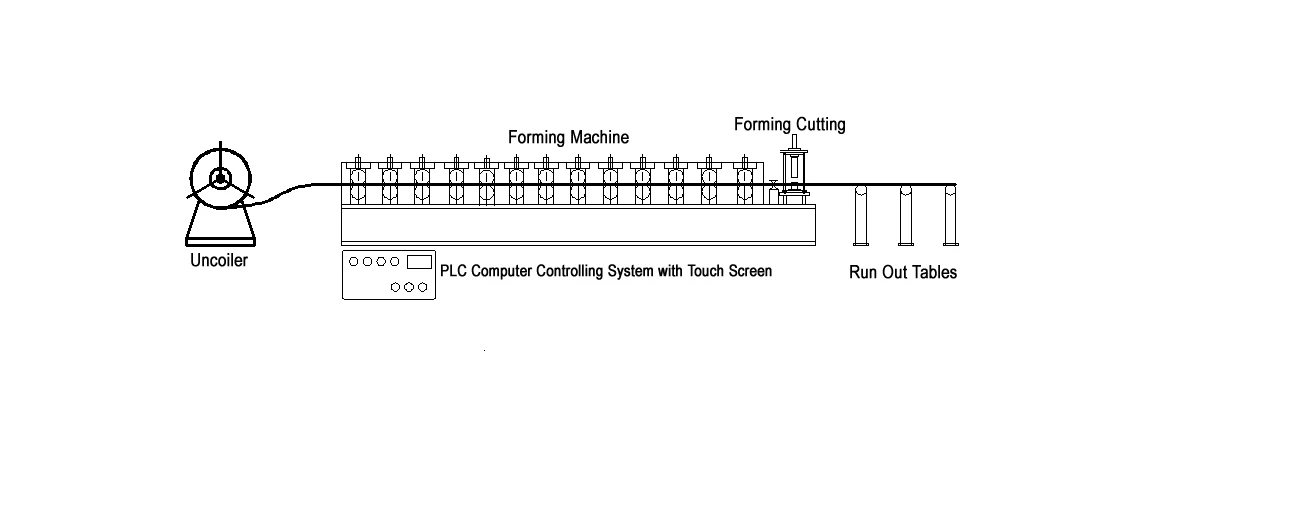

Flow Chart


 (9)Rolling Door Machines.jpg

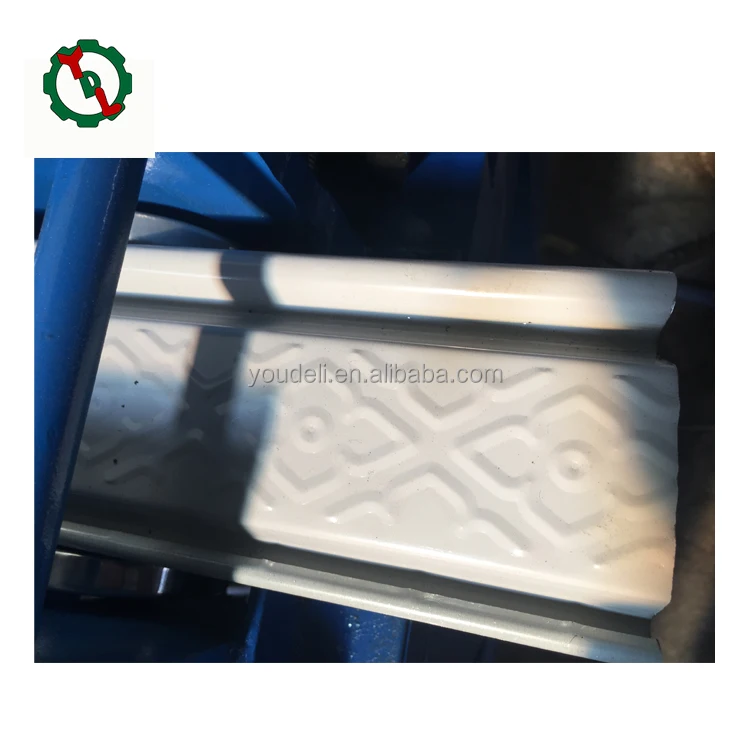

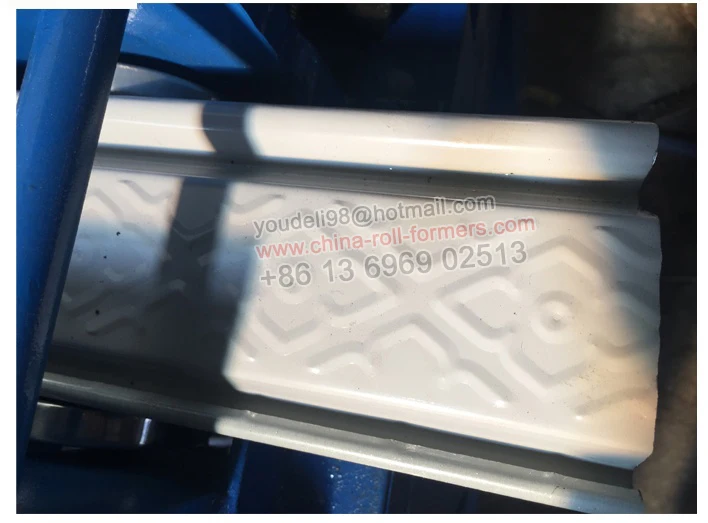

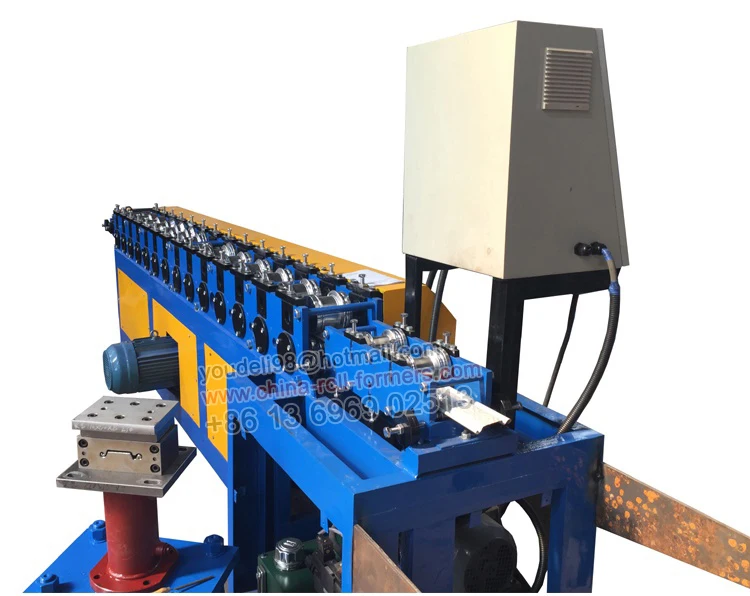

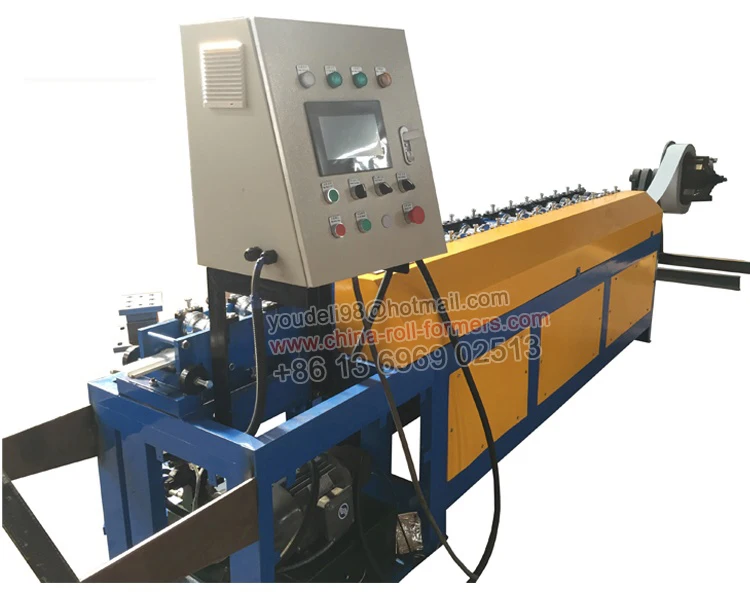

Product Show


Rolling Door Machinerolling door machine_.jpgrolling door machine9_.jpgrolling door machine7_.jpg






















FAQ





1. Are you the trade company or factory?


We are professional manufacturer for making cold metal roll forming machines.





2. How to visit your factory?


We can pick up you at the Xiamen International Airport or Xiamen North Railway Station


to our factory.





3. Do you provide customized machines?


Sure, we can design and make the machines as per your requests. We are the professional


designer and manufacturer for cold metal roll forming machines.





4. Does one machine can only produce one size?


Not exactly, it depends on the machine.





5. Is there quality control when manufacturing the machines?


Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.





6. Why your price is higher than others?


Because we insist on that every company must attach importance to the quality at first


place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.





7. What can you do if the machine broken?


The warranty period of our machines is one year.


If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines.  Anyway we can promise to provide our technology supports for the whole life of our machines.





8. Do you have after technology support?


Yes, we are glad to give suggestions and also have skilled technicians available to service


machinery oversea if you needed.





9. Do you have oversea engineers?


Yes, we can supply not only good skilled technicians to oversea, and also provide


technology training.





10. Can you response for the transport of machines?


Yes, please check us your destination port or address, we have good services of


cooperated shipping line with us.
