High Quality Best Price ferrite magnet manufacturer china with case
High Quality Best Price ferrite magnet manufacturer china with case
High Quality Best Price ferrite magnet manufacturer china with case
High Quality Best Price ferrite magnet manufacturer china with case
High Quality Best Price ferrite magnet manufacturer china with case
High Quality Best Price ferrite magnet manufacturer china with case
High Quality Best Price ferrite magnet manufacturer china with case

High Quality Best Price ferrite magnet manufacturer china with case

Share on (60743637484):


Price:RUB 18.96 - RUB 29.57

Quantity:


Product Overview

Description

Description

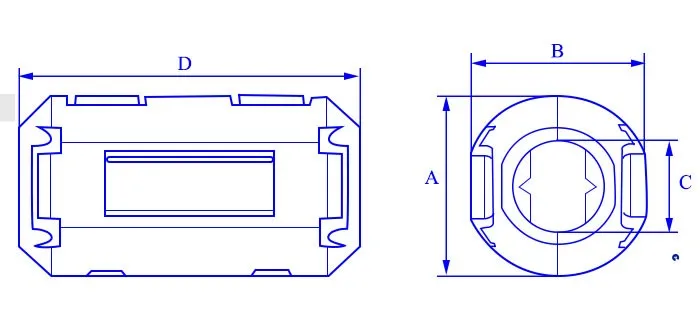

SIZE CODE （mm)
A
B
C
D
A2 RC 13*23*7-MB
16.5±1.00
14.0±1.00
7.00±0.80
30.00±1.00
Parameter

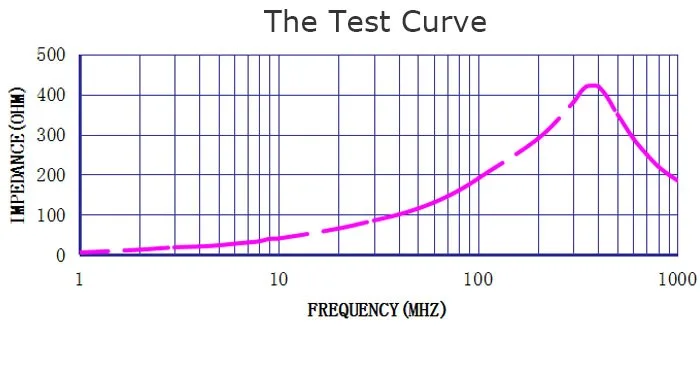

Electrical Requirements
SIZE CODE （mm)
A2 RC 13*23*7-MB
25 MHz
65Ω MIN
100 MHz
150Ω MIN
TEST INSTRUMENTS
HP 4191A
LCR METER
HP 4286
WIRE
0.65T.C.W*100m/m 1/2Ts
TEMPERATURE
15℃ to 35℃
HUMIDITY
25% to 85% RH
Test Data For Pre Production Samples
MEAS. Item
Ω
 AT 25MHz
Ω
 AT 100MHz
A
 m/m
B
 m/m
C
 m/m
D
 m/m
Suggest
65Ω
MIN
150Ω
MIN
16.5±
1.00
14.0±
1.00
7.00±
0.80
30.00±
1.00
1
75.12
175.21
16.43
14.37
6.99
30.12
2
75.61
175.03
16.48
14.39
7.01
30.27
3
74.83
175.64
16.36
14.32
7.08
30.29
4
74.52
175.22
16.54
14.34
7.04
30.32
5
72.61
175.81
16.52
14.36
7.07
30.18
6
72.62
175.62
16.50
14.41
6.92
30.08
7
72.90
176.81
16.40
14.32
6.93
30.06
8
74.33
175.44
16.39
14.31
6.95
30.07
9
74.62
175.23
16.37
14.33
7.02
30.20
10
75.03
176.80
16.43
14.35
7.01
30.14






X-bar
74.22
175.68
16.44
14.35
7.00
30.17
R
3.00
1.78
0.18
0.10
0.16
0.26
The above test data for reference，Actual results may differ due to different production batches
