Product Overview
Description
Product Description
Reverse osmosis (RO)system is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules, larger particles and colloid, organic impurity, heavy metal ion from drinking water.
Reverse osmosis system can remove many types of dissolved and suspended chemical species as well as biological ones (principally bacteria) from water, it is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium, is used in both industrial processes and the production of potable water.
Reverse osmosis system can remove many types of dissolved and suspended chemical species as well as biological ones (principally bacteria) from water, it is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium, is used in both industrial processes and the production of potable water.
Manual control valve
You need to rotate the handle to finish the fast rinsing and backwashing of filter materials, and then rotate the handle to filter (normal operation). It is easy to operate
Automatic control valve
it can automatically complete the fast rinsing and backwashing of filter materials, and then automatically turn to filter (normal operation) by setting the time on the program
Specified configuration of RO system（Each part is optional, for reference) | ||||||
Item | Material/Model | Brand | Function | |||
Raw water pump | SS304/SS316 | Lingxiao/CNP | Provide pressure for raw water | |||
Quartz sand filter | FRP/SUS-304/SUS316 | China | Get rid of turbidity, suspended matter, colloid, etc. | |||
Activated carbon filter | FRP/SUS-304/SUS316 | China | Remove the color, free chloride, organic matter, absorb odor, smell, etc... to make clear water | |||
Anti scalant chemical dosing system /water softener(optional) | FRP/SUS-304/SUS316 | China | Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water. | |||
Security filter | SUS304 1mircon/5mircon | China | Block impurities greater than 5micron (1micron) | |||
High pressure pump | SUS304/SUS316 | CNP | Provide pressure for water into RO membrane | |||
RO membrane | LCLE-4040 or ULP31-4040 | Domestic/Vontron | Remove heavy mental ion, bacterial. Desalination rate is more than 97% | |||
UV Sterilzier | (Optional) | China | Kill 99% bacterial (For drinking directly) | |||
Ozone generator | (Optional) | China | Kill 99%bacterial and keep 2hours.(For making bottled water) | |||
Electricity supply: 110v-480v, 50hz or 60hz,3 phases (can customize) | ||||||
Capacity: can customized, from 500L/H to 100Ton/H | ||||||

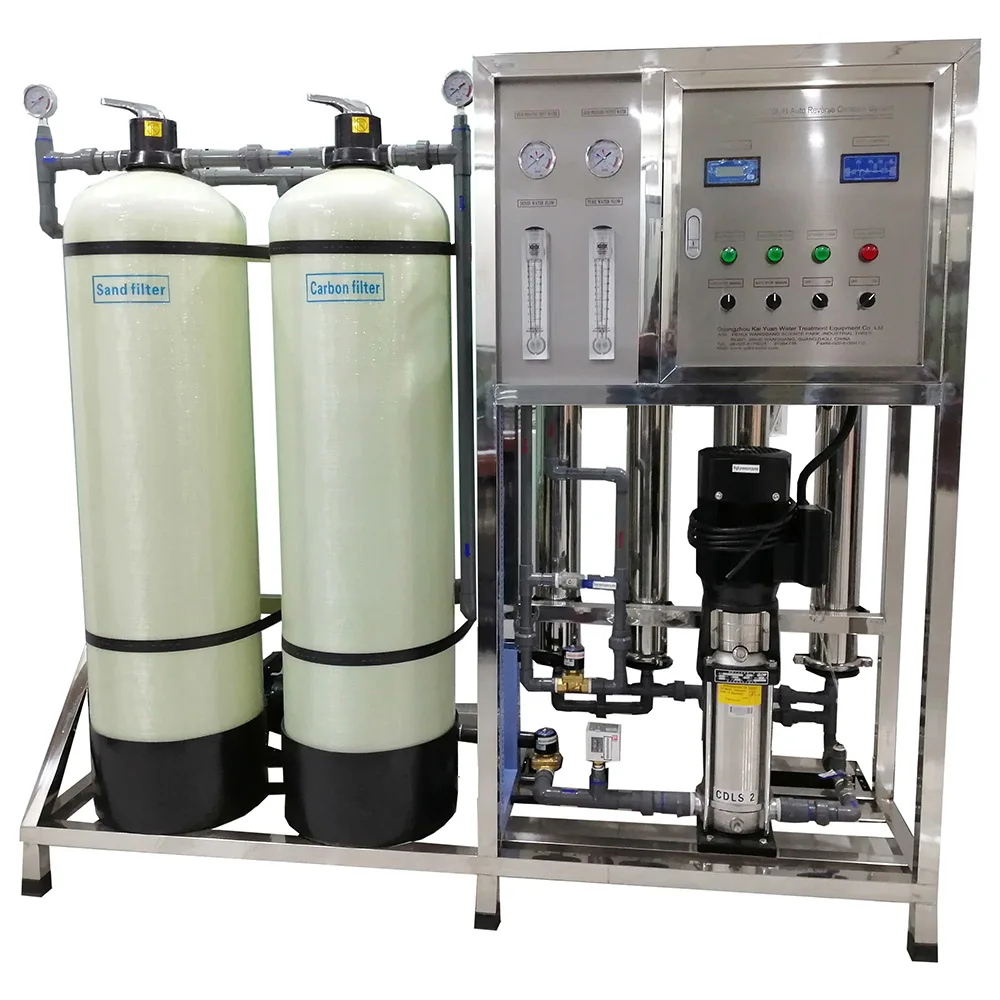

Detailed Images

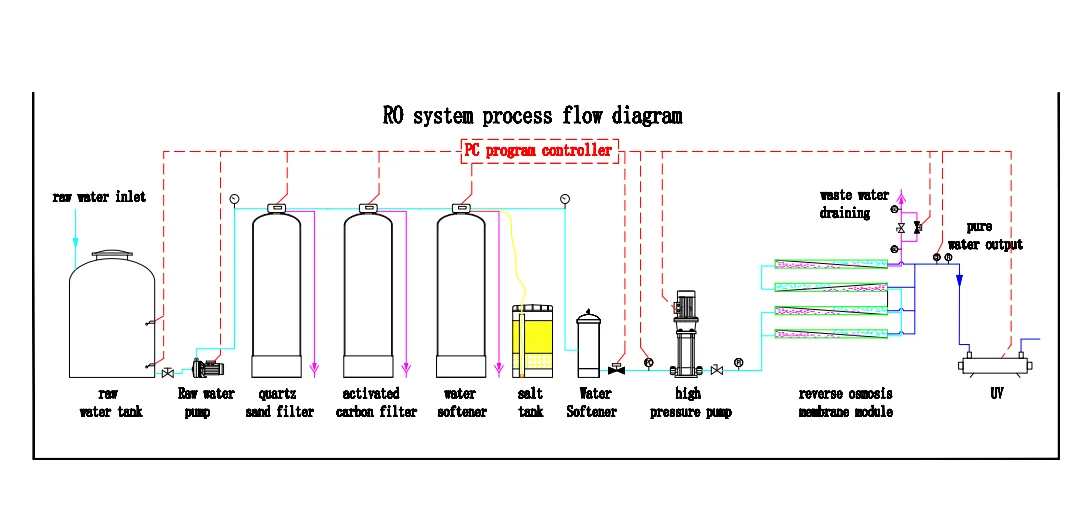

Reverse osmosis system requires a variety of pre-treatment techniques, including softening, dechlorination, and anti-scalent treatment.
Pre-treatment filters:
1--The quartz sand filter can remove the suspend solid and low the outlet water turbidity.
2--The activated carbon filter will remove color, odor, residual chlorine from the raw water.
3--Water Softener (optional), it can remove hardness (calcium, magnesium ions).
4-- Iron removal filter (optional), it can remove Mn2+, Fe2+, Manganese and Iron ions.
2--The activated carbon filter will remove color, odor, residual chlorine from the raw water.
3--Water Softener (optional), it can remove hardness (calcium, magnesium ions).
4-- Iron removal filter (optional), it can remove Mn2+, Fe2+, Manganese and Iron ions.
PLC Touch Screen Control System
1--Company name and logo design: customize as your requirements.
2--Language:English, Spanish, French and so on.
3--Conductivity meter: display the conductivity of output water.
4--PH meter: display the PH of output water (optional)
5--Thermometer: display the temperature of output water (optional)
PC Control System
1--Company name and logo design: customize as your requirements;
2--Conductivity meter: display the conductivity of pure water 3--Flow meter : display dense water and pure water flow.
4--Pressure meter: display inlet and outlet pressure of water inlet RO system.
1--Raw Water Pump
Brand: CNP
Original: China
Function: provide pressure for raw water going into into filters(sand filter, carbon filters and water softener)
Material: SUS-316/304
Original: China
Function: provide pressure for raw water going into into filters(sand filter, carbon filters and water softener)
Material: SUS-316/304

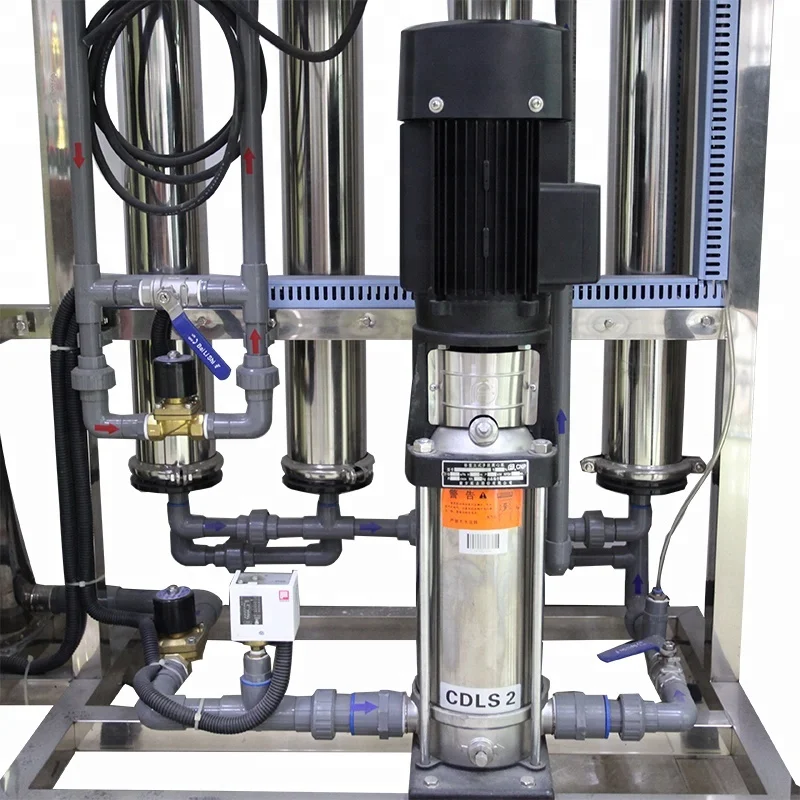

2--High pressure pump
Brand: CNP
Original: China
It is to provide the pressure for water into RO membrane.
Material: SUS-316/304
Original: China
It is to provide the pressure for water into RO membrane.
Material: SUS-316/304

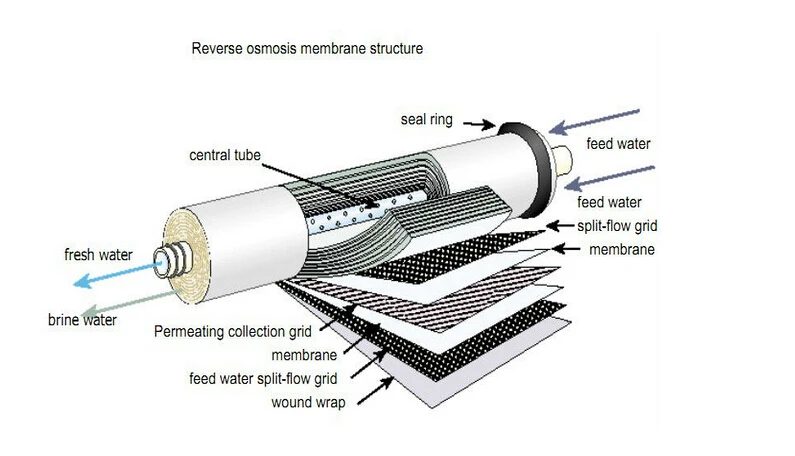

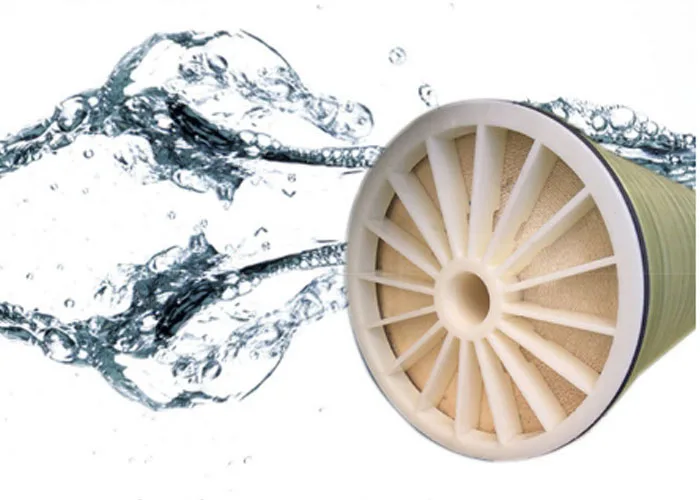

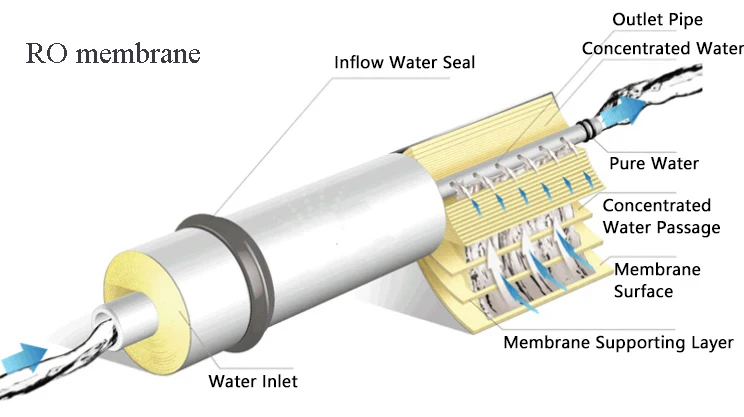

RO membrane
Model: LCLE-4040 or ULP31-4040
Quantity: 2 pcs
The service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.
The service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.

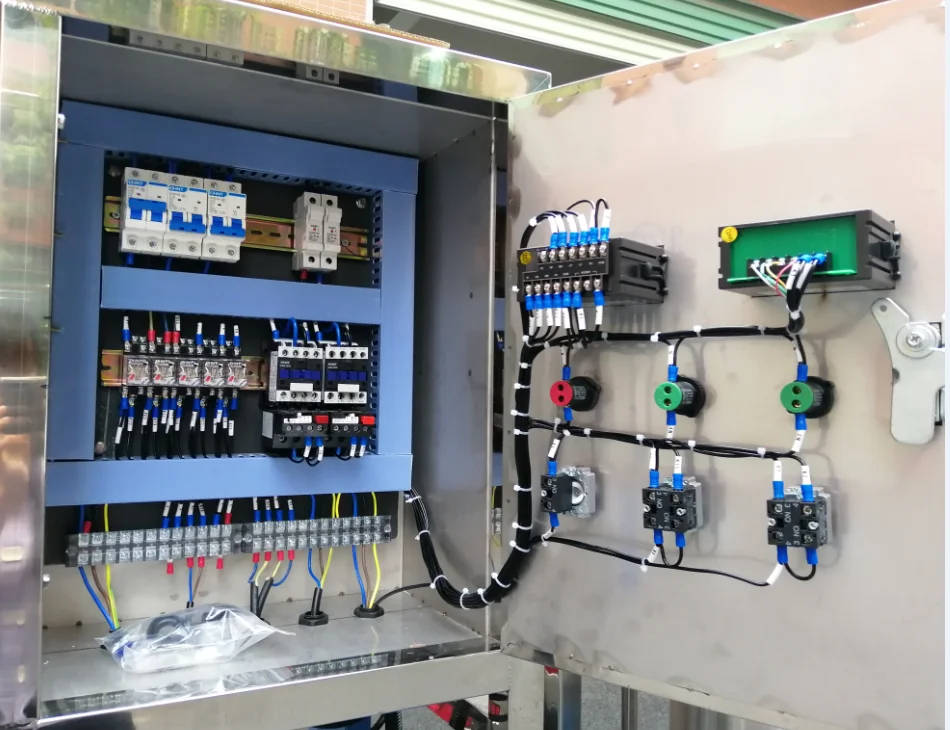

Electric control box
1--Air switch:protect the electric system.
2--AC contactor, thermal relay
3--Indicator light, knob switch
4-- Intermediate relay, Fuse box
5-- Terminals, miscellaneous pieces of
6--Electrical appliances
7--When the raw water pump or high pressure pump overheat, relay will stop. So it can
protect water pumps from damage.
8--PLC(Programmable Logic Controller): Design the progaram as requirements you need.
Spare part | Replacement time |
Quartz sand | Every 15-18months |
Activated carbon | Every 15-18months |
Resin | Every 15-18months |
PP cartridge | Every each month |
RO membrane | Every 2 years |
UV light | Every 1 year |
Related products
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). we will pack it according to customers special request. | |
Manual Operation | ||
Manual Operation and video | we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation. | |
Our Company
Certificates(CE,ISO...

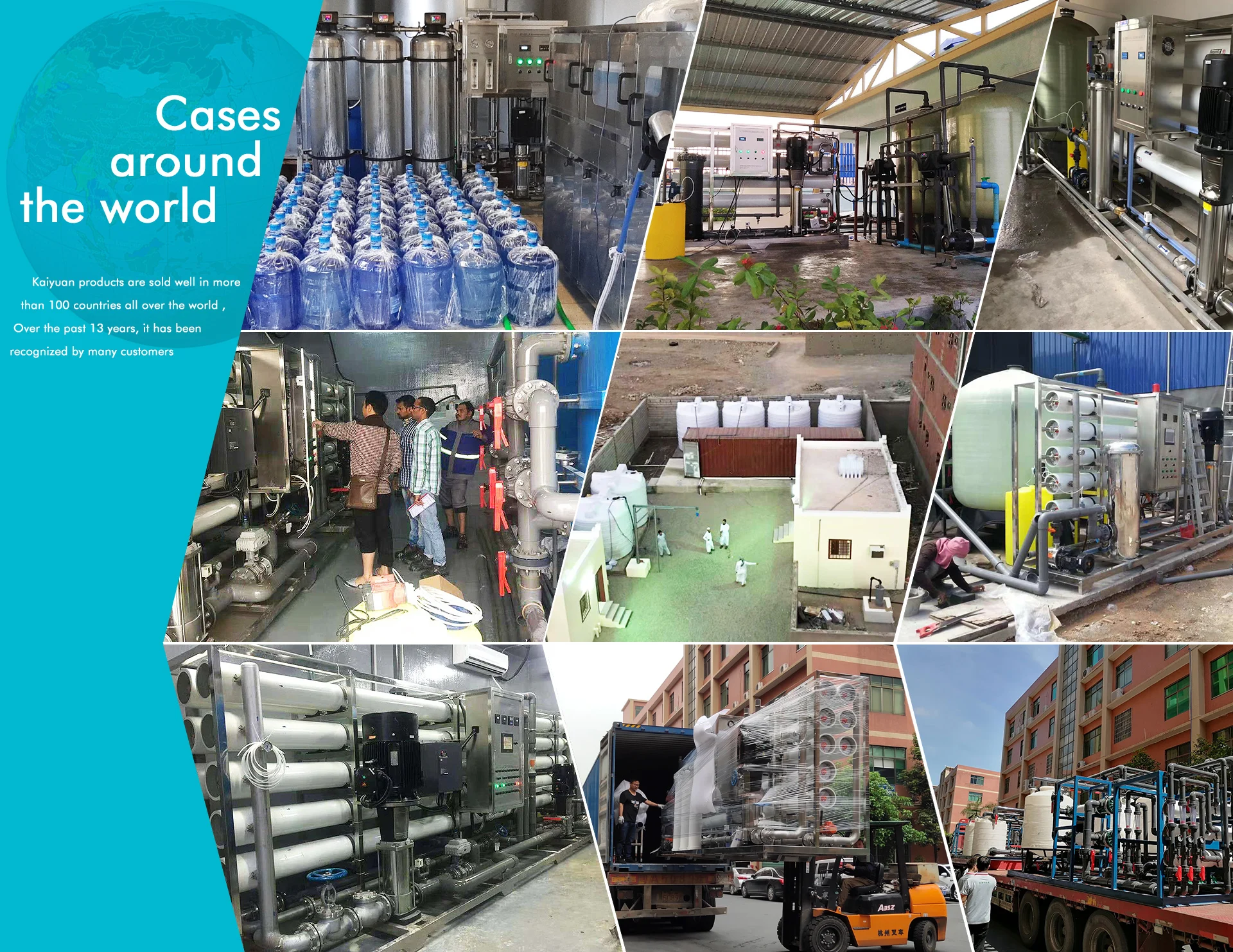

Large Scale Ro Water Treatment and Purification Plant Successful Projects

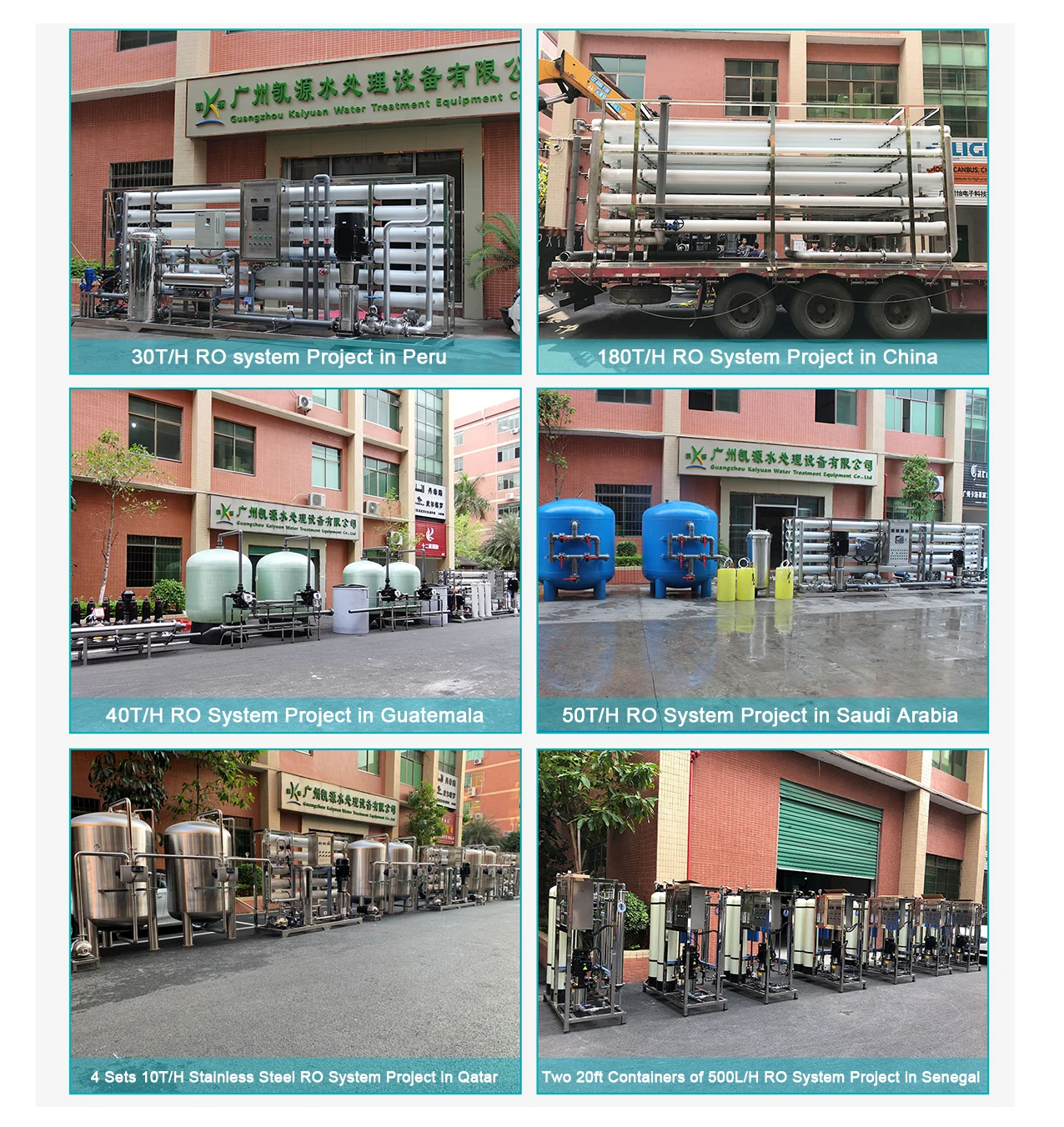

Our Projects
