DPP 260 Small Alu PVC Automatic Honey Jam Peanut Butter Liquid Blister Packing Machine
- Category: >>>
- Supplier: Zhejiang CapsulCN Machinery Co. Ltd.
Share on (60743729083):
Product Overview
Description
Products Description
DPP-260 is flat plate structure, applied to blister filling and sealing packing of melted fruit jam, chocolate, cream and other foods. Full process is automatic, from blister forming to liquid filling, composite film sealing and punching to final products, which greatly reduces labor costs.
Model | DPP-260L |
Punch speed | 10-25 times/min |
Max. forming depth | Standard 26mm,Maximum 50mm |
Air pressure | 0.6mpa-0.8mpa >0.3m3/min |
Power | 380V/220V 50Hz 6kw |
Main motor power | 1.5kw |
Material types | PVC, PET, PS, composite film,aluminium foil |
Material width | 260(330)mm |
Mould cooling | tap water or recycled water 60L/h |
Overall dimension | 2710*720*1600mm |
Weight | 2000kg |
It is specially designed for medium size productions that require a high flexibility.
1) Flat platen type forming and sealing, constant sealing.2) Pressure and temperature ensure a perfect blister.
3) Heat forming and cold forming: PVC, PVC+PVDC, PVC/aclar, PP, ALU-ALU.etc.
4) Easy changeover without tools.
5) Up to 200 blisters/min.
1) Flat platen type forming and sealing, constant sealing.2) Pressure and temperature ensure a perfect blister.
3) Heat forming and cold forming: PVC, PVC+PVDC, PVC/aclar, PP, ALU-ALU.etc.
4) Easy changeover without tools.
5) Up to 200 blisters/min.
Main Application

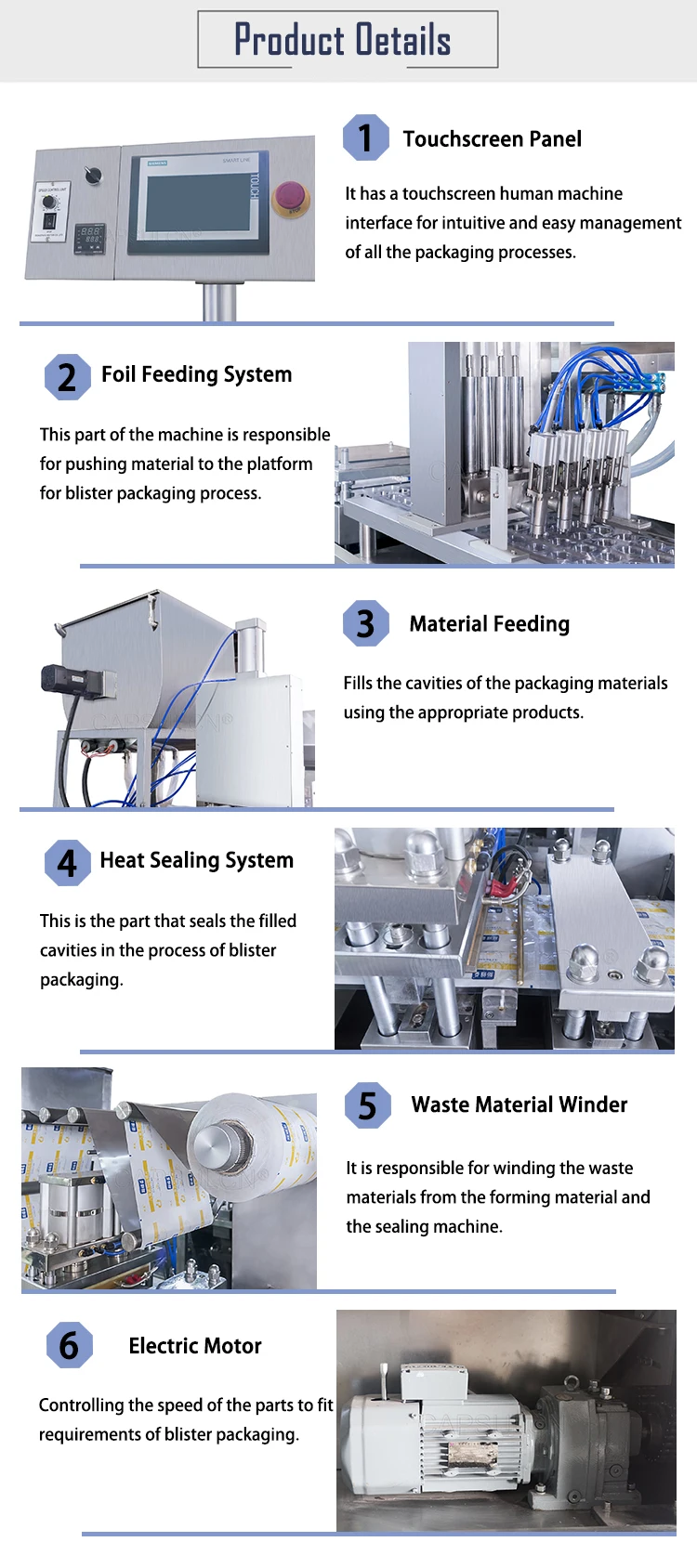

Details Images
Recommend Products
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, packing machine Size.) Contact us>>
Company Profile
COMPANY INFORMATION
As an expert in the phamaceutical and pharmaceutical packaging industry.
Zhejiang CapsulCN Machinery Co, Ltd is specialized in the research, production andrelevant service in the automatic packing machines of pharmaceutical, medical andfood industries.It is a member of National Equipment Association, High-tech Enterprise of Zhejiang Province, and the director unit of Wenzhou Private Management Economy Promotion Association.
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.

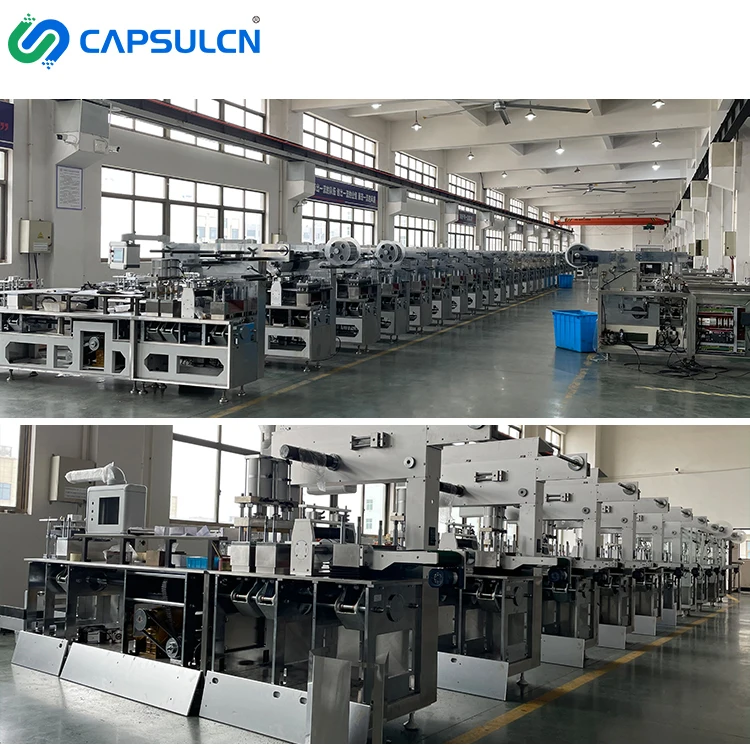

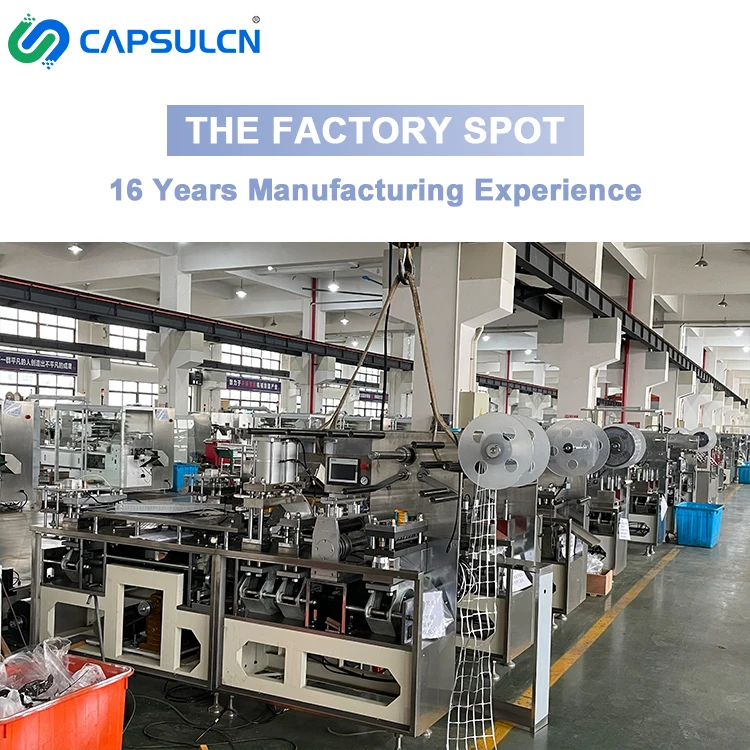

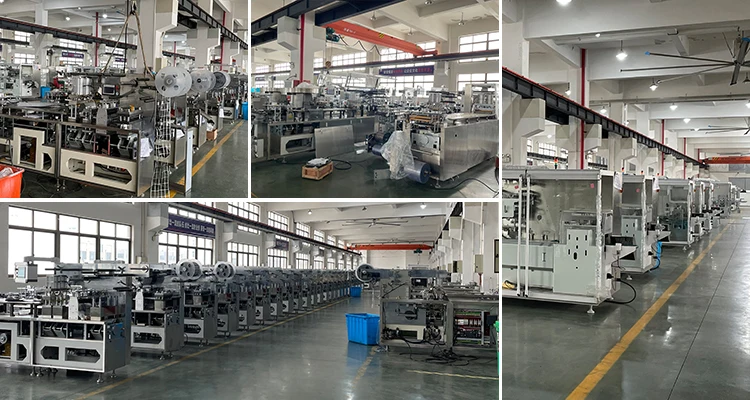

Manufacturing Workshop
Exhibition
OUR EXHIBITION
Committed to the design, manufacture and export of high quality pharmaceutical machinery.
OUR CUSTOMER
Customer-oriented, enthusiastic to serve customers, to provide customers with the best machines, believe CapsulCN.
OUR CERTIFICATES
We have ISO, CE, SGS, BV certificates to support our qualification.
PRODUCT PACKAGING
Machines are wrapped with plastic film for protection，Standard wood packaging for exporting.
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade AssuranceService for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 3 years warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
Please find the contact information on this page, Please click to send us inquiry!
