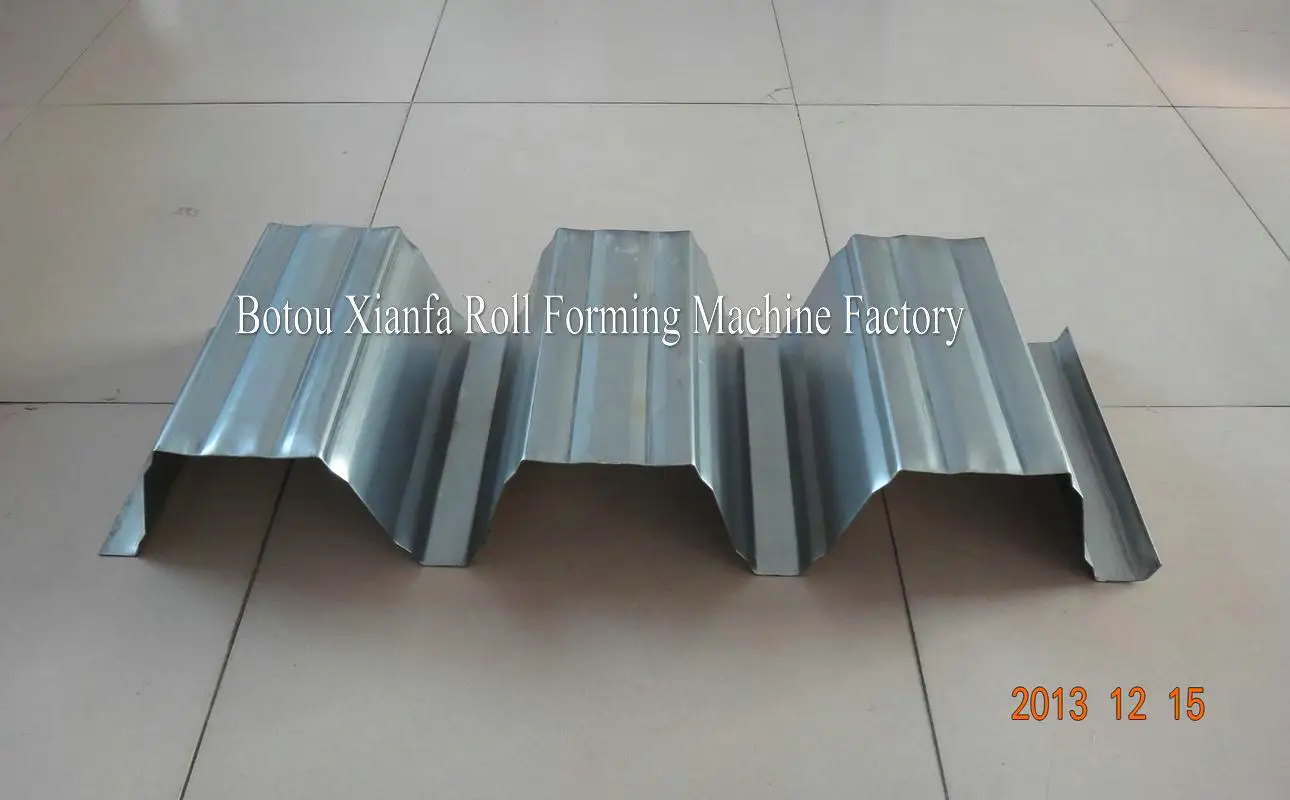

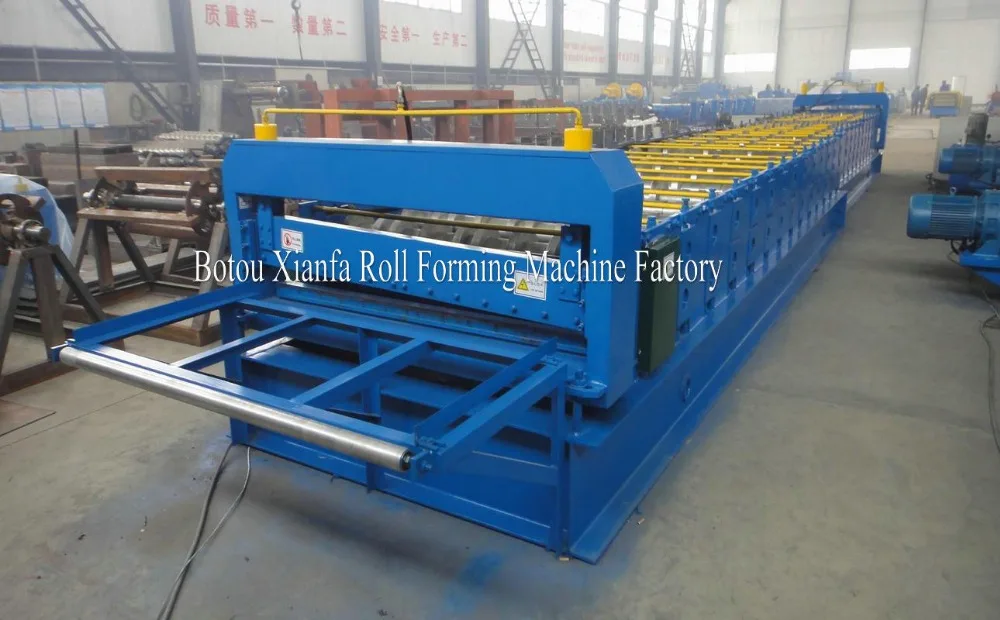

floor deck roll forming machine for the structural concrete galvanized sheet floor deck roll forming machine

No.

Forming machine, steel profile roll forming machine, making machine

1

Suitable to process

GI

2

Width of the plate

1500mm

3

Rollers

26 rows

4

Dimensions

12*1.7*1.4m

5

Power

22+7.5 kw

6

Thickness of the plate

0.8-1.5mm

7

Productivity

8-15m/min

8

Diameter of the roller

Φ70mm

9

Weight

About 6T

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Hydraulic Decoiler with Coil Car

Loading capacity:5T

Inner diameter: 480-520mm

Motor power: 4+3KW

Frequency converter power: 5.5KW

 Feeding Platform

Manual precut steel plate, smooth surface without burr Feeding Platform,Ensure smooth& precise material feed.steel plate platform, two pitching rollers, position stopping block. The coil is guided in the correct position and passed to the roll forming

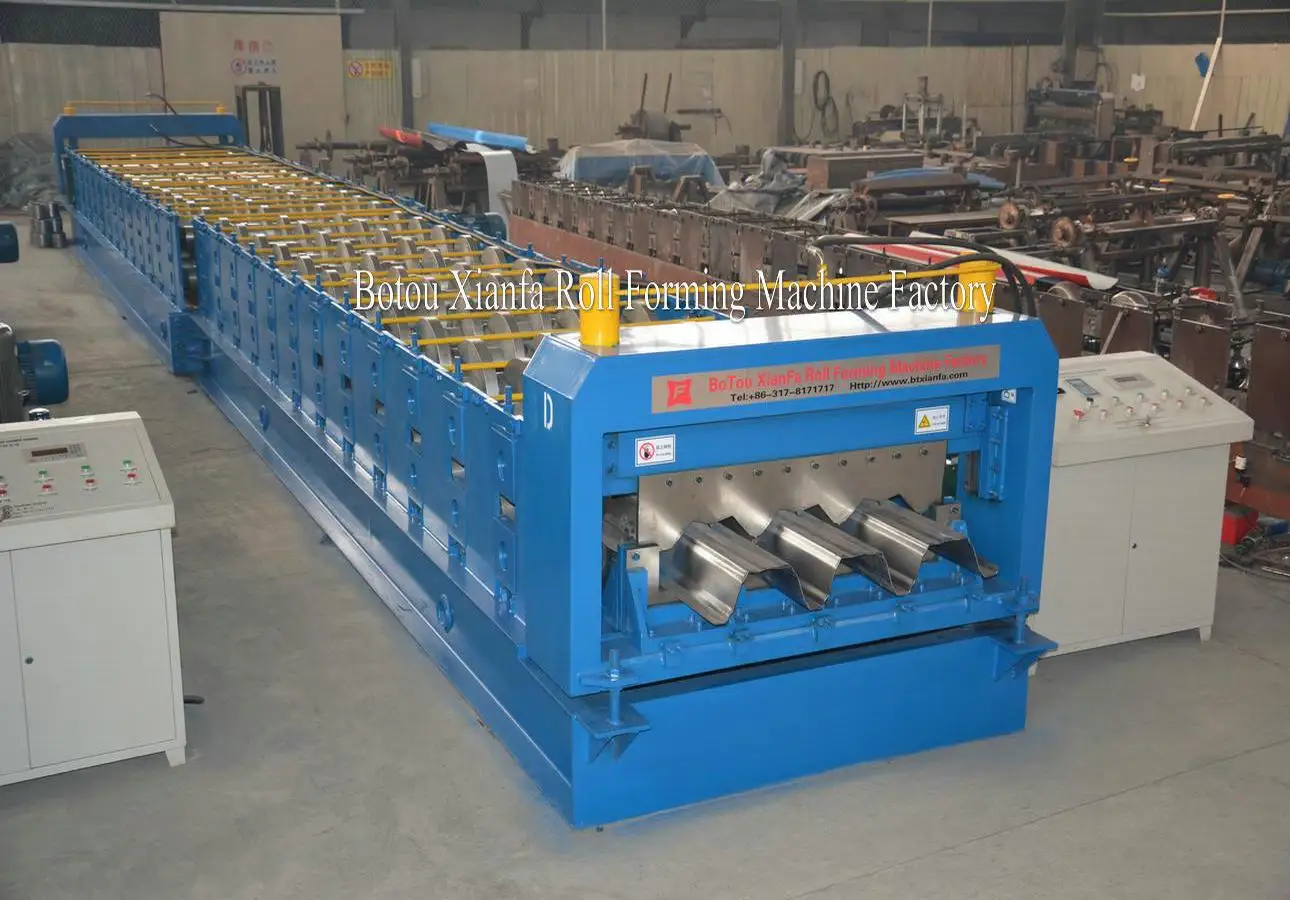

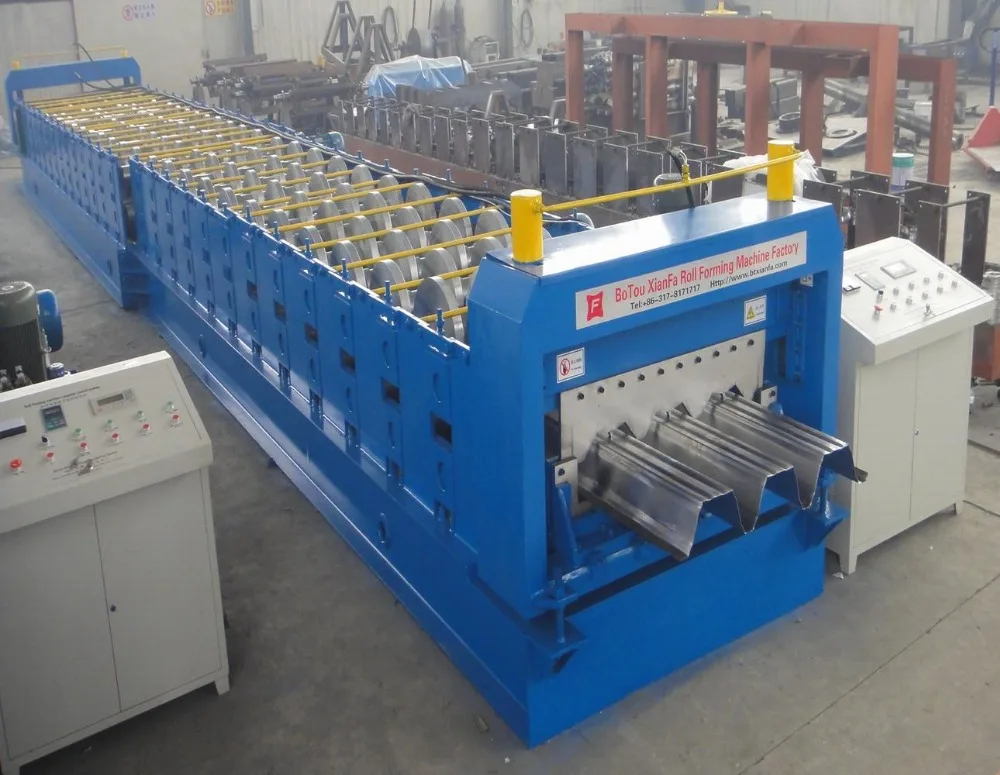

Main Roll Forming Machine

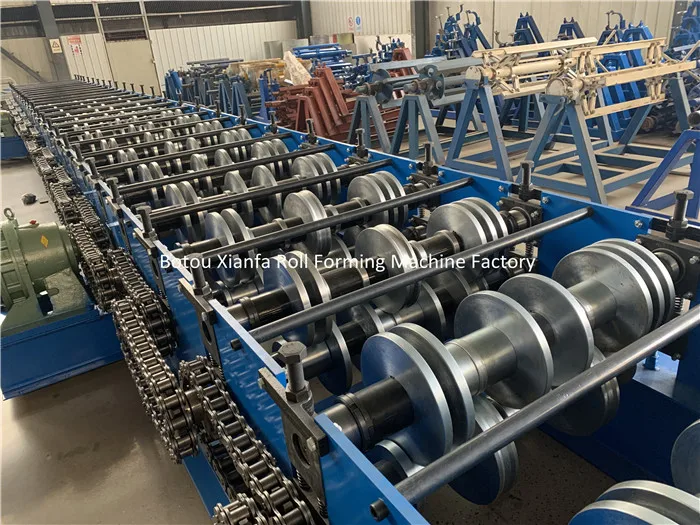

Material of rollers:Bearing Steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

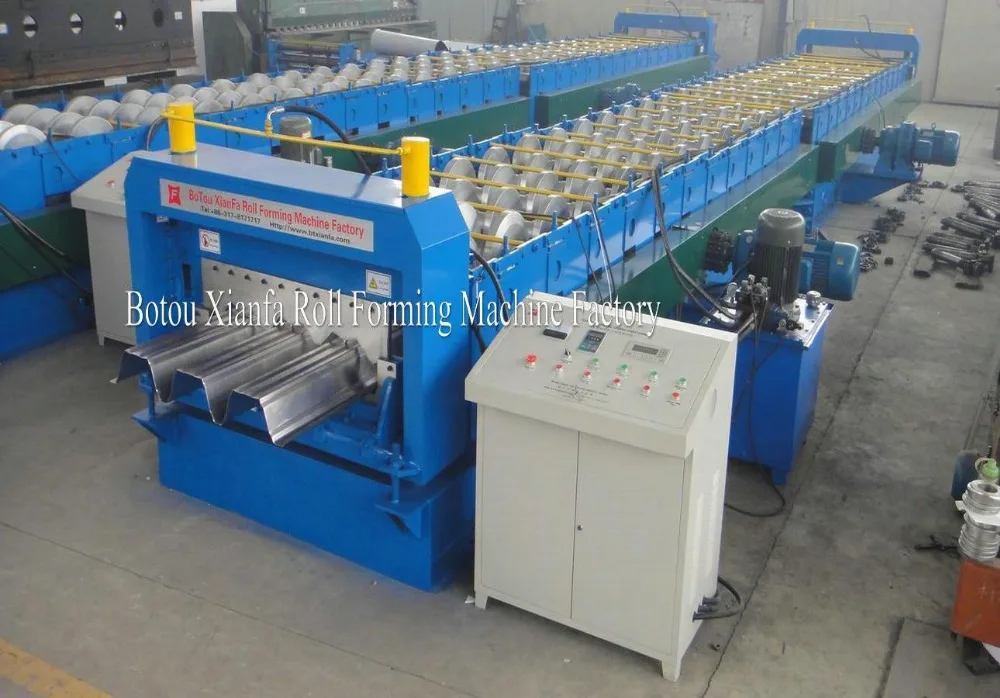

Hydraulic System and Computer Control Cabinet
Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted.

Computed mode has two modes:

automatic and manual one.

The system is easy to operate and use
PLC: Delta   Touch Screen

(Can customize as customer require)

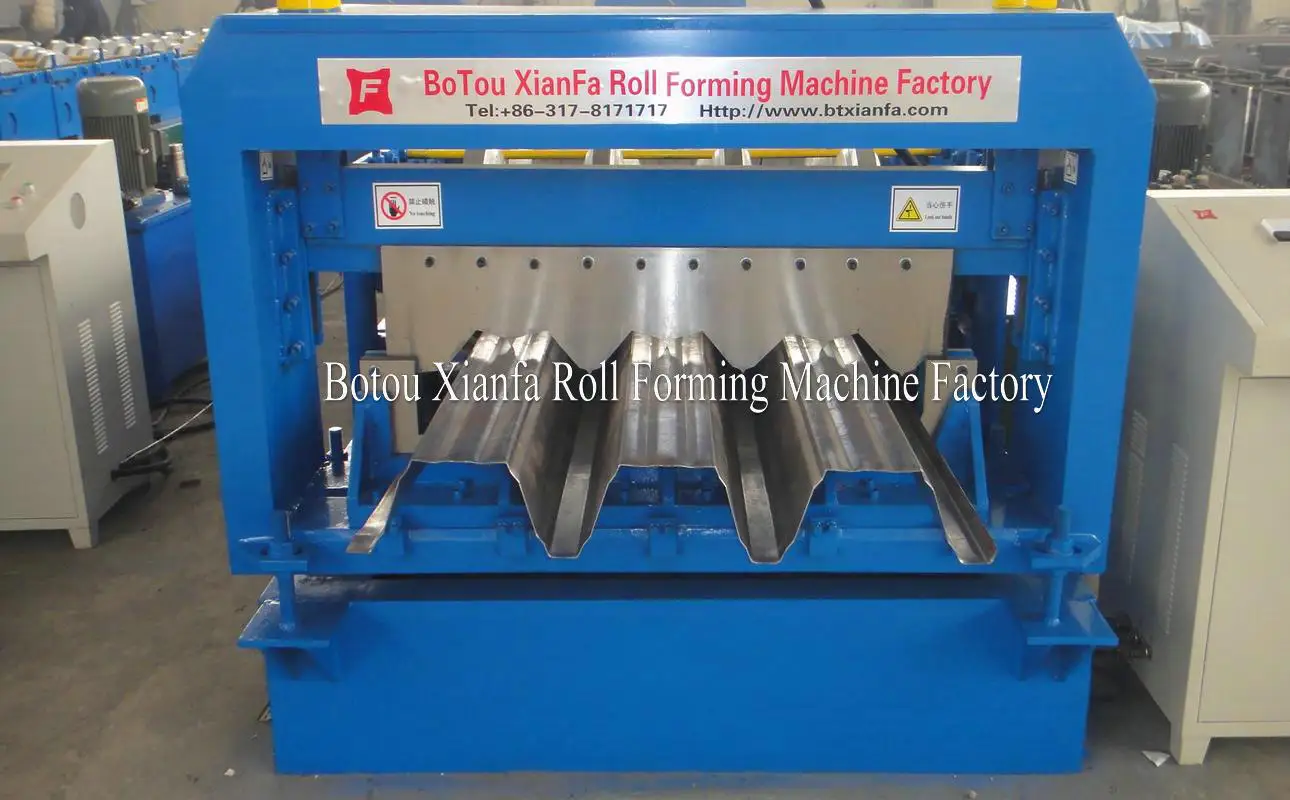

Shearing Mechanism
It adopts the hydraulic drive and

 automatic location to decide the

dimension and cut the target products.
Material of blades: Cr12,

quenching treatment

Output Table
It adopts welded steel and supported

roller to transmit the products,which is

used to collect the finished products.
