Deep water well use of API/ISO stainless steel casing &tubing pipe

Product Overview

Description

Deep water well use of API/ISO stainless steel casing &tubing pipe



Related product:

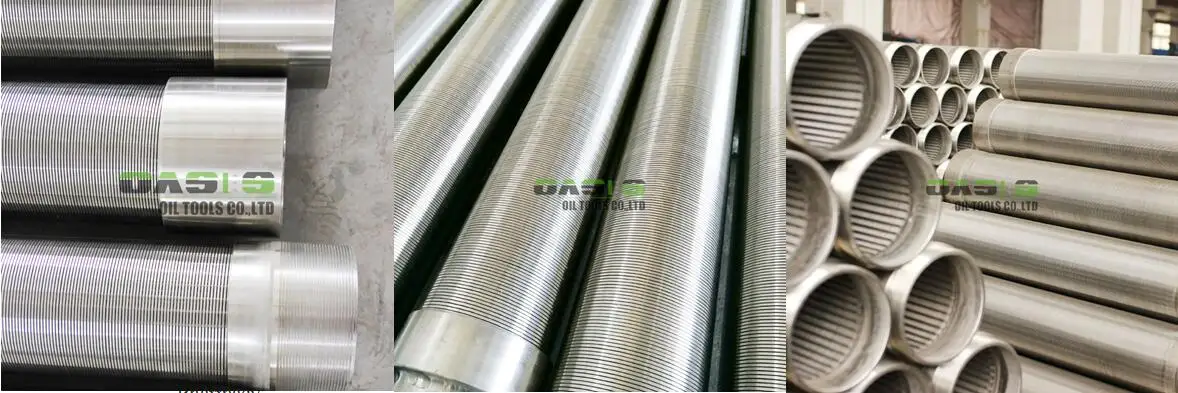

1.water well screen/Johnson screens

2.Pipe based well screens







Product Name	Deep water well use of API/ISO stainless steel casing &tubing pipe
Technique	Hot rolled and weld
Production Standard	API 5CT
Steel grade	ASTM A312,ASTM358, AISI304,AISI304L,AISI316,AISI316L etc
O.D(out diameter)	114.3-508mm
W.T(wall thickness)	5.21-16.13mm
Length	R1(4.88-7.62m), R2(7.62-10.36m), R3(10.36-14.63m)
Connection Type	STC,LTC,BTC,NUE,EUE(manufactured according to API 5CT standard)
MOQ	10 meters
Delivery date	15-60days, according the order quantity
Remark: We also can manufacture other special connection type according to clients' requirement.

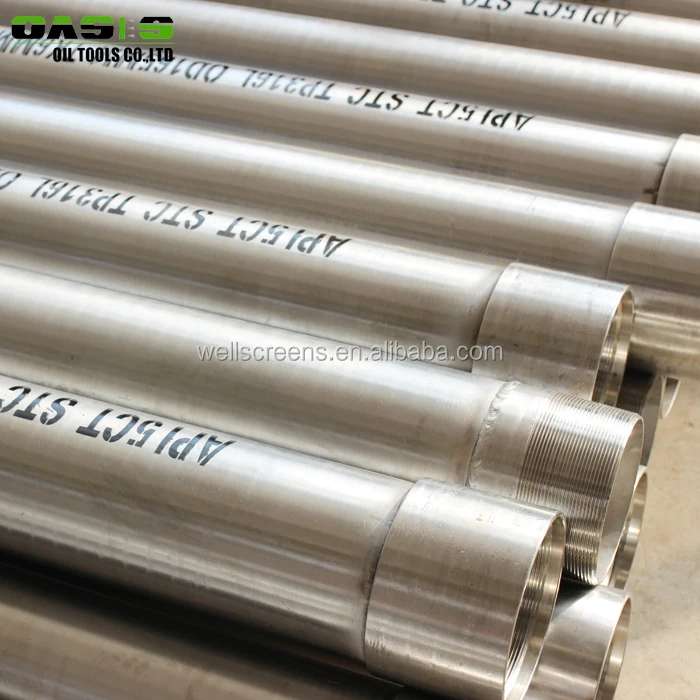

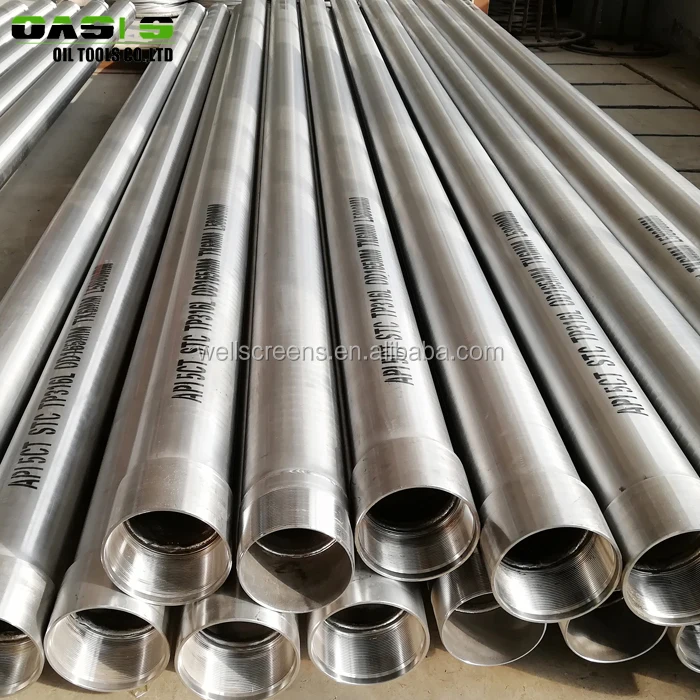

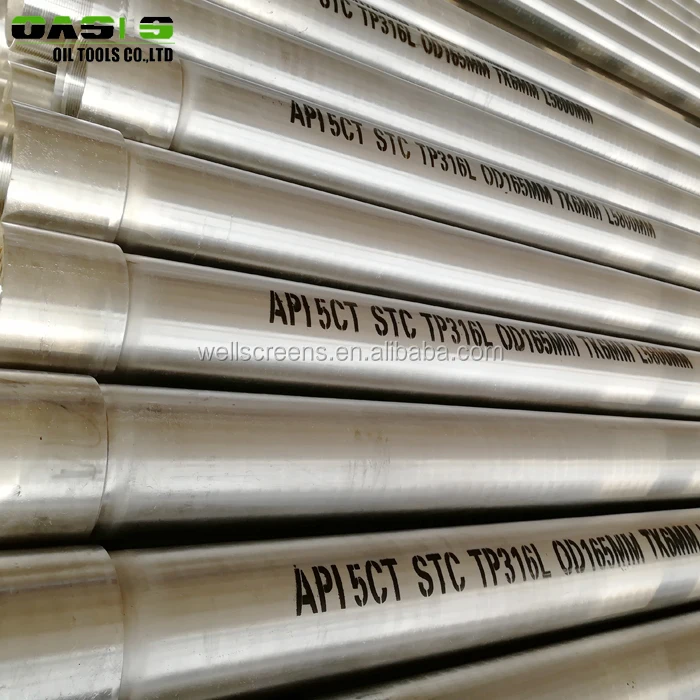

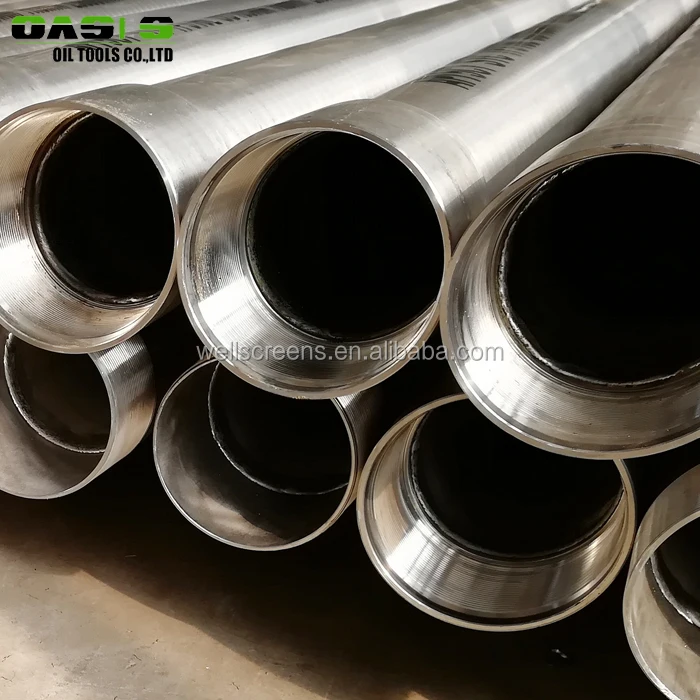

Product picture show of API Steel casing pipe:











Specifications table:

Size		Weight		Steel Grade	Wall Thickness
Inch	mm	ppf	Kg/m		mm
4-1/2	114.30	11.49	17.12	304,304L,316,316L,	6.35
		13.21	19.68	304,304L,316,316L	7.37
5	127.00	15.07	22.45	304,304L,316,316	7.52
		18.34	27.31	304,304L,316,316L	9.29
		21.57	32.12	304,304L,316,316L	11.10
5-1/2	139.70	17.09	25.44	304,304L,316,316L	7.72
		20.07	29.89	304,304L,316,316L	9.17
		22.83	33.99	304,304L,316,316L	10.54
7	177.80	22.92	34.12	304,304L,316,316L	8.05
		25.98	38.69	304,304L,316,316L	9.19
		29.09	43.31	304,304L,316,316L	10.36
9-5/8	244.48	43.26	64.41	304,304L,316,316L	11.05
		46.75	69.61	304,304L,316,316L	11.99
10-3/4	273.05	39.38	58.64	304,304L,316,316L	8.89
		5015	74.67	304,304L,316,316L	11.43
13-3/8	339.73	53.42	79.54	304,304L,316,316L	9.65
		66.96	99.69	304,304L,316,316L	12.19
16	406.4	63.43	94.45	304,304L,316,316L	9.53
		73.78	109.86	304,304L,316,316L	11.13
18-5/8	473.10	85.62	127.49	304,304L,316,316L	11.05
20	508.00	92.74	138.09	304,304L,316,316L	11.13
		105.49	157.07	304,304L,316,316L	12.70



The quality test of API/ISO stainless steel casing pipes:







Application of Api casing and tubing pipe

For oil and water well use

1)Plastic threads cap packing.          2)The plastic caps.                               3)The PIL shipping company

1)The plastics threads cap packing for the pipes and the plastic cap on the side of the pipes(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).

2)the bule plastic caps be covered on the both side of the pipes(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).

3)Under the same shipping fees, we choose the quick shipping line to save time for the clients.(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).





Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with more than 150 staff, among them 6 persons are senior engineer. OASIS is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/ Johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Oasis has the right to export well screens independently. Our water well screens have been exported to Russia, Sudan, Tunisia, Morocco, Saudi Arabia, Slovenia, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, Columbia etc. Countries, and have received good feedback from customer at domestic and abroad.







Our Certification:

If you have any interested with our produuct, please contact with me with follows specifications of API/ISO stainless steel casing &tubing, the newest catalogue and precise price list will follows;

1, What's the material you are going to chooes, stainless steel 304,304L,316,316L?

2,What's the OD, length? Diameter from 30-600mm,length from 1-6m

3, What's the thickness of API/ISO STAINLESS STEEL CASING & TUBING PIPES? Usually it is depends on your well depth.

4,We support you consider transportation too.

5, What's the connection way, bevelded, threads, plain ends or flange?
